Bently Nevada 330102-00-35-05-02-05 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

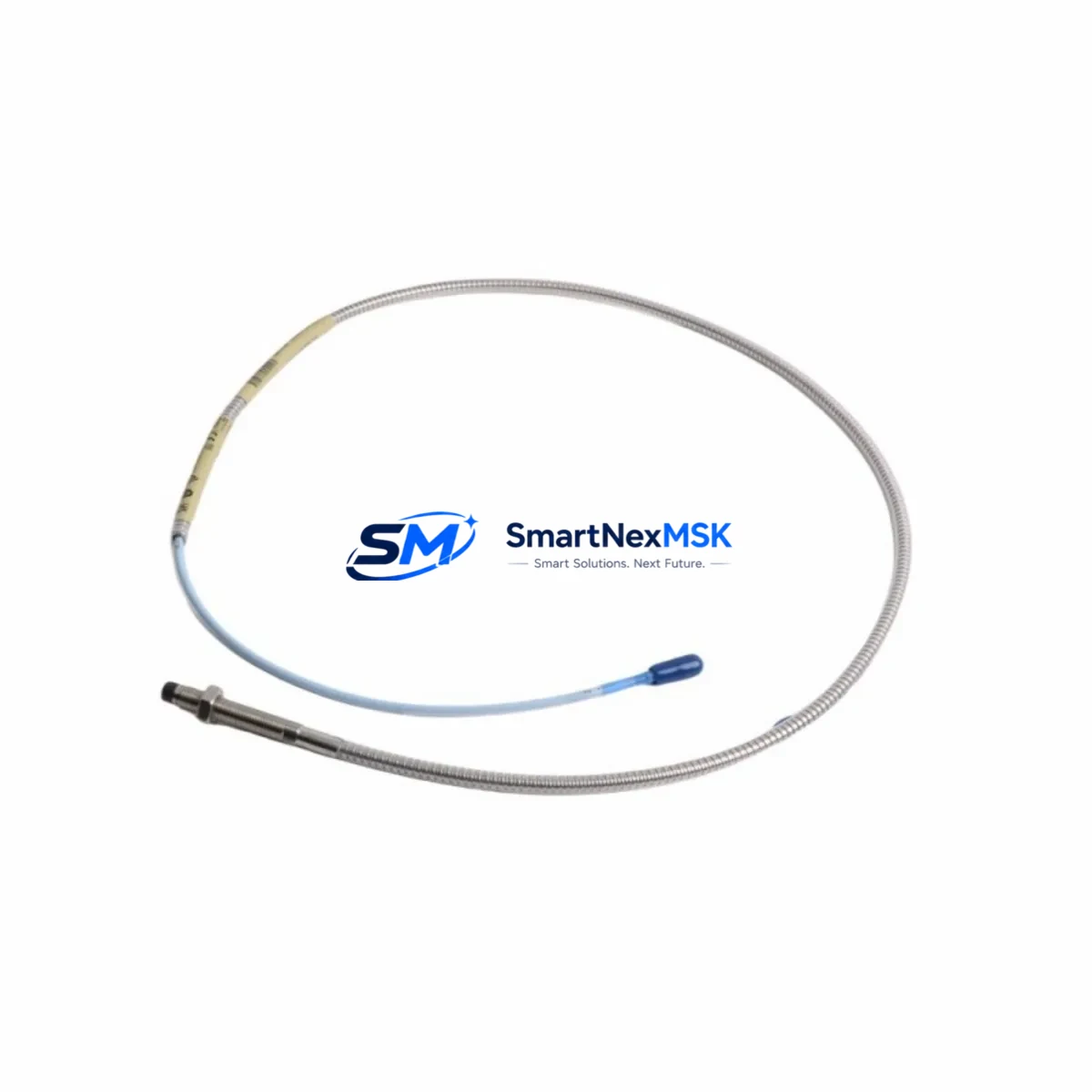

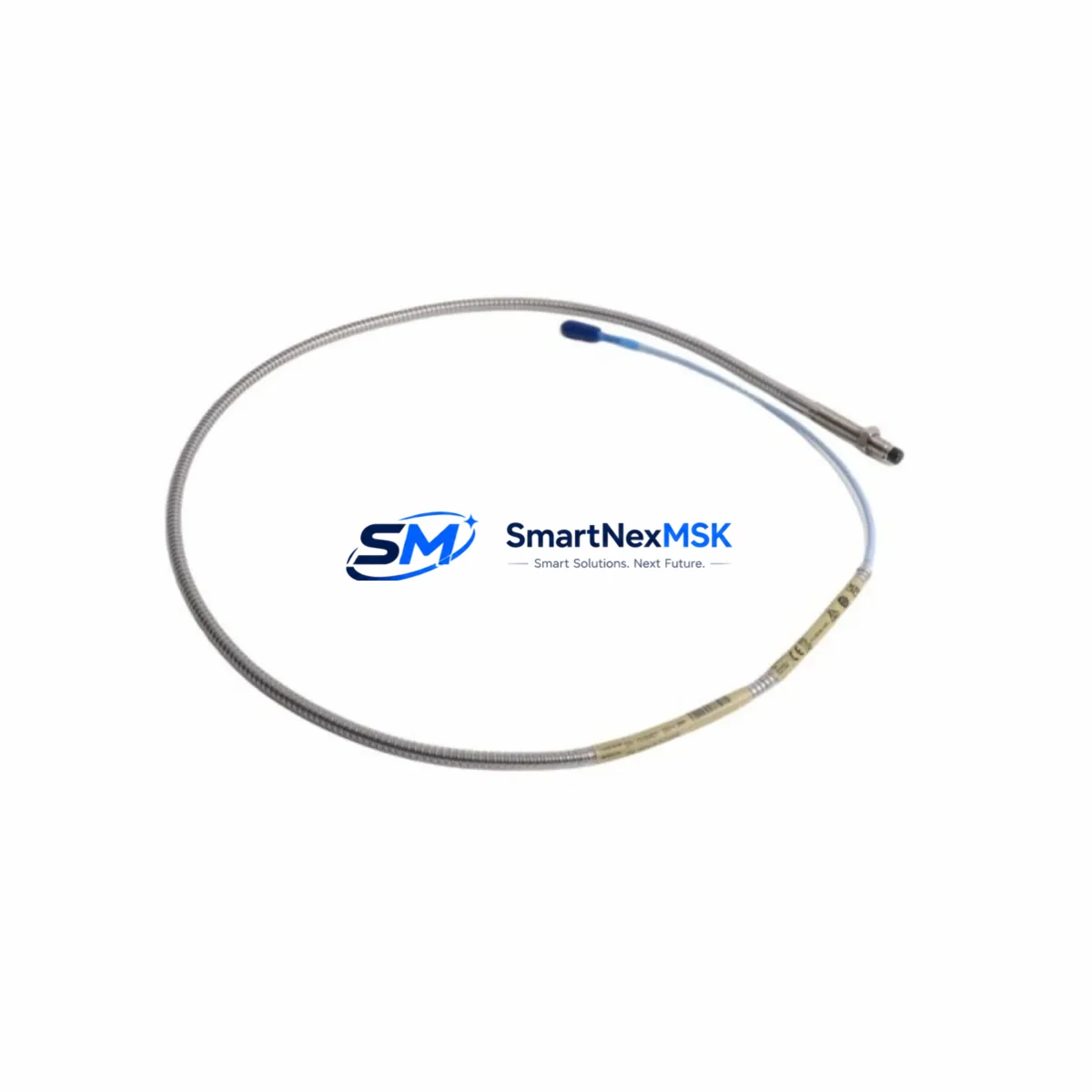

The Bently Nevada 330102-00-35-05-02-05 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series machinery protection platform. As legacy vibration monitoring systems reach end-of-life or face discontinued spare parts availability, this transducer serves as a verified retrofit-ready replacement that preserves existing wiring infrastructure, signal conditioning architecture, and rack-level compatibility. Whether you are upgrading a turbine protection panel, replacing a failed sensor on a compressor train, or modernizing a control cabinet that still runs on 3300 XL signal conditioners, this unit delivers the dimensional accuracy, gap voltage linearity, and cable length specification required for seamless field substitution.
The 330102-00-35-05-02-05 operates within the standard Bently Nevada proximity system chain: transducer, extension cable, and proximitor. When retrofitting, engineers must confirm that the existing 3300 XL proximitor — such as the 3300/16 or 3300/20 — remains compatible with the 8mm tip diameter and the -24 VDC bias voltage range. The transducer’s 5-metre armored cable and 5-metre extension cable configuration (total 10 metres) must be verified against the installed proximitor’s calibrated range. Substituting cable lengths outside the calibrated set will shift the gap voltage curve and introduce measurement error, which is a critical checkpoint during pre-commissioning verification.
Upgrade Compatibility Table
| Parameter | Specification / Compatibility Note |
|---|---|
| SKU | 330102-00-35-05-02-05 |
| Series | Bently Nevada 3300 XL |
| Tip Diameter | 8 mm eddy-current |
| Cable Configuration | 5m transducer cable + 5m extension cable |
| Proximitor Compatibility | 3300/16, 3300/20, 3300/25 proximitor modules |
| Connector Type | Standard BNC / coaxial per 3300 XL spec |
| Bias Voltage | -24 VDC nominal (verify with installed proximitor) |
| Installation | Direct drop-in; confirm bracket thread and gap clearance |
| Communication / Signal | Analog voltage output; no protocol migration required |
| Replacement Recommendation | Verify full cable set (transducer + extension) from same calibrated lot |
| Commissioning Focus | Gap voltage at mid-range, linearity check, OK relay status |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
Retrofitting a 3300 XL proximity system requires a structured approach that accounts for every component in the measurement chain. The transducer itself is only one element; the 3300 XL proximitor module mounted in the rack, the I/O terminal block wiring, the rack power supply, and the system monitor all interact to produce a valid vibration reading. Before removing the failed or obsolete transducer, technicians should document the installed gap voltage (typically between -10 VDC and -18 VDC at operating clearance) and record the OK relay status from the 3300 System Monitor or the 3500/22M transient data interface module.
In many retrofit scenarios, the control cabinet also houses companion components that must be evaluated for compatibility. The 3300/16 proximitor is the most common signal conditioner paired with 8mm transducers in this series, and its calibration is matched to a specific transducer-cable combination. If the cabinet also contains a 3500/42M four-channel position monitor or a 3500/40M proximitor I/O module as part of a broader 3500 Series migration, the wiring pinout and terminal block assignments will differ and must be remapped. Similarly, if the plant is transitioning from a standalone 3300 XL rack to a fully integrated 3500 Series rack, the 3500/20 rack interface module and 3500/15 power supply module must be confirmed as installed and powered before the new transducer is commissioned.
For facilities running older DCS platforms that interface with the 3300 XL via 4–20 mA or hardwired relay outputs, the retrofit is generally transparent to the control system — no program changes are required in the DCS controller or the HMI display. However, if the plant has upgraded to a System 1 Evolution condition monitoring software platform, the transducer channel configuration in the software database should be reviewed to ensure the gap, sensitivity, and OK limits remain aligned with the replacement unit’s calibration certificate. Shipping documentation for the 330102-00-35-05-02-05 includes a factory calibration report that can be used directly for this database update.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer replacement requires pre-staging all components before the maintenance window opens. The 330102-00-35-05-02-05 should be bench-tested against a spare 3300/16 proximitor prior to installation to confirm the gap voltage curve and OK relay operation. This pre-commissioning step, which takes approximately 20 minutes, eliminates the risk of discovering a calibration mismatch after the machine is taken offline.
During the swap, the original program logic in the 3300 System Monitor — including the danger and alert setpoints, the time-delay relay settings, and the buffered output assignments — does not need to be modified if the replacement transducer is from the same calibrated cable set. The existing terminal block wiring can be reused without re-termination in most cases, provided the cable jacket is undamaged and the connector is clean. After installation, a cold-start gap check with the shaft stationary confirms the sensor is correctly positioned before the machine is returned to service. The OK relay should energize within the expected gap range, and the buffered output voltage should match the pre-removal baseline recorded in the maintenance log.
Retrofit Support FAQ
Q1: Is the 330102-00-35-05-02-05 a direct replacement for the original Bently Nevada part?
Yes. This unit is manufactured to the original Bently Nevada 3300 XL specification and is a verified drop-in replacement. The tip diameter, cable length, connector type, and sensitivity factor are identical to the original, ensuring no recalibration of the proximitor or system monitor is required.
Q2: What wiring changes are needed during installation?
In most cases, no wiring changes are required. The existing coaxial cable from the proximitor to the junction box can be reused. If the extension cable is also being replaced, ensure the new extension cable is from the same calibrated set as the transducer to maintain the correct gap voltage curve.
Q3: How is compatibility with the 3300 XL proximitor verified before installation?
Connect the transducer and extension cable to a bench-mounted 3300/16 proximitor powered at -24 VDC. Adjust the gap from 0.25 mm to 2.5 mm and record the output voltage at each increment. The resulting curve should match the calibration certificate supplied with the unit. OK relay should energize between -10 VDC and -18 VDC.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit is tested prior to dispatch and ships with a calibration report. Warranty claims are processed within 5 business days, and a replacement unit can be dispatched immediately upon confirmation of the defect to minimize production impact.
