Bently Nevada 330102-00-36-05-02-05 Spare 3300 XL: Precision Replacement for Industrial Vibration Monitoring

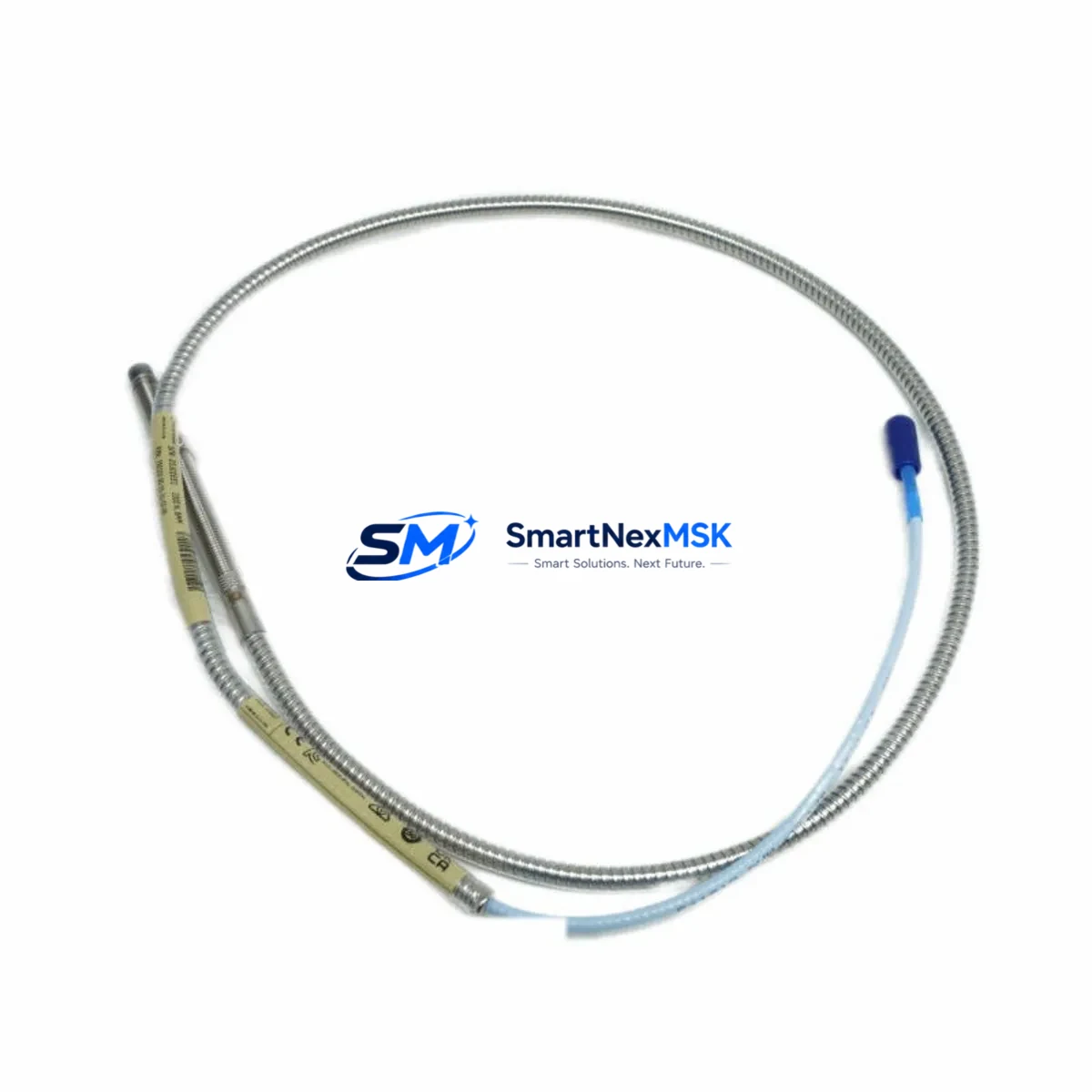

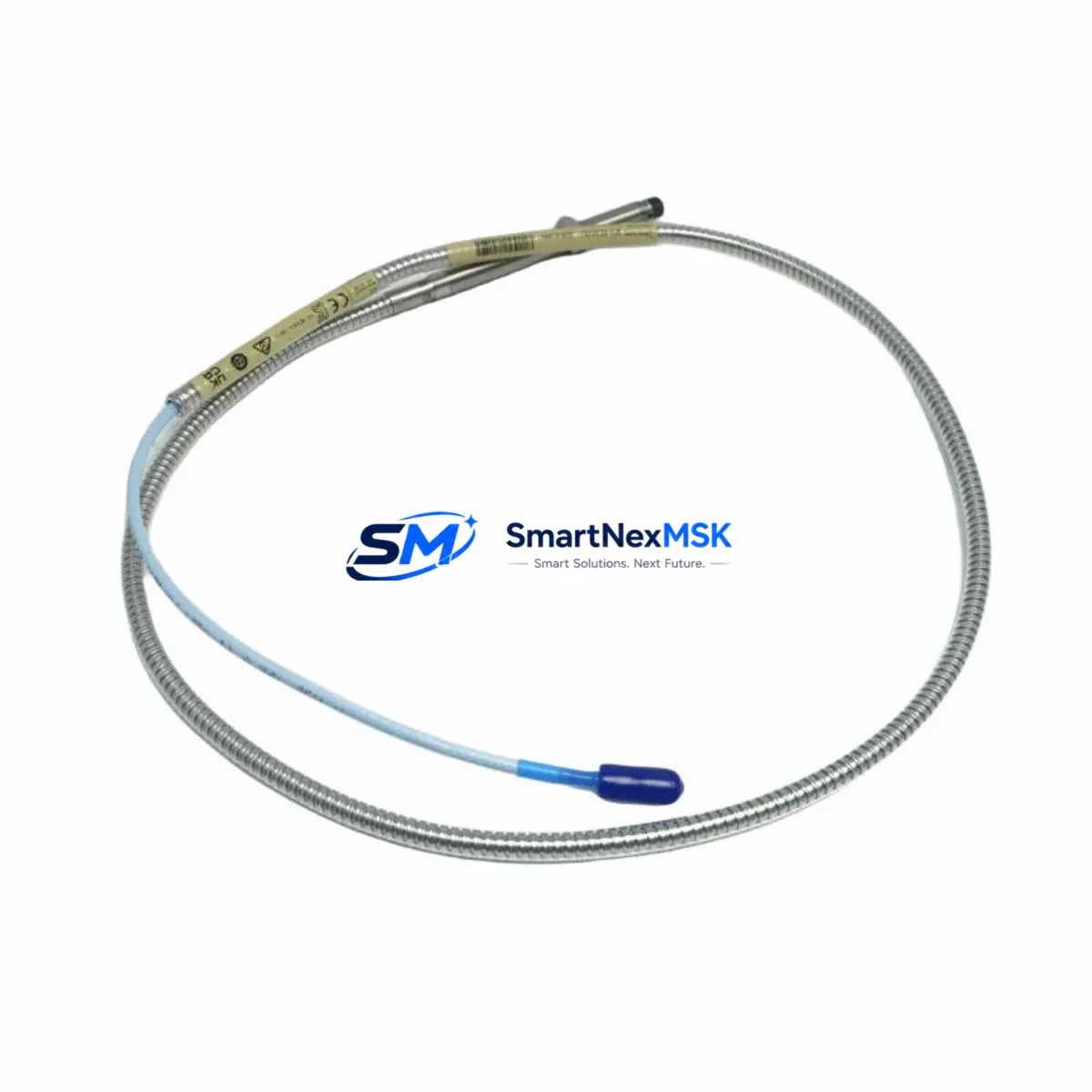

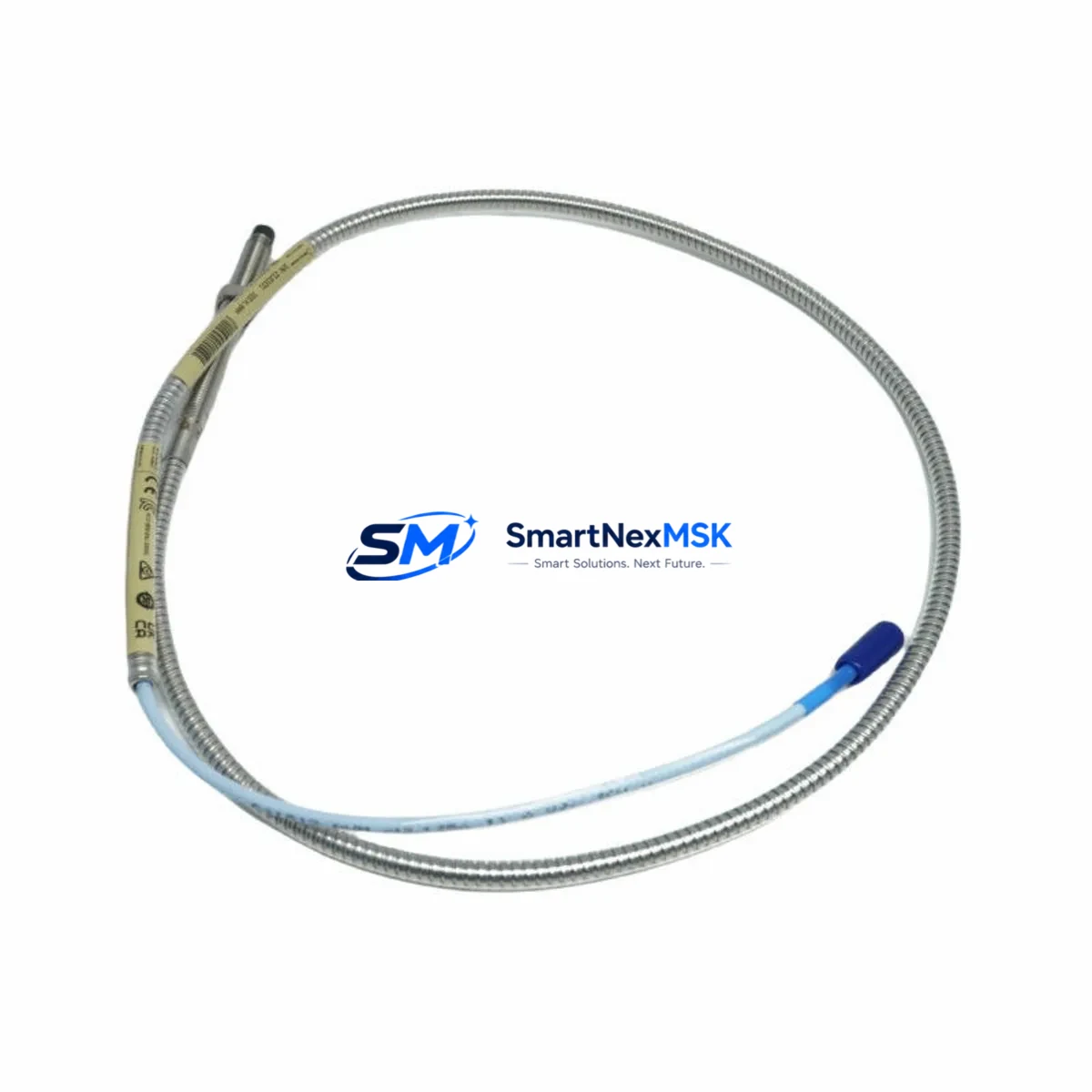

The Bently Nevada 330102-00-36-05-02-05 is a 5mm eddy-current proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in power generation, oil & gas, petrochemical, and heavy industrial environments, this transducer delivers reliable shaft displacement and vibration measurements critical to preventing unplanned downtime. Sourced as an original spare, each unit is inspected and tested prior to shipment, backed by a 12-month warranty, and available for fast worldwide delivery to support your maintenance and emergency replacement requirements.

Whether you are executing a planned outage, responding to a vibration alarm, or building a critical spare inventory for a turbine or compressor train, the 330102-00-36-05-02-05 is a direct, drop-in replacement that maintains full compatibility with the Bently Nevada 3300 XL monitoring architecture without requiring system reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-00-36-05-02-05 proximity transducer during a scheduled or emergency maintenance event, a thorough inspection of the surrounding measurement loop is essential to ensure system integrity and avoid repeat failures. Maintenance engineers should begin by verifying the condition of the extension cable — typically the 330130-045-00-00 or equivalent 3300 XL series extension cable — which connects the transducer to the proximitor/driver. Cable insulation degradation, connector corrosion, or shield continuity loss are common root causes of erratic vibration readings that are often misattributed to the transducer itself.

The proximitor/driver module, such as the Bently Nevada 330180-X1-05 or 330180-51-05, should be bench-tested or swapped with a known-good unit to confirm signal output within specification before the new transducer is commissioned. Simultaneously, inspect the 3300 XL monitor rack — including the 3300/16 or 3300/20 monitor cards — for any indication of channel faults, blown fuses, or relay output anomalies that may have been triggered by the original transducer failure.

For installations on steam turbines or gas compressors, it is good practice to also inspect the Keyphasor transducer (e.g., 330980-50-05) and its associated driver, as phase reference integrity directly affects the accuracy of 1X and 2X vibration vector analysis. If the machine has been running with degraded vibration data, a full gap voltage verification across all active proximity probes in the bearing housing is recommended before returning the unit to service.

Power supply modules feeding the 3300 XL rack — such as the Bently Nevada 3300/05 power supply — should be checked for output voltage stability under load. Unstable DC supply is a known contributor to transducer sensitivity drift. Terminal blocks, cable glands, and grounding connections within the junction box should also be inspected for tightness and corrosion, particularly in high-humidity or outdoor-rated enclosures. Where signal isolation is required between the field device and the control room DCS input, verify that any signal isolator or barrier in the loop (such as a Zener barrier or galvanic isolator for IS-rated installations) is functioning correctly and has not introduced impedance that affects the –24 VDC bias circuit.

Maintaining a minimum of two 330102-00-36-05-02-05 units in your critical spare inventory — alongside matched extension cables and at least one spare proximitor — is a widely adopted strategy for rotating equipment reliability programs targeting zero unplanned downtime on critical machinery trains.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor channel associated with the faulty transducer. Confirm the channel is in bypass or inhibit mode to prevent spurious shutdown trips during replacement.

Step 2 — Removal: Disconnect the coaxial cable at the junction box. Unthread the transducer body from the bearing housing bracket. Note the gap setting (typically 50 mil / 1.27 mm for 5mm probes) using a recorded baseline or OEM documentation.

Step 3 — Installation: Thread the new 330102-00-36-05-02-05 into the bracket. Set the gap voltage to –10.0 VDC ±0.5 VDC (corresponding to the nominal 50 mil air gap) using a digital voltmeter at the proximitor output terminals. Reconnect the extension cable and verify continuity and shield integrity.

Step 4 — Commissioning: Re-energize the monitor channel. Confirm gap voltage, direct voltage (DC), and dynamic (AC) vibration readings are within expected baseline ranges. Compare 1X amplitude and phase against historical trend data. Remove bypass/inhibit and return the channel to normal protection mode.

Step 5 — Documentation: Record the replacement date, new transducer serial number, gap voltage as-left value, and any observed changes in vibration signature. Update the CMMS spare parts record and replenish inventory.

This workflow is compatible with legacy 3300 Series installations and current 3300 XL deployments, ensuring a seamless transition without requiring monitor reconfiguration or recalibration of adjacent channels.

Spare Parts Support FAQ

Q1: Is the 330102-00-36-05-02-05 compatible with both the original 3300 Series and the 3300 XL Series monitors?
The 330102-00-36-05-02-05 is designed and specified for the 3300 XL Series. While the physical form factor is similar to earlier 3300 Series probes, compatibility with non-XL monitors should be verified against the monitor’s input specification sheet, particularly sensitivity (200 mV/mil) and gap voltage range. When in doubt, confirm with your instrumentation engineer before installation.

Q2: What is included in the 12-month warranty, and what does pre-shipment testing cover?
Each unit undergoes electrical continuity verification, sensitivity check, and gap voltage output confirmation prior to dispatch. The 12-month warranty covers manufacturing defects and performance deviations from published specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside rated environmental limits.

Q3: How should I manage spare inventory for proximity transducers on a critical machinery train?
Industry best practice for critical rotating equipment (Category A machinery) recommends holding a minimum of two transducers per probe position type, one matched extension cable set, and one spare proximitor/driver per monitor rack. For plants with multiple identical machines, a pooled critical spare strategy — with defined replenishment triggers — reduces carrying cost while maintaining availability targets.

Q4: Can I use a different cable length variant as a direct replacement?
The 330102-00-36-05-02-05 specifies a 36-inch integral cable. Substituting a different cable length variant (e.g., 330102-00-18-05-02-05 for 18-inch) will change the total system cable length and may require re-verification of the gap voltage and sensitivity calibration at the proximitor. Always match the total cable length (transducer + extension) to the value specified in the original system design documentation.

—
