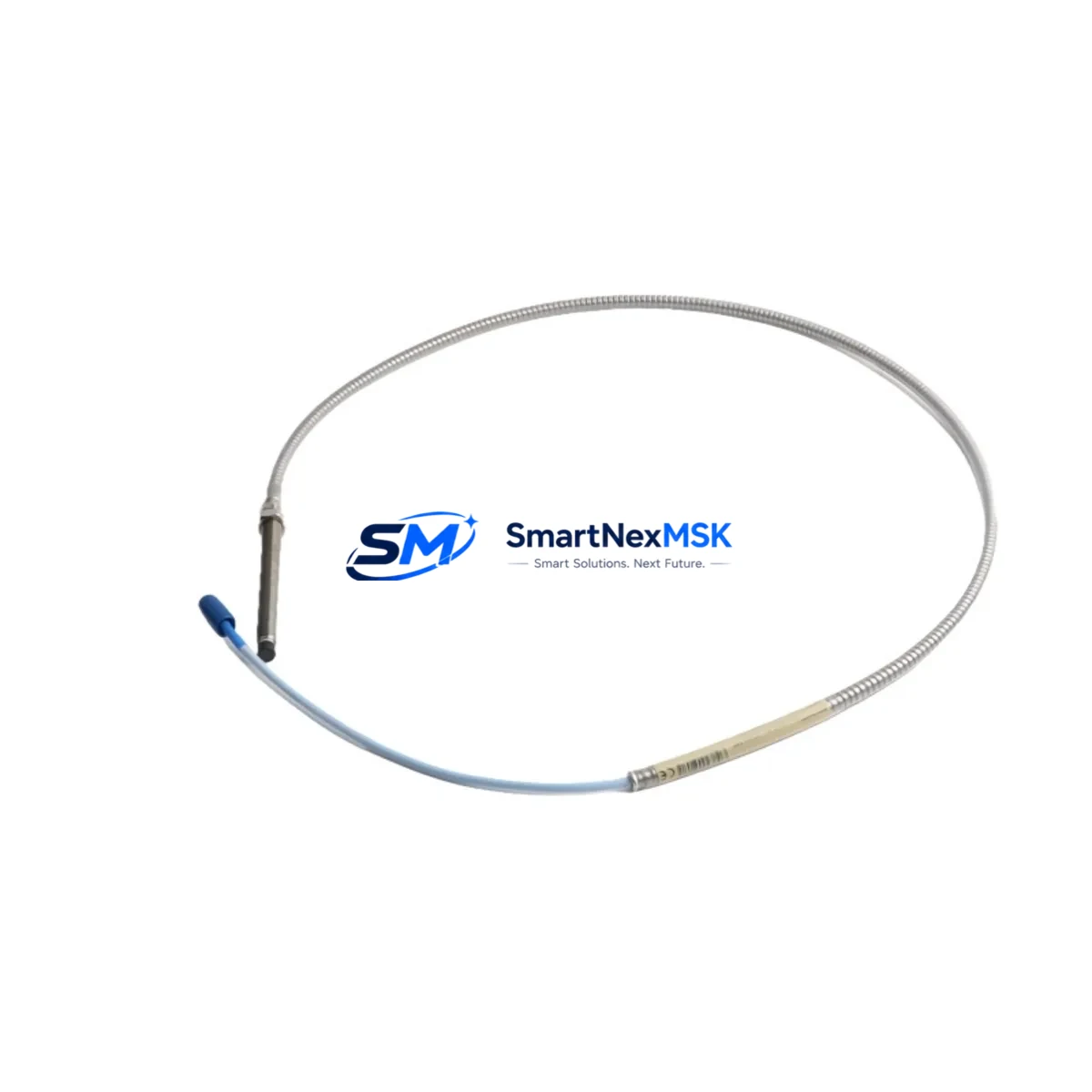

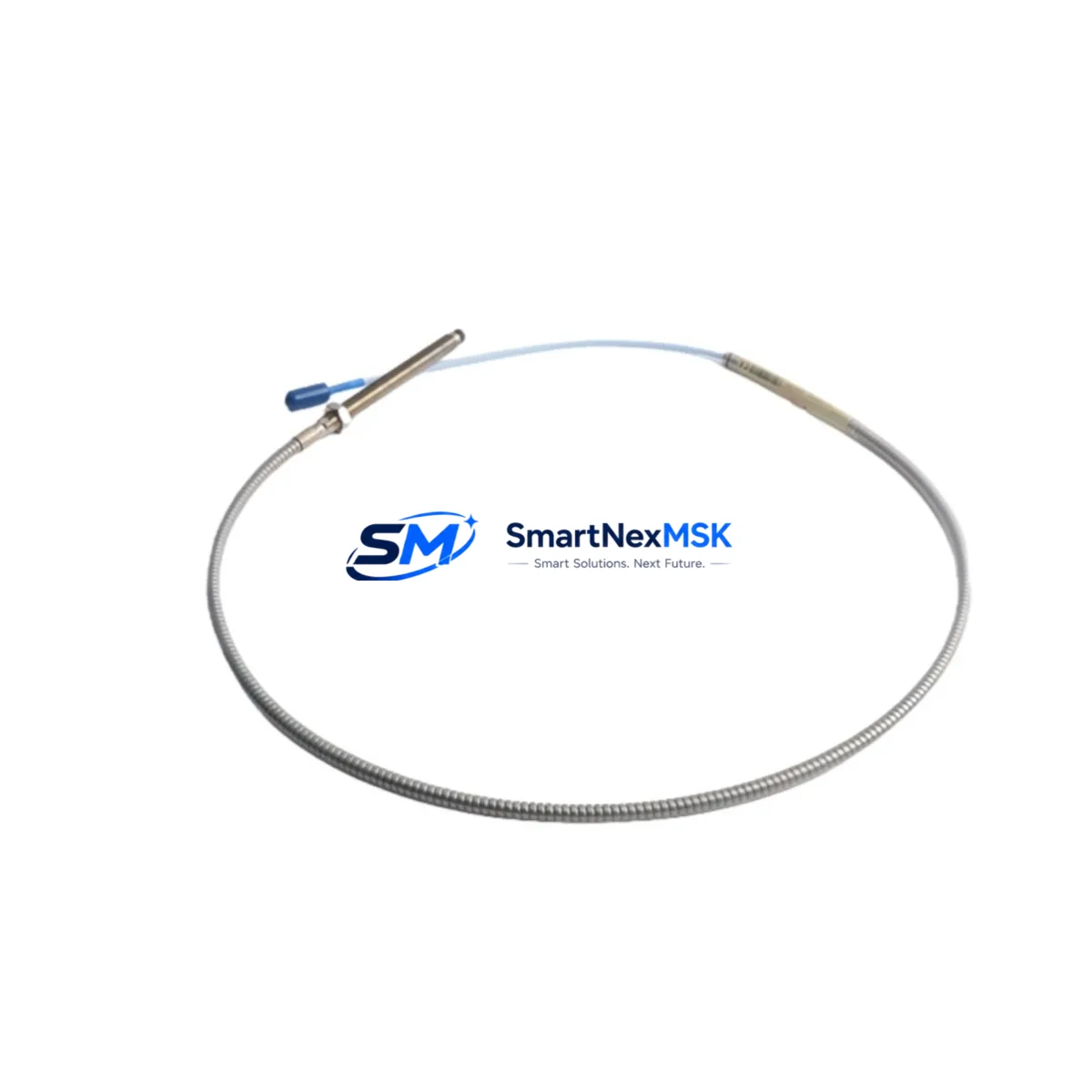

The Bently Nevada 330102-00-40-05-02-00 is an original eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed for shaft displacement, radial vibration, and axial position measurement on rotating equipment, this probe is a critical maintenance-ready spare for turbines, compressors, pumps, and gearboxes operating in oil & gas, power generation, petrochemical, and heavy industrial environments. Sourcing a verified original replacement before failure occurs is the single most effective strategy for reducing unplanned downtime and protecting rotating machinery assets.

At SMARTNEXMSK, every 330102-00-40-05-02-00 unit is sourced from authorized supply chains, individually inspected, and dispatch-tested prior to shipment. Each unit ships with a 12-month warranty and full traceability documentation, giving maintenance engineers and procurement teams the confidence to stock this probe as a primary spare.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330102-00-40-05-02-00 proximity probe is flagged during routine vibration monitoring or scheduled calibration, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A comprehensive inspection of the entire measurement chain is essential to restore full system integrity and prevent repeat failures.

Begin with the 330130 series extension cable — the coaxial link between the probe and driver. Cable jacket abrasion, connector corrosion, or impedance drift caused by thermal cycling are common root causes of erratic gap voltage readings that are frequently misattributed to probe failure. Inspect the full cable run from the probe tip to the junction box, paying particular attention to any sections routed near heat exchangers or vibrating structures.

Next, verify the 3300 XL 8 mm driver module (typically a 330180-series unit). The driver provides the oscillator signal and conditions the probe output; a degraded driver will produce non-linear output even with a new probe installed. Bench-test the driver against a known-good probe before reinstalling the replacement 330102-00-40-05-02-00 to confirm the driver is not the underlying fault.

At the monitor rack level, inspect the 3300/16 or 3300/20 series monitor cards for loose backplane connectors, blown input protection fuses, and relay output integrity. The 3300 XL rack power supply module should be load-tested — a sagging -24 VDC rail will shift the probe’s operating point and generate false alarm conditions. If the facility runs redundant monitoring, cross-check the standby channel’s probe and driver as well.

For plants operating older 3300 (non-XL) infrastructure alongside 3300 XL systems, confirm that the replacement probe’s sensitivity constant (7.87 V/mm) matches the monitor’s configured scale factor. Mismatched sensitivity between the 3300 standard 8 mm probe and an XL-configured monitor is a documented source of calibration errors during system upgrades.

In control cabinet inspections, also review the terminal blocks and field wiring connecting the junction box to the monitor rack. Loose terminations on the coaxial shield drain wire introduce common-mode noise that elevates the broadband vibration floor and can trigger nuisance trips. Torque all terminals to specification and verify shield continuity end-to-end.

Where the 3300 XL system interfaces with a DCS or safety PLC via 4–20 mA output cards, confirm that the analog output module’s scaling has not drifted. A recalibration of the output card following probe replacement ensures that the DCS historian records accurate displacement values from day one of the new spare’s service life. For facilities using Keyphasor modules (e.g., 3300/25 series) for phase reference, inspect the Keyphasor probe and its driver simultaneously — phase-referenced vibration data is only reliable when the entire measurement chain is verified together.

Finally, update the CMMS record with the replacement date, the new probe’s serial number, and the as-found gap voltage measured at installation. This baseline reading is the reference point for all future trending and is the first data point your predictive maintenance program will use to detect the next developing fault.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor channel associated with the probe being replaced. Note the as-found gap voltage from the monitor display or DCS historian before disconnecting.

Step 2 — Probe removal: Disconnect the extension cable at the junction box. Unthread the probe from the mounting bracket using the correct spanner — avoid gripping the cable. Record the probe’s installed depth (thread engagement) for reference during reinstallation.

Step 3 — Replacement installation: Install the 330102-00-40-05-02-00 replacement to the same thread depth. Apply anti-seize compound to the threads if operating in a high-temperature or corrosive environment. Reconnect the 330130 extension cable, ensuring the coaxial connector is fully seated and the locking collar is finger-tight plus one-quarter turn.

Step 4 — Gap voltage verification: Re-energize the monitor channel. Measure the gap voltage at the driver output. The nominal gap voltage for an 8 mm probe at 1.0 mm air gap is approximately -10.4 VDC. Adjust the probe’s axial position until the gap voltage falls within the monitor’s configured OK range (typically -9 to -18 VDC for standard 3300 XL configurations).

Step 5 — Functional test and alarm verification: Confirm that the monitor channel clears the NOT OK condition. Verify that relay outputs and 4–20 mA signals respond correctly. Document the as-left gap voltage, installation date, and technician ID in the CMMS. Return the system to normal operation.

This workflow minimizes machine exposure time and ensures the replacement 330102-00-40-05-02-00 is commissioned to the same standard as the original factory installation — protecting both the asset and the maintenance record.

Spare Parts Support FAQ

Q1: Is the 330102-00-40-05-02-00 compatible with both 3300 and 3300 XL monitor systems?
The 330102-00-40-05-02-00 is specifically calibrated for the 3300 XL 8 mm eddy-current system. While the physical connector is compatible with older 3300 series drivers, the sensitivity constant (7.87 V/mm) must match the monitor’s configured scale factor. Always verify the monitor’s probe type setting before installing this spare in a non-XL rack. Contact our technical team if you need cross-compatibility confirmation for your specific monitor card revision.

Q2: What is included in the 12-month warranty and how is it claimed?
Every 330102-00-40-05-02-00 shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit is dispatch-tested for output linearity and impedance before shipment. To initiate a warranty claim, contact sales@smartnexmsk.com with the order reference, installation date, and a description of the observed fault. Replacement units are prioritized for dispatch to minimize site downtime.

Q3: How many units should a plant stock as critical spares?
For facilities with multiple 3300 XL monitoring points on critical rotating equipment, industry best practice (aligned with API 670 recommendations) is to maintain a minimum of one spare probe per monitored machine train, plus one additional unit per five installed probes as a buffer. Plants with long lead-time procurement cycles or remote locations should increase buffer stock accordingly. SMARTNEXMSK supports blanket order arrangements and consignment stocking programs for high-volume maintenance customers.

Q4: Can this probe be used to replace an older Bently Nevada 330100 series probe?
The 330102 series (3300 XL) supersedes the legacy 330100 series in most applications, but the replacement requires confirming that the installed driver and extension cable are also XL-compatible. A 330100 probe paired with a 330180 XL driver will produce incorrect output. If your system still uses legacy 3300 (non-XL) drivers, contact SMARTNEXMSK to identify the correct cross-reference spare that matches your existing driver and monitor configuration without requiring a full system upgrade.
