Bently Nevada 330102-00-64-10-02-00 Spare for 3300 XL Automation

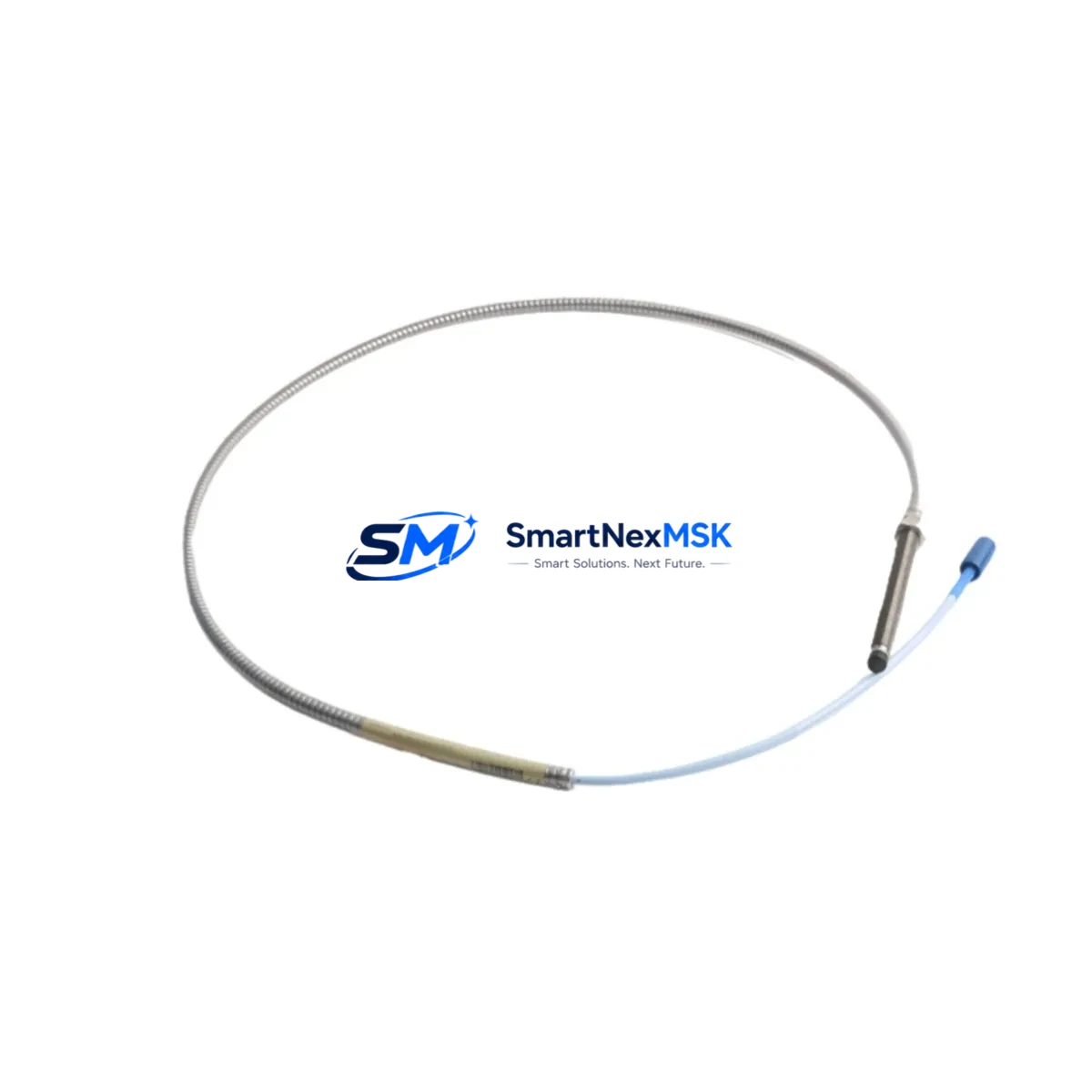

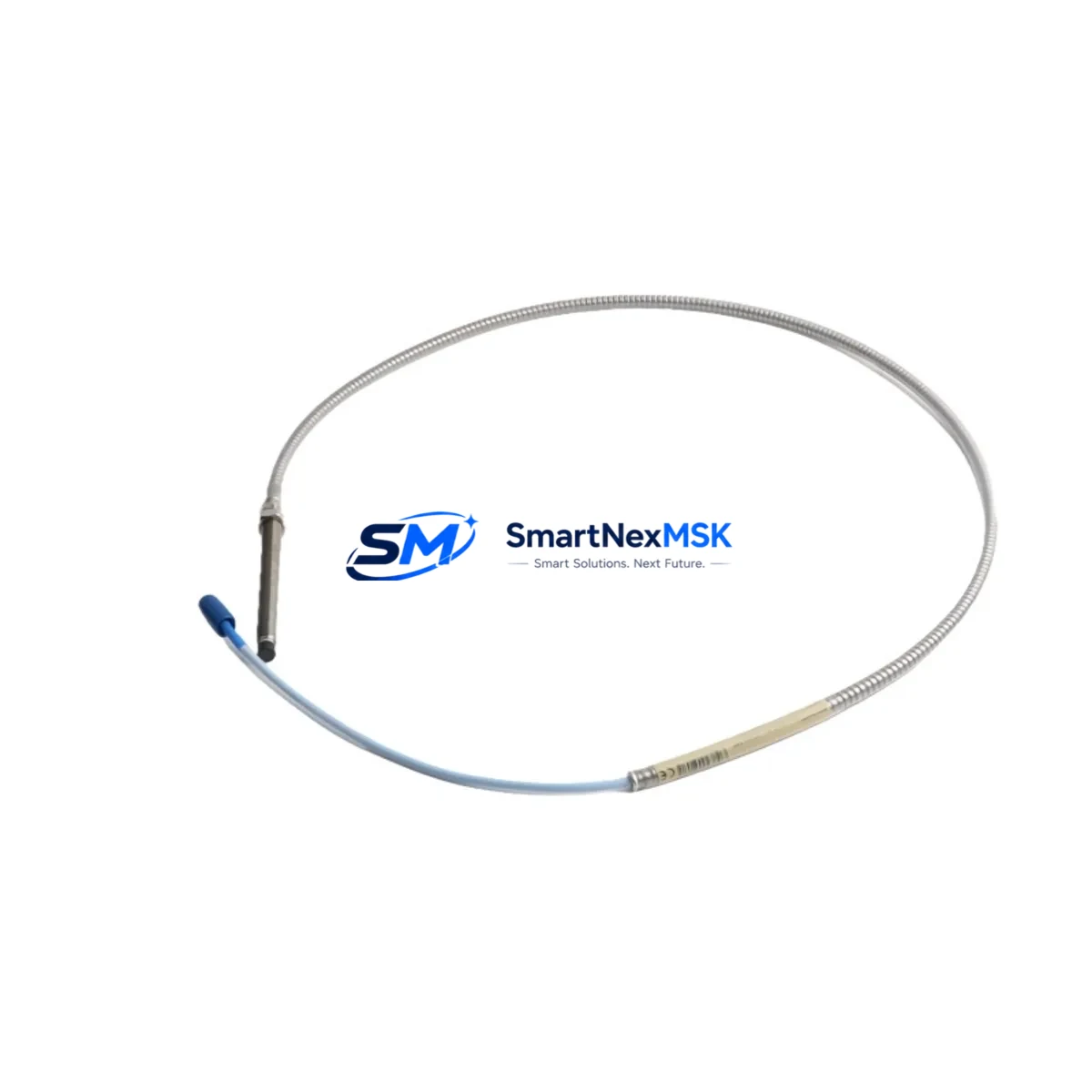

The Bently Nevada 330102-00-64-10-02-00 is an original 8mm proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed for critical rotating machinery protection in turbines, compressors, pumps, and motors, this probe delivers precise radial vibration, axial position, and speed measurement in demanding industrial environments. For maintenance engineers managing aging DCS or machinery protection systems, sourcing a verified original spare is the first step in minimizing unplanned downtime and restoring system integrity after a sensor fault.
At SMARTNEXMSK, every 330102-00-64-10-02-00 unit is inspected, function-tested, and shipped with a 12-month warranty. We maintain long-term inventory of 3300 XL series components to support both emergency replacement and planned maintenance schedules.
Spare Maintenance Table
| SKU / Part Number | 330102-00-64-10-02-00 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Product Type | Proximity Transducer (8mm) |
| Measurement Function | Radial vibration, axial position, speed (Keyphasor) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 64 inches (integrated) |
| Output Signal | -18 VDC nominal (eddy-current, linear range) |
| Operating Temperature | -35°C to +120°C (probe tip) |
| Target Material Compatibility | AISI 4140 steel, standard shaft materials |
| Connector Type | Coaxial, compatible with 3300 XL extension cables |
| Compatibility | Bently Nevada 3300 XL monitors, 3500 series racks (with adapter), TDXnet systems |
| Installation | Threaded bracket mount; gap voltage set per OEM specification (typically -10 VDC at 1.0 mm gap) |
| Application Environment | Turbines, centrifugal compressors, pumps, gearboxes, motors |
| Maintenance Recommendation | Replace probe and extension cable as a matched set; re-verify gap voltage after installation |
| Origin | USA (Original Bently Nevada) |
| Warranty | 12 Months — tested and verified before shipment |
Maintenance Planning for Continuous Operation
When replacing the 330102-00-64-10-02-00 proximity probe in a 3300 XL monitoring loop, a thorough maintenance engineer will not stop at the probe alone. The 3300 XL transducer system operates as a three-component chain — probe, extension cable, and proximitor/driver — and a fault in any one element can produce identical symptoms: loss of signal, out-of-range gap voltage, or erratic vibration readings. Before returning the loop to service, inspect and if necessary replace the matched 330130 extension cable (available in various lengths) and the 330180 proximitor/driver module mounted in the field junction box or control cabinet.
Inside the control cabinet, verify the condition of the 3300 XL monitor card (such as the 3300/16 or 3300/20 dual-channel vibration monitor) that receives the transducer signal. Check the 3500/22M transient data interface if the system is integrated into a 3500 rack for event capture. Inspect the 24 VDC power supply module feeding the proximitor — a marginal supply voltage is a common root cause of intermittent probe faults that are misdiagnosed as sensor failures.
For the I/O side, confirm that the terminal block assemblies and field wiring connections at the junction box show no corrosion, moisture ingress, or loose terminations. Signal integrity issues often originate at the terminal strip rather than the sensor itself. If the system uses a signal conditioner or isolator between the proximitor output and the DCS analog input card, test the isolator’s output range before assuming the probe is defective.
In plants running legacy Bently Nevada systems alongside modern DCS platforms, it is also worth confirming that the 4–20 mA output converter or SNAP I/O interface module is functioning correctly, as these interface components are frequently overlooked during routine point checks. Procurement engineers building a spare parts kit for a 3300 XL-equipped train should consider stocking at minimum one matched probe-and-cable set, one proximitor, and one monitor card per critical machine — a strategy that supports both rapid emergency replacement and planned outage efficiency.
Site Replacement Workflow
Step 1 — Isolate and document: Before removing the 330102-00-64-10-02-00, record the existing gap voltage (typically displayed on the monitor front panel or DCS faceplate) and note the physical gap measurement at the probe tip. This baseline is essential for verifying correct reinstallation.
Step 2 — Remove the probe assembly: Disconnect the coaxial connector at the extension cable junction. Unthread the probe from its mounting bracket carefully to avoid damaging the shaft or bracket threads. Inspect the bracket for wear or misalignment.
Step 3 — Install the replacement unit: Thread the new 330102-00-64-10-02-00 into the bracket and set the physical gap per the OEM specification for the target material (typically 1.0 mm for AISI 4140 steel, yielding approximately -10 VDC). Reconnect the extension cable and verify the coaxial connection is secure and free of contamination.
Step 4 — Verify gap voltage and signal: Power the proximitor and confirm the gap voltage is within the linear range (-2 VDC to -18 VDC, nominal center at -10 VDC). Check the monitor card for a valid, stable reading before releasing the machine for restart.
Step 5 — System compatibility confirmation: The 330102-00-64-10-02-00 is a direct replacement for earlier 3300 XL 8mm probe variants. If migrating from an older 3300 series (non-XL) system, confirm that the proximitor driver is also updated to the XL specification to maintain calibration accuracy and avoid false alerts.
This workflow reduces mean time to repair (MTTR) and ensures the vibration monitoring loop is restored to full protective function before machine restart — a critical requirement for API 670-compliant machinery protection systems.
Spare Parts Support FAQ
Q1: Is the 330102-00-64-10-02-00 a direct drop-in replacement for older 3300 series probes?
A: The 330102-00-64-10-02-00 is designed for the 3300 XL system. It is physically compatible with standard 8mm mounting brackets used across the 3300 series, but the extension cable and proximitor must also be XL-rated for the system to meet factory calibration specifications. We recommend replacing the full three-component set when upgrading from non-XL to XL hardware.
Q2: How is each unit tested before shipment?
A: Every 330102-00-64-10-02-00 unit shipped by SMARTNEXMSK undergoes electrical continuity verification, coaxial connector inspection, and gap voltage output testing against a reference target. Units that do not meet Bently Nevada OEM output specifications are quarantined and not shipped. A test report is available upon request.
Q3: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation gap settings, mechanical impact, or use outside the rated temperature and target material specifications. Warranty claims are processed within 5 business days of receipt of the returned unit.
Q4: Can SMARTNEXMSK support long-term or blanket purchase orders for 3300 XL spare parts?
A: Yes. We maintain standing inventory of 3300 XL series components including probes, extension cables, proximitors, and monitor cards to support annual maintenance contracts and multi-site spare parts programs. Contact our team to discuss volume pricing, lead time commitments, and consignment stocking arrangements.
