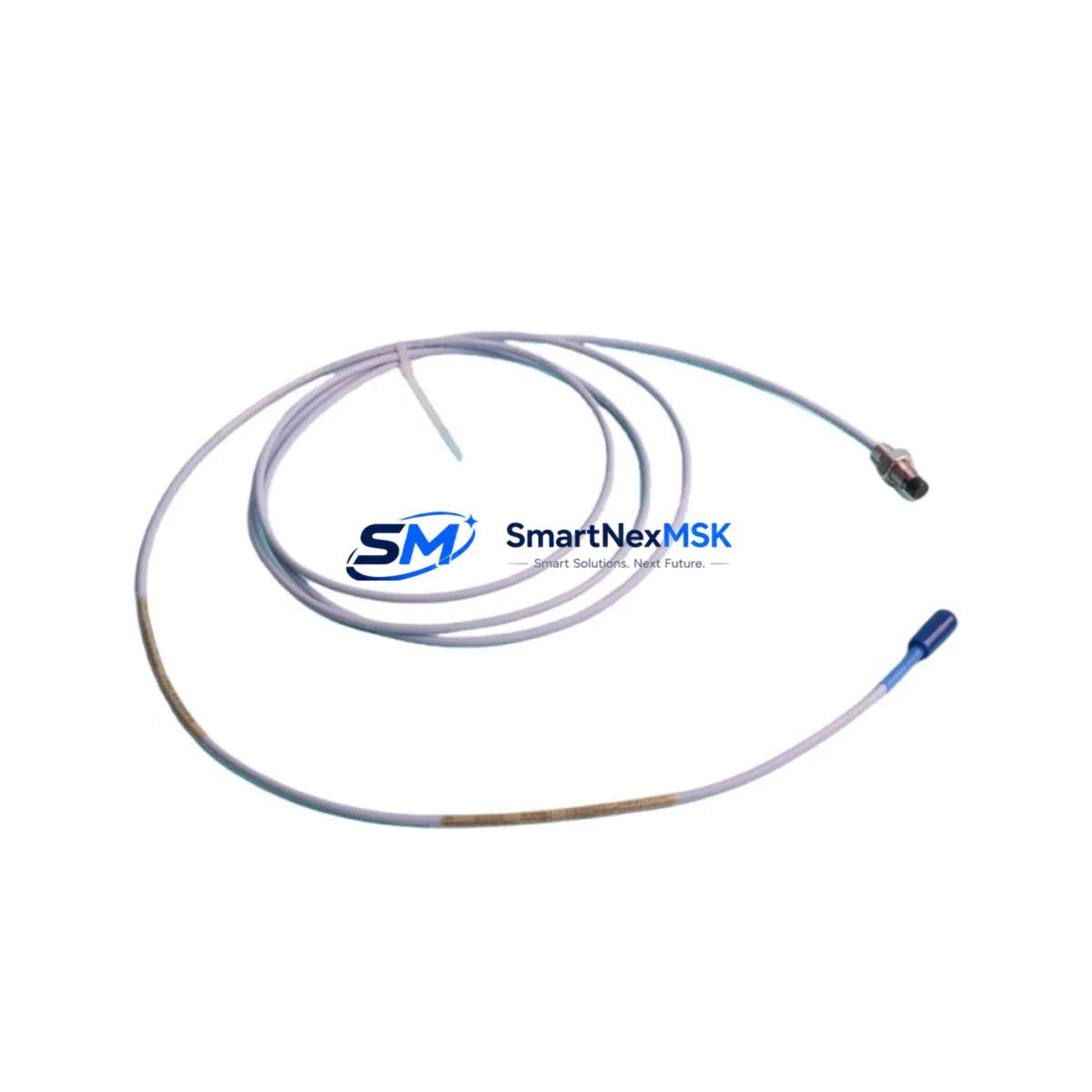

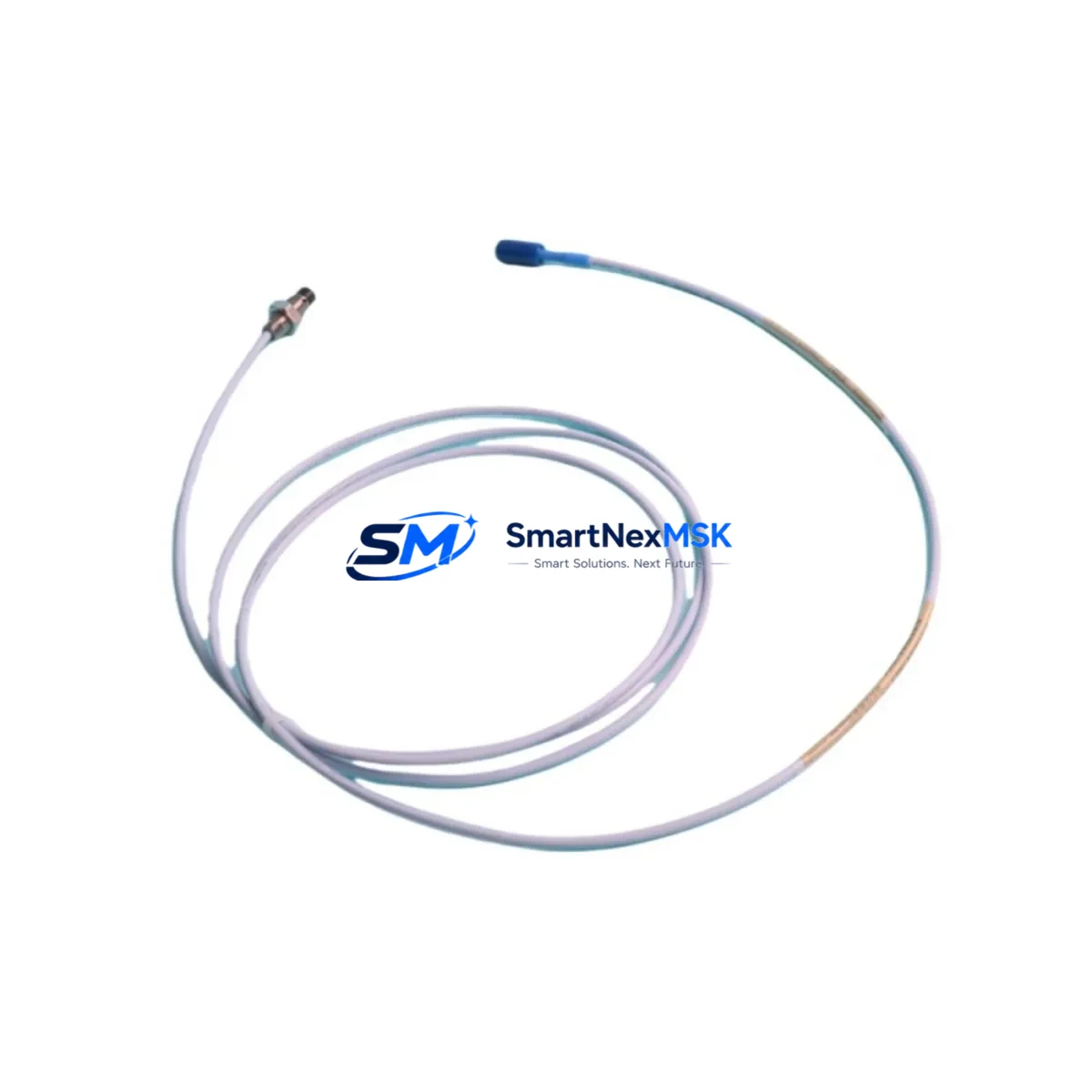

The Bently Nevada 330102-02-12-15-01-00 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and motors, this probe delivers precise radial and axial shaft displacement measurements critical to predictive maintenance programs and unplanned downtime prevention. Holding a verified stock of this spare part is a cornerstone of any serious industrial maintenance strategy — when a probe fails, every minute of unplanned downtime translates directly into production loss and safety risk.

At SMARTNEXMSK, every 330102-02-12-15-01-00 unit is sourced from authorized supply channels, individually inspected, and shipped with a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, planned overhaul, and long-term spare parts stocking programs for maintenance engineers and procurement teams operating 3300 XL-equipped facilities worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330102-02-12-15-01-00 proximity probe is flagged during routine vibration monitoring checks or fails a gap voltage verification, the replacement workflow should extend beyond the probe itself. A disciplined maintenance engineer will treat this event as a trigger for a broader inspection of the entire measurement loop and control cabinet.

Begin by verifying the paired 3300 XL Proximitor® Sensor (330180 series) — the driver module that powers the probe and conditions its output signal. Proximitor sensors degrade over time and a failing probe may have been masking an underlying driver issue. Simultaneously, inspect the extension cable assembly (330130 series) connecting the probe to the Proximitor; cable insulation breakdown and connector corrosion are leading causes of erratic gap voltage readings.

Within the 3300 XL monitor rack, check the 3300/16 or 3300/20 monitor cards for alarm setpoint integrity and confirm that the rack power supply module is delivering stable -24 VDC to all channels. A marginal power supply can cause intermittent probe faults that are misdiagnosed as probe failures. If the facility uses a 3500 Series rack in parallel for critical machinery, verify that the 3500/42M or 3500/45 position monitor cards are also within calibration.

For plants running integrated DCS or safety systems, confirm that the 4–20 mA output signal from the Proximitor is being received correctly at the DCS I/O card and that any associated signal isolator or barrier (such as a Pepperl+Fuchs or MTL zener barrier for hazardous area installations) is functioning within specification. Relay output modules tied to the vibration trip circuit should also be tested for contact integrity.

During planned overhauls, it is best practice to replace the probe, extension cable, and Proximitor sensor as a matched set — all three components are factory-calibrated together and field-mixing of components from different calibration batches can introduce measurement error. Maintain a minimum of two complete probe-cable-driver sets per critical machine in your on-site spare parts inventory to ensure immediate availability during emergency shutdowns.

For older 3300 Series (non-XL) installations still in service, note that the 330102-02-12-15-01-00 is XL-series specific. Legacy systems using 330100 or 330101 series probes require their own matched drivers and should be evaluated for system upgrade as part of long-term asset life extension planning.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow your site LOTO (Lockout/Tagout) procedure. Confirm the machine is at rest and the monitor channel is bypassed or in alarm inhibit mode before disconnecting the probe.

Step 2 — Gap Voltage Baseline: Record the existing gap voltage reading from the monitor display or DCS historian before removal. This value (typically -10 VDC ± 1 VDC for a correctly gapped 8mm probe) serves as your reinstallation reference.

Step 3 — Probe Removal: Loosen the locknut and carefully unthread the probe body from the bracket. Inspect the probe tip for physical damage, contamination, or oil fouling. Inspect the bracket and target area for shaft scoring or runout anomalies.

Step 4 — New Probe Installation: Thread the 330102-02-12-15-01-00 replacement into the bracket. Set the gap to the manufacturer-specified distance (typically 1.0–1.5 mm for the linear midpoint) using a non-ferrous feeler gauge. Tighten the locknut to the specified torque.

Step 5 — System Verification: Reconnect the extension cable and Proximitor. Power up the channel and verify gap voltage is within the ±10% tolerance of the baseline. Confirm the monitor displays a valid OK status and that no alarms are active before releasing the bypass.

Step 6 — Documentation: Log the replacement in your CMMS (Computerized Maintenance Management System) with the new probe serial number, installation date, gap voltage reading, and technician sign-off. This record supports warranty claims and future predictive maintenance trending.

This workflow minimizes machine downtime to under two hours for a trained technician with the correct spare on hand — reinforcing why stocking the 330102-02-12-15-01-00 as a critical spare is a sound operational investment.

Spare Parts Support FAQ

Q1: Is the 330102-02-12-15-01-00 compatible with both 3300 XL and legacy 3300 Series systems?
The 330102-02-12-15-01-00 is designed and calibrated specifically for the 3300 XL Series Proximitor sensors and monitor racks. It is not a direct drop-in replacement for legacy 3300 (non-XL) systems, which use different driver electronics and calibration curves. If you are operating a legacy 3300 system, please contact our technical team to confirm the correct probe part number for your specific Proximitor model.

Q2: What pre-shipment testing is performed on each unit?
Every 330102-02-12-15-01-00 unit in our inventory undergoes gap voltage output verification and continuity testing prior to shipment. Units are packaged in anti-static, moisture-resistant packaging with individual test records. Our 12-month warranty covers manufacturing defects and performance deviations from published specifications under normal operating conditions.

Q3: How many units should we stock as critical spares?
For facilities with multiple 3300 XL-monitored machines, we recommend maintaining a minimum of two probe-cable-driver sets per critical machine (turbines, compressors) and one set per non-critical machine. For plants with 10+ monitored shafts, a consolidated spare parts kit covering the most common probe lengths and cable configurations is the most cost-effective approach. Our team can assist with a spare parts rationalization review.

Q4: What is the lead time for bulk orders and long-term supply agreements?
Standard orders of 1–5 units ship within 2–5 business days from our stocked inventory. For bulk procurement (10+ units) or annual supply agreements, we offer priority allocation, fixed pricing, and dedicated account support. Contact sales@smartnexmsk.com to discuss your facility’s long-term spare parts program.
