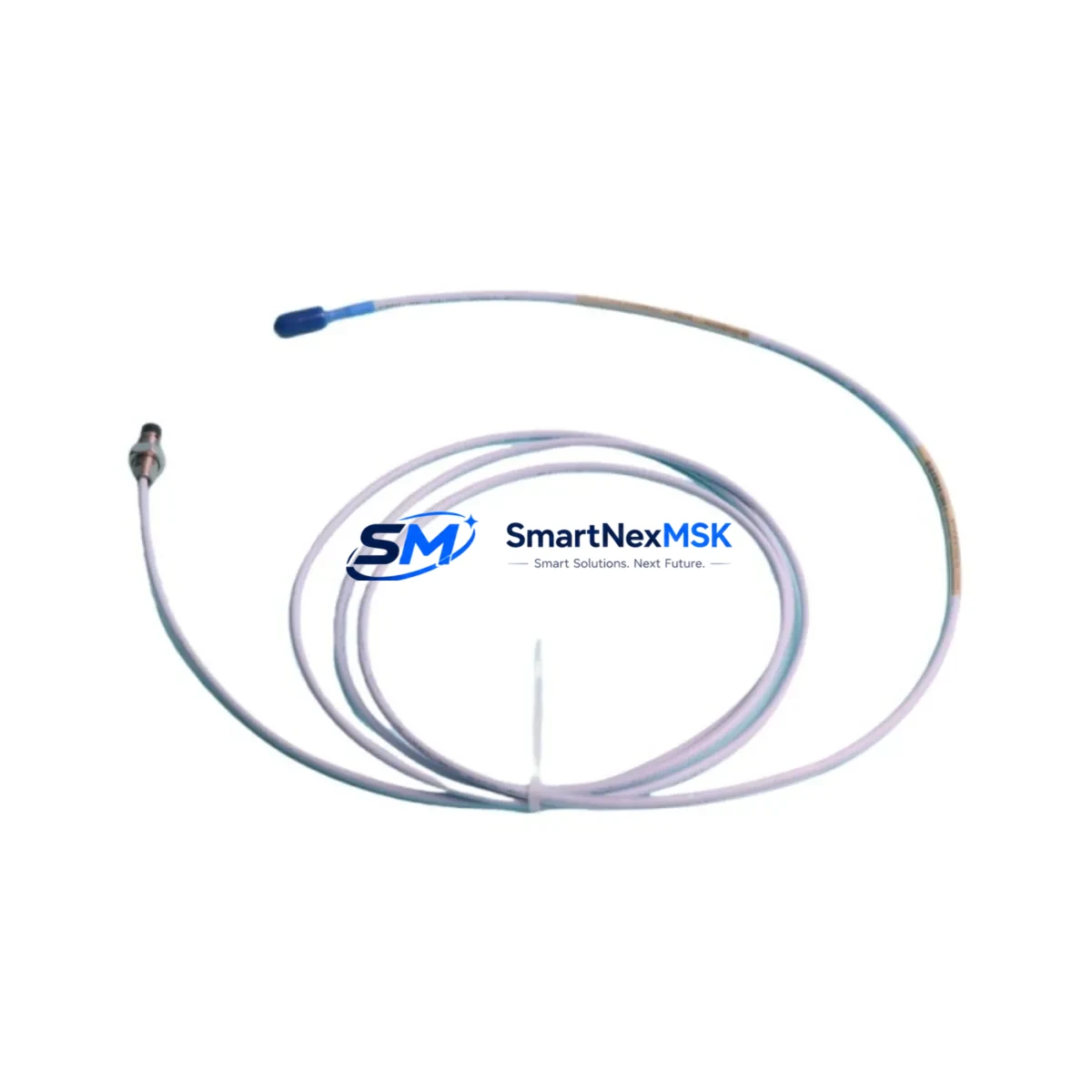

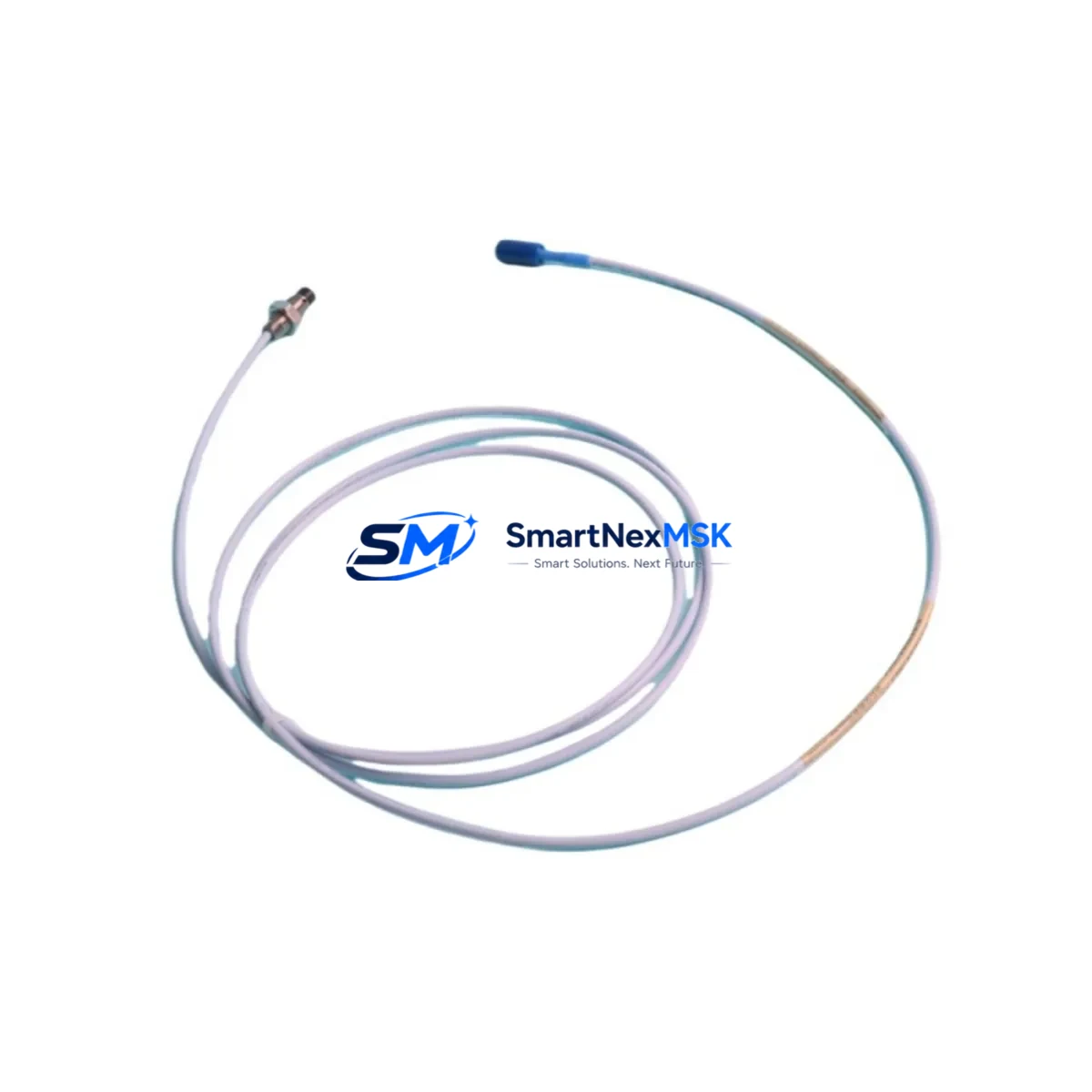

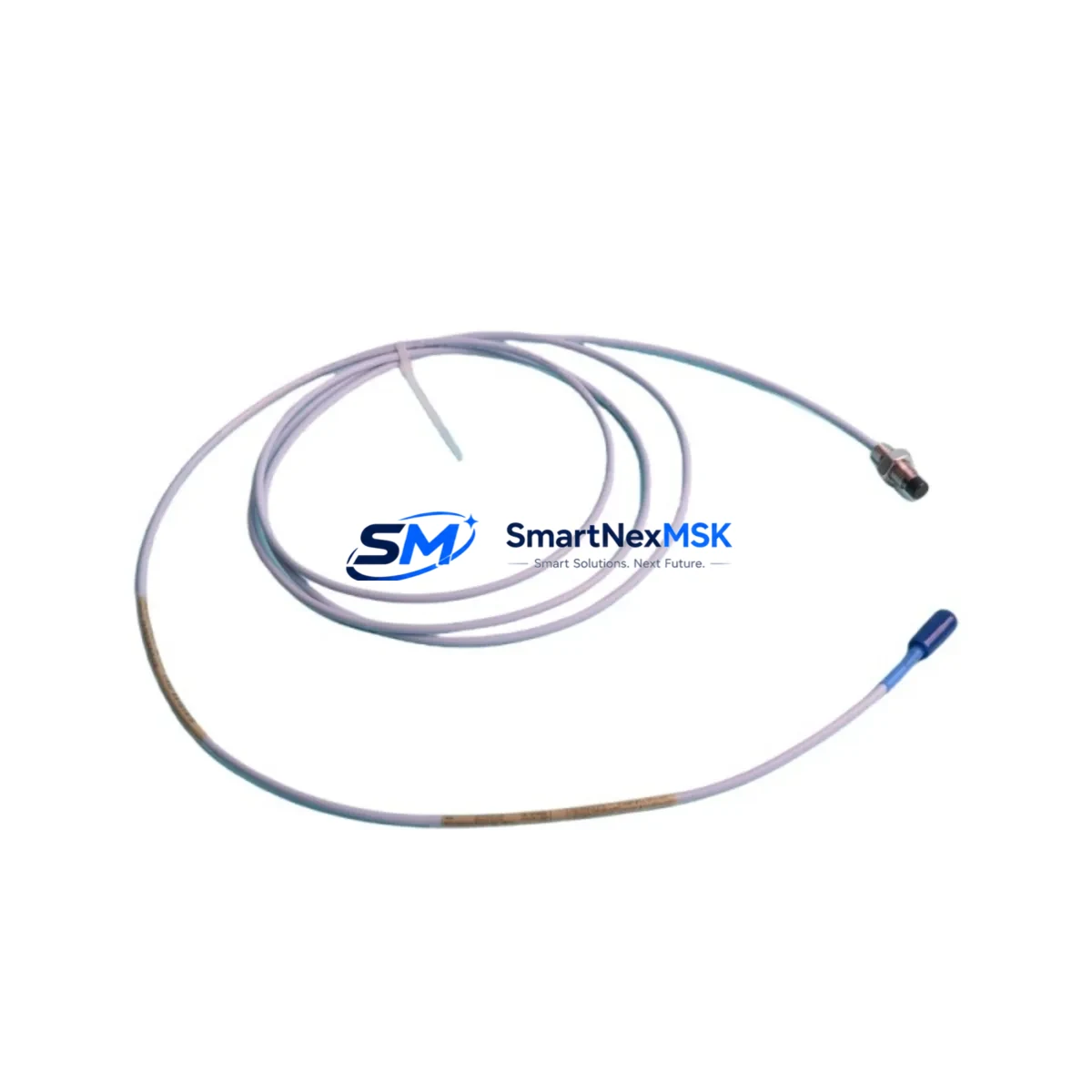

Bently Nevada 330102-02-12-20-01-00 3300 XL Retrofit Probe

Bently Nevada 330102-02-12-20-01-00 3300 XL Retrofit Probe: Compatible Upgrade for Legacy Vibration Monitoring Systems

The Bently Nevada 330102-02-12-20-01-00 is an 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As original equipment reaches end-of-life and spare parts become increasingly scarce, this retrofit-ready probe provides a verified drop-in replacement path for facilities operating legacy rotating machinery protection systems. Whether you are managing a planned control system upgrade, responding to an unplanned probe failure, or executing a phased migration from discontinued 3300 Series hardware to the current 3500 Series rack architecture, the 330102-02-12-20-01-00 delivers the signal integrity, dimensional compatibility, and installation consistency that industrial maintenance teams require.

This probe is designed for non-contact displacement measurement of shaft radial vibration, axial position, and differential expansion on turbines, compressors, pumps, and motors. It operates within the standard Bently Nevada proximity system signal chain, interfacing with the 3300 XL proximitor/seismic transducer and feeding conditioned voltage signals to the 3300 XL monitor rack. The probe tip diameter, thread specification, and cable assembly are dimensionally identical to the original factory configuration, eliminating the need for bracket modification or re-machining of the probe boss during replacement.

For facilities transitioning from the 3300 XL platform to the 3500 Series modular monitoring system, the 330102-02-12-20-01-00 remains compatible during the interim period when legacy probes continue to serve active measurement points while new 3500/42M Proximitor Monitor cards are being commissioned in parallel racks. This phased approach allows engineering teams to validate new channel configurations against live machine data before cutting over, significantly reducing the risk of measurement gaps during migration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330102-02-12-20-01-00 into an existing vibration monitoring installation requires a structured pre-installation review. Before removing the failed or end-of-life probe, maintenance engineers should document the current gap voltage reading at the 3300 XL Proximitor output terminal to establish a baseline for post-installation verification. The Proximitor housing, typically mounted within the control cabinet or in a field junction box, should be inspected for terminal corrosion and cable shield continuity before the new probe is connected.

In systems where the 3300 XL rack includes multiple monitor cards — such as the 3300/16 Dual Voting Logic Monitor, the 3300/20 Radial Vibration Monitor, or the 3300/46 Position Monitor — channel assignment and rack addressing must be confirmed against the existing system configuration drawing before the replacement probe is energized. Incorrect channel mapping can result in false trip signals or suppressed alarms, both of which carry significant operational risk in rotating machinery protection applications.

For installations that include a Bently Nevada 3300 XL Power Supply module feeding the Proximitor network, the power supply output voltage and current capacity should be verified to confirm it can support the probe load after replacement. If the existing power supply is also approaching end-of-life, coordinating its replacement alongside the probe swap reduces the number of future planned outages. Similarly, if the system uses a 3300 XL I/O Module for signal routing to a DCS or safety system, the I/O terminal wiring should be traced and confirmed before the new probe is brought online.

Facilities that have integrated their 3300 XL system with a DeltaV DCS or an Ovation control platform via a Bently Nevada System 1 data gateway should verify that the System 1 software configuration reflects the correct probe type and sensitivity factor after replacement. An incorrect sensitivity setting in System 1 will produce erroneous trend data and may trigger nuisance alerts in the condition monitoring database. If the HMI displays associated with the vibration monitoring system use Bently Nevada Operator Display Software or a third-party SCADA interface, the engineering team should confirm that the channel tag assignments and alarm setpoints remain valid after the probe swap.

Where the retrofit scope extends to replacing the Proximitor as well as the probe — for example, when the existing 3300 XL Proximitor shows signs of drift or has exceeded its recommended service interval — the complete probe-and-Proximitor assembly should be bench-tested as a matched pair before installation. This matched-pair approach is particularly important in applications where the machine is classified as API 670 critical and the monitoring system is required to maintain continuous availability.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or broader 3300 XL system migration requires advance preparation of the replacement assembly, pre-staging of all required tools, and a clearly defined rollback procedure in the event that the new probe does not achieve the expected gap voltage within the allowable installation window.

Before initiating the physical swap, the maintenance team should export the current 3300 XL monitor configuration — including alarm setpoints, danger setpoints, time delays, and channel inhibit states — and store a verified backup in the plant document management system. If the monitor rack is connected to a Bently Nevada 3300 XL Communication Gateway or a Modbus interface card feeding a PLC or DCS, the communication link should be placed in a defined hold state to prevent false process trips during the probe installation period.

The probe gap setting procedure should be completed using a calibrated gap meter or a precision oscilloscope connected to the Proximitor output terminal. The target gap voltage for the 330102-02-12-20-01-00 in a standard 3300 XL system is typically –10.0 VDC at the nominal gap, corresponding to a physical gap of approximately 1.0 mm. Once the gap is confirmed within the OEM-specified tolerance band, the lock nut should be torqued to specification and the probe cable secured to prevent vibration-induced connector fatigue.

After the probe is energized and the gap voltage is confirmed stable, the monitor channel should be released from inhibit state and the system observed through at least one complete machine start-stop cycle before the maintenance work order is closed. Any deviation from the pre-replacement vibration baseline should be investigated before the machine is returned to full load operation. Pre-shipment functional testing of the 330102-02-12-20-01-00 is performed at our facility prior to dispatch, and a test report is available upon request to support incoming inspection and commissioning documentation.

Retrofit Support FAQ

Q: Is the 330102-02-12-20-01-00 a direct replacement for the original Bently Nevada probe in my 3300 XL system?
A: Yes. The 330102-02-12-20-01-00 is dimensionally and electrically equivalent to the original factory probe for 3300 XL applications. No bracket modification, re-wiring, or monitor reconfiguration is required for a standard like-for-like replacement. The probe is supplied with a pre-shipment functional test report confirming output linearity and sensitivity within OEM specification.

Q: Can this probe be used during a phased migration to the Bently Nevada 3500 Series platform?
A: Yes. The 330102-02-12-20-01-00 is compatible with the 3500/42M Proximitor Monitor during parallel commissioning phases. This allows facilities to maintain continuous vibration monitoring on existing measurement points while new 3500 Series rack channels are being configured and validated. Full migration to 3500 Series probes and Proximitors can be completed at a subsequent planned outage.

Q: What commissioning steps are required after installing the replacement probe?
A: After physical installation, the probe gap must be set and verified using a calibrated gap meter or oscilloscope at the Proximitor output terminal. The gap voltage should be confirmed within the OEM-specified tolerance before the monitor channel is released from inhibit. The system should then be observed through a complete machine start-stop cycle to confirm vibration readings are consistent with the pre-replacement baseline. All commissioning steps should be documented in the plant maintenance management system.

Q: What warranty coverage is provided, and is a test report available?
A: All units are covered by a 12-month warranty against manufacturing defects from the date of shipment. A pre-shipment functional test report is available upon request and can be provided with the delivery documentation to support incoming inspection, commissioning records, and audit requirements.
