Bently Nevada 330102-04-56-10-02-00 Spare for 3300 XL Automation

Bently Nevada 330102-04-56-10-02-00 Maintenance-Ready Spare for 3300 XL Automation

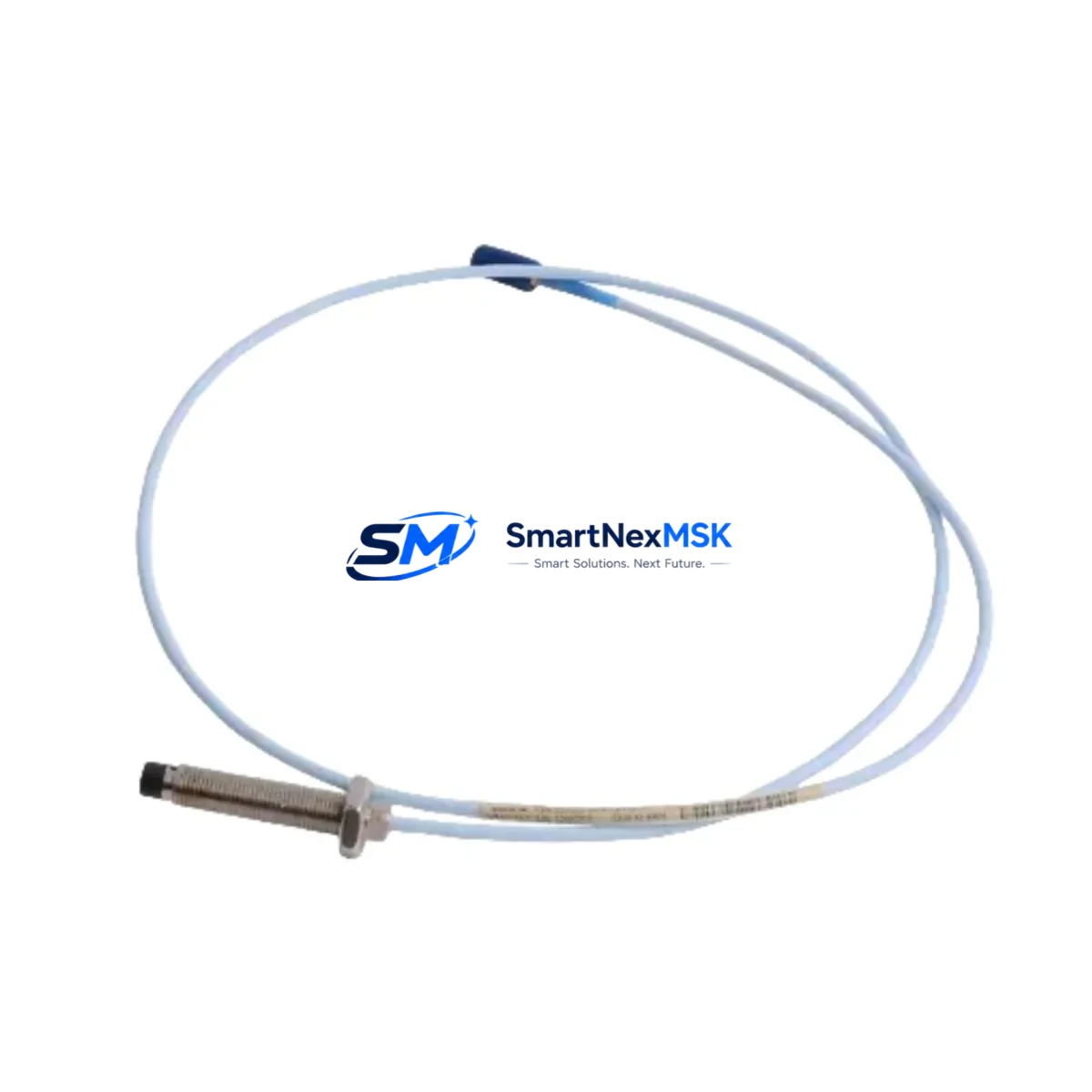

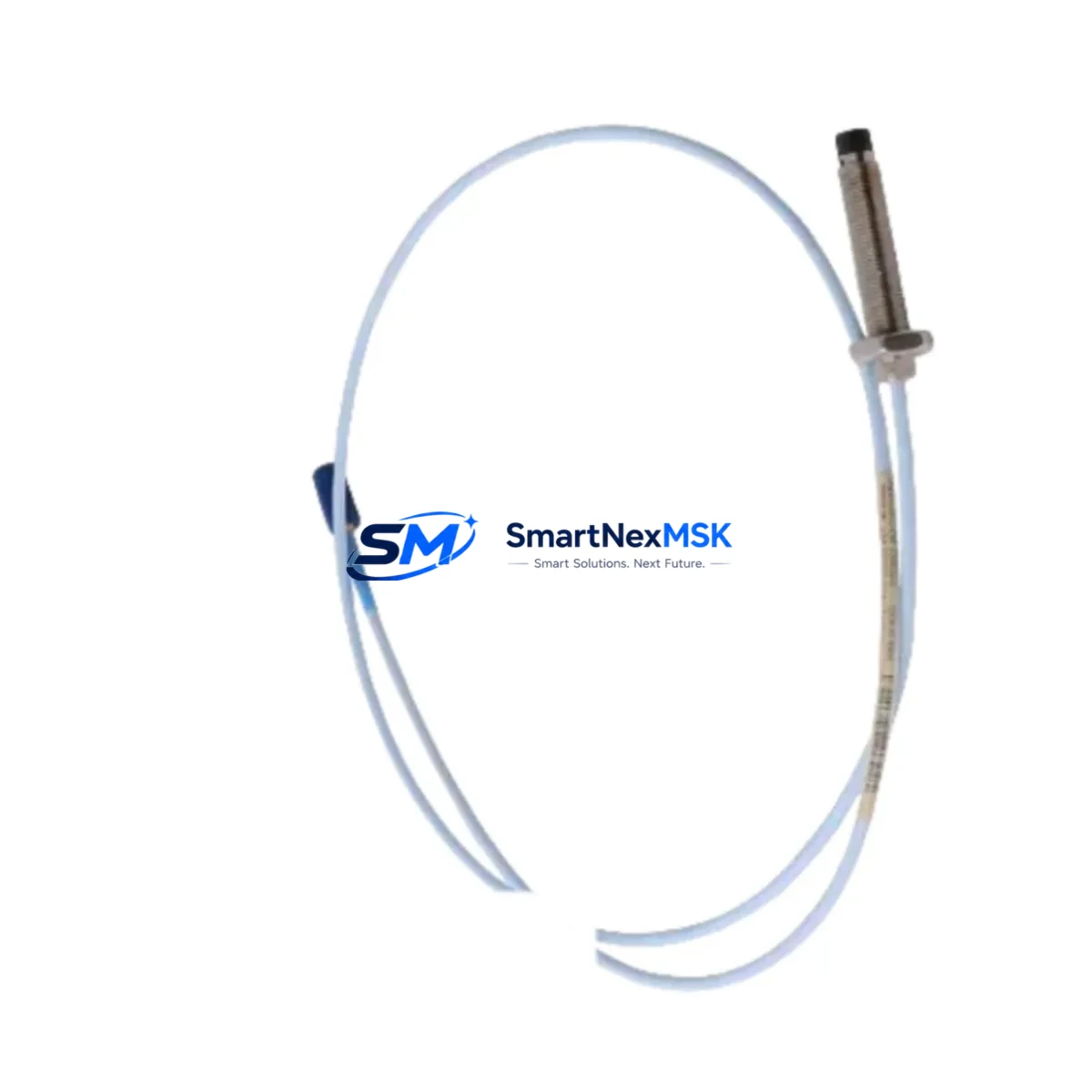

The Bently Nevada 330102-04-56-10-02-00 is an original 8mm Eddy Current Proximity Probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is the primary sensing element responsible for detecting shaft radial vibration, axial position, and differential expansion. When this component degrades or fails, the entire machinery protection chain is compromised, exposing critical assets to undetected mechanical faults and unplanned shutdowns.

For maintenance engineers managing aging turbomachinery or DCS-integrated protection systems, maintaining a verified spare of the 330102-04-56-10-02-00 on the shelf is not optional — it is a fundamental element of any credible predictive maintenance and emergency response strategy. This probe is compatible with the Bently Nevada 3300 XL 8mm proximity transducer system and integrates directly with the 3300 XL proximitor/seismic monitor modules without recalibration when the correct gap voltage is set during installation.

SMARTNEXMSK supplies this probe as a tested, original spare with full traceability, 12-month warranty coverage, and rapid dispatch to minimize machinery downtime. Each unit undergoes pre-shipment functional verification to confirm output linearity, gap range, and sensitivity coefficient before leaving our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330102-04-56-10-02-00 probe is scheduled for replacement — whether during a planned outage, a condition-triggered swap, or an emergency shutdown recovery — maintenance engineers should treat the event as an opportunity to audit the entire proximity measurement loop and adjacent protection circuits. A probe replacement in isolation, without inspecting the associated signal chain, frequently results in repeat failures or masked faults that surface during the next operating cycle.

Begin with the 3300 XL NSv Proximitor module (such as the 330180-51-05 or 330180-91-05), which conditions the probe’s raw eddy current signal into a calibrated DC output. Proximitor modules accumulate thermal stress over years of continuous operation and should be inspected for output drift, connector corrosion, and housing integrity whenever the probe is changed. Verify the gap voltage at the proximitor output terminal — it should read between -10 VDC and -18 VDC for a correctly gapped 8mm probe in the linear range.

Next, inspect the extension cable assembly (typically a 330130-series or 330030-series cable) connecting the probe to the proximitor. Extension cables are a frequent source of intermittent faults due to connector fretting, shield continuity loss, and jacket degradation in high-temperature or high-vibration zones. Measure cable resistance and verify shield grounding at both ends before commissioning the new probe.

At the monitor rack level, confirm that the 3500 Series monitor module (e.g., 3500/40M Proximitor/Seismic Monitor or 3500/42M Proximitor Monitor) is correctly configured for the 8mm transducer system. Check the full-scale range, alert and danger setpoints, and OK relay logic. If the monitor has been in service for more than five years, inspect the 3500 Rack Power Supply (such as the 3500/15 or 3500/05) for output ripple and voltage stability — a degraded power supply can introduce noise into the measurement chain that mimics real vibration events.

For systems integrated into a DCS or safety instrumented system (SIS), verify that the 4–20 mA or digital output from the 3500 monitor is correctly received at the I/O card. Inspect the terminal block assemblies and field wiring for loose terminations, which are a common cause of spurious trips after maintenance activities. If the plant uses signal isolators or barriers between the 3500 rack and the DCS I/O, confirm that the isolator’s input impedance is compatible with the monitor’s output drive capability.

Where the machinery protection system interfaces with a PLC-based safety layer, review the discrete OK/Not-OK relay outputs from the 3500 monitor and confirm correct mapping to the PLC input module. Any changes to probe gap or monitor configuration should be followed by a functional proof test of the entire trip chain before returning the machine to service.

Finally, update the plant’s spare parts register to reflect the consumed probe and replenish stock. Best practice for critical rotating machinery is to maintain a minimum of two verified spare probes per measurement plane, along with matched extension cables and at least one spare proximitor module, to support rapid recovery from any single-point failure without waiting on procurement lead times.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit and confirm the machine is in a safe, isolated state. Do not attempt probe replacement on a running machine. Verify that the 3500 monitor channel is bypassed or inhibited to prevent spurious trips during the swap.

Step 2 — Remove the Failed Probe: Disconnect the probe cable at the proximitor junction box. Unscrew the probe from its mounting bracket using the correct spanner — avoid applying torque to the cable. Record the existing gap measurement (number of turns from contact) for reference during reinstallation.

Step 3 — Inspect the Mounting Boss: Clean the probe mounting threads and inspect for corrosion or damage. Verify that the target surface (shaft) is free of nicks, rust, or runout anomalies that could affect the new probe’s baseline reading.

Step 4 — Install the 330102-04-56-10-02-00: Thread the new probe in by hand until contact with the target, then back off to achieve the manufacturer-specified gap (typically 1.0–1.5 mm / 40–60 mil for 8mm probes). Tighten the locknut to the specified torque. Route and secure the cable to avoid mechanical stress and proximity to high-voltage conductors.

Step 5 — Verify Gap Voltage: With the proximitor powered, measure the DC output voltage. Confirm it falls within the linear range (-10 VDC to -18 VDC). Adjust gap as needed and re-lock.

Step 6 — Functional Check and Return to Service: Remove the monitor bypass, confirm OK status on the 3500 monitor, verify alarm and danger setpoints are active, and document the replacement in the maintenance management system. Retain the removed probe for failure analysis if applicable.

This workflow is compatible with direct replacement of legacy Bently Nevada 330102-series probes and supports system continuity without firmware changes or monitor reconfiguration, provided the replacement probe is from the same 3300 XL 8mm transducer family.

Spare Parts Support FAQ

Q1: Is the 330102-04-56-10-02-00 a direct drop-in replacement for other 330102-series probes?
Yes, within the 3300 XL 8mm proximity transducer system, probes sharing the 330102 base part number are designed for interchangeability. The suffix codes define cable length, connector type, and temperature rating. Confirm that the replacement probe’s suffix matches the application’s cable length and environmental requirements before installation. When in doubt, cross-reference the original system documentation or contact our technical team for compatibility confirmation.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every 330102-04-56-10-02-00 supplied by SMARTNEXMSK is tested for output linearity across the full linear range, sensitivity coefficient verification, cable continuity and shield integrity, and connector seating. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental limits.

Q3: How should I manage long-term spare parts inventory for 3300 XL proximity systems?
For critical rotating machinery, we recommend a tiered inventory strategy: maintain at least two probes per measurement plane as on-site hot spares, one matched extension cable set per probe location, and one spare proximitor module per rack. For plants with multiple identical machines, a shared pool of five to ten probes is typically sufficient to cover emergency demand while procurement replenishes stock. SMARTNEXMSK supports blanket order arrangements and reserved stock programs for high-volume industrial customers.

Q4: Can SMARTNEXMSK supply the full 3300 XL transducer system, including proximitor and extension cable?
Yes. In addition to the 330102-04-56-10-02-00 probe, we maintain stock of 3300 XL NSv Proximitor modules, 330130-series and 330030-series extension cables, and 3500 Series monitor modules. Ordering the complete transducer system from a single source simplifies compatibility verification and reduces procurement lead time. Contact our sales team with your system configuration for a matched component quotation.
