Bently Nevada 330102-05-30-50-02-05 Spare 3300 XL Automation: Precision Spare for Vibration Monitoring Continuity

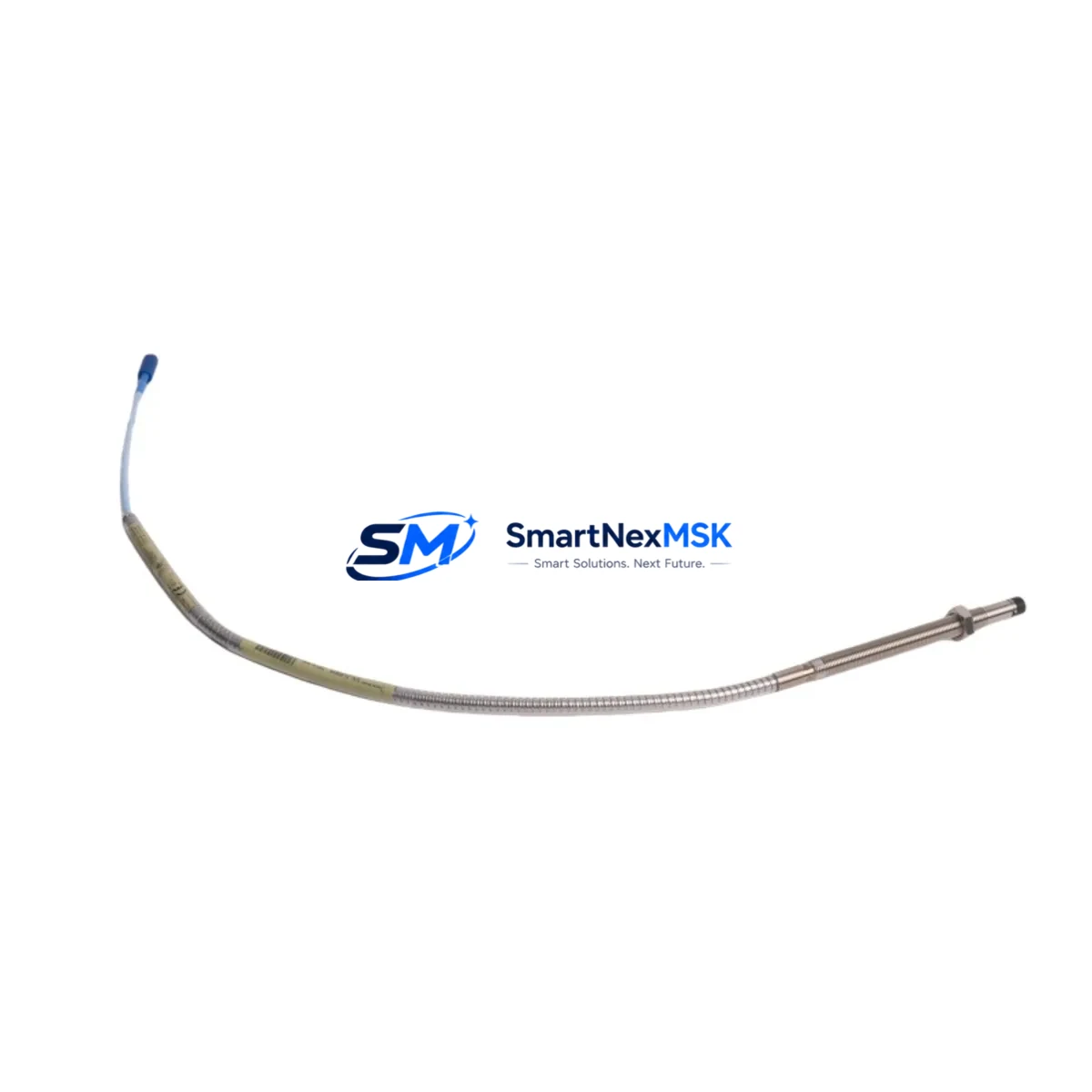

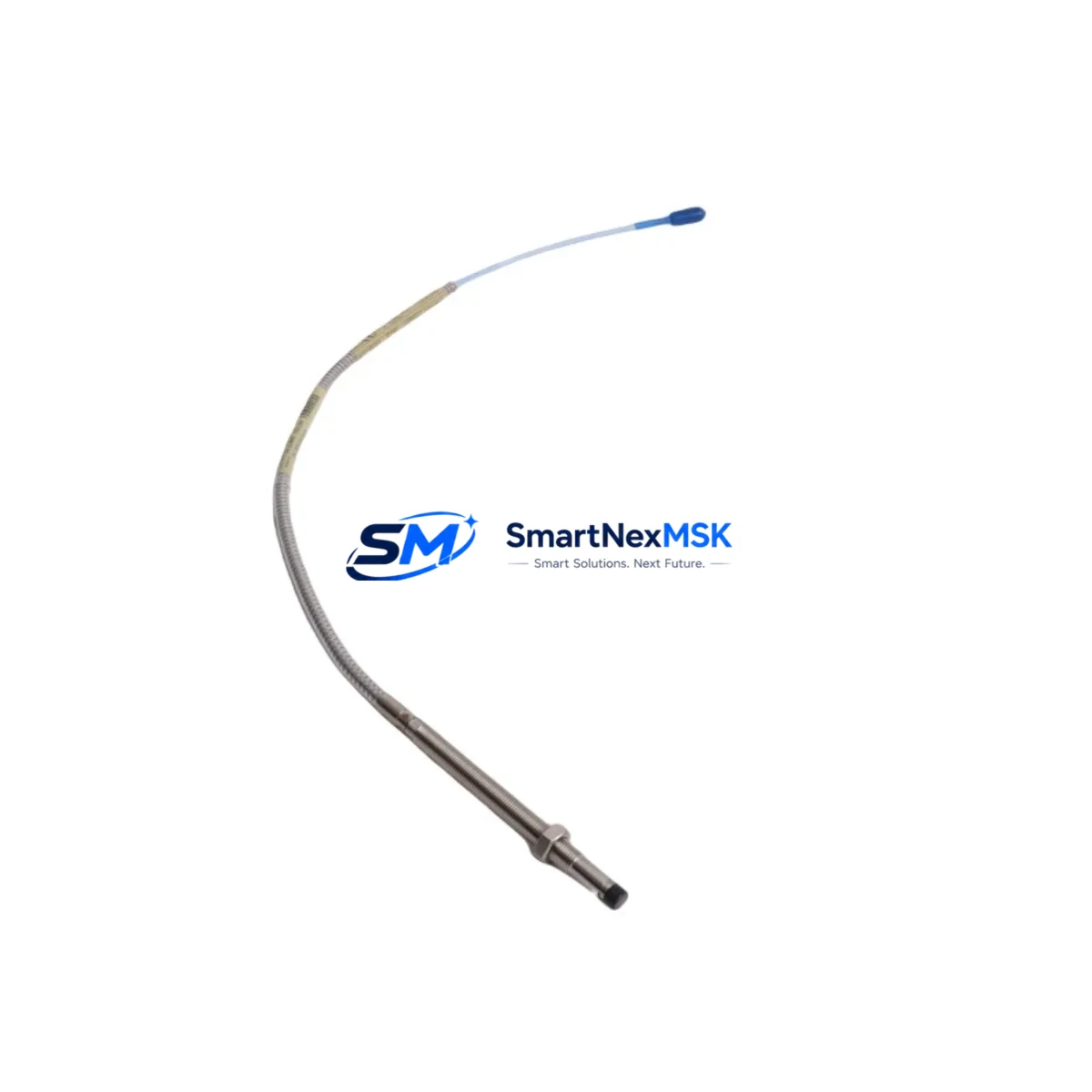

The Bently Nevada 330102-05-30-50-02-05 is an original 8mm eddy current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor responsible for shaft displacement measurement, radial vibration detection, and axial position monitoring. When this component degrades or fails, the entire machinery protection loop is compromised, exposing critical assets to undetected mechanical faults and unplanned shutdowns.

For maintenance engineers managing aging DCS or PLC-integrated machinery protection systems, stocking a verified replacement of the 330102-05-30-50-02-05 is not optional — it is a fundamental element of any credible spare parts strategy. This probe ships tested, calibrated to Bently Nevada factory specifications, and backed by a 12-month warranty covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330102-05-30-50-02-05 proximity probe is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. The 3300 XL system is a tightly integrated measurement chain, and any degradation in one element affects the accuracy and reliability of the entire loop.

Begin by inspecting the 330180 proximitor/driver paired with this probe. The driver converts the probe’s raw oscillator signal into a calibrated DC voltage output; a worn or contaminated driver will produce erratic gap readings even with a new probe installed. Simultaneously, check the 330130 extension cable — connector corrosion, jacket cracking, or shield continuity failures are common in high-vibration or high-temperature environments and will introduce noise into the measurement signal.

At the control cabinet level, verify the 3300 XL monitor rack input card seating and terminal block integrity. Loose terminal connections on the monitor’s I/O backplane are a frequent source of intermittent alarms that are misdiagnosed as probe failures. If the system feeds into a Bently Nevada 3500 Series rack or a third-party DCS via 4–20 mA or relay outputs, confirm that the signal conditioning module and relay output cards are functioning within specification.

For facilities running GE Mark VI, Emerson DeltaV, or Honeywell Experion DCS platforms, the proximity probe signal typically passes through a signal isolator or barrier module before reaching the DCS I/O card. These isolators — often Pepperl+Fuchs or MTL series — should be tested for output accuracy and galvanic isolation integrity whenever a probe is replaced. A failed isolator can mask a healthy probe reading or generate false trip signals.

Do not overlook the power supply module feeding the 3300 XL rack. The system requires a stable -24 VDC supply; voltage sag or ripple will shift the probe’s operating point and produce false vibration readings. Redundant power supply modules should be cross-checked during any planned maintenance window. Additionally, inspect fuse holders and terminal strips within the machinery protection cabinet — these passive components are often overlooked until a fuse failure causes a complete channel loss during operation.

For facilities with Keyphasor probes (such as the 330980 series) installed on the same shaft, verify that the Keyphasor signal is clean and phase-stable, as it is used for vector filtering and 1X/2X vibration analysis. A degraded Keyphasor will corrupt the dynamic data even if all proximity probes are functioning correctly.

Site Replacement Workflow

Replacing the 330102-05-30-50-02-05 in the field follows a structured sequence to minimize downtime and ensure system integrity upon restart:

1. Pre-Replacement Verification: Confirm the replacement probe matches the original part number exactly — cable length, connector type, and sensitivity code must align with the installed driver and extension cable. Substituting a non-matched probe (e.g., a 5mm probe in an 8mm system) will produce incorrect gap voltage and may trigger spurious trips.

2. Gap Setting: After mechanical installation, set the probe gap to the manufacturer-specified voltage (typically -10 VDC ±0.5 VDC at the nominal air gap). Use a calibrated gap-setting tool or digital multimeter referenced to the driver output. Document the as-found and as-left gap voltages in the maintenance record.

3. Signal Verification: With the machine at rest, verify static gap voltage at the monitor rack. Then, if safe to do so, perform a slow-roll check to confirm the dynamic signal is clean and free of electrical runout above acceptable limits (typically <0.25 mil pk-pk for precision machinery).

4. System Handback: Clear any latched alarms at the monitor rack and DCS, confirm all channels are in normal state, and document the replacement in the equipment history file. Update the spare parts inventory to trigger reorder of a replacement probe to maintain minimum stock levels.

This workflow applies equally to planned turnaround replacements and emergency swap-outs, and is compatible with legacy 3300 Series installations being maintained alongside newer 3500 Series racks in mixed-generation control rooms.

Spare Parts Support FAQ

Q: Is the 330102-05-30-50-02-05 compatible with both the 3300 and 3300 XL monitor racks?
A: The 330102-05-30-50-02-05 is designed for the 3300 XL 8mm system. It is compatible with 3300 XL monitor racks when used with the matched 330180 driver and 330130 extension cable. Compatibility with legacy 3300 (non-XL) racks depends on the specific monitor card revision — always verify the system documentation before installation.

Q: How do you verify a proximity probe before installation?
A: Each unit is bench-tested prior to shipment using a calibrated test rig that simulates the target material (AISI 4140 steel) and verifies gap voltage linearity across the full measurement range. A test certificate is available upon request. On-site, perform a static gap check immediately after installation to confirm the probe is operating within the specified voltage window.

Q: What is the recommended spare parts stocking strategy for 3300 XL proximity probes?
A: For critical rotating machinery, maintain a minimum of one matched probe-driver-cable set per monitored shaft as on-site hot spares. For facilities with multiple identical machines, a pooled spare of 2–3 probe sets is typically sufficient. Probes stored in original packaging in a climate-controlled environment have an indefinite shelf life; however, annual inspection of connector integrity is recommended.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, calibration non-conformance, and premature failure under normal operating conditions as specified in the Bently Nevada 3300 XL installation manual. It does not cover damage resulting from incorrect gap setting, installation in incompatible systems, or physical damage during handling. Warranty claims are processed with return of the defective unit and a completed failure report.
