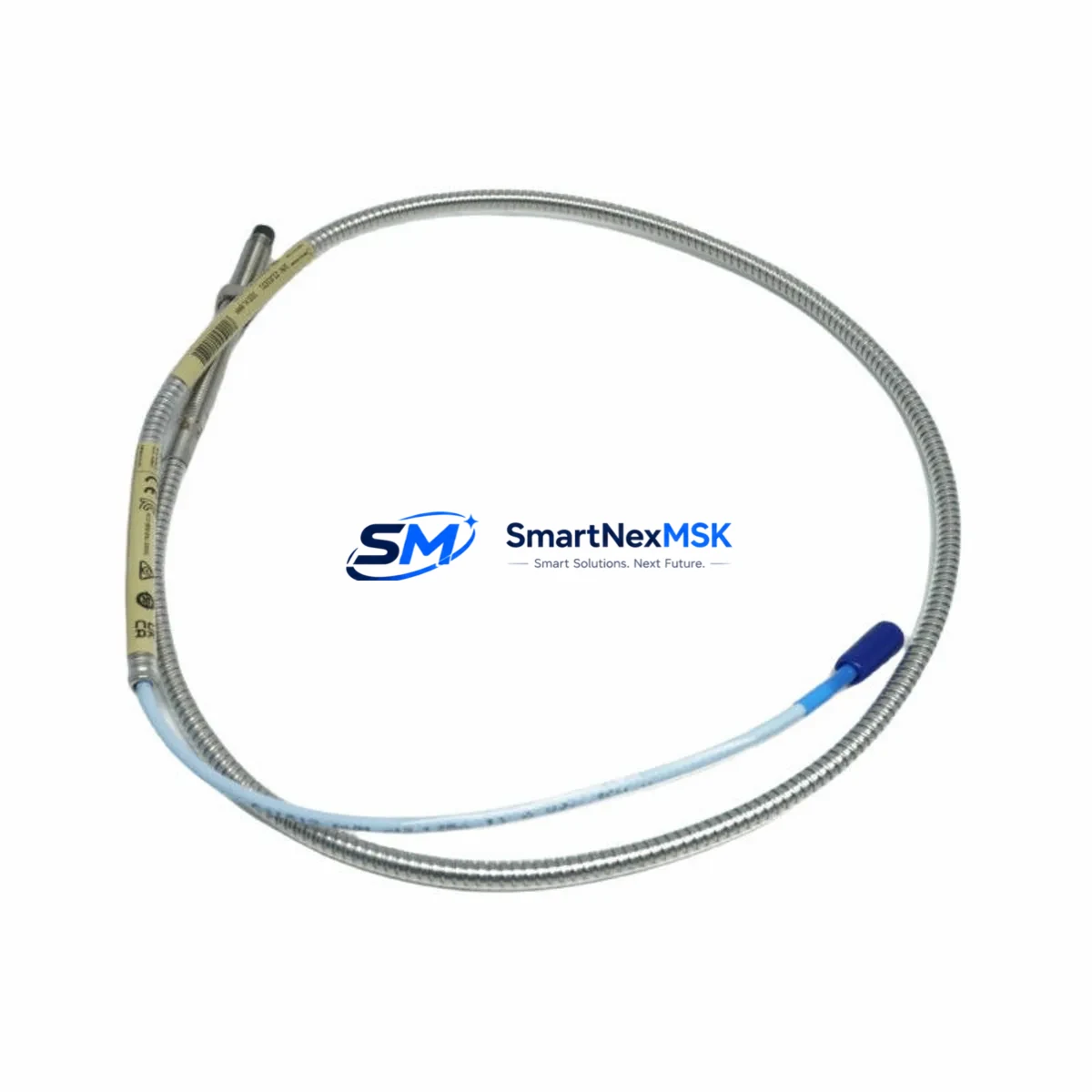

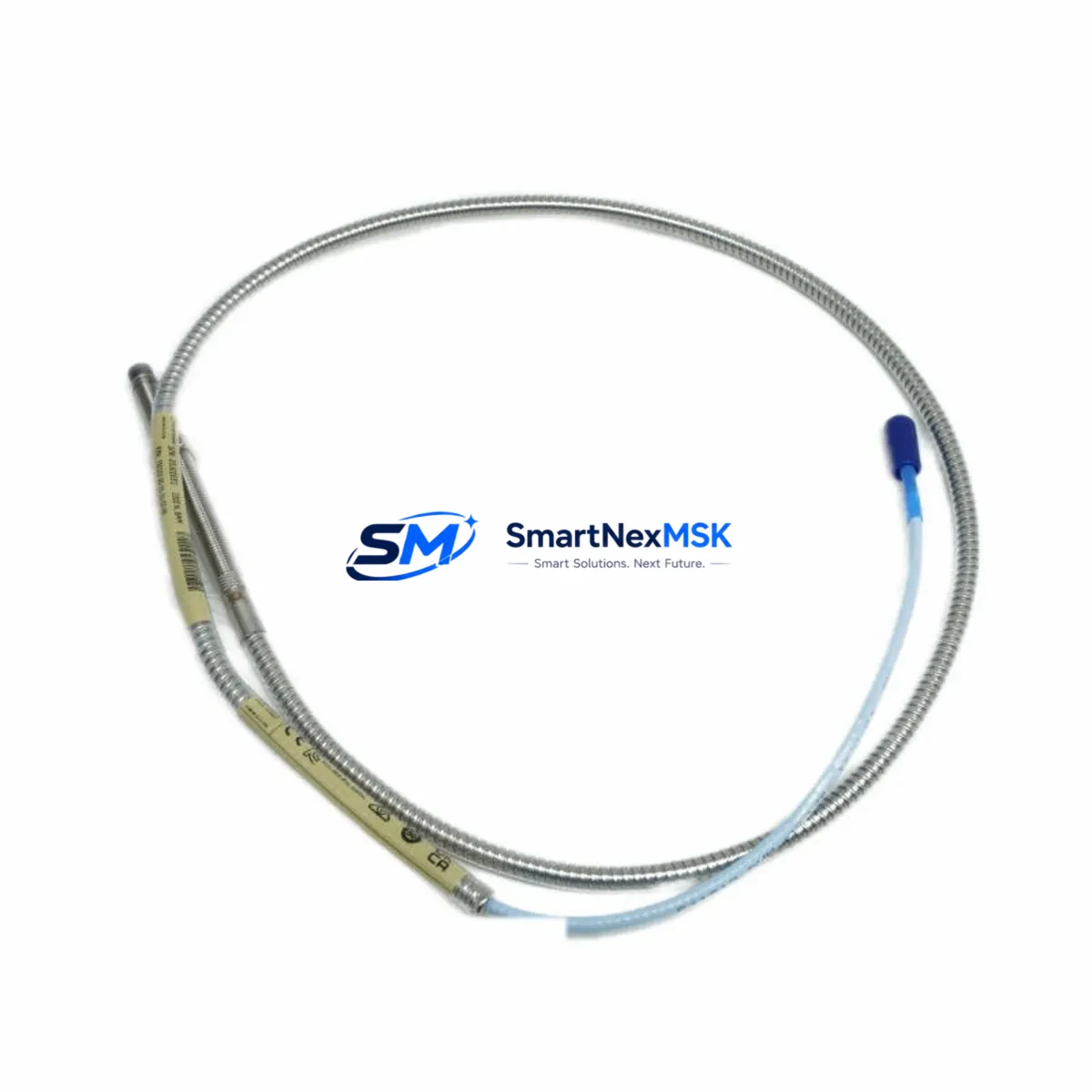

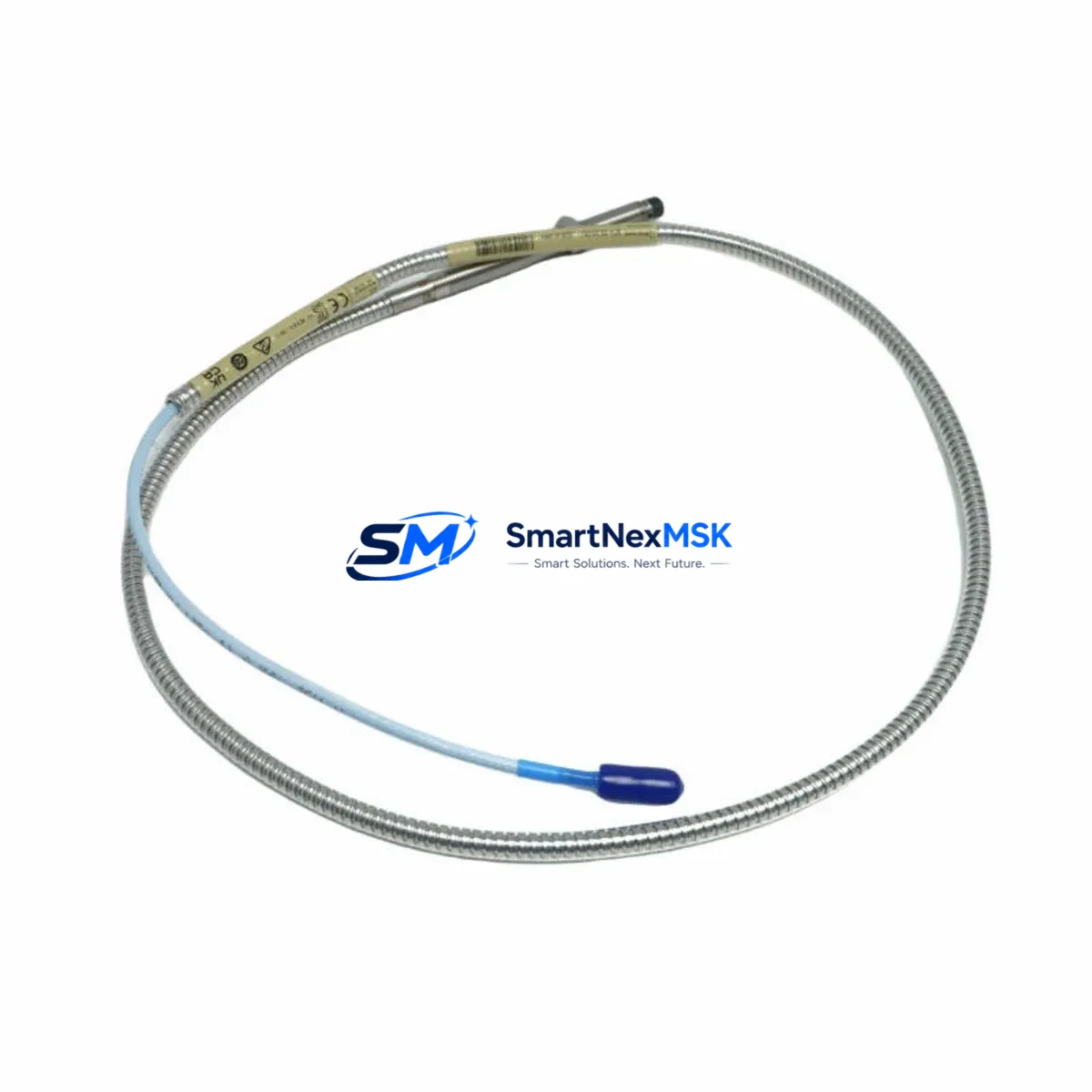

Bently Nevada 330102-08-15-10-02-00 Retrofit-Ready 8mm Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330102-08-15-10-02-00 is an 8mm proximity transducer designed for the 3300 XL Series machinery protection and condition monitoring platform. As legacy Bently Nevada 3300 XL installations approach end-of-support cycles, plant engineers and reliability teams increasingly require verified drop-in replacements that preserve existing wiring infrastructure, maintain signal chain integrity, and eliminate the need for full rack replacement. This unit is stocked and tested to serve exactly that purpose — providing a retrofit-ready solution for rotating machinery monitoring systems in power generation, petrochemical, compressor, and turbine control applications.
The 330102-08-15-10-02-00 operates within the standard Bently Nevada eddy-current sensing architecture, producing a voltage output proportional to the gap between the probe tip and the observed shaft or target surface. It is compatible with the 3300 XL proximitor/seismic monitor and integrates directly with the 3500 Series rack infrastructure when used with appropriate signal conditioning. Engineers migrating from older 3300 Series installations to the 3500/22M or 3500/42M monitor modules will find this transducer maintains the same 8mm sensing range and output sensitivity, reducing re-engineering time and preserving existing alarm setpoints.
Upgrade Compatibility Table
| Parameter | 330102-08-15-10-02-00 (This Unit) | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8mm | Direct fit for existing 8mm probe ports; no bore modification required |
| Cable Length | 15 ft (extension + probe) | Verify total cable run matches original; extension cable 330130-045-00-00 may be reused |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) | Matches 3300 XL standard; no monitor rescaling needed |
| Supply Voltage | -24 VDC (nominal) | Confirm power supply module (e.g. 3500/15 Power Supply) output is within spec |
| Connector Type | Standard BNC / integral cable | Compatible with existing junction box and field wiring terminations |
| Monitor Compatibility | 3300 XL, 3500/22M, 3500/42M | Verify channel configuration in System 1 or rack keypad before commissioning |
| Installation | Threaded probe mount | Confirm thread pitch and bracket clearance; use original mounting hardware where possible |
| Commissioning Check | Gap voltage verification required | Set gap to nominal linear range center; verify OK/Not OK relay output |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
Replacing a proximity transducer in an operating plant requires careful coordination across mechanical, electrical, and control system disciplines. Before removing the original 330102-08-15-10-02-00 or its predecessor, the maintenance team should document the existing gap voltage reading at the monitor front panel — typically displayed on the 3500/22M Transient Data Interface or the 3300 XL monitor module — and record the current alarm and danger setpoints stored in the rack configuration.
On the power distribution side, confirm that the 3500/15 Power Supply or equivalent rack power module is delivering stable -24 VDC to the proximitor. Voltage sag or ripple at the power rail is a common cause of false OK/Not OK transitions during transducer changeover and should be ruled out before the new unit is installed. If the rack also houses a 3500/20 Rack Interface Module for communication with the plant DCS or historian, ensure that the communication link remains active during the swap to avoid data gaps in the condition monitoring record.
Wiring continuity is the next critical checkpoint. The field cable from the junction box to the monitor rack — often a shielded twisted pair routed through cable trays shared with 3500/40M Proximitor I/O modules or 3500/42M Vibration Monitor inputs — must be inspected for insulation damage, connector corrosion, and shield continuity. If the extension cable (such as the 330130-045-00-00 or 330130-080-00-00 depending on run length) is being reused, verify its resistance and capacitance values are within the transducer system specification before connecting the new probe.
For plants running System 1 Evolution software or an older System 1 Classic historian, the transducer channel configuration — including probe type, gap calibration curve, and engineering unit scaling — should be exported and backed up before any hardware change. If the replacement transducer is being installed alongside a broader migration from the 3300 XL platform to the 3500 Series rack, the 3500/94 TMR Safety I/O Module or 3500/32 4-Channel Relay Module may also require reconfiguration to reflect updated channel assignments. HMI screens tied to vibration trend displays should be reviewed to confirm that tag names and scaling factors remain consistent after the swap.
In compressor and turbine applications where the proximity transducer monitors radial shaft vibration or axial position, the replacement procedure must be performed during a planned outage window. Coordinate with the operations team to confirm that the machine is at rest, the shaft is at a known reference position, and the control system is in manual or bypass mode before breaking the probe connection. After installation, perform a static gap check using a calibrated DC voltmeter at the monitor terminal strip, then bring the machine to minimum speed to verify dynamic signal quality before returning to automatic protection mode.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer replacement begins with pre-staging the replacement unit and all associated hardware — including the extension cable, mounting bracket, and any required thread adapters — at the work site before the outage window opens. A pre-tested 330102-08-15-10-02-00 with a documented gap voltage verification report allows the maintenance team to proceed with confidence, eliminating the diagnostic delay that occurs when a replacement unit arrives untested from a distributor.
Where the plant protection philosophy permits, consider placing the affected monitor channel in bypass mode within the 3500 rack configuration before disconnecting the original transducer. This prevents spurious trips on the 3500/32 relay module or connected emergency shutdown system during the mechanical installation phase. Document the bypass action in the permit-to-work system and set a time limit to ensure the channel is returned to active protection status before the machine is restarted.
For sites migrating from the 3300 XL to the 3500 Series as part of a broader control system upgrade, a phased approach — replacing one transducer channel at a time while keeping adjacent channels in service — preserves continuous vibration monitoring coverage on critical machines. This strategy is particularly effective when the upgrade also involves replacing the 3300 XL monitor with a 3500/22M or 3500/42M module, as it allows the new monitor to be commissioned and verified on live signal before the old hardware is decommissioned. Throughout the migration, maintain a parallel record of gap voltages, alarm setpoints, and relay configurations to support post-upgrade verification and regulatory documentation requirements.
Retrofit Support FAQ
Q: Is the 330102-08-15-10-02-00 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. This unit replicates the mechanical dimensions, electrical output sensitivity (200 mV/mil), supply voltage requirement (-24 VDC), and connector configuration of the original 330102-08-15-10-02-00. No modifications to the existing probe port, extension cable, or monitor channel configuration are required in standard 3300 XL installations.
Q: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to the center of the linear range (typically 1.0–1.5 mm for an 8mm probe) and verify the gap voltage at the monitor terminal strip or front-panel display. Confirm the OK relay is energized and that the vibration reading is within the expected baseline range for the machine at rest. For 3500 Series racks, verify channel status in the rack configuration software before returning the channel to active protection.
Q: Can the existing extension cable be reused with this replacement transducer?
A: In most cases, yes — provided the extension cable passes a continuity and insulation resistance check. The 330102-08-15-10-02-00 is compatible with standard Bently Nevada 3300 XL extension cables. If the cable shows signs of damage or its resistance values fall outside specification, replacement with a matched extension cable is recommended to ensure system accuracy.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes a pre-shipment functional test, and a test report is available upon request. Warranty claims are processed through our sales team at sales@smartnexmsk.com. Units damaged by incorrect installation, overvoltage, or mechanical impact are not covered under the standard warranty terms.
