Bently Nevada 330102-12-60-10-02-05 3300 XL Retrofit Probe

Bently Nevada 330102-12-60-10-02-05 3300 XL Retrofit Probe: Compatible Modernization for Legacy Vibration Monitoring Systems

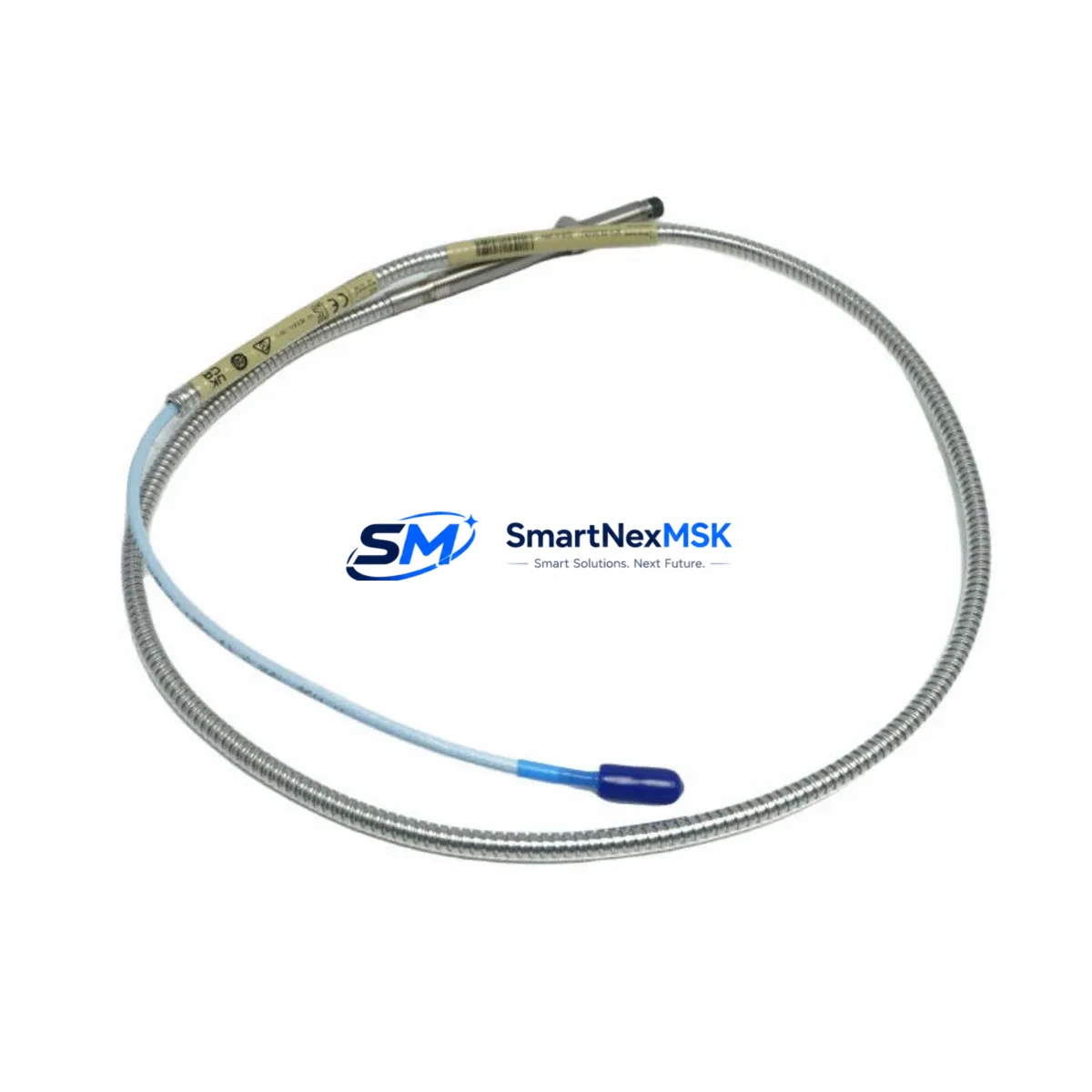

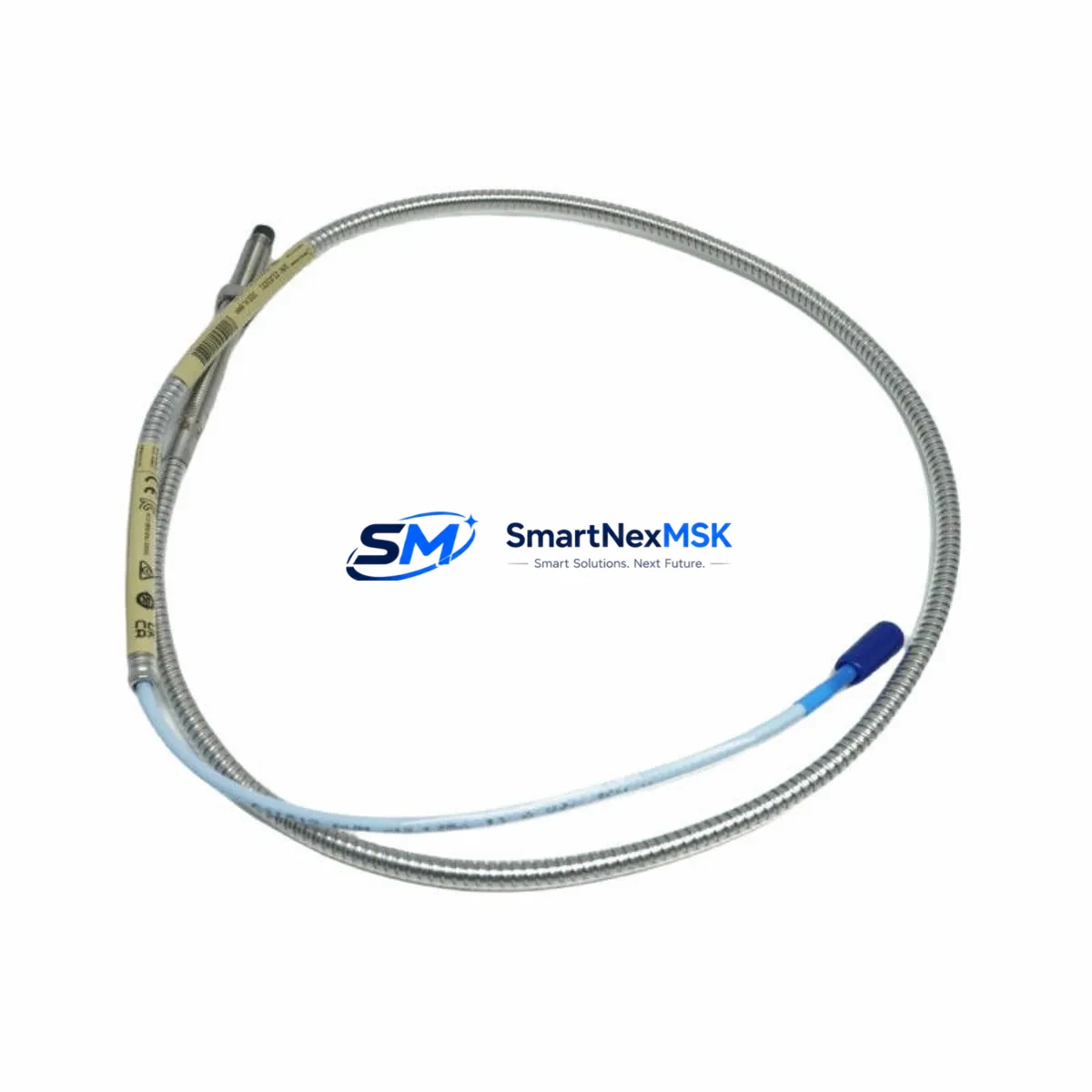

The Bently Nevada 330102-12-60-10-02-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems age and original spare parts become increasingly difficult to source, this probe serves as a verified retrofit-ready replacement for discontinued 3300 XL field components. It is designed to maintain signal integrity, dimensional compatibility, and system continuity in rotating machinery protection applications including turbines, compressors, pumps, and gearboxes.

For facilities operating aging distributed control systems or machinery protection networks built around the Bently Nevada 3300 XL architecture, sourcing a reliable, specification-matched replacement probe is critical to avoiding unplanned downtime. The 330102-12-60-10-02-05 addresses this need directly — offering a drop-in upgrade path that preserves existing wiring, conduit routing, and monitor configuration without requiring panel redesign or software re-engineering.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating plant is rarely a standalone task. The 330102-12-60-10-02-05 is most commonly deployed as part of a broader 3300 XL system refresh, where multiple components are evaluated simultaneously to reduce future maintenance windows. During retrofit planning, engineers typically audit the full transducer chain — from the probe tip through the extension cable (such as the 330130-045-00-00 or 330130-080-00-00 series) to the Proximitor sensor (commonly the 330180-X1-05 or 330180-X1-CN), and finally into the 3300/16 or 3300/20 monitor rack card.

Power supply integrity is a foundational check. The 3300 XL system requires a stable -24 VDC supply rail; any deviation caused by aging power modules or shared rail loading from additional I/O cards can affect probe linearity and trigger false alarms. Before installing the replacement probe, verify that the rack power supply — often a 3300/05 or equivalent — is within specification and that the supply rail is not shared with high-inrush devices.

Terminal wiring should be inspected at both the junction box and the monitor card terminal block. Corroded or loose terminations on the coaxial shield drain wire are a common source of noise after probe replacement. If the existing extension cable shows signs of jacket degradation or impedance mismatch, replacing it concurrently with the probe eliminates a second maintenance window. The 330130 series extension cables are dimensionally and electrically matched to the 330102 probe family.

For facilities that have integrated the 3300 XL into a broader DCS environment — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA system — the analog signal from the Proximitor sensor feeds into AI modules on the DCS I/O bus. Confirm that the engineering unit scaling in the DCS historian and alarm management system reflects the gap calibration of the new probe. If the plant uses a System 1 Evolution condition monitoring platform, the probe replacement event should be logged and the baseline vibration signature re-established after commissioning.

In installations where the 3300 XL rack also houses overspeed detection cards (3300/55) or thrust position monitors alongside radial vibration channels, the replacement probe installation should be sequenced to avoid inadvertent channel inhibit conflicts. Coordinate with the control room to place affected channels in bypass mode using the rack’s front-panel keyswitch or the System 1 software interface before breaking the coaxial connection. This prevents nuisance trips on adjacent channels sharing the same rack backplane.

Where the retrofit scope extends to HMI updates, confirm that the Operator Station faceplate for the affected machine train correctly reflects the new probe’s tag number and alarm setpoints. Plants using GE iFIX, Wonderware InTouch, or Ignition SCADA platforms should validate that the OPC-DA or OPC-UA tag mapping for the vibration channel remains intact after the monitor card is re-energized.

Downtime Control During System Migration

Minimizing production impact during a proximity probe replacement requires disciplined pre-work. The most effective approach is to complete all mechanical preparation — probe holder cleaning, thread inspection, and cable routing — during a scheduled inspection window before the actual swap. This reduces the live outage to the time required for physical installation, gap setting, and signal verification, typically 30–60 minutes per channel for an experienced technician.

Before removing the original 330102-series probe, document the existing gap voltage reading from the Proximitor output terminal. This baseline value, combined with the machine’s historical vibration trend from the System 1 or DCS historian, provides the reference point for post-installation acceptance. After installing the 330102-12-60-10-02-05, adjust the probe gap to achieve the target output voltage (-10.0 VDC ± 0.5 VDC at the nominal air gap of 1.0mm for 8mm probes), then confirm that the monitor card’s OK relay has re-energized and that the channel is reading within the expected vibration range for the machine at rest.

Program logic in the associated safety PLC or machinery protection controller should not require modification for a like-for-like probe replacement, provided the Proximitor sensor and monitor card remain unchanged. However, if the retrofit also involves upgrading from a 3300/16 to a 3300/20 monitor card, the I/O address mapping and any hardwired relay outputs to the ESD system must be re-verified against the original cause-and-effect matrix. Retain a backup of the monitor configuration using the System 1 Configuration Manager or the rack’s front-panel configuration port before making any card-level changes.

All replacement probes supplied by SMARTNEXMSK undergo pre-shipment functional testing, including gap linearity verification and connector integrity checks, to ensure the unit is ready for immediate field installation upon receipt. This reduces on-site commissioning time and supports tight maintenance windows in continuous-process facilities.

Retrofit Support FAQ

Q1: Is the 330102-12-60-10-02-05 a direct replacement for my existing 3300 XL proximity probe?
Yes. The 330102-12-60-10-02-05 is dimensionally and electrically compatible with the 3300 XL 8mm proximity transducer system. It uses the same M10 x 1.0 thread, standard coaxial connector, and -18 VDC nominal output as the original 330102 series, making it a drop-in replacement without bracket or wiring modification.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to achieve a Proximitor output of -10.0 VDC ± 0.5 VDC at the nominal 1.0mm air gap. Verify the monitor card OK relay status, confirm channel readings in the DCS or System 1 platform, and re-establish the vibration baseline for the machine train. Document the as-found and as-left gap voltage readings in the maintenance record.

Q3: Does the replacement probe affect my existing PLC program or DCS configuration?
For a like-for-like probe replacement with no changes to the Proximitor sensor or monitor card, no PLC or DCS program modifications are required. The analog signal path and engineering unit scaling remain unchanged. If the retrofit includes a monitor card upgrade, re-verify I/O address mapping and relay output assignments before returning the system to service.

Q4: What warranty and testing does SMARTNEXMSK provide?
All units carry a 12-month warranty from the date of shipment. Each probe undergoes pre-shipment functional testing covering gap linearity, connector integrity, and cable continuity. A test report is available upon request. For urgent requirements, expedited shipping and priority stock allocation are available — contact our team directly to confirm lead time and inventory status.
