Bently Nevada 330102-20-55-10-02-CN Retrofit-Ready Proximity Probe

Bently Nevada 330102-20-55-10-02-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

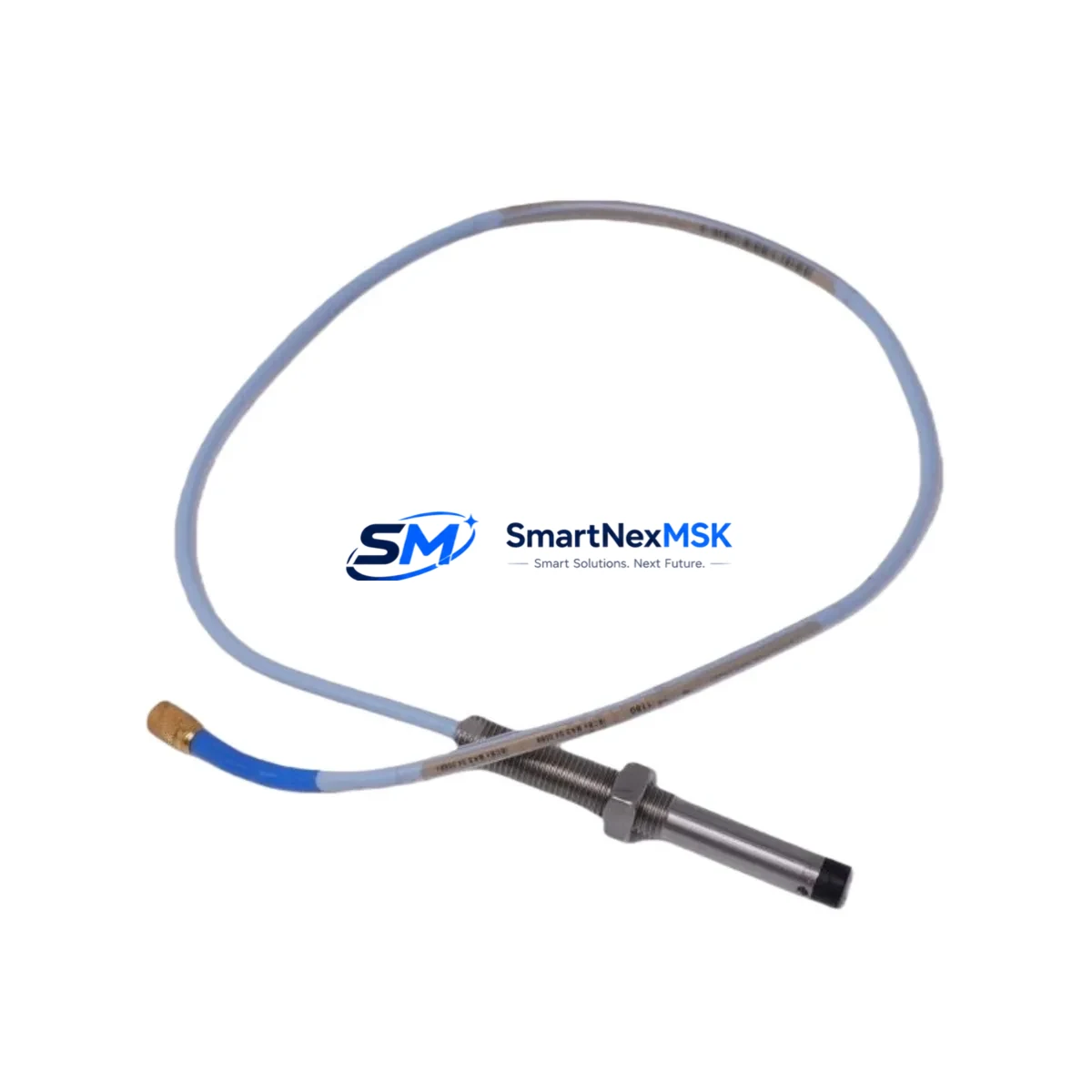

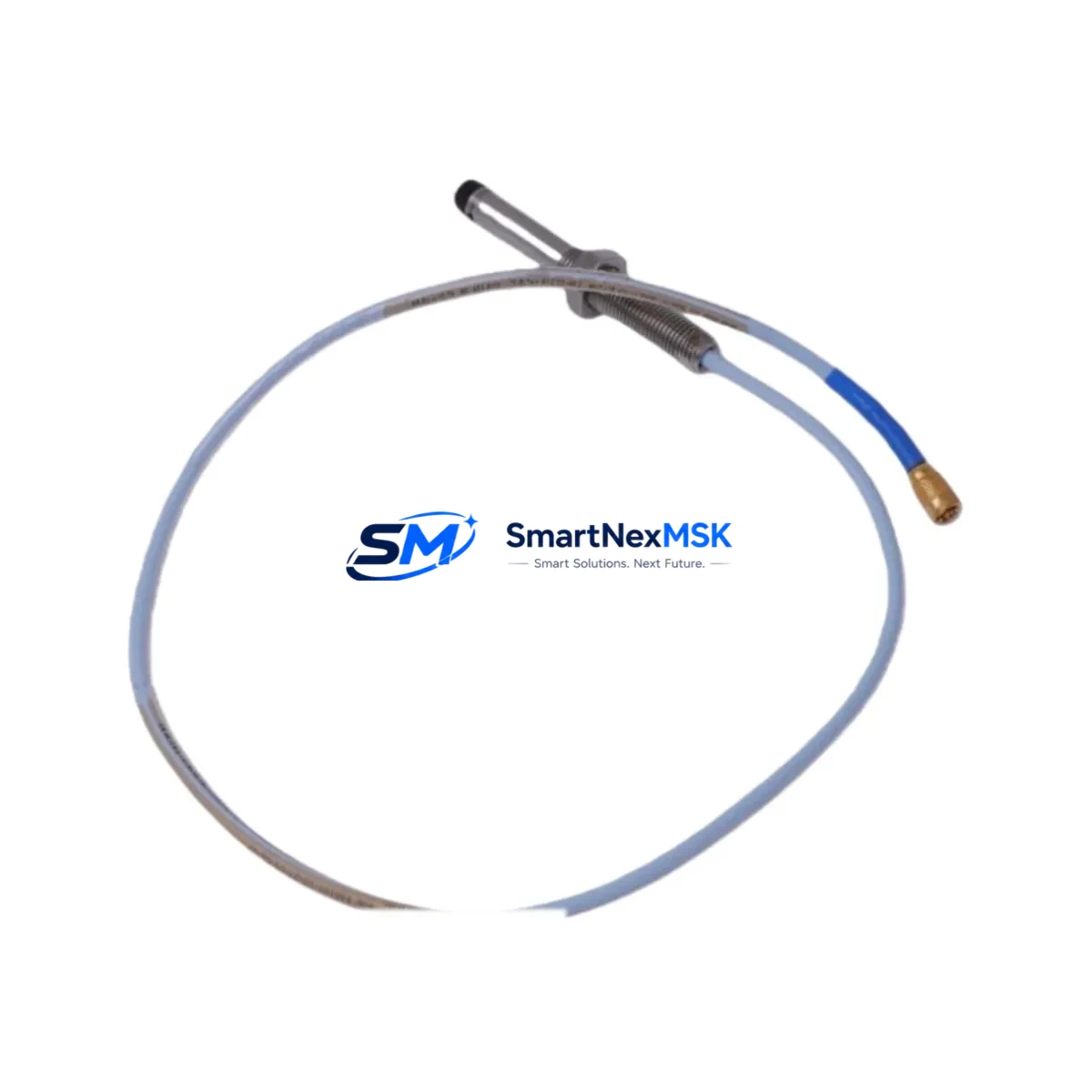

The Bently Nevada 330102-20-55-10-02-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. Designed as a retrofit-ready, drop-in replacement for legacy Bently Nevada 3300 Series installations, this probe delivers full backward compatibility with existing field wiring, extension cables, and Proximitor® sensor assemblies already installed in your control cabinet. Whether you are upgrading a turbine protection loop, replacing a discontinued spare, or migrating from an older 3300 NSv system to the current 3300 XL architecture, the 330102-20-55-10-02-CN provides a verified, tested solution that minimises engineering rework and commissioning time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330102-20-55-10-02-CN into an operating plant begins well before the probe reaches the machine. Start by auditing the existing Bently Nevada 3300 XL monitor rack: confirm that the rack accepts 8mm probe inputs and that the corresponding channel card — typically a 3300/20 Radial Vibration Monitor or a 3300/25 Thrust Position Monitor — is configured for the correct scale factor. If the installation was originally built around the older 3300/16 architecture, a channel card upgrade to the 3300 XL standard may be required before the new probe will produce a valid OK relay output.

Extension cable continuity is the next critical checkpoint. The 330130-080-00-00 (8 m) and 330130-050-00-00 (5 m) extension cables used in most turbine skid installations are fully compatible with the 330102-20-55-10-02-CN, provided the field connectors show no corrosion or pin damage. Replacing only the probe while retaining the original extension cable is the most common retrofit path and avoids conduit rework entirely.

At the junction box or marshalling cabinet, verify terminal block wiring against the original loop drawing. The probe circuit uses a two-wire shielded pair: the centre conductor carries the –24 VDC bias from the Proximitor® sensor, and the shield must be grounded at the monitor end only to prevent ground loops that corrupt vibration readings. If the plant uses a Bently Nevada 3500 rack as the primary protection system alongside a 3300 XL monitoring rack, confirm that the probe signal is not shared across both systems without a proper signal splitter or buffered output card.

For sites migrating from a legacy DCS platform — such as a Honeywell TDC 3000 or an older Foxboro I/A Series — to a modern DCS with integrated machinery protection, the 330102-20-55-10-02-CN can serve as the field sensor while the Proximitor® output feeds into a 3500/42M Proximitor®/Seismic Monitor module, which in turn provides 4–20 mA or Modbus RTU signals to the new DCS I/O cards. This architecture preserves the original probe mounting geometry and machine-specific gap calibration data while enabling full protocol migration.

Where I/O expansion is part of the upgrade scope, the 3300 XL system supports up to 16 channels per rack using standard 3300 XL I/O modules. Adding channels for a new bearing measurement point requires only a spare slot in the existing rack and a new probe-extension-Proximitor® assembly; no rack replacement is necessary. HMI screens built on Wonderware InTouch or GE iFIX that display vibration trend data will require tag mapping updates to reflect any new channel addresses, but the underlying analogue signal format remains unchanged.

Before the probe is installed, each unit shipped by SMARTNEXMSK undergoes a bench output test: gap voltage linearity is verified across the full measurement range, and the OK relay threshold is confirmed against the factory specification. A calibration record accompanies every shipment, reducing the on-site commissioning burden to a single gap-setting verification at the machine.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured hot-swap procedure. Where the process permits a brief controlled shutdown, the preferred sequence is: inhibit the channel alarm in the 3300 XL monitor, remove the old probe, install and gap the 330102-20-55-10-02-CN, verify the gap voltage at the Proximitor® test point, then re-enable the alarm — a process that typically takes under 30 minutes per bearing measurement point.

For continuous-process applications where even a brief shutdown is unacceptable, the 3300 XL monitor’s channel bypass function allows the affected channel to be placed in bypass mode while the probe is exchanged. The bypass state is logged by the monitor and visible on the operator HMI, ensuring that the control room team maintains situational awareness throughout the procedure. Original PLC ladder logic or DCS function blocks governing the machinery protection interlock do not require modification, because the probe replacement does not alter the signal path or the monitor’s output relay wiring.

After the new probe is gapped and the channel is returned to normal monitoring mode, a 15-minute trend observation period is recommended to confirm that the vibration baseline matches the pre-replacement historical data stored in the System 1 condition monitoring software. Any deviation greater than 10% of the original baseline should trigger a re-gap verification before the machine is returned to full load. This structured approach protects both the equipment and the integrity of the long-term vibration database, which is essential for predictive maintenance scheduling.

Retrofit Support FAQ

Q1: Is the 330102-20-55-10-02-CN a direct replacement for the non-CN suffix version?
Yes. The CN suffix denotes a configuration variant approved for specific regional compliance documentation. The mechanical dimensions, electrical characteristics, scale factor, and connector type are identical to the standard 330102-20-55-10-02. No wiring or bracket changes are required when substituting one for the other.

Q2: What gap voltage should I set during commissioning?
The nominal air gap for the 330102-20-55-10-02-CN is 2.0 mm, which produces a Proximitor® output of approximately –10.0 VDC (±0.5 V) when used with the 330180 or 330185 Proximitor® sensor. Set the gap using a non-conductive feeler gauge and confirm the voltage at the Proximitor® test point before re-enabling channel alarms. The scale factor is 7.87 V/mm.

Q3: Can this probe be used with a Bently Nevada 3500 rack?
The 330102-20-55-10-02-CN is designed and calibrated for the 3300 XL Proximitor® sensor family. While the physical connector is compatible with some 3500 series Proximitor® inputs, Bently Nevada specifies dedicated 3500 series probes (such as the 330730 or 330900 series) for 3500 rack installations. Using a 3300 XL probe with a 3500 Proximitor® may result in scale factor errors and is not recommended without factory confirmation.

Q4: What does the 12-month warranty cover?
The 12-Month Warranty covers manufacturing defects, connector integrity, cable insulation, and signal output deviation from the published specification. Warranty claims are processed through SMARTNEXMSK. Units showing physical damage caused by incorrect installation, over-range mechanical contact, or chemical exposure are excluded. All warranty replacements are shipped with a new calibration record.
