Bently Nevada 330103-00-04-05-02-00 Spare 3300 XL

Bently Nevada 330103-00-04-05-02-00 Maintenance-Ready Spare for 3300 XL Automation

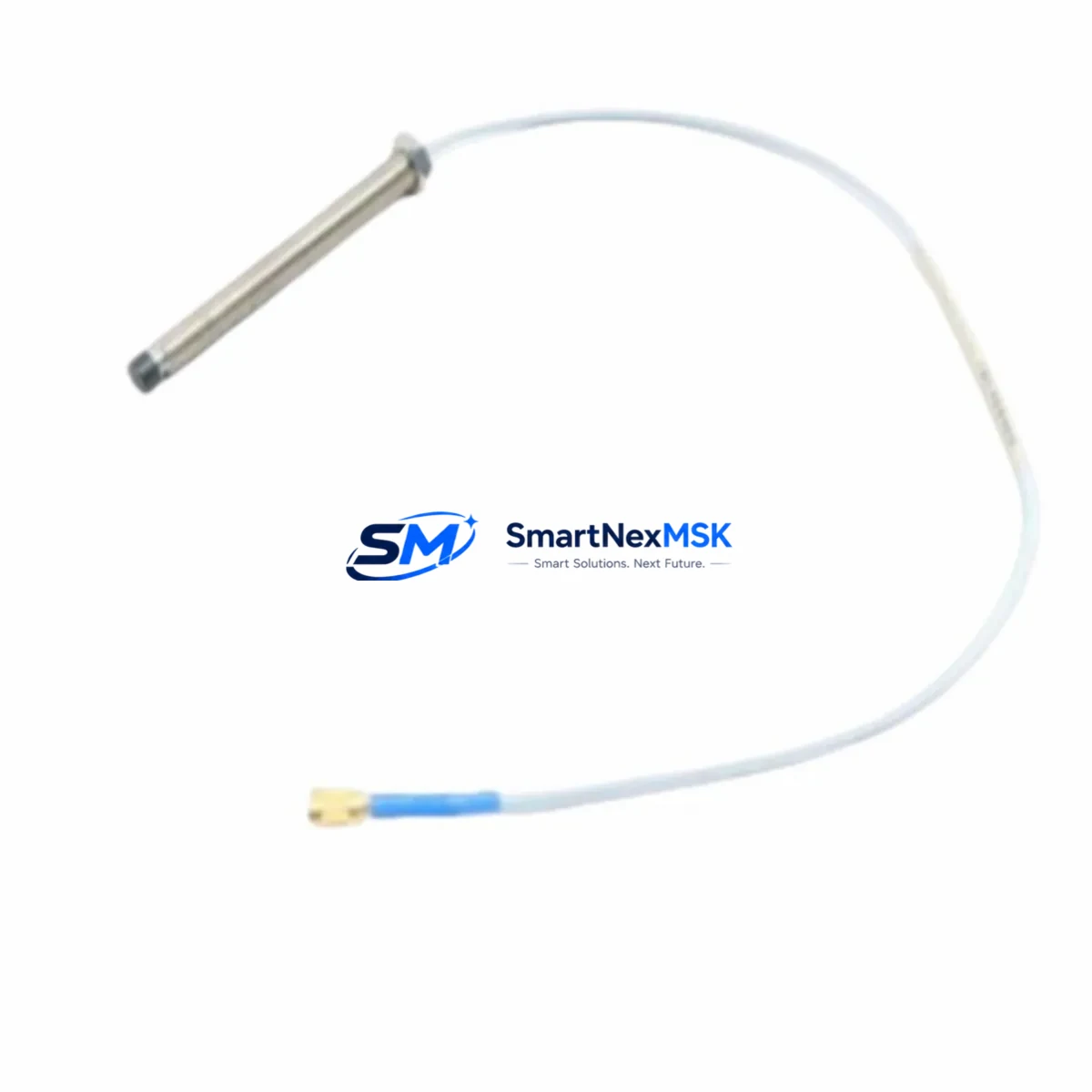

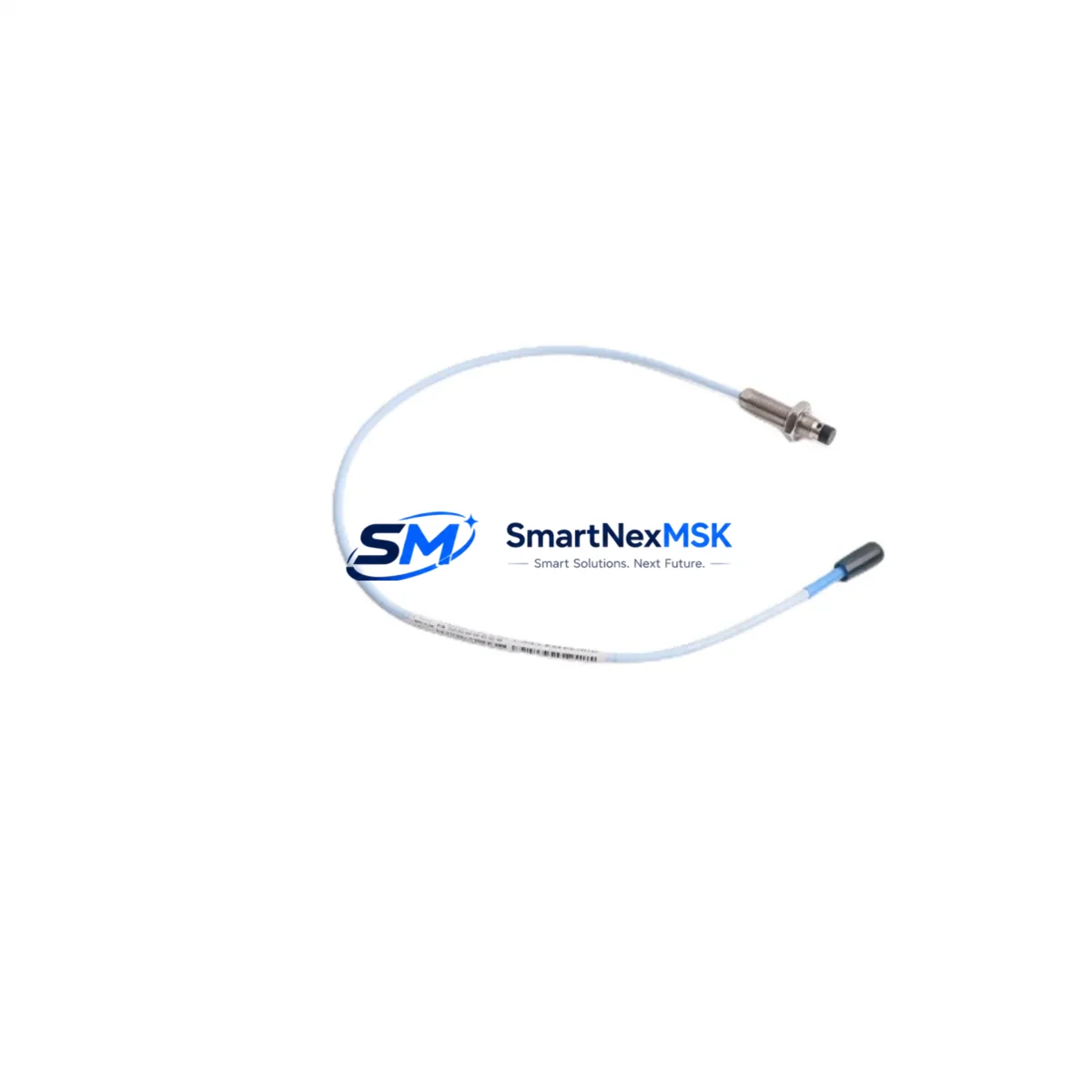

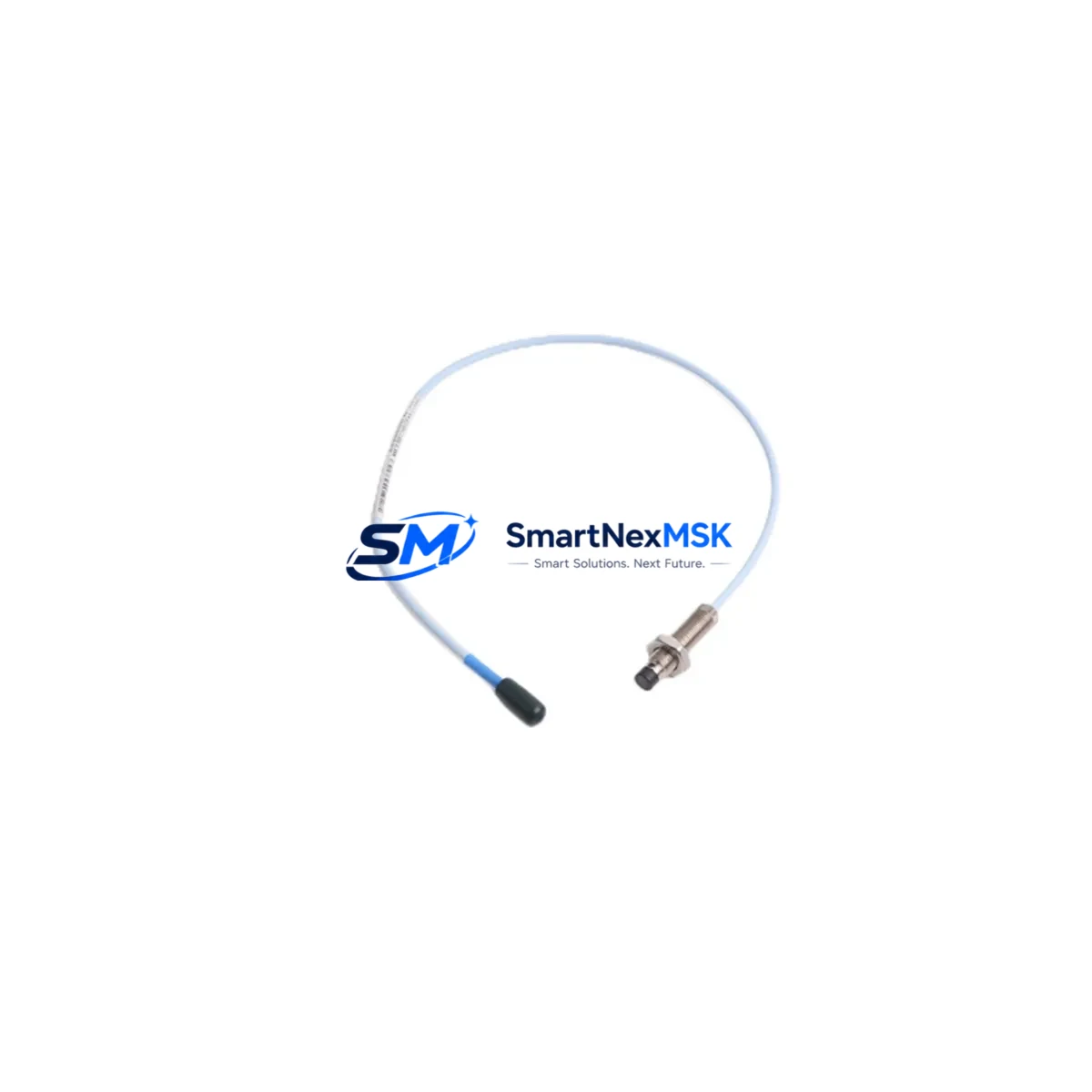

The Bently Nevada 330103-00-04-05-02-00 is a 5mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery protection system. Designed for radial vibration, axial position, and speed measurement on rotating equipment including steam turbines, gas compressors, centrifugal pumps, and gearboxes, this probe is a critical spare component for any maintenance program operating Bently Nevada-based condition monitoring infrastructure.

For maintenance engineers managing aging rotating machinery assets, the 330103-00-04-05-02-00 represents a direct, drop-in replacement for failed or degraded probes in the 3300 XL monitoring loop. Its 5mm sensing tip diameter, standard armored extension cable, and reverse-mount configuration make it fully compatible with existing probe holders, brackets, and target materials without mechanical modification. Procurement engineers can stock this SKU with confidence: it ships tested, calibrated, and ready for immediate field installation, backed by a 12-month warranty.

When sourcing this spare, it is equally important to assess the condition of the complete measurement chain. The 330103-00-04-05-02-00 probe operates as part of a three-component system: the probe itself, the extension cable (typically the 330130 series armored cable), and the proximitor/driver module such as the 3300 XL 8mm Proximitor or the dedicated 330180 series driver. A degraded extension cable or a proximitor with drift in its output voltage will produce erroneous readings even with a new probe installed — always inspect and test all three components during a planned replacement.

In the control cabinet, the proximitor output feeds directly into the 3500 Series rack-based monitoring system, which may include the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor card. These monitor cards interpret the -18 VDC gap voltage signal from the probe-cable-proximitor chain and generate alarm and danger relay outputs. During a probe replacement, verify that the monitor card’s gap voltage reading returns to the nominal operating range (typically -10 to -18 VDC) before returning the machine to service. If the gap voltage is out of range after installing a new probe, suspect the extension cable or the proximitor module before assuming a probe defect.

Maintenance planning for continuous operation should also account for the 3500 rack’s power supply module, such as the 3500/15 Power Supply, which provides the regulated DC voltage required by all monitor cards. A failing power supply can introduce noise into the vibration signal chain and cause nuisance trips or masked alarms. Similarly, the 3500/20 Rack Interface Module (RIM) manages communication between the rack and the host DCS or historian — typically via Modbus RTU, Modbus TCP, or the System 1 software platform. Ensuring the RIM firmware is current and the communication link is stable is part of a complete maintenance cycle whenever probe hardware is replaced.

For sites running parallel protection on critical machines, the 330103-00-04-05-02-00 is often installed alongside the 330104 series 8mm probes on the same shaft, covering both X and Y radial planes. Maintaining a matched spare set for both probe sizes reduces the risk of extended downtime when a single probe fails during operation. The 330106 series reverse-mount probes are also commonly found in the same control cabinet for axial thrust measurement, and should be included in the same spare parts inventory review.

Field replacement of the 330103-00-04-05-02-00 follows a straightforward workflow: isolate the monitor channel, remove the failed probe from its holder, install the replacement to the correct gap distance (typically 1.0 to 1.5 mm for a 5mm probe on a steel target), reconnect the extension cable, restore power to the proximitor, and verify the gap voltage at the monitor card front panel or via the System 1 software. Document the as-found and as-left gap voltage readings in the maintenance record. If the machine cannot be taken offline, a hot-swap procedure may be possible depending on the rack configuration and the criticality classification of the measurement point — consult the site’s machinery protection philosophy before proceeding.

All units of the 330103-00-04-05-02-00 supplied by SMARTNEXMSK are shipped after bench testing to verify output linearity, gap voltage response, and cable continuity. Each unit is covered by a 12-month warranty against manufacturing defects and performance deviation. Long-term supply availability is maintained to support sites with extended maintenance intervals or multi-year spare parts contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A robust spare parts strategy for the 330103-00-04-05-02-00 extends beyond stocking the probe itself. Maintenance engineers should maintain a coordinated inventory that covers the full measurement chain and the associated protection rack infrastructure. The 330130 series armored extension cable is the most frequently overlooked consumable in the proximity probe loop — cable jacket cracking, connector corrosion, and shield continuity loss are common failure modes in high-temperature or high-vibration environments, and a failed cable will produce the same symptom as a failed probe.

Within the 3500 Series rack, the 3500/15 Power Supply module should be on the critical spare list for any site with more than four monitor cards. Power supply degradation is gradual and often masked by the rack’s redundant supply configuration until a second failure occurs. The 3500/20 Rack Interface Module is equally important for sites relying on Modbus TCP or System 1 connectivity for remote monitoring — a failed RIM will sever the data link to the historian and DCS without triggering a machinery alarm, creating a blind spot in the condition monitoring program.

For sites with mixed probe sizes, maintaining parallel spares for the 330104 series 8mm probes and the 330106 series reverse-mount probes ensures that a single procurement order can cover multiple measurement points across the same machine train. Terminal blocks and DIN rail assemblies within the junction box should also be inspected during any probe replacement — corroded or loose terminals are a common source of intermittent signal faults that are difficult to diagnose without physical inspection. Signal isolators installed between the proximitor output and the DCS analog input card should be tested for drift annually, as isolation barrier degradation can introduce offset errors into the vibration trend data.

HMI screens displaying vibration trend data from the 3500 rack should be reviewed after any probe replacement to confirm that the as-left gap voltage and vibration amplitude readings are consistent with historical baseline values. Unexplained changes in the trend after a probe swap may indicate a target surface condition issue (scoring, runout, or material change) rather than a probe defect. Fuse holders and circuit protection devices in the proximitor power supply circuit should be verified for correct rating and continuity as part of the post-replacement checklist.

Site Replacement Workflow

Replacing the 330103-00-04-05-02-00 in a live plant environment requires a structured approach to minimize downtime and protect the integrity of the machinery protection system. Begin by reviewing the machine’s current vibration trend and alarm history to establish a baseline before any hardware is disturbed. Notify the control room and obtain the appropriate work permit before isolating the monitor channel at the 3500 rack.

Remove the failed probe from its holder, taking care not to disturb the extension cable routing or the junction box wiring. Install the replacement probe to the correct gap distance using a feeler gauge or the proximitor’s gap voltage output as a reference. Reconnect the extension cable and restore power to the proximitor. Verify the gap voltage reading at the 3500 monitor card front panel — it should fall within the nominal operating range specified in the calibration record for that measurement point.

If the gap voltage is within range, restore the monitor channel to normal operation and observe the vibration amplitude and phase readings for a minimum of 15 minutes before releasing the machine to operations. Document the as-found condition, the replacement part number and serial number, the as-left gap voltage, and the post-replacement vibration readings in the maintenance management system. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain the minimum stock level.

For planned outage replacements, the same workflow applies with the additional step of performing a full calibration check using a calibration fixture or a known-good target surface. This confirms that the replacement probe’s sensitivity and linearity are within the manufacturer’s specification before the machine is returned to service, reducing the risk of a nuisance trip or a missed alarm during the next operating period.

Spare Parts Support FAQ

Q: Is the 330103-00-04-05-02-00 a direct replacement for the original Bently Nevada part?
A: Yes. The 330103-00-04-05-02-00 supplied by SMARTNEXMSK is a direct, specification-matched replacement for the original Bently Nevada part of the same SKU. It is compatible with all 3300 XL Series proximitor modules and 3500 Series monitor cards without modification to the existing installation.

Q: What pre-shipment testing is performed on each unit?
A: Every unit is bench-tested for output linearity across the full sensing range, gap voltage response at nominal supply voltage, and extension cable continuity and shield integrity. Test results are available upon request. Each unit ships with a 12-month warranty covering performance deviation and manufacturing defects.

Q: How do I verify compatibility with my existing 3500 rack configuration?
A: Confirm the monitor card type (3500/40M or 3500/42M), the proximitor model, and the target material at your installation. The 330103-00-04-05-02-00 is compatible with all standard 3300 XL proximitor drivers and 3500 monitor cards configured for 5mm probe input. If your site uses a non-standard target material or a modified calibration range, contact our technical team with your calibration record for confirmation before ordering.

Q: What is the recommended spare stock level for a critical machine train?
A: For a machine train with four or more proximity probe measurement points, we recommend maintaining a minimum of two spare probes of each size in use, plus one spare extension cable per probe size. For machines classified as critical or essential service, a complete spare set including the proximitor module and the monitor card is advisable to support a full channel replacement within a single shift.
