Bently Nevada 330103-00-04-05-12-05 Retrofit Proximity Probe

Bently Nevada 330103-00-04-05-12-05 Retrofit Proximity Probe for 3300 XL Control Systems

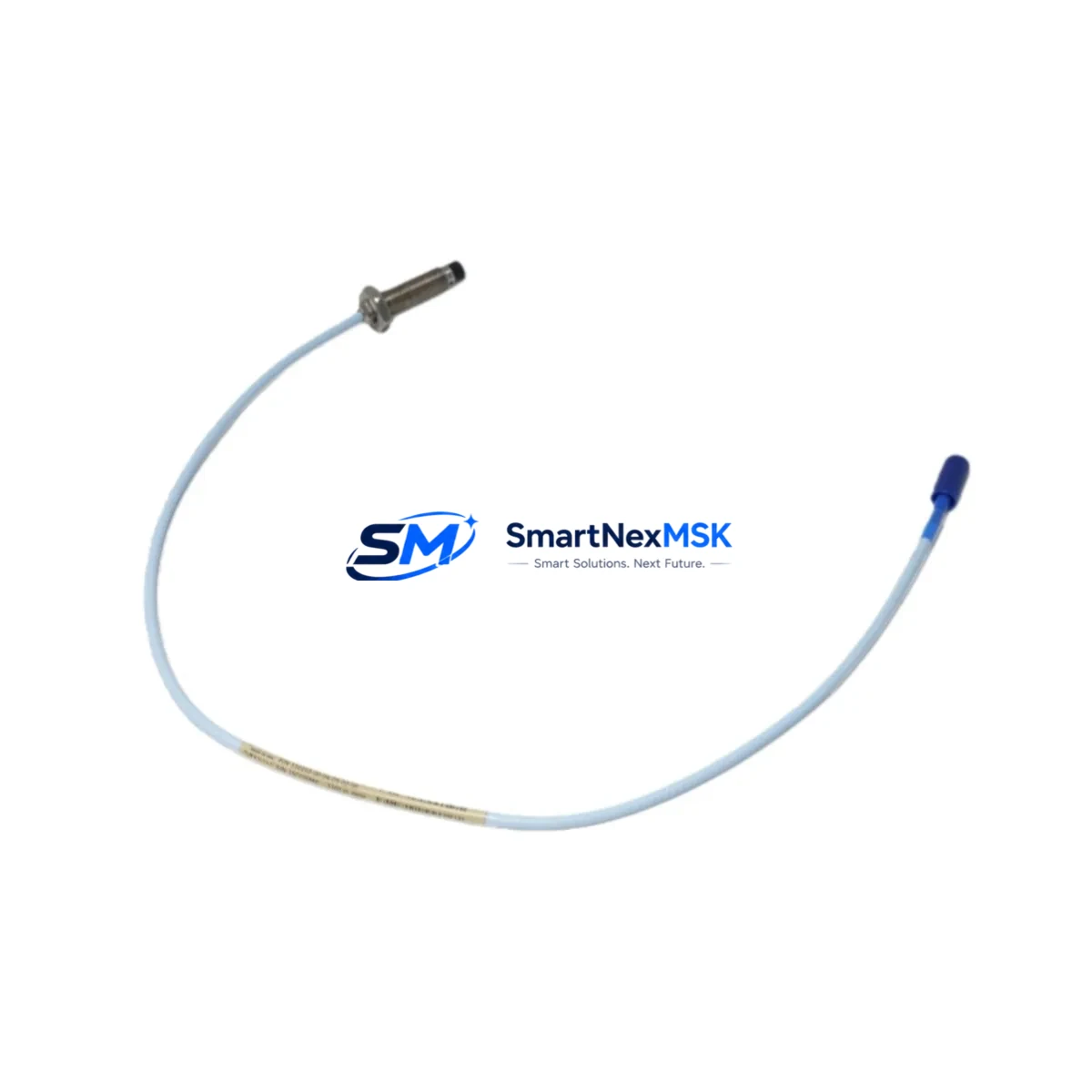

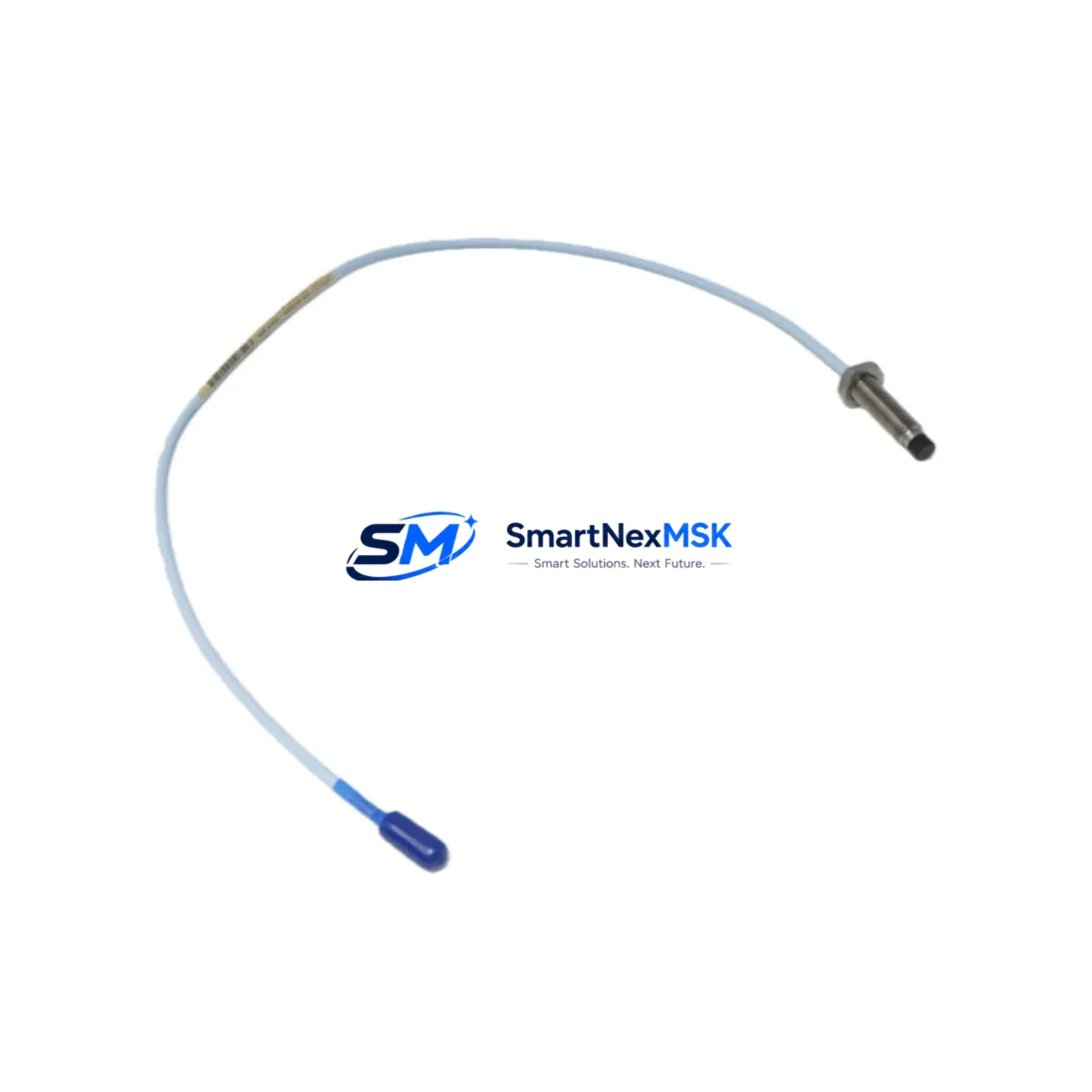

The Bently Nevada 330103-00-04-05-12-05 is a 5mm eddy-current proximity probe engineered for the 3300 XL Series machinery protection system. As legacy installations age and OEM support windows close, this retrofit-ready replacement provides a verified drop-in solution for plants operating rotating machinery protection systems built on the Bently Nevada 3300 XL platform. Whether you are replacing a failed probe in an emergency shutdown scenario or executing a planned upgrade of your vibration monitoring loop, the 330103-00-04-05-12-05 delivers the dimensional accuracy, cable length, and sensitivity range required to restore full system functionality without reprogramming your monitor or reconfiguring your rack.

This probe is designed to work within the complete 3300 XL measurement chain. It pairs directly with the 330130-080-00-00 extension cable and the 330180-X1-05 proximitor/oscillator to form a calibrated eddy-current loop. When retrofitting, engineers must verify that the existing proximitor output voltage range (-18 VDC nominal gap voltage) matches the replacement probe’s gap sensitivity curve. The 330103-00-04-05-12-05 is factory-calibrated to AISI 4140 steel targets, which is the standard reference material for most turbine shaft and compressor rotor applications. If your target material differs—such as Inconel 718 or 17-4 PH stainless—a field calibration correction factor must be applied at the 3300 XL monitor card, typically via the 3300/16 or 3300/20 I/O module configuration.

For plants running a Bently Nevada System 1 or System 1 Evolution software platform, probe replacement does not require database changes provided the channel configuration retains the same transducer type and scale factor. However, if the installation involves a migration from an older 7200 Series or 9000 Series monitor to the 3300 XL architecture, the engineering team must audit the rack backplane wiring, confirm barrier isolator compatibility (such as the 3300/TM or MTL 728 series), and validate that the new I/O termination block accepts the existing field cable connector format.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-04-05-12-05 into an operating plant begins well before the maintenance window opens. The first step is a full loop audit: trace the signal path from the probe tip through the extension cable junction, through the proximitor housing, and into the 3300 XL monitor card slot. Document the existing gap voltage at the current operating clearance, and record the OK relay status and alert/danger setpoints stored in the monitor. This baseline data is essential for post-installation verification.

During the planning phase, procurement should confirm availability of the 330130-080-00-00 extension cable if the integral cable length is insufficient for the new routing path. In many compressor train installations, the probe is mounted on a bearing housing that is physically distant from the monitor rack, requiring a full-length extension run. The proximitor—typically a 330180-X1-05 or 330180-X1-08 depending on the cable length—must be mounted within the specified temperature range and protected from process fluid ingress. If the existing proximitor is also at end-of-life, replacing both the probe and proximitor as a matched set eliminates a common source of calibration drift.

For control cabinets that house both the 3300 XL monitor rack and associated safety logic, the retrofit plan must account for the 3300/16 or 3300/20 I/O module wiring. Confirm that the terminal block accepts the field cable gauge and that the shield drain wire is terminated correctly to avoid ground loop interference. If the cabinet also contains a 3500 Series rack for overspeed or thrust position monitoring, verify that the two systems share a common instrument ground reference. Plants that have already migrated their DCS to a modern platform—such as a Honeywell Experion PKS or Emerson DeltaV—should confirm that the 3300 XL’s Modbus or OPC-DA data output to the DCS historian remains unaffected by the probe swap.

HMI screens that display vibration trend data should be reviewed before and after the replacement. If the plant uses a System 1 Evolution workstation, the channel will go into a NOT OK state during probe removal; operators should be briefed to suppress nuisance alarms during the maintenance window. After reinstallation, the gap voltage must be set to the nominal value (typically -10.0 VDC ± 0.5 VDC at the operating clearance) before the OK relay resets and the channel returns to normal monitoring. A 24-hour trend soak period is recommended before returning the machine to full load.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary driver for maintaining a stock of retrofit-ready proximity probes. The 330103-00-04-05-12-05 is shipped with a pre-shipment functional test report, allowing maintenance teams to verify probe sensitivity and insulation resistance before the machine is taken offline. This pre-verification step alone can reduce the active maintenance window by 30–60 minutes compared to testing an unknown spare on the bench after shutdown.

For plants with redundant measurement channels—common in API 670-compliant installations where XY probe pairs monitor each bearing—a channel-by-channel replacement strategy allows one axis to remain in service while the other is replaced and verified. The 3300 XL monitor supports this approach natively: the monitor will continue to generate OK outputs on the active channel while the replaced channel is being gapped and calibrated. This strategy is particularly effective on large steam turbine trains where a full shutdown carries significant production cost.

Original program logic stored in the 3300 XL monitor is not affected by a probe replacement. Alert and danger setpoints, time delays, and voting logic remain intact in the monitor’s non-volatile memory. However, if the retrofit is part of a broader migration—for example, moving from a 3300 XL to a 3500 Series monitor—the configuration must be exported from the existing monitor using Bently Nevada’s System 1 configuration tools and re-imported into the new hardware. In this scenario, the 330103-00-04-05-12-05 probe remains compatible with both platforms, providing continuity of the field measurement chain even as the monitor electronics are upgraded.

Retrofit Support FAQ

Q1: Is the 330103-00-04-05-12-05 a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit is manufactured to the same dimensional and electrical specifications as the original 330103-00-04-05-12-05. It uses the same 5mm probe diameter, 5m integral cable, and standard BNC termination, and is calibrated to the same AISI 4140 target sensitivity curve. No modifications to the existing mounting hardware, extension cable, or monitor configuration are required for a standard 3300 XL installation.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to the OEM-specified clearance (typically 1.0–1.5 mm for a 5mm probe) and verify the proximitor output voltage is within the -10.0 VDC ± 0.5 VDC OK window. Confirm the OK relay resets on the 3300 XL monitor card, check that alert and danger setpoints are active, and record a baseline vibration reading. A 24-hour trend soak at operating speed is recommended before closing the work order.

Q3: How is wiring compatibility verified before the maintenance window?
Inspect the existing extension cable connector and termination block pinout on the 3300 XL I/O module. Measure insulation resistance on the existing cable run (minimum 100 MΩ at 500 VDC). If the cable passes, only the probe head needs replacement. If the cable shows degradation, replace the full loop with a matched 330103-00-04-05-12-05 probe and 330130-080-00-00 extension cable set to ensure calibration integrity.

Q4: What does the 12-month warranty cover, and is a test report included?
The 12-month warranty covers all manufacturing defects in materials and workmanship from the date of shipment. Each unit ships with a pre-shipment functional test report documenting probe sensitivity, insulation resistance, and gap voltage linearity. Warranty claims are processed within 5 business days. Replacement units are dispatched from stock to minimize field downtime.
