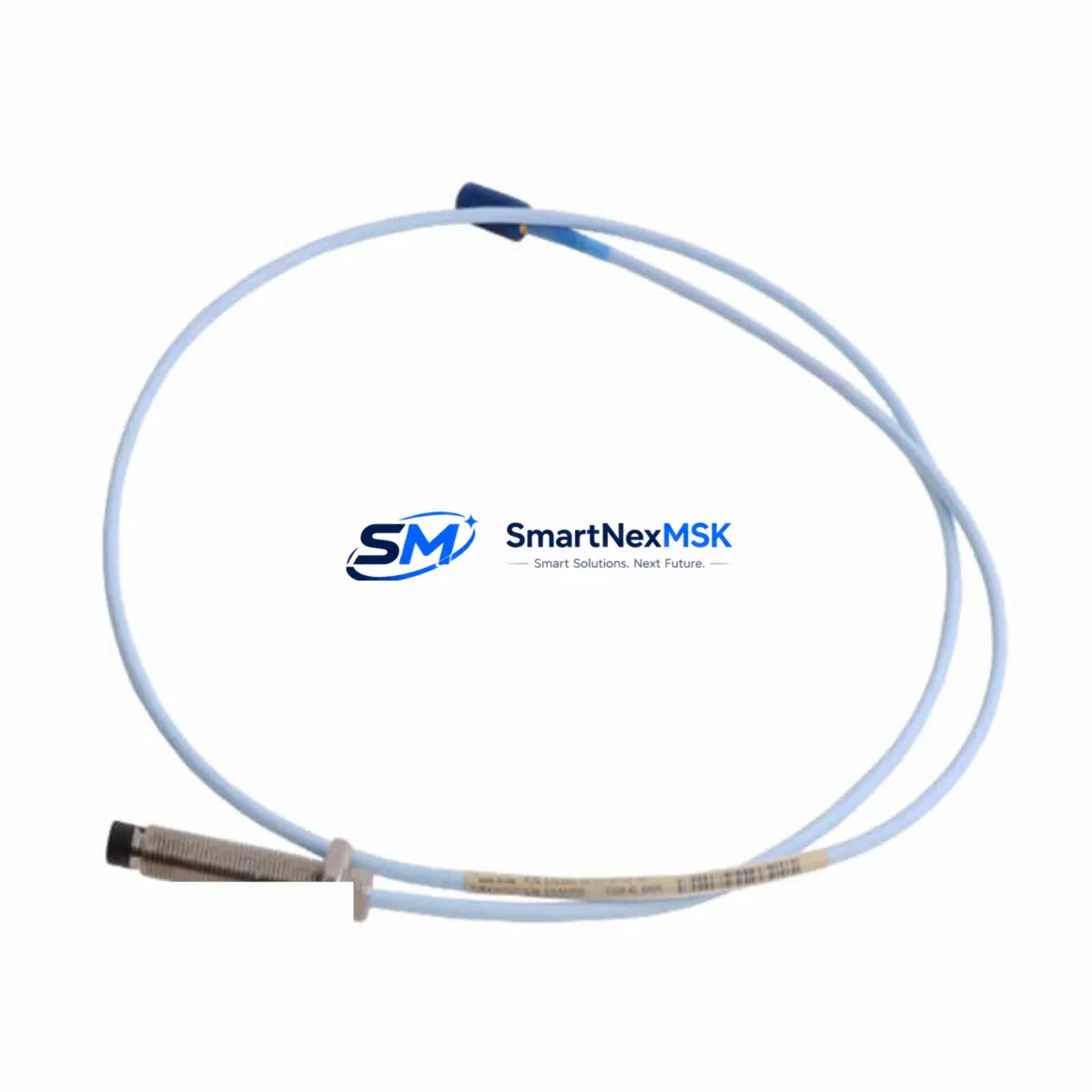

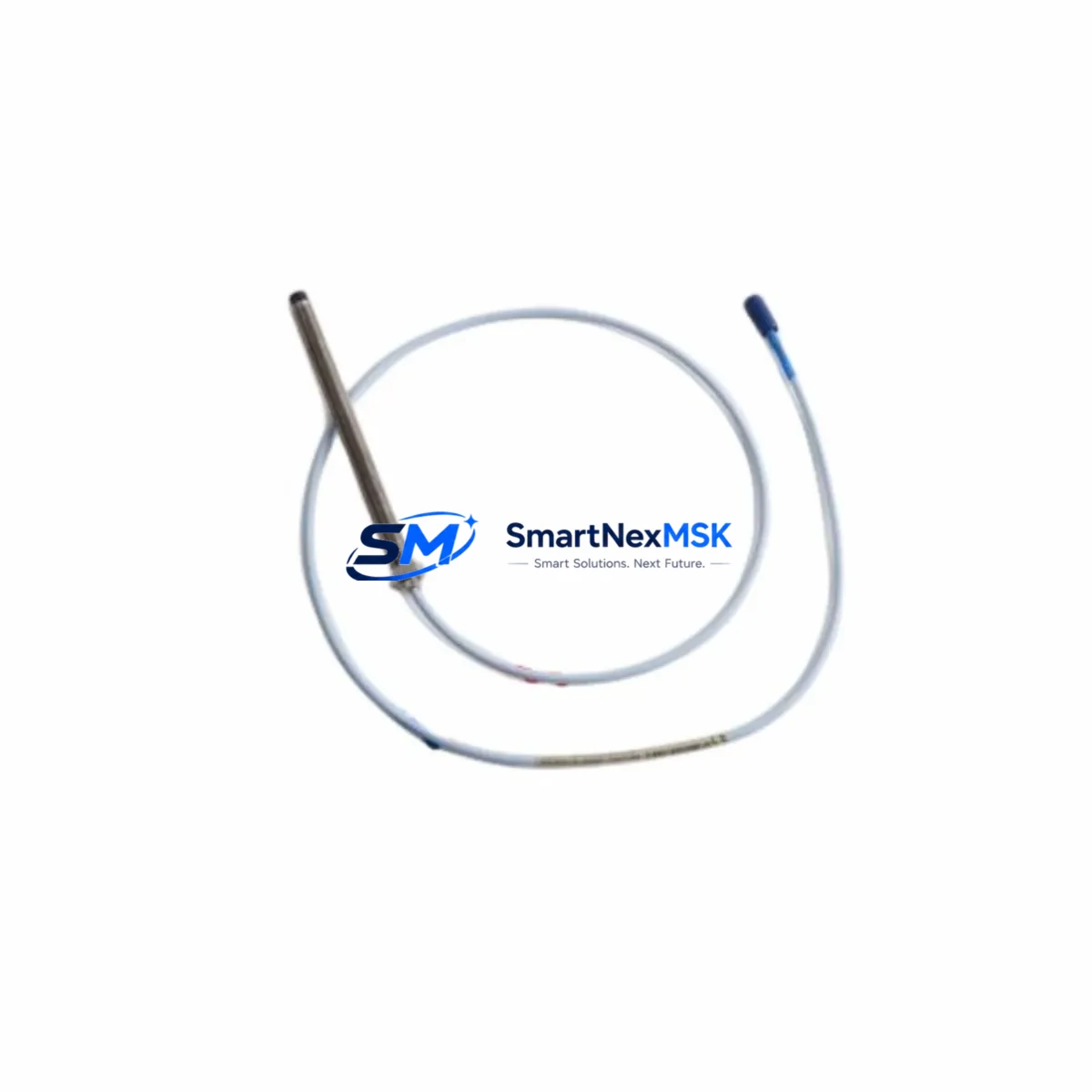

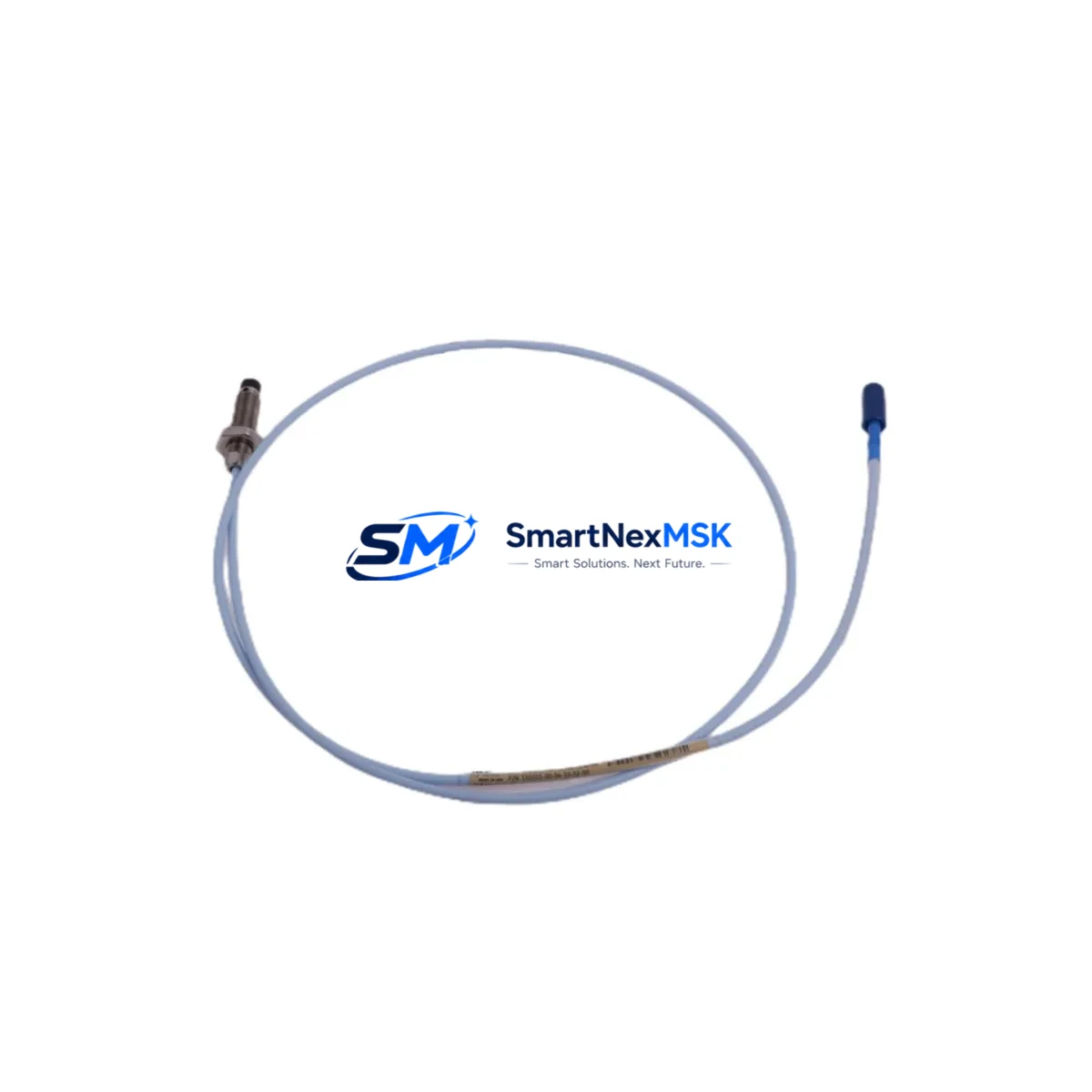

The Bently Nevada 330103-00-04-10-02-00 is an original OEM 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection environments — steam turbines, gas turbines, centrifugal compressors, pumps, and gearboxes — this transducer is the front-line component responsible for radial shaft vibration measurement, axial position sensing, and speed detection. When this unit degrades or fails, the entire machinery protection loop is compromised, triggering unplanned shutdowns and extended downtime recovery cycles that can cost thousands of dollars per hour in lost production.

For maintenance engineers and procurement engineers managing critical rotating assets, having a verified, tested spare of the 330103-00-04-10-02-00 on the shelf is not optional — it is a fundamental element of any credible spare parts strategy. This listing provides an original, OEM-grade unit, pre-tested before shipment, backed by a 12-month warranty, and available for rapid dispatch to minimize mean time to repair (MTTR) and restore system availability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330103-00-04-10-02-00 in the field is rarely an isolated task. Experienced maintenance engineers know that a transducer fault often signals broader wear or drift across the entire measurement chain. Before returning the machine to service, a thorough inspection of connected system components is essential to prevent repeat failures and ensure measurement integrity.

Begin with the 3300 XL Proximitor Sensor (e.g., 330180-X0-05) — the driver electronics that power the probe and condition its output signal. A degraded Proximitor can produce erratic gap voltage readings even with a new probe installed. Inspect the extension cable assembly (such as the 330130-080-00-00 series) for jacket damage, connector corrosion, and continuity; cable faults are a leading cause of false transducer alarms in the field. Verify the armored conduit and cable glands for mechanical integrity, particularly in high-vibration zones near bearing housings.

At the rack level, inspect the 3500/40M Proximitor Monitor module for channel calibration drift and alarm setpoint integrity. Check the 3500/15 power supply module for output voltage stability — an under-voltage condition will shift the transducer’s linear operating range and corrupt vibration amplitude readings. Review the terminal block wiring within the control cabinet for loose terminations, especially on the -24 VDC supply and signal return conductors. Corroded or over-torqued terminals are a common source of intermittent faults that mimic probe failure.

For systems integrated with a DCS or safety instrumented system (SIS), confirm that the 4–20 mA or voltage output from the monitor card is correctly received at the I/O marshalling panel and that any signal isolators or Zener barriers (for IS applications) are within calibration. If the machine is protected by a 3500 Series relay output module, test the relay contact integrity and verify trip setpoints have not drifted. Finally, review the HMI trend historian for any pre-fault vibration signatures that may indicate bearing wear, misalignment, or rotor imbalance requiring mechanical correction before restart.

A complete spare kit for a 3300 XL measurement point should include the probe, extension cable, and Proximitor as a matched set — all calibrated to the same scale factor — to eliminate systematic measurement error after replacement and support long-term supply continuity for aging system fleets.

Site Replacement Workflow

1. Isolate and de-energize: Inhibit the monitor channel at the 3500 rack to prevent spurious trips during probe removal. Document the existing gap voltage (typically -10 VDC ± 1 VDC for a correctly gapped 8mm probe on steel).

2. Remove the old transducer: Disconnect the extension cable at the probe connector. Unthread the probe from the mounting bracket, noting the number of turns for reference. Inspect the probe tip for mechanical damage or target contact marks — contact marks indicate a gap setting error or excessive shaft runout that must be corrected before reinstallation.

3. Install the replacement 330103-00-04-10-02-00: Thread the new probe to the same depth as the original, then fine-adjust gap to achieve the nominal -10 VDC output. Use a calibrated gap tool or feeler gauge. Reconnect the extension cable and verify connector seating and locking ring engagement.

4. Verify system output: With the Proximitor energized, confirm gap voltage is within the linear range. Check the 3500 monitor channel for correct amplitude and DC gap readings. Compare against the pre-fault baseline trend if available.

5. Return to service: Remove the channel inhibit, confirm alarm and trip setpoints are active, and document the replacement in the CMMS with the new probe serial number and gap voltage as-found/as-left values. This workflow is compatible with both hot-standby and single-train machinery protection architectures and supports compliance with API 670 machinery protection standards.

Spare Parts Support FAQ

Q1: Is the 330103-00-04-10-02-00 compatible with both the 3300 XL and 3500 Series monitoring systems?
The 330103-00-04-10-02-00 is a 3300 XL Series probe and is natively compatible with 3300 XL Proximitor Sensors. It can interface with 3500 Series monitor racks when paired with the appropriate 3300 XL Proximitor driver. Always verify the scale factor (7.87 V/mm) matches the monitor channel configuration before installation.

Q2: Should the probe, extension cable, and Proximitor be replaced as a matched set?
Bently Nevada recommends replacing the entire transducer system (probe + extension cable + Proximitor) as a matched set to maintain calibrated scale factor accuracy. If only the probe is replaced, re-verify the system scale factor and gap voltage against the original calibration record. Mismatched components can introduce measurement errors that fall within normal alarm bands, masking real machinery faults.

Q3: What pre-shipment testing is performed on this spare?

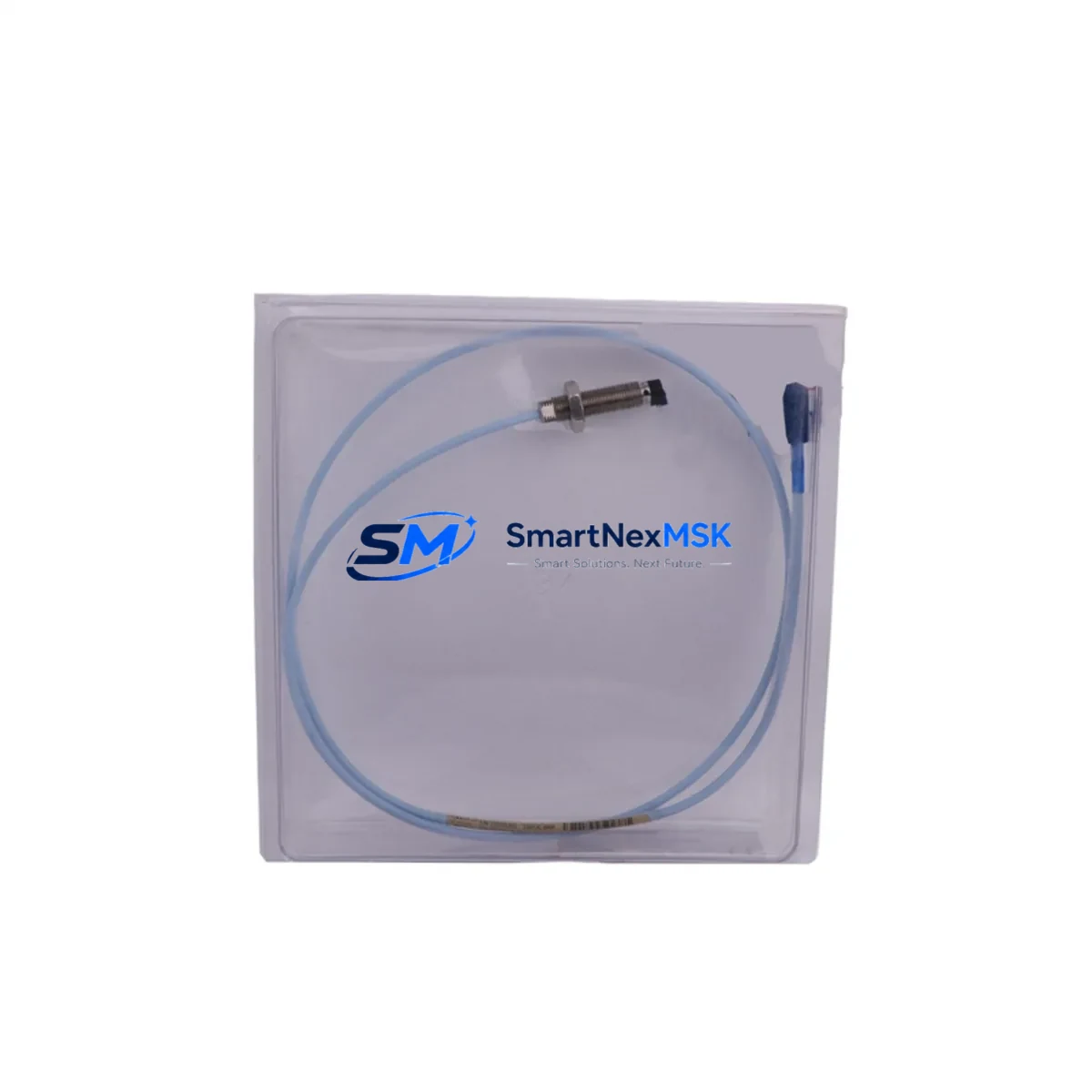

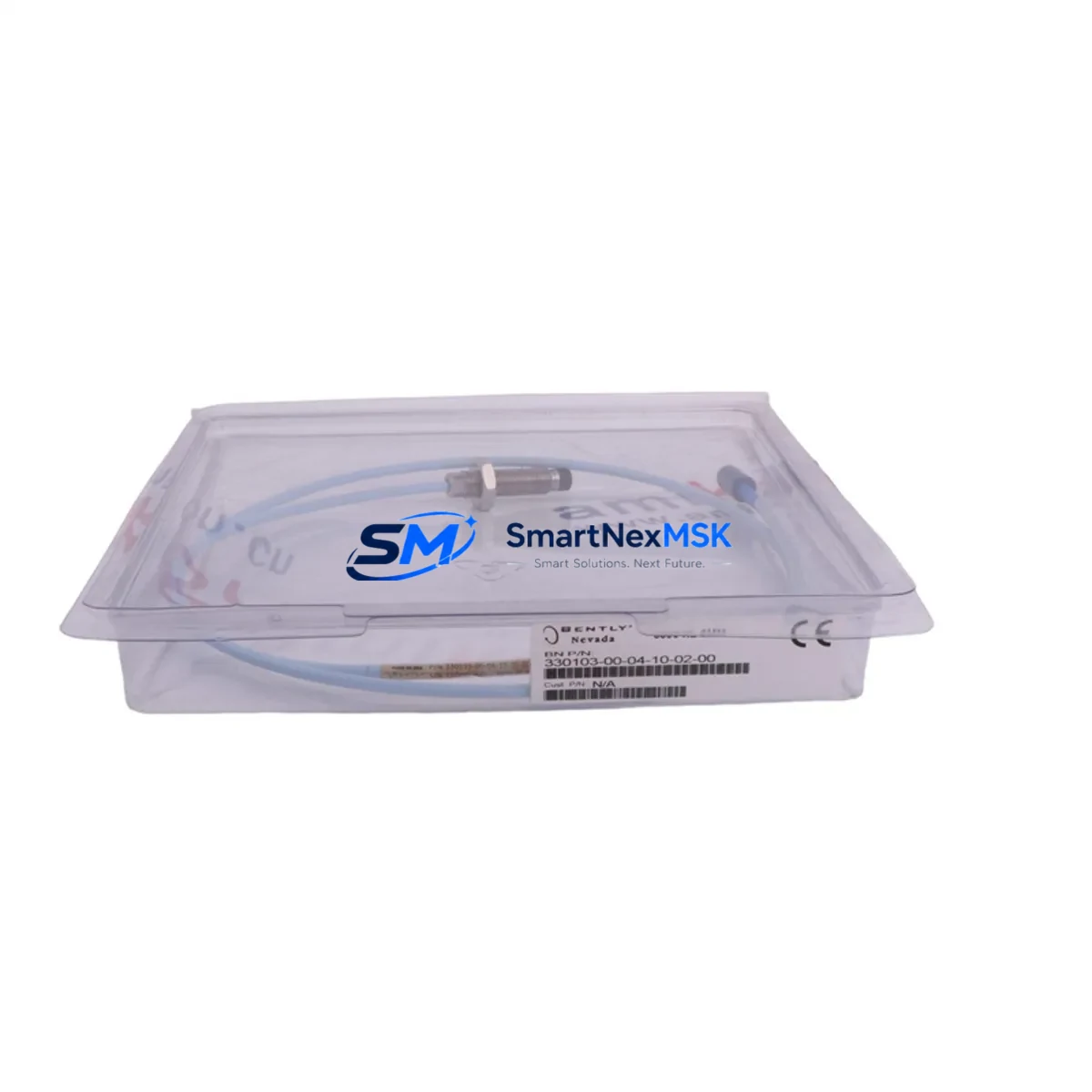

Each unit undergoes functional output verification and gap linearity testing prior to shipment. Test records are available upon request. Units are shipped in anti-static, padded packaging to prevent transit damage to the probe tip and connector.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as specified in the Bently Nevada 3300 XL installation manual. It does not cover damage resulting from incorrect gap setting, mechanical contact with the target, installation in environments exceeding rated temperature limits, or use with incompatible driver electronics. Warranty claims are processed with return shipment and inspection within 5 business days.
