Bently Nevada 330103-00-05-10-02-00 Retrofit Proximity Probe

Bently Nevada 330103-00-05-10-02-00: Retrofit-Ready Proximity Probe for 3300 XL Control Systems

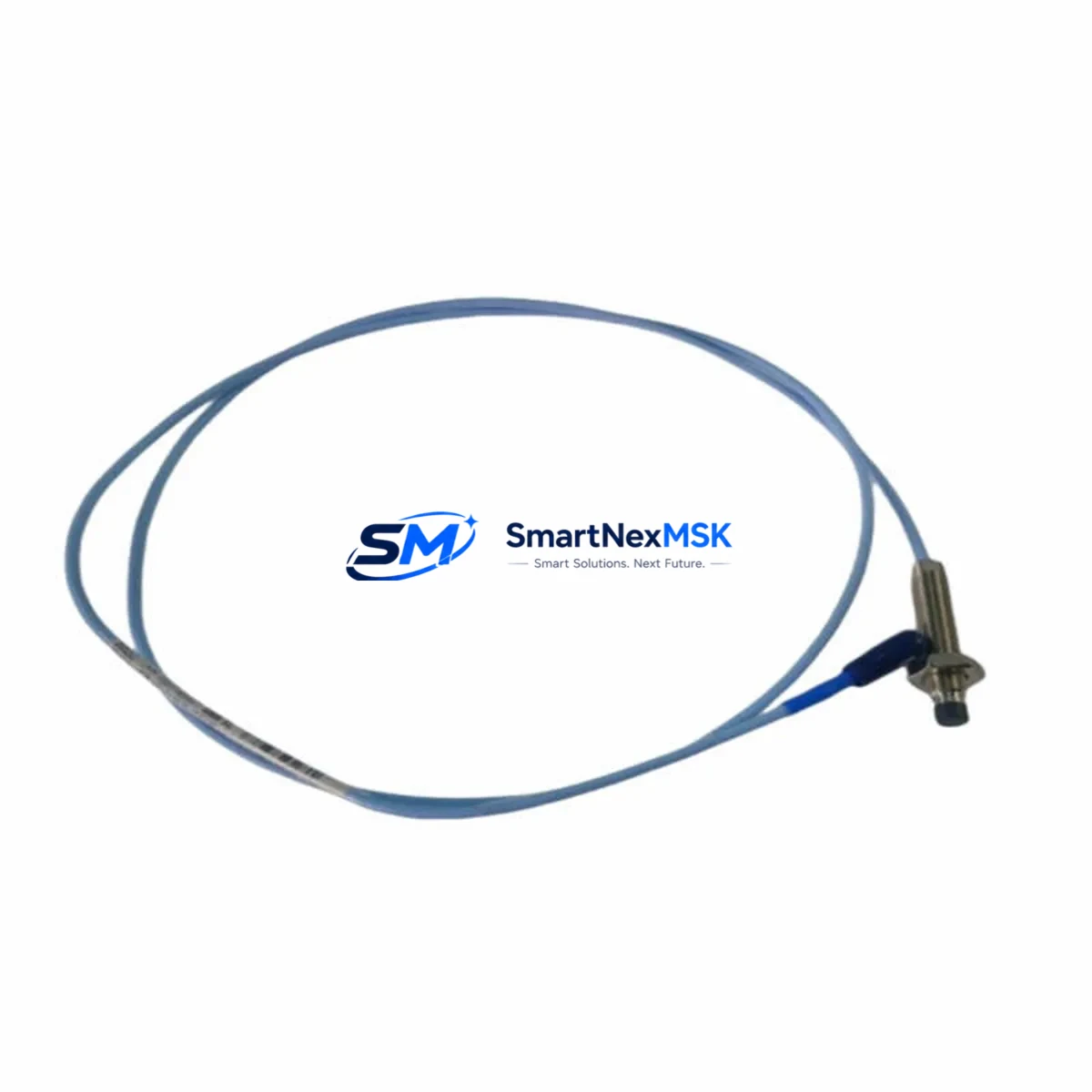

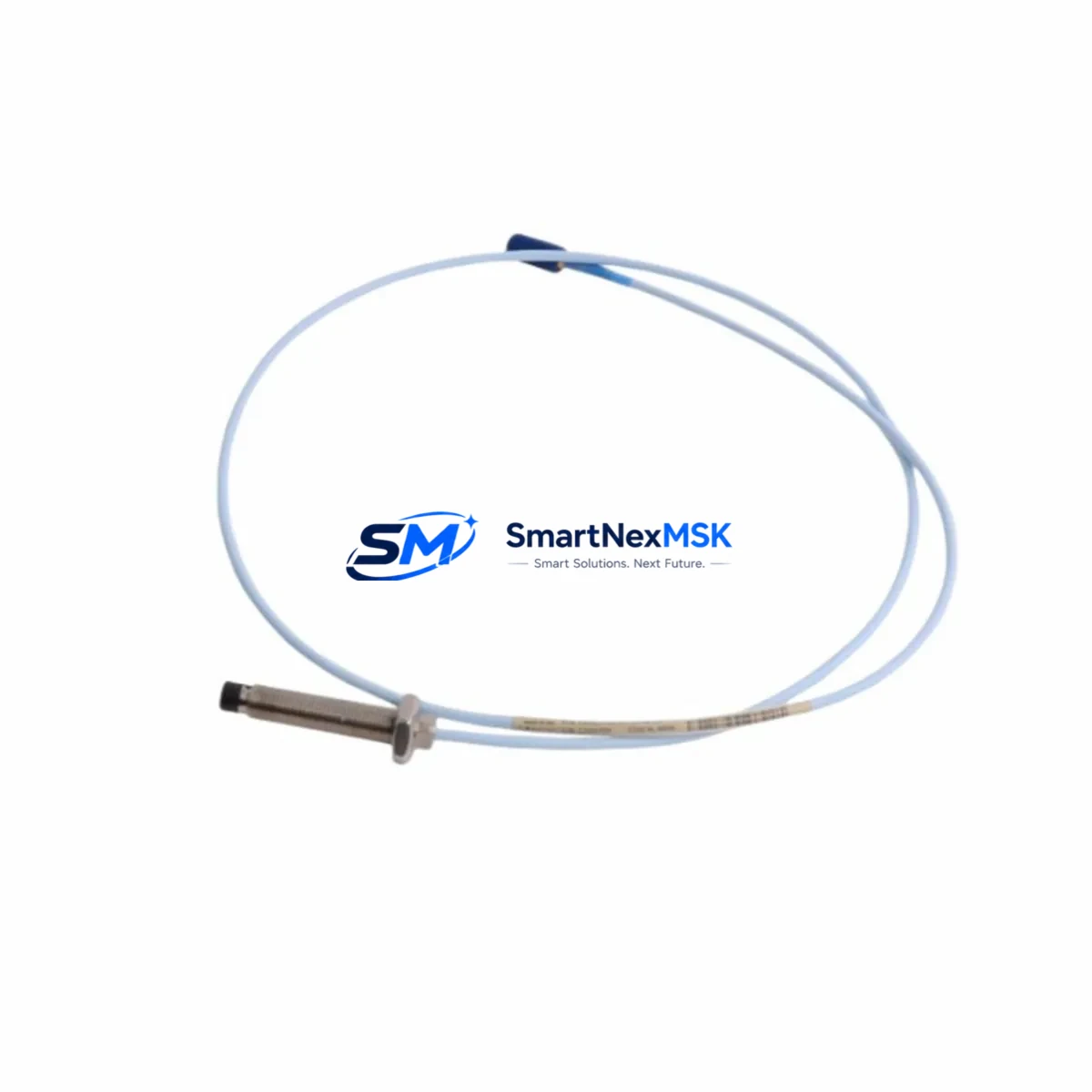

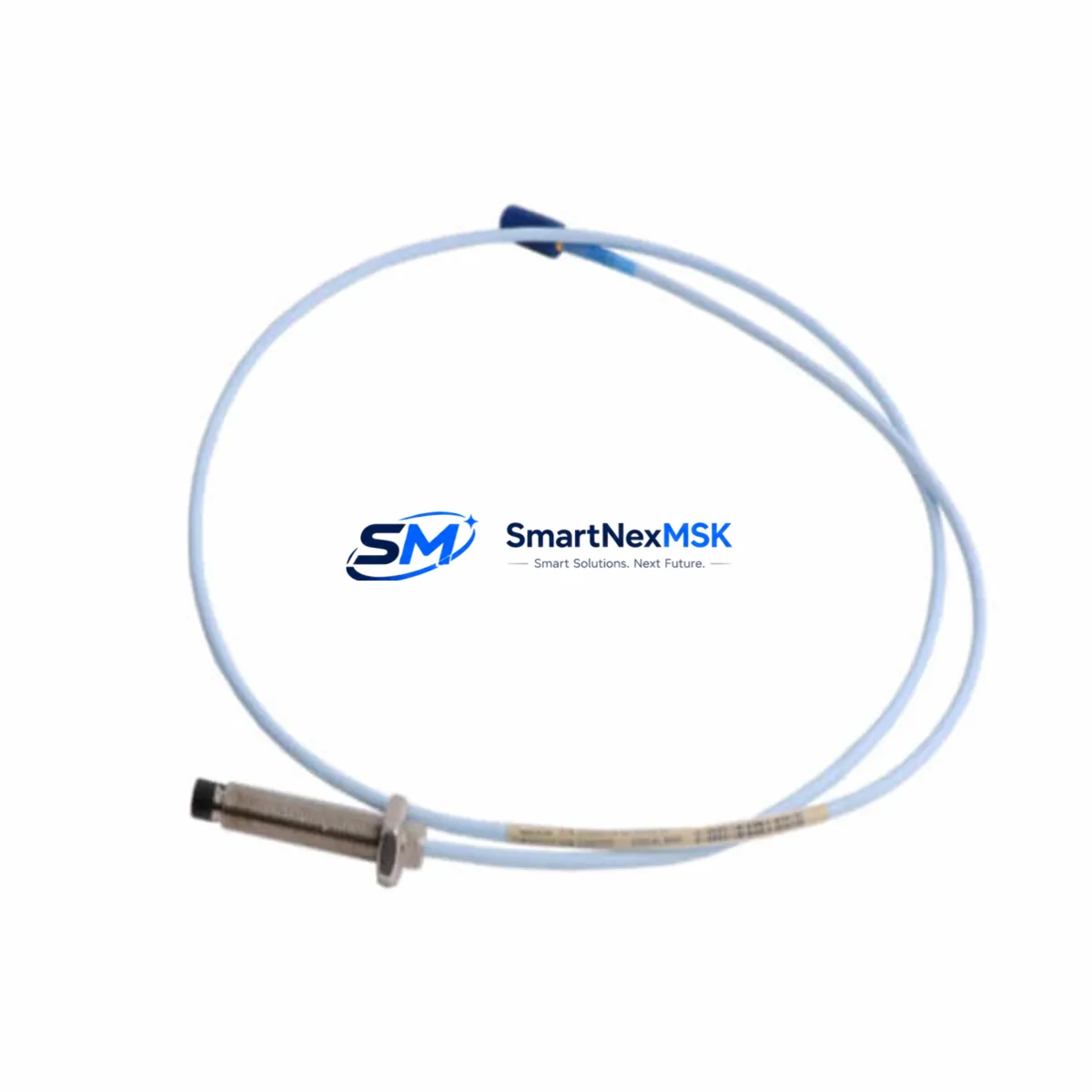

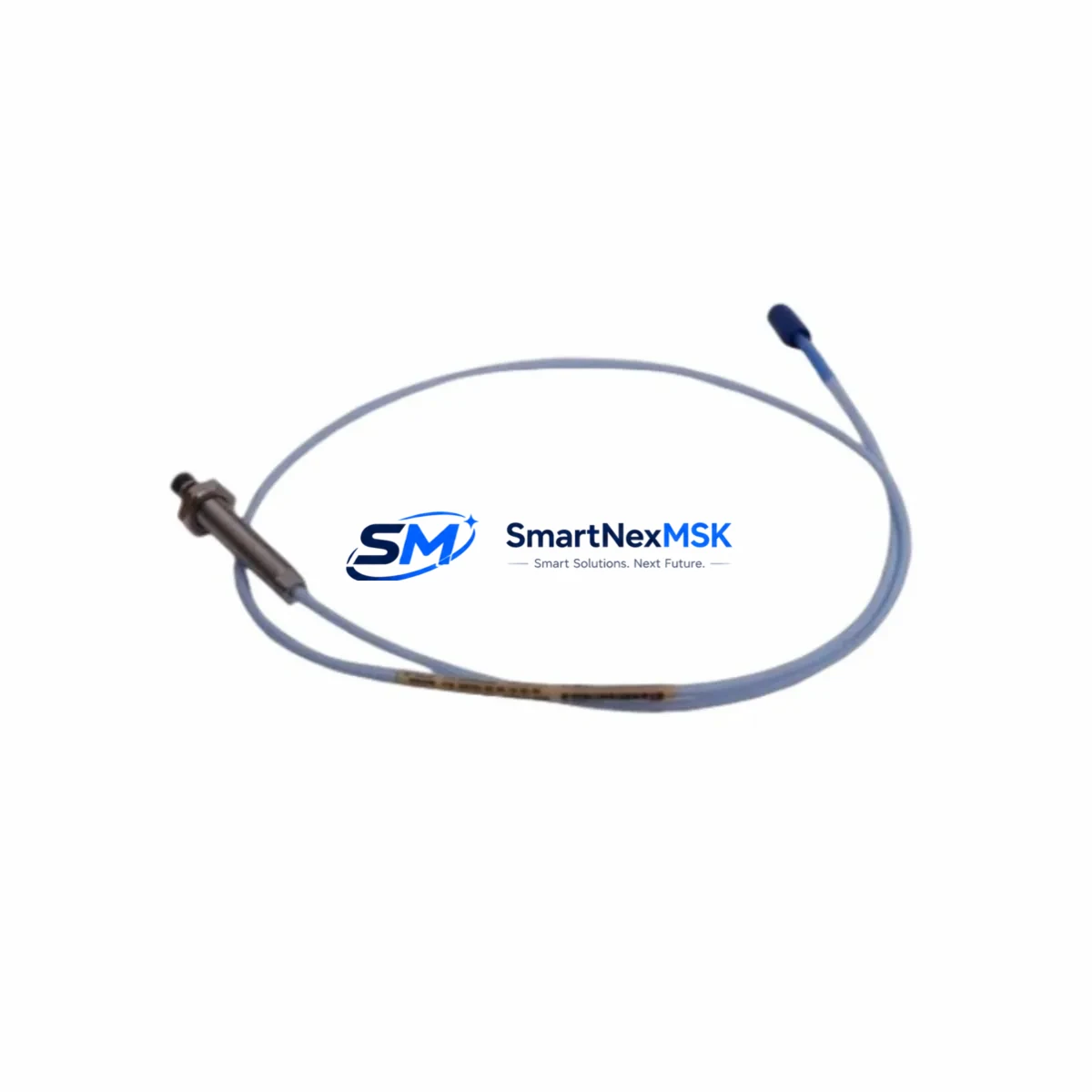

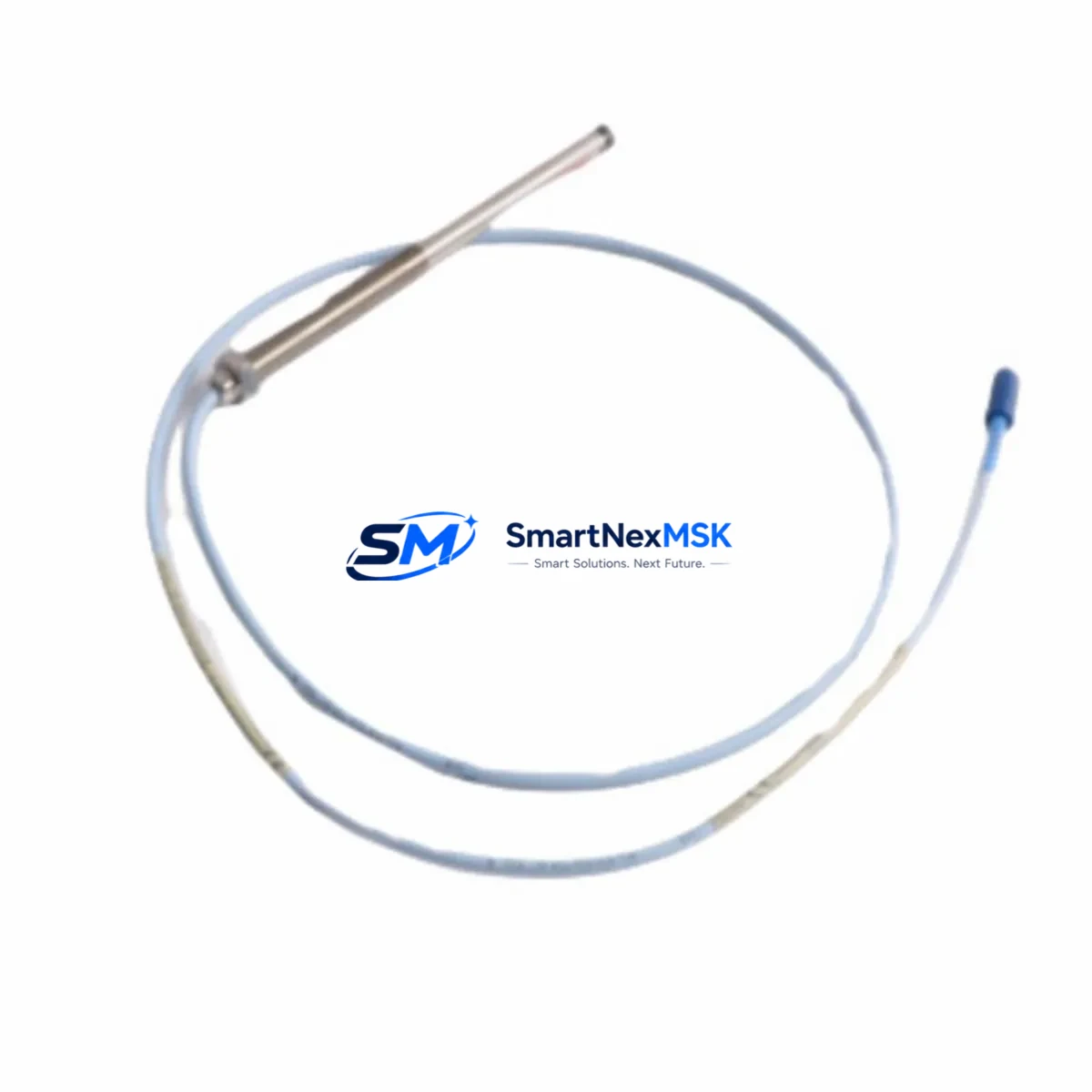

The Bently Nevada 330103-00-05-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring platform. Designed as a direct retrofit solution for aging or discontinued proximity probe assemblies, this unit delivers full compatibility with existing 3300 XL monitor racks, extension cables, and driver electronics — enabling smooth system upgrades without requiring panel redesign or PLC reprogramming. Whether you are replacing a failed probe on a critical rotating machine or executing a planned modernization of your vibration monitoring infrastructure, the 330103-00-05-10-02-00 provides a verified drop-in path with minimal downtime exposure.

Industrial facilities operating gas turbines, steam turbines, compressors, pumps, and gearboxes rely on the 3300 XL platform for continuous shaft vibration, axial position, and differential expansion measurement. When a probe in this chain reaches end-of-life or becomes unavailable through OEM channels, the entire monitoring loop is at risk. The 330103-00-05-10-02-00 is stocked specifically to address this supply gap — available for immediate dispatch with full functional testing completed prior to shipment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an active 3300 XL monitoring loop requires careful coordination across several system layers. Before removing the existing 330103-00-05-10-02-00 or its predecessor, technicians should document the current gap voltage reading at the driver output — typically the 330180-X1-05 8mm driver/oscillator — and confirm that the replacement probe’s integral cable length matches the original to preserve the system’s calibrated sensitivity. Mismatched cable lengths between the probe and the extension cable (such as the 330130-080-00-00 5m extension cable) will shift the driver’s operating point and invalidate the calibration curve stored in the 3300 XL monitor module.

Within the monitor rack, confirm that the target channel on the 3300/16 or 3300/25 monitor module is configured for 8mm probe input. If the rack previously housed a 5mm probe assembly, the channel scaling and alert setpoints stored in the 3300 XL monitor will need to be updated via the System 1 configuration software before the new probe is energized. Failure to update these parameters can result in false alerts or, more critically, missed alarm conditions during the commissioning window.

For facilities migrating from older 3300 Series (non-XL) hardware to the 3300 XL platform, the physical probe and extension cable assemblies are often interchangeable, but the driver electronics are not. The legacy 330100-series drivers are not compatible with 3300 XL monitor modules. In this scenario, the upgrade path typically involves replacing the driver with a 330180-series unit, re-terminating the field wiring at the junction box, and verifying continuity and insulation resistance before powering the loop. The 3300 XL rack’s power supply module — commonly the 3300/05 or 3300/10 power supply — should also be inspected for adequate capacity when adding channels during an expansion.

In multi-machine installations, it is common to encounter a mix of 3300 XL monitor modules covering radial vibration, axial position, and speed measurement on the same rack. When the 330103-00-05-10-02-00 is used for radial vibration on a compressor train, the adjacent axial position channel may use a 3300 XL 25mm probe assembly with a different sensitivity curve. Technicians should treat each channel independently during commissioning and avoid assuming that a single gap voltage target applies across all probe types in the rack.

Where the control system integrates 3300 XL data into a DCS or safety instrumented system via a 3500/22M transient data interface or a 3500/42M proximitor monitor, the retrofit plan must also account for the communication link between the Bently Nevada rack and the host controller. Confirm that the Modbus RTU or Ethernet/IP configuration in the 3500 gateway module reflects the updated channel assignments after the probe replacement. Any HMI faceplate or historian tag that references the old channel address will need to be updated to maintain data continuity in the SCADA or DCS environment.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement on a running machine train begins with pre-staging all replacement components before the maintenance window opens. For the 330103-00-05-10-02-00, this means having the replacement probe assembly, the correct 330130-series extension cable, a calibrated gap-setting tool, and a portable oscilloscope or voltmeter available at the work site before the machine is taken offline.

Where the process permits, a hot-swap approach can be used on 3300 XL racks equipped with the 3300/05 power supply and individual channel isolation. In this configuration, the affected channel can be placed in bypass mode within System 1 software, allowing the probe to be replaced without triggering a rack-level shutdown or affecting adjacent monitoring channels. Once the new 330103-00-05-10-02-00 is installed and the gap voltage is confirmed within specification, the channel bypass is released and the monitor resumes normal operation.

For facilities without bypass capability, the recommended approach is to schedule the replacement during a planned shutdown and use the opportunity to inspect the full probe-to-monitor signal chain: check the extension cable for jacket damage or connector corrosion, verify the 330180-series driver output voltage under no-load conditions, and confirm that the monitor module’s OK relay is energized before returning the machine to service. This systematic approach protects the original program logic in the host PLC or DCS and ensures that the vibration monitoring loop is fully validated before the machine is restarted.

All units supplied are functionally tested and documented prior to shipment. A 12-month warranty covers defects in materials and workmanship from the date of delivery, providing assurance for both planned retrofit projects and emergency replacement scenarios.

Retrofit Support FAQ

Q: Is the 330103-00-05-10-02-00 a direct replacement for older 330103-series probes?
A: Yes. The 330103-00-05-10-02-00 is dimensionally and electrically compatible with other 330103-series 8mm proximity probe assemblies used in 3300 XL monitoring systems. Verify cable length and connector type before installation to ensure the replacement matches the original system configuration.

Q: What gap voltage should I set after installing the replacement probe?
A: The nominal gap voltage for an 8mm Bently Nevada proximity probe paired with a 330180-series driver is –10.0 VDC ± 0.5 V, corresponding to a physical gap of approximately 1.27 mm (50 mil). Always verify against the system’s original calibration documentation, as site-specific setpoints may differ.

Q: Will I need to reprogram the 3300 XL monitor after replacing the probe?
A: If the replacement probe is the same model and cable length as the original, no reprogramming is required. If the probe type, sensitivity, or cable length has changed, the channel configuration in the 3300 XL monitor and any associated System 1 software tags must be updated to reflect the new parameters.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the probe’s specified environmental and electrical ratings. Warranty claims are processed from the date of shipment.
