Bently Nevada 330103-00-05-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

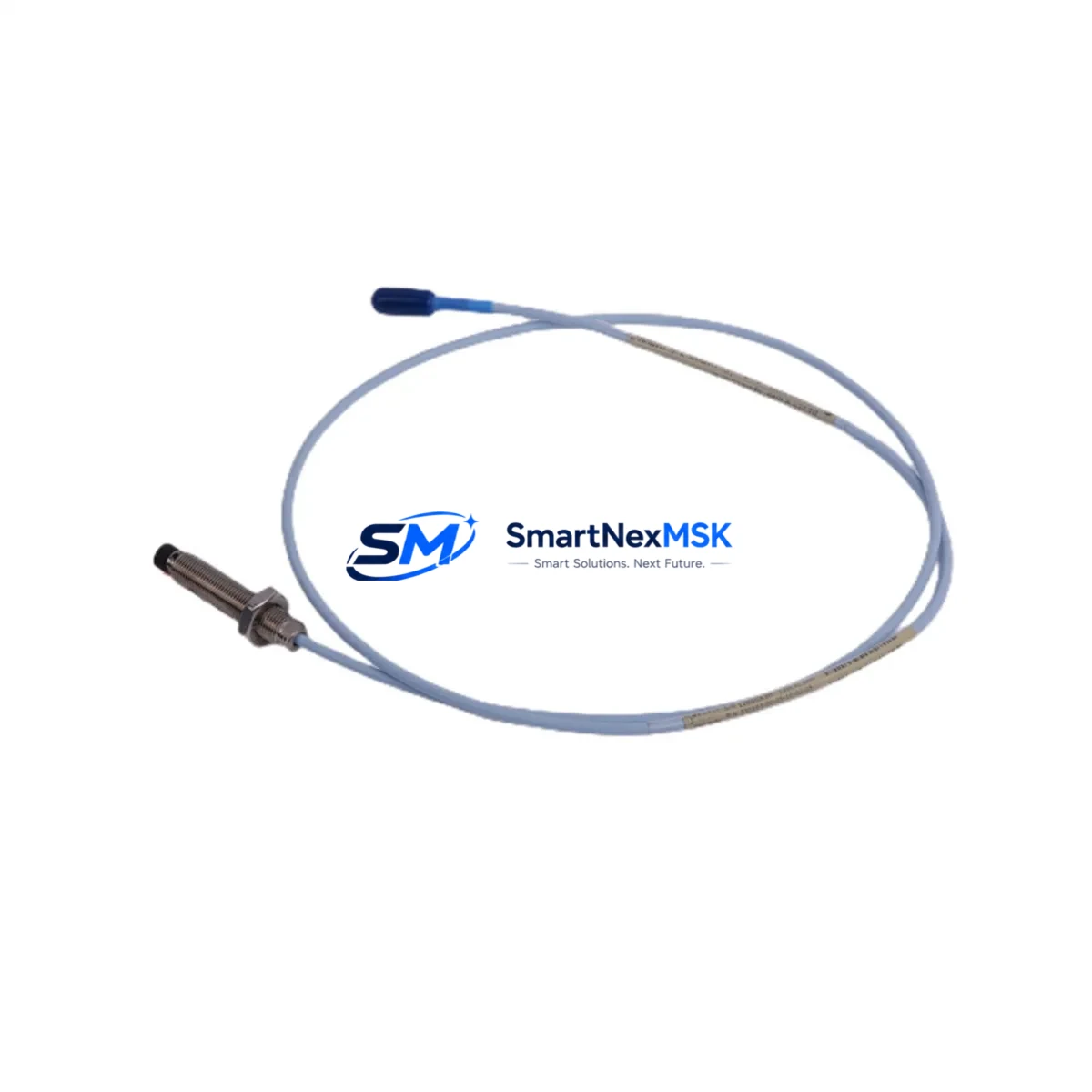

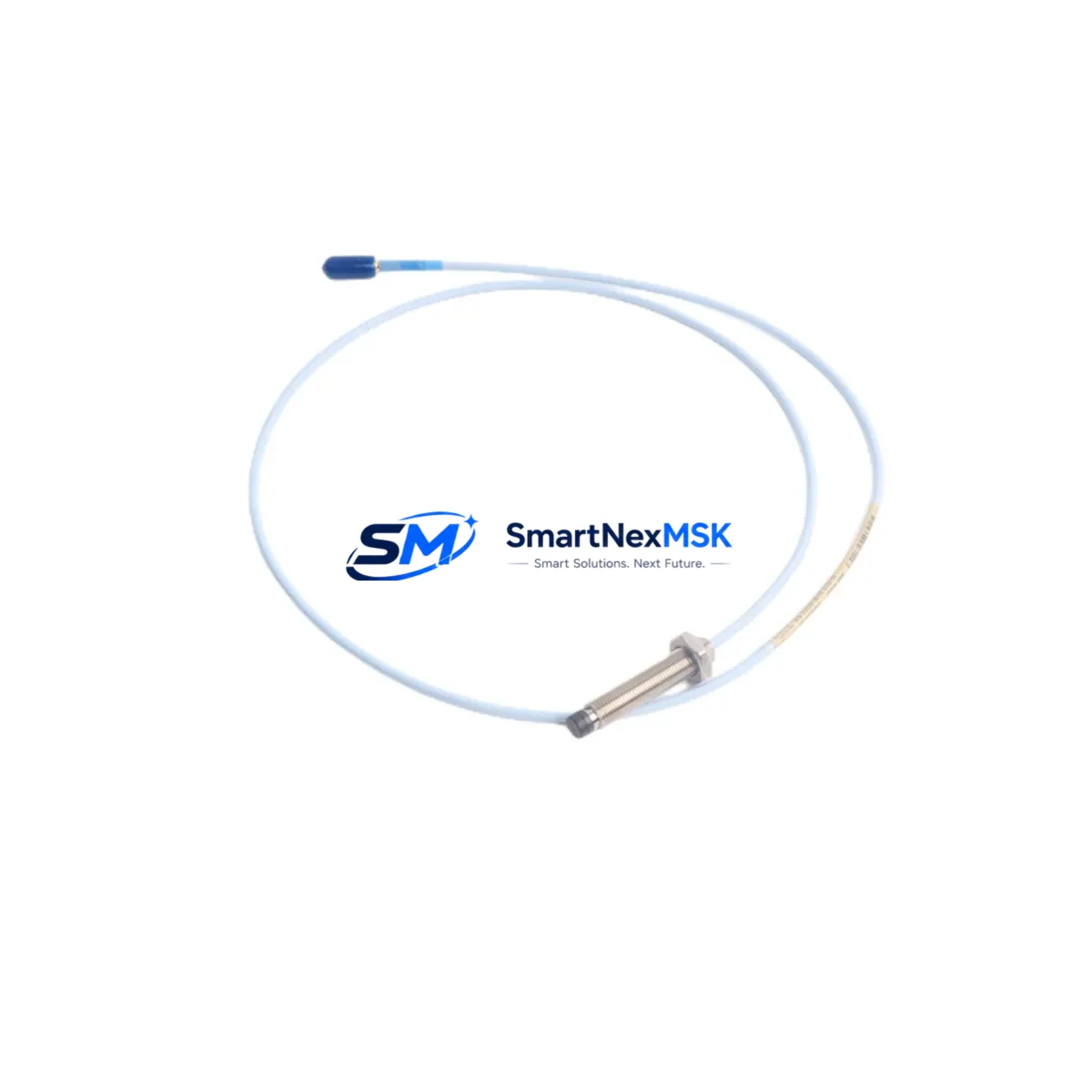

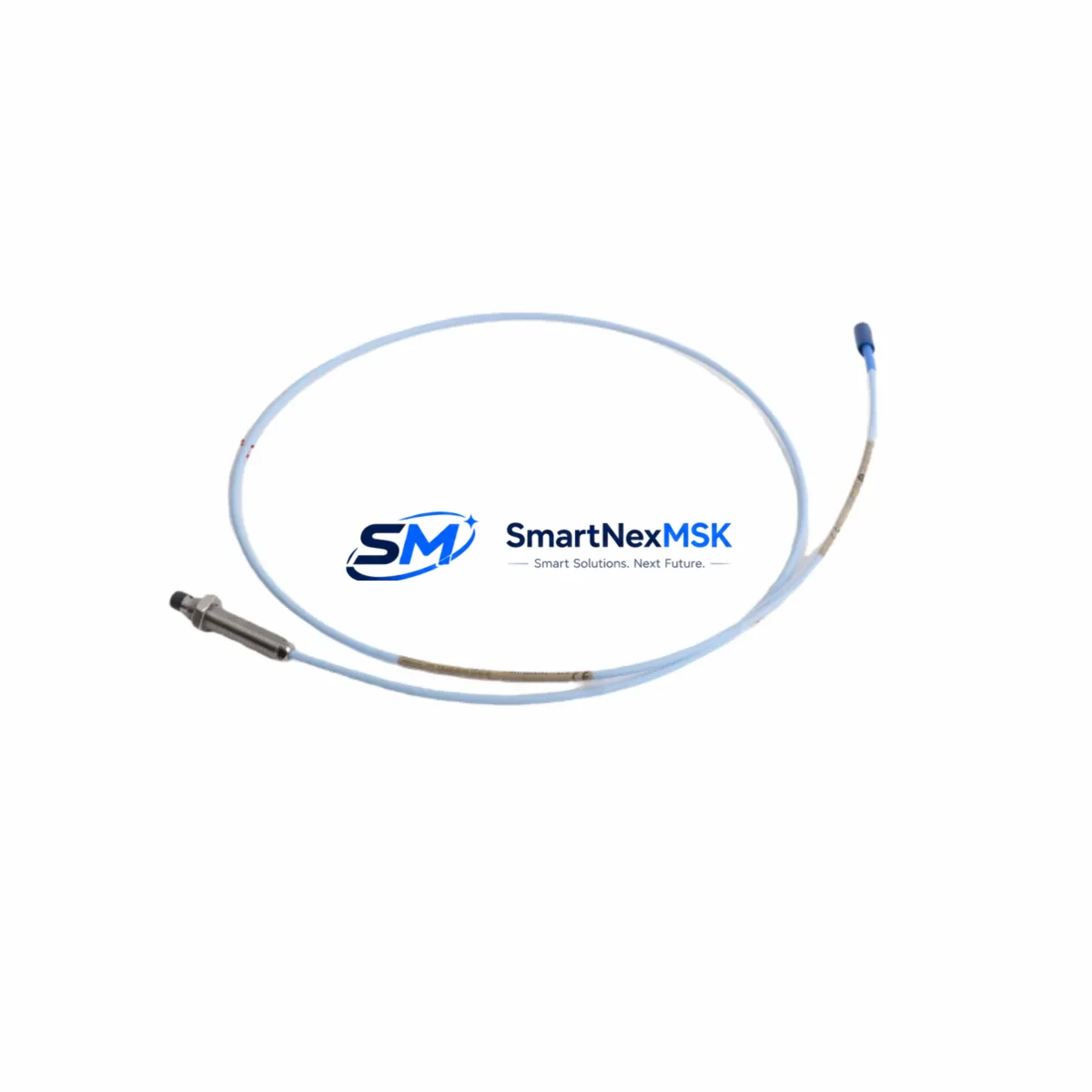

The Bently Nevada 330103-00-05-10-02-05 is an eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. Designed as a retrofit-ready, drop-in replacement for aging or discontinued units, this probe supports smooth migration from legacy 3300 Series installations to current 3300 XL architecture without requiring panel redesign or rewiring overhaul. With a 5 mm tip diameter, 10 mm linear range, and standard 2 m integral cable, it integrates directly with existing Bently Nevada 3300 XL Proximitor® sensor assemblies and barrier junction boxes already installed in the field.
Industrial facilities operating rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — rely on continuous shaft vibration and position monitoring to prevent catastrophic failure. When the original 330103-series probe reaches end-of-life or becomes unavailable through OEM channels, unplanned downtime is the primary risk. This replacement unit is pre-tested, calibration-verified, and shipped with full documentation to support fast field swap-out and system restoration.
Upgrade Compatibility Table
| Parameter | 330103-00-05-10-02-05 (This Unit) | Notes / Retrofit Guidance |
|---|---|---|
| Probe Tip Diameter | 5 mm | Matches OEM bore; no mechanical modification required |
| Linear Range | 10 mm (0.4 in) | Compatible with standard 3300 XL gap calibration curves |
| Cable Length | 2 m integral cable | Verify extension cable length to Proximitor; use 330130-series extension if needed |
| Connector Type | Standard coaxial, BNC-compatible | Direct fit to 3300 XL Proximitor input; no adapter required |
| Target Material Compatibility | Steel / Alloy Steel shafts | Confirm shaft material before installation; non-ferrous targets require recalibration |
| Supply Voltage | −24 VDC (from Proximitor) | Verify Proximitor power supply output; 3300 XL PSU modules typically supply −24 VDC |
| Output Signal | −2 to −18 VDC (linear range) | Compatible with 3300 XL monitor card input specifications |
| Installation Standard | API 670 compliant | Suitable for machinery protection systems per API 670 4th/5th edition |
| Communication Compatibility | Analog signal; integrates with System 1® via 3300 XL monitor | No firmware update required; signal chain unchanged |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the 330103-00-05-10-02-05 begins with a thorough audit of the existing signal chain. The probe connects to a Bently Nevada 3300 XL Proximitor® Sensor — typically a 330180-X1-05 or 330180-X1-10 unit — which conditions the raw eddy-current signal into a usable DC voltage for the monitor card. Before removal of the old probe, engineers should document the installed gap voltage (typically −10 VDC ±0.5 VDC at nominal clearance) using a calibrated voltmeter at the Proximitor output terminals.
The signal then feeds into a 3300 XL monitor card, such as the 3300/16 Dual Voting or 3300/20 Radial Vibration Monitor, housed in a 3300 XL rack. Verify that the rack backplane and I/O termination block assignments remain unchanged after probe swap. If the installation uses a 3300/55 Keyphasor® module for phase reference, confirm that the Keyphasor gap is also within specification, as a degraded reference signal can mask vibration anomalies post-retrofit.
For facilities migrating from older 7200 Series or 3000 Series Bently Nevada hardware to the 3300 XL platform, the probe replacement is often the first step in a phased upgrade. Subsequent steps typically include replacing the Proximitor sensor, updating the monitor card firmware via the 3300 XL configuration software, and reconfiguring alarm setpoints in the System 1® condition monitoring software. During this process, the 330130-series extension cable and the 330105-series armored probe variant are commonly evaluated as alternatives depending on installation depth and environmental exposure.
Terminal wiring at the junction box should be inspected for corrosion, especially in high-humidity or chemically aggressive environments. The standard color-coded coaxial cable — with shield, center conductor, and drain wire — must be terminated per the Bently Nevada installation drawing. Incorrect shield grounding is a leading cause of signal noise after probe replacement and should be verified before energizing the system. If the control cabinet houses a 3300 XL power supply module (such as the 3300/05 or 3300/10 PSU), confirm output voltage stability under load before reconnecting the Proximitor.
Downtime Control During System Migration
Minimizing unplanned downtime during probe replacement requires pre-staging all replacement components before the maintenance window opens. For the 330103-00-05-10-02-05, this means having the replacement probe, the appropriate extension cable, a calibrated gap tool, and the Proximitor configuration sheet on hand before the machine is taken offline.
Where process conditions allow, a hot-standby approach can be used: install the new probe in a spare nozzle adjacent to the original, verify gap voltage and signal quality, then switch the monitor card input to the new probe before removing the old unit. This approach — supported by the 3300 XL monitor’s channel-switching capability — keeps the protection system active throughout the swap and preserves the original program logic and alarm configuration in the System 1® database without modification.
For facilities without a spare nozzle, the recommended procedure is to place the affected monitor channel in bypass mode via the 3300 XL front-panel keyswitch or software inhibit, complete the probe swap and gap setting, verify output voltage, then release the bypass. Total bypass duration for an experienced technician is typically under 30 minutes. All bypass events should be logged in the plant DCS or CMMS for audit trail purposes. After restoration, a 24-hour trend review in System 1® is recommended to confirm stable vibration baseline before returning the machine to full load.
Retrofit Support FAQ
Q1: Is the 330103-00-05-10-02-05 a direct drop-in replacement for the original Bently Nevada unit?
Yes. This unit is manufactured to the same dimensional and electrical specifications as the original 330103-00-05-10-02-05. It uses the same 5 mm tip, 10 mm linear range, and standard coaxial connector, and is compatible with all 3300 XL Proximitor sensors and monitor cards without modification.
Q2: What wiring checks are required before installation?
Inspect the coaxial cable shield continuity, verify the Proximitor supply voltage (−24 VDC ±1 VDC), and confirm terminal block assignments at the junction box match the original installation drawing. Check for corrosion or mechanical damage at all termination points before energizing.
Q3: How is the probe gap set and verified after installation?
Use a non-conductive gap-setting tool to achieve the nominal air gap (typically 1.0–1.5 mm for a 5 mm probe on a steel shaft). Monitor the Proximitor output voltage with a calibrated voltmeter; the target is −10 VDC ±0.5 VDC at nominal gap. Record the final gap voltage in the maintenance log.
Q4: What does the 12-month warranty cover, and is a test report included?
The 12-month warranty covers all manufacturing defects in materials and workmanship from the date of shipment. Each unit ships with a pre-shipment functional test report confirming output linearity, gap voltage calibration, and cable integrity. Warranty claims are processed via sales@smartnexmsk.com with the original test report and order reference.
