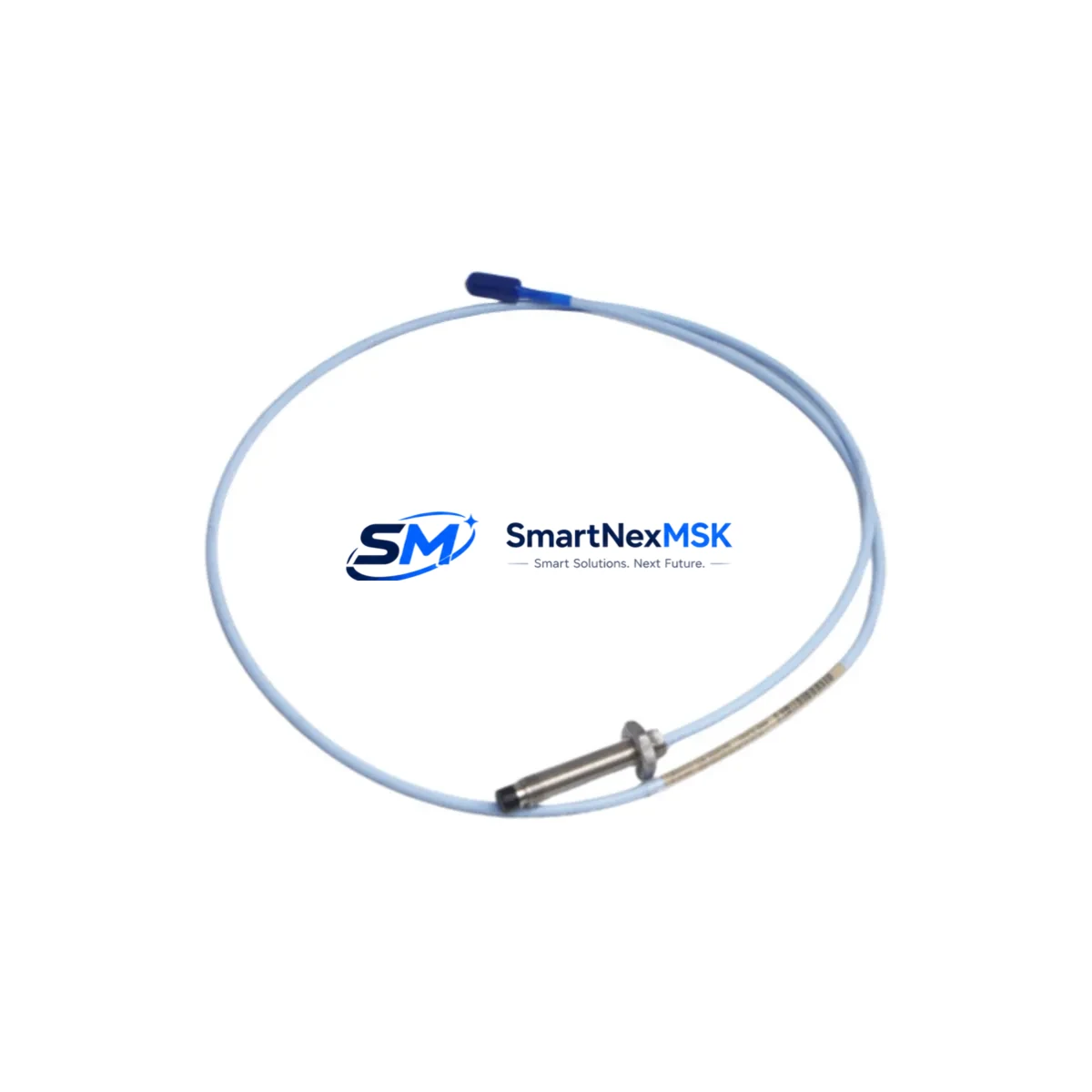

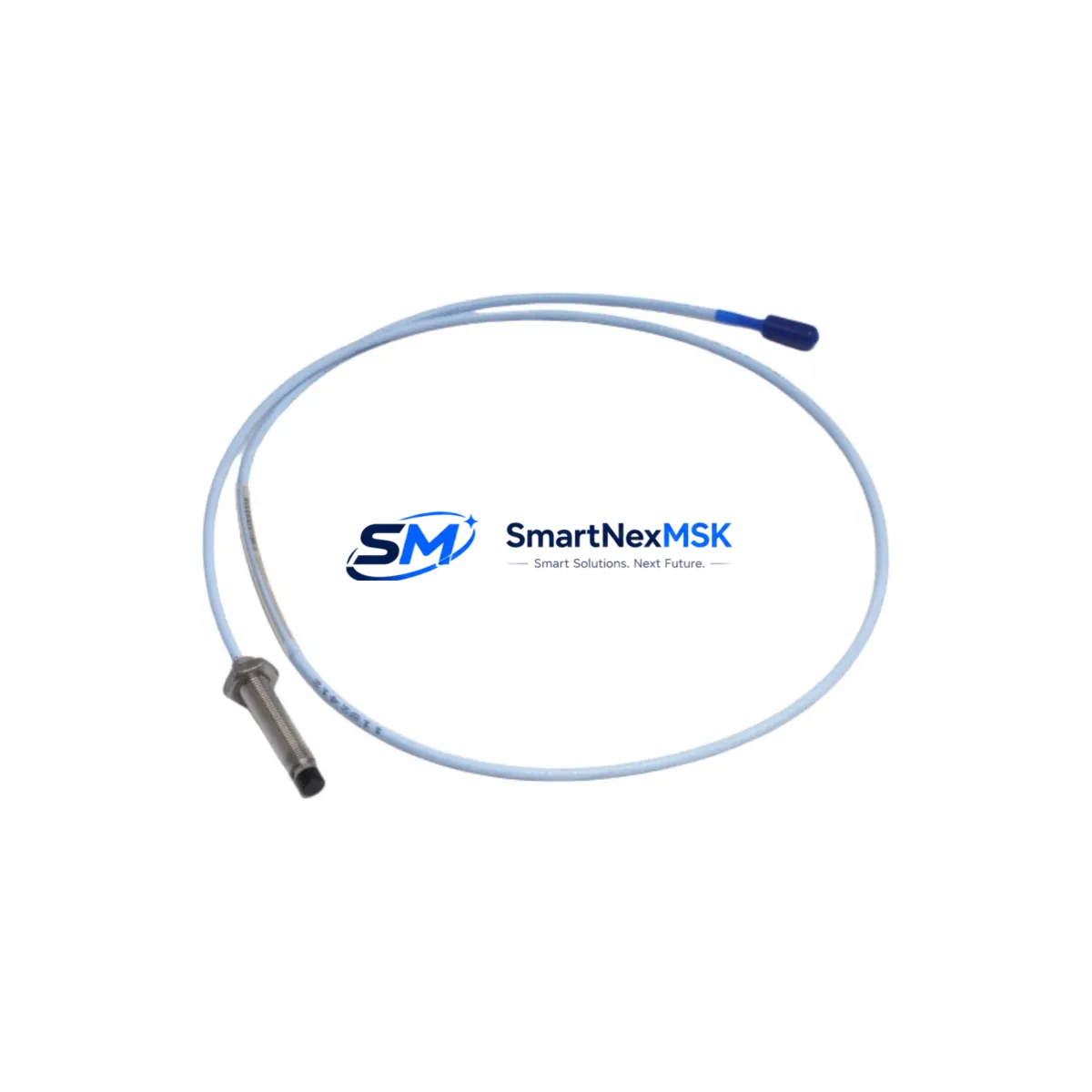

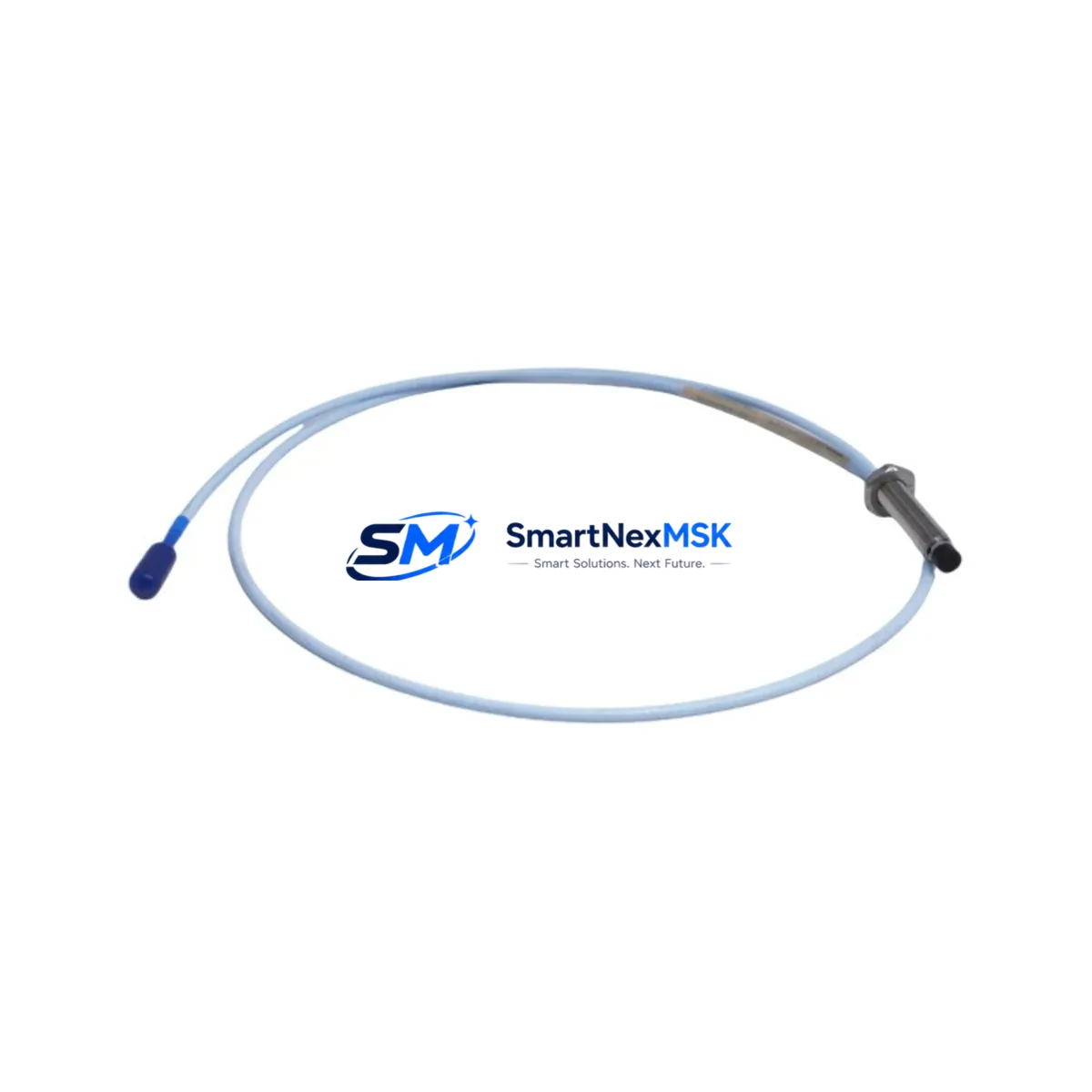

Bently Nevada 330103-00-05-10-11-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330103-00-05-10-11-00 is an 8mm eddy current proximity probe engineered for seamless integration into existing 3300 XL Series vibration monitoring systems. As legacy machinery protection platforms age and OEM support windows close, plant engineers and reliability teams increasingly rely on verified drop-in replacements to sustain continuous monitoring without triggering full system overhauls. This probe is designed precisely for that scenario — delivering dimensional, electrical, and signal-chain compatibility with the 3300 XL architecture while meeting the performance benchmarks required for turbomachinery, compressor trains, and rotating equipment protection.
When planning a retrofit around the 330103-00-05-10-11-00, the first step is confirming power supply capacity at the junction box or monitor rack. The 3300 XL proximitor/seismic monitor — typically a 3300/16 or 3300/55 module — supplies the -24 VDC bias voltage to the probe through the extension cable. Engineers must verify that the existing Bently Nevada 3300/05 power supply or equivalent rack power module can sustain the additional current draw if multiple probes are being replaced simultaneously. Undersized power rails are a common source of intermittent faults during phased retrofits.
Terminal wiring compatibility is the next critical checkpoint. The 330103-00-05-10-11-00 uses the standard Bently Nevada armored coaxial connector scheme, and field teams should inspect the condition of the existing Bently Nevada 330130 extension cable before reuse. Degraded cable shielding or connector corrosion will introduce noise into the gap voltage signal, causing false alerts on the 3300 XL monitor. Where cable replacement is warranted, the 330130-080-00-00 or equivalent length-matched extension cable should be sourced alongside the probe to maintain the calibrated system sensitivity of 200 mV/mil (7.87 V/mm).
Backplane and rack interface requirements are straightforward for this probe family. The 3300 XL monitor accepts the probe output directly through the I/O terminal strip on the front of the monitor module. No additional signal conditioning is required provided the proximitor gap is set within the linear range — typically 0.25 mm to 2.54 mm for 8mm probes. During commissioning, technicians should use a calibrated gap tool and a Bently Nevada 3300 XL proximitor to verify the DC gap voltage reads between -10 VDC and -18 VDC at the target operating gap, confirming the probe-cable-proximitor system is within specification before returning the machine to service.
Module address and channel assignment do not change when replacing a like-for-like probe, which significantly reduces the risk of configuration errors. However, if the retrofit is part of a broader migration from a 3300 Series rack to a newer System 1 or 3500 Series platform, the channel configuration in the Bently Nevada System 1 software must be updated to reflect the new monitor module type. The 3500/42M proximitor monitor, for example, uses a different I/O module pinout and requires re-mapping of the OK relay and alert/danger setpoints in the configuration database.
Program and HMI compatibility should be reviewed when the probe replacement coincides with a DCS or safety system upgrade. Plants running Emerson DeltaV or Honeywell Experion PKS as the host control system typically receive the 3300 XL monitor outputs via 4-20 mA or relay contacts. These signal interfaces remain unchanged during a probe swap, so existing DCS faceplates, historian tags, and alarm rationalization tables do not require modification. Where the plant is migrating to a FOUNDATION Fieldbus or HART-enabled monitoring architecture, the 3500 Series platform with a 3500/22M transient data interface provides the communication upgrade path while preserving the physical probe installation.
Upgrade Compatibility Table
| Parameter | 330103-00-05-10-11-00 (This Unit) | Notes / Retrofit Guidance |
|---|---|---|
| Probe Diameter | 8 mm | Direct fit for standard 3300 XL 8mm probe mounts |
| Cable Length | 0.5 m integral cable | Pair with 330130 extension cable for total system length |
| Sensitivity | 200 mV/mil (7.87 V/mm) | Matches 3300 XL proximitor calibration curve |
| Frequency Range | DC to 10,000 Hz | Suitable for high-speed turbomachinery applications |
| Operating Temperature | -35 to +177 deg C | Verify ambient conditions at probe tip installation point |
| Compatible Monitor | 3300/16, 3300/55, 3500/42M | 3500 Series requires configuration update in System 1 |
| Compatible Extension Cable | 330130 Series | Inspect and replace if shielding is degraded |
| Communication Interface | Analog (gap voltage / 4-20 mA via monitor) | HART/FF upgrade requires 3500 Series monitor migration |
| Installation Standard | API 670 compliant | Confirm bracket and target material per API 670 Annex D |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins with a complete bill-of-materials audit of the existing monitoring loop. For a typical 3300 XL installation, this means accounting for the probe (330103-00-05-10-11-00), the extension cable (330130 series), the proximitor (3300 XL proximitor/seismic monitor), the monitor module (3300/16 or 3300/55), and the rack power supply (3300/05). Each component in this chain must be evaluated for remaining service life before committing to a probe-only replacement strategy.
Where the existing 3300 XL rack is approaching end-of-support, a parallel migration to the 3500 Series platform is often the more cost-effective long-term decision. The 3500/42M proximitor monitor accepts the same 8mm probe family and supports the Bently Nevada System 1 condition monitoring software, enabling integration with plant-wide asset management systems. The 3500/20 rack power supply and 3500/15 I/O module provide the backplane infrastructure for this migration, and the 3500/92 communication gateway supports Modbus TCP and OPC-UA output for integration with modern DCS and historian platforms.
For plants where a full rack migration is not feasible within the current maintenance window, a phased approach is recommended: replace degraded probes with verified 330103-00-05-10-11-00 units, inspect and replace extension cables as needed, and schedule the monitor and rack upgrade for the next planned outage. This strategy maintains monitoring continuity while progressively modernizing the vibration protection infrastructure.
Downtime Control During System Migration
Minimizing unplanned downtime during a probe replacement requires pre-staging all replacement components — probe, extension cable, and connector tools — at the work site before the machine is taken offline. A pre-written commissioning checklist covering gap setting, OK relay verification, alert/danger setpoint confirmation, and DCS signal handshake reduces the time the monitoring loop is out of service.
Where the machine cannot be taken offline for an extended period, a temporary bypass of the OK relay on the 3300 XL monitor allows the machine to continue operating under manual surveillance while the probe is replaced. This bypass must be formally authorized under the plant management of change (MOC) procedure and reversed immediately upon completion of the probe installation and gap verification. All original program logic, setpoint values, and HMI alarm configurations remain intact during a like-for-like probe swap, eliminating the need for control system reprogramming and reducing commissioning risk.
Retrofit Support FAQ
Q: Is the 330103-00-05-10-11-00 a direct replacement for the original Bently Nevada probe in my 3300 XL system?
A: Yes. This unit is dimensionally and electrically equivalent to the original 330103-00-05-10-11-00 specification. It is compatible with the 3300 XL proximitor and monitor modules without modification to wiring, configuration, or setpoints.
Q: What pre-shipment testing is performed on this probe?
A: Each unit undergoes functional testing including gap voltage linearity verification, sensitivity confirmation at 200 mV/mil, and connector integrity inspection before shipment. A 12-month warranty covers manufacturing defects from the date of delivery.
Q: Can this probe be used with the Bently Nevada 3500 Series monitor?
A: Yes, with a configuration update. The 3500/42M proximitor monitor supports the same 8mm probe family. The System 1 configuration database must be updated to reflect the monitor module type, and setpoints should be re-verified during commissioning.
Q: How do I verify correct installation before returning the machine to service?
A: Confirm the DC gap voltage reads between -10 VDC and -18 VDC at the target operating gap using a calibrated gap tool. Verify the OK relay on the monitor is energized, check that the DCS is receiving a valid 4-20 mA signal, and confirm no active alerts or danger conditions are present on the 3300 XL monitor before releasing the machine to operations.
