Bently Nevada 330103-00-05-90-02-00 3300 XL Maintenance-Ready Spare: Spare Parts Replacement and Industrial Downtime Risk Control

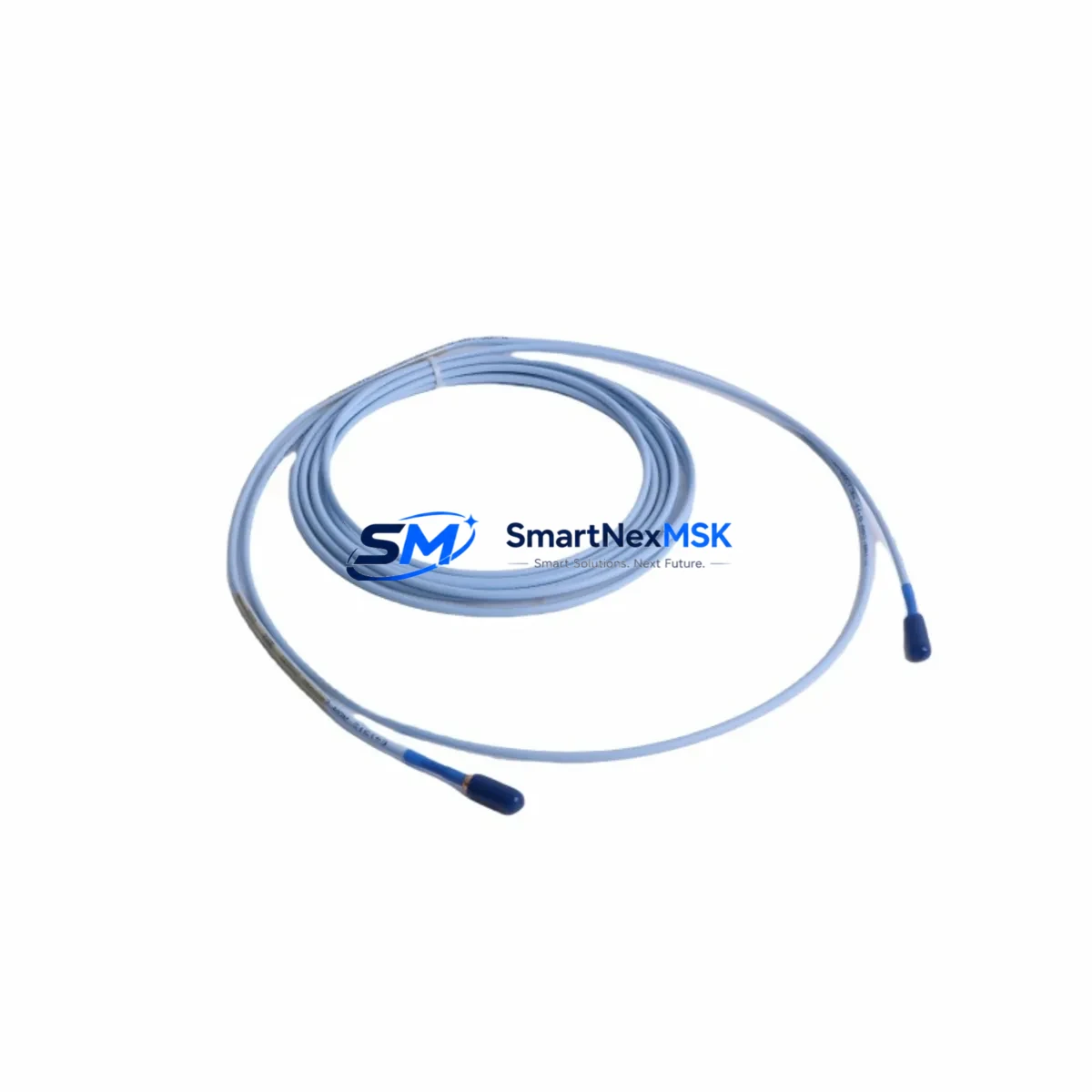

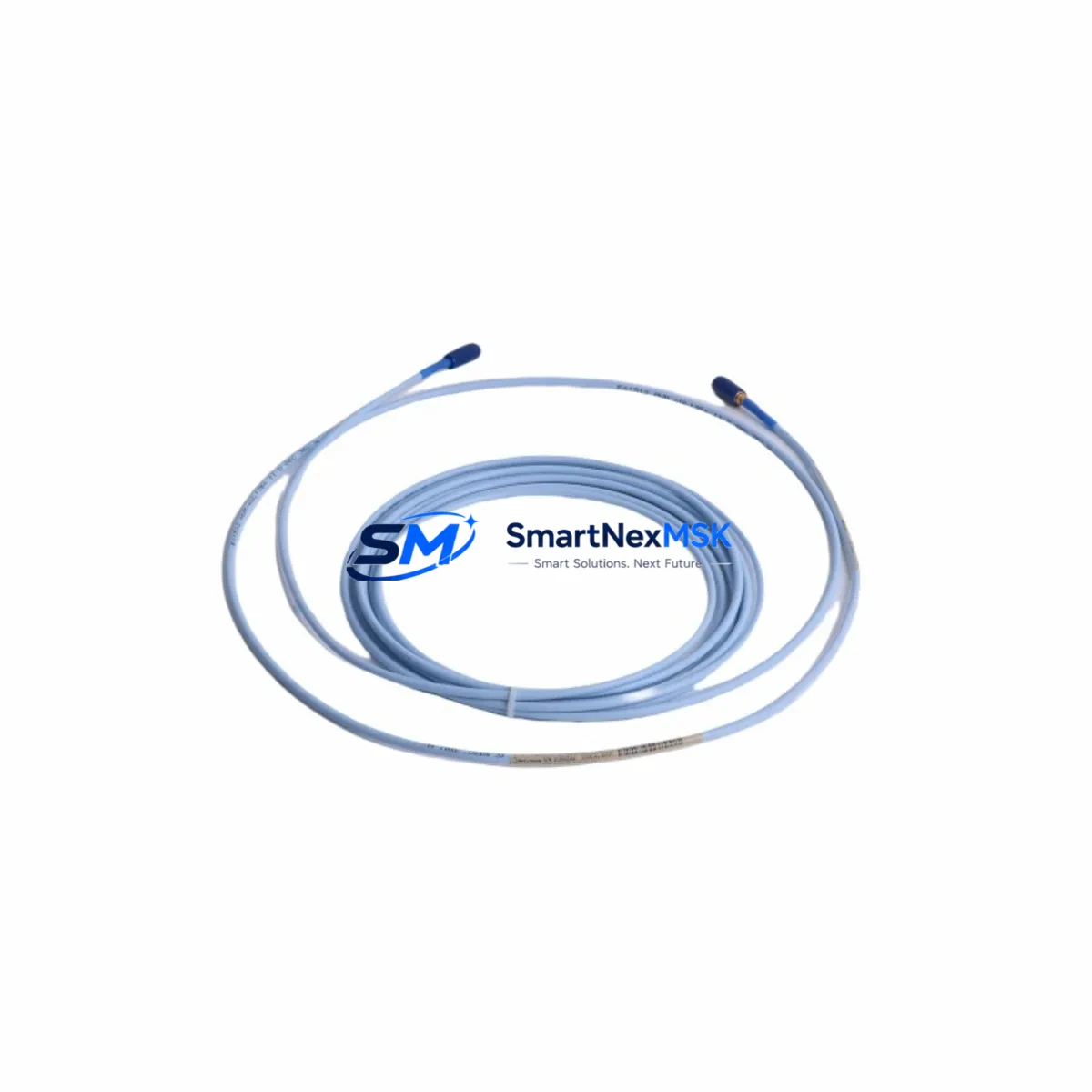

The Bently Nevada 330103-00-05-90-02-00 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a critical spare inventory for your control room, this transducer is a direct, original-specification replacement that restores system integrity without recalibration of the full monitoring chain.

Maintenance engineers working on gas turbines, steam turbines, compressors, and large pumps rely on the 3300 XL proximity transducer system to deliver continuous shaft displacement and vibration data to the 3300 XL monitor rack. When a transducer fails or degrades — whether from cable damage, contamination, or gap drift — the entire measurement channel goes offline. Having a verified, tested spare on the shelf is the single most effective way to reduce mean time to repair (MTTR) and protect production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330103-00-05-90-02-00 transducer is rarely an isolated task. A disciplined maintenance engineer will treat a transducer swap as an opportunity to inspect the entire measurement loop and adjacent components in the control cabinet. During the same work order, it is best practice to verify the condition and calibration of the paired Bently Nevada 330130 Proximitor® Sensor, which converts the transducer’s oscillator signal into a DC voltage proportional to gap distance. A degraded Proximitor can produce erratic readings even with a new probe installed.

Inspect the 330180 extension cable connecting the probe to the Proximitor — cable jacket cracking, connector corrosion, or shield continuity loss are common failure modes in high-temperature or high-vibration environments. While the cabinet is open, check the 3300 XL I/O module terminal connections for loose wiring and verify that the channel’s OK relay output is functioning correctly on the 3300 XL monitor card.

For facilities running the Bently Nevada 3500 Series alongside legacy 3300 XL racks, confirm that the Proximitor sensitivity and gap voltage are correctly matched to the monitor’s input configuration — a mismatch here will cause false alerts or missed trips. If the machine has been in service for more than five years, consider scheduling a full gap check on all proximity channels, including thrust position probes and key phasor probes such as the 330180-51-05 or 330104-00-06-10-02-00 models, to establish a fresh baseline before the next planned outage.

In the power supply section of the rack, verify that the 3300 XL power supply module is delivering stable -24 VDC to all Proximitor channels. Voltage sag or ripple at the supply rail is a known cause of intermittent OK status loss that is often misdiagnosed as a probe failure. Similarly, check the rack backplane for secure module seating and inspect any terminal strip or DIN rail terminal blocks associated with the vibration monitoring loop for signs of overheating or loose terminations.

Where the 3300 XL system interfaces with a DCS or safety system, confirm that the 4–20 mA output signal from the monitor card is reaching the DCS input card within tolerance, and that any signal isolator or barrier module in the loop is functioning correctly. A faulty isolator can mask a genuine vibration alarm at the DCS level even when the local monitor is healthy.

Site Replacement Workflow

Step 1 — Pre-work verification: Confirm the replacement part number matches the installed probe diameter, cable length, and connector configuration. Cross-reference the machine’s instrumentation drawing to verify the gap target material and confirm the scale factor is appropriate for the shaft alloy.

Step 2 — Safe isolation: Coordinate with operations to place the affected monitor channel in bypass mode at the 3300 XL monitor card before disconnecting the probe. This prevents a spurious trip during the swap. Document the bypass in the permit-to-work system.

Step 3 — Physical replacement: Remove the old probe from the mounting bracket, noting the gap setting (typically measured with a feeler gauge or gap voltage reading). Install the new 330103-00-05-90-02-00 and set the gap to the machine’s specified nominal value. Reconnect the extension cable and Proximitor, ensuring all connectors are fully seated and locking rings are torqued to specification.

Step 4 — Functional verification: With the channel still in bypass, power up the Proximitor and measure the gap voltage at the monitor card input. Confirm the reading falls within the linear range and matches the expected value for the set gap. Check the OK relay status on the monitor card front panel.

Step 5 — Return to service: Remove the bypass, confirm the channel is active and alarm-free, and log the replacement in the equipment history. Update the spare parts inventory to trigger a replenishment order for the next spare.

This workflow applies equally to legacy 3300 XL installations and to mixed environments where 3300 XL probes are used with 3500 Series Proximitor sensors, provided the sensitivity and gap range specifications are verified to be compatible.

Spare Parts Support FAQ

Q1: Is the 330103-00-05-90-02-00 a direct drop-in replacement for older 3300 XL probe variants?
Yes, within the 3300 XL 8mm probe family, the 330103-00-05-90-02-00 is dimensionally and electrically compatible with earlier variants sharing the same probe diameter and cable length. Always verify the full part number suffix to confirm cable length and connector configuration match your installation. If your system uses a non-standard target material, a scale factor adjustment at the Proximitor or monitor card may be required.

Q2: What is included in the 12-month warranty and how does it apply to field-installed spares?
The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. It runs from the date of shipment. Spares held in a controlled warehouse environment and installed within the warranty period retain full coverage from the installation date, subject to confirmation. Each unit is tested before dispatch to confirm output sensitivity, OK status, and connector integrity.

Q3: How should this spare be stored to maintain its condition before installation?
Store the probe in its original packaging in a dry, temperature-controlled environment away from strong magnetic fields and mechanical shock. The probe tip and connector should remain capped until installation. Inspect the cable jacket and connector pins before installation if the spare has been in storage for more than 12 months.

Q4: Can this transducer be used with Bently Nevada 3500 Series monitors?
The 330103-00-05-90-02-00 probe is designed for the 3300 XL system and uses a 3300 XL-compatible Proximitor sensor. It can be used in 3500 Series applications only when paired with a 3500-compatible Proximitor that accepts 3300 XL probe inputs and when the monitor channel is configured for the correct sensitivity. Consult the 3500 Series system documentation and verify channel configuration before cross-series deployment.
