Bently Nevada 330103-00-06-10-02-00 Proximity Probe 3300 XL

Bently Nevada 330103-00-06-10-02-00: Retrofit-Ready Proximity Probe for 3300 XL Control Systems

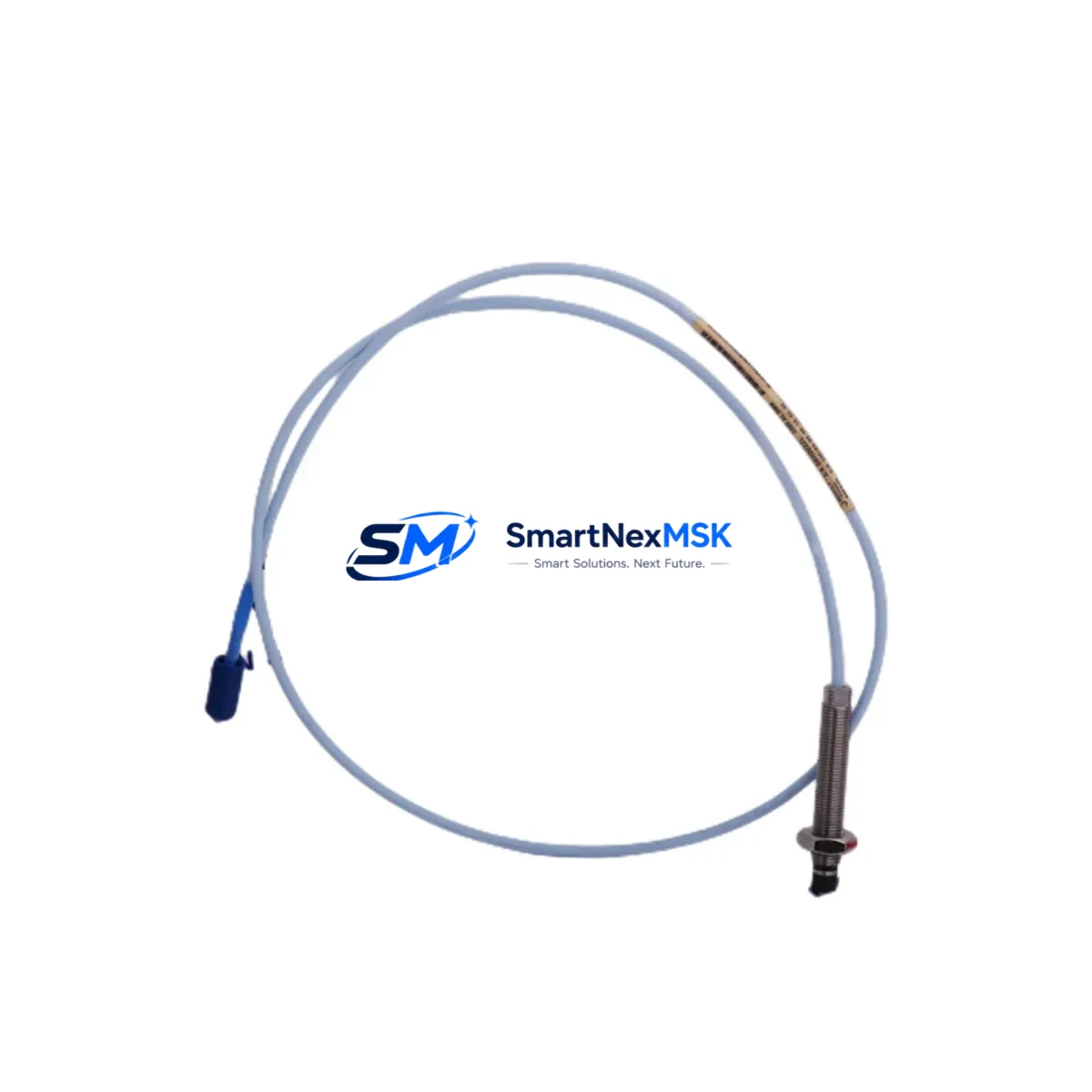

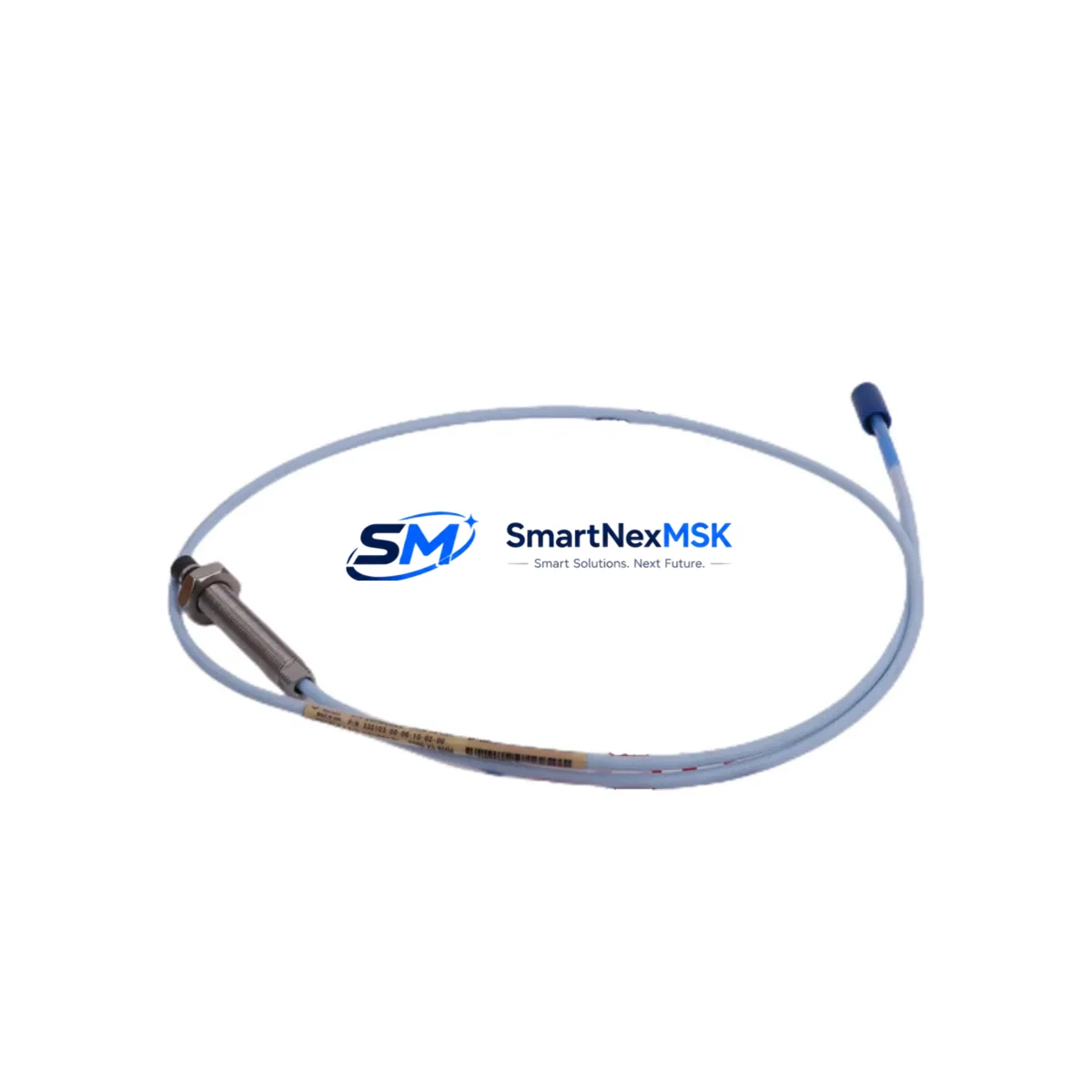

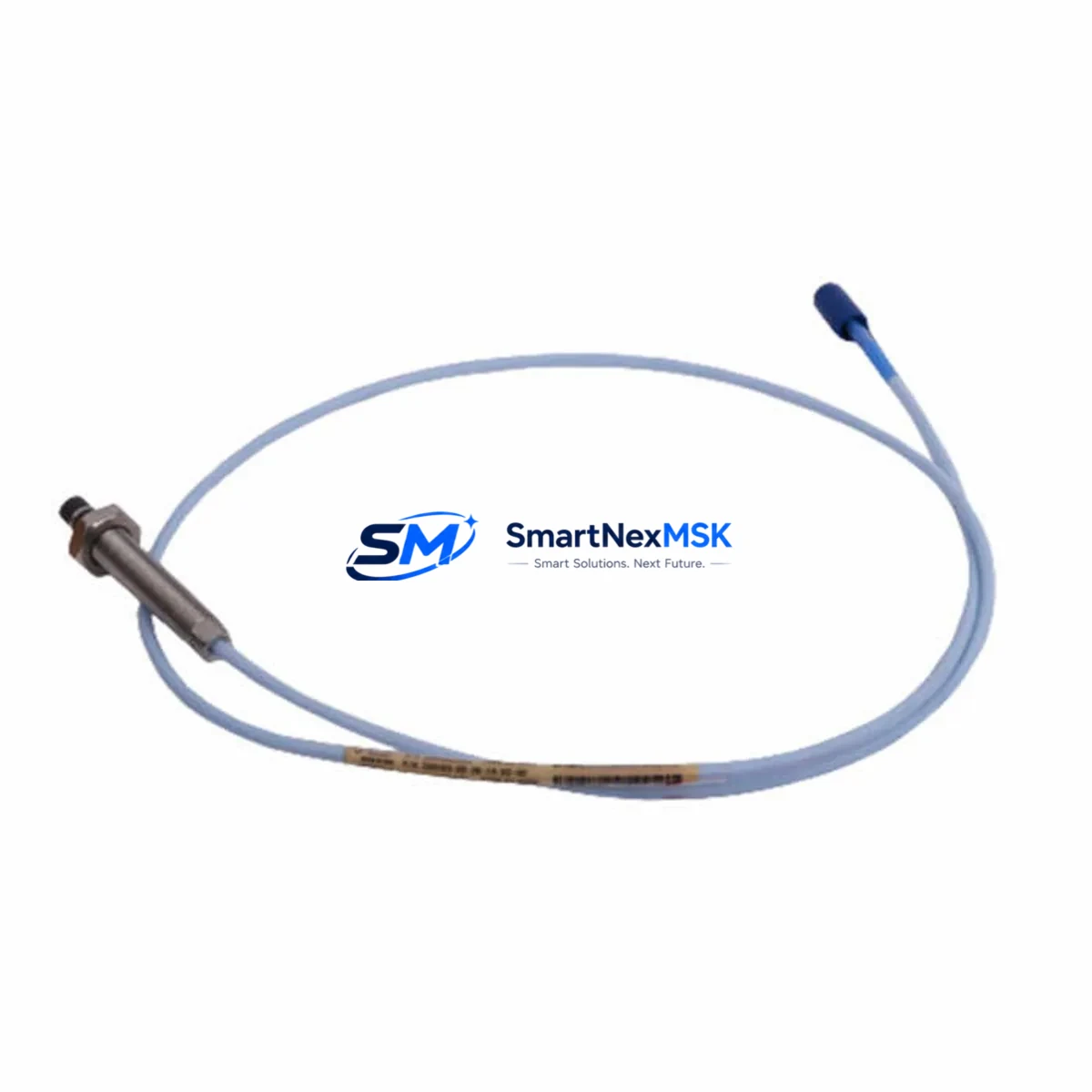

The Bently Nevada 330103-00-06-10-02-00 is an 8mm eddy-current proximity probe engineered for seamless integration into Bently Nevada 3300 XL continuous machinery monitoring systems. As legacy vibration monitoring infrastructure ages across power generation, petrochemical, and rotating machinery facilities, this probe serves as a verified drop-in replacement for discontinued or end-of-life units within the 3300 XL platform. Whether you are executing a planned control system upgrade, recovering from an unplanned equipment failure, or modernizing an aging monitoring rack, the 330103-00-06-10-02-00 delivers the dimensional accuracy, signal linearity, and environmental tolerance required for critical machinery protection applications.

This probe is designed to work within the complete Bently Nevada 3300 XL signal chain. During retrofit planning, engineers must confirm compatibility with the paired extension cable — typically the 330130 series — and the corresponding proximitor/oscillator module, such as the 3300 XL 8mm Proximitor (330180 series). The probe tip gap must be set within the linear range specified for the target proximitor, generally 0.25 mm to 2.25 mm for 8mm probes, and verified using a calibrated gap voltage measurement at commissioning. Incorrect gap setting is the most common source of signal error during probe replacement and must be validated before returning the machine to service.

When integrating the 330103-00-06-10-02-00 into an existing 3300 XL rack, technicians should inspect the 3300 XL I/O module termination points and confirm that terminal wiring from the junction box or field terminal assembly matches the original probe polarity and shielding configuration. The 3300 XL system architecture routes probe signals through dedicated monitor cards — such as the 3300/16 Dual Voting or 3300/20 Radial Vibration Monitor — and any change in probe cable routing or shield grounding can introduce noise that affects alarm setpoints and trip thresholds. It is strongly recommended to document existing alarm and danger setpoints from the System 1 configuration or the local rack display before beginning any probe swap.

For facilities migrating from older Bently Nevada 7200 series or 9000 series monitoring platforms to the 3300 XL architecture, the 330103-00-06-10-02-00 represents a forward-compatible probe selection. The 3300 XL platform supports integration with System 1 Condition Monitoring Software, enabling historians, trend analysis, and alarm management to be preserved across the migration. During such platform transitions, the communication link between the 3300 XL rack and the plant DCS — typically via 4–20 mA analog outputs or Modbus RTU — must be re-mapped and verified at the control room level to ensure that vibration readings appear correctly on the operator HMI screens.

Retrofit projects involving the 330103-00-06-10-02-00 frequently require coordinated replacement of adjacent components. The 330130-080-00-00 extension cable is the standard 8-meter companion cable for this probe, and its condition should be assessed whenever the probe is replaced, as cable damage or connector corrosion is a common secondary failure mode. The 330180-X1-05 proximitor module should also be bench-tested or replaced if probe signal output remains abnormal after probe and cable replacement. In multi-channel racks, the 3300/25 Keyphasor Module may need to be reconfigured if shaft reference signals are affected by the mechanical work performed during probe installation.

Downtime during probe replacement can be minimized by pre-staging all replacement components — probe, extension cable, and proximitor — and performing a bench calibration of the probe-cable-proximitor assembly before entering the field. This allows the technician to confirm the static sensitivity (mV/mil or V/mm) and linear range before installation, reducing the time the machine must remain offline for gap adjustment and signal verification. Where hot-swap capability is available in the 3300 XL rack architecture, monitor cards can sometimes be replaced without full rack de-energization, further reducing exposure time.

All units of the 330103-00-06-10-02-00 supplied by SMARTNEXMSK are subject to pre-shipment functional testing, dimensional inspection, and packaging verification. Each unit is shipped with documentation supporting traceability and is covered by a 12-month warranty against manufacturing defects. Stock availability is maintained to support both planned maintenance schedules and emergency replacement requirements. For urgent retrofit projects, expedited shipping options are available upon request.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330103-00-06-10-02-00 begins with a thorough audit of the existing monitoring loop. The technician should record the current gap voltage at the proximitor output terminal before removing the old probe, as this provides a baseline for post-installation verification. The field junction box wiring — including shield drain wire routing and terminal torque values — should be documented and replicated exactly during reinstallation to avoid ground loop interference.

In systems where the 3300 XL rack interfaces with a Bently Nevada 3500 series rack or a third-party DCS via the 3300 XL communication gateway, the I/O mapping must be reviewed to confirm that channel addresses remain consistent after the probe replacement. If the facility uses System 1 software for online monitoring, the probe channel configuration — including transducer scale factor, full-scale range, and alarm setpoints — should be exported before work begins and re-imported after commissioning to preserve historical trend continuity.

For older installations where the original probe was part of a 7200 series monitoring loop, migration to the 330103-00-06-10-02-00 within a 3300 XL architecture requires a full signal chain replacement: new probe, new 330130 extension cable, new 330180 proximitor, and updated monitor card configuration. The 3300 XL rack backplane and power supply module — typically the 3300/05 Power Supply — should be inspected for adequate capacity to support the updated channel load, particularly in fully populated racks.

Downtime Control During System Migration

Minimizing unplanned downtime during probe replacement requires pre-commissioning of the replacement assembly off-machine. By bench-testing the 330103-00-06-10-02-00 with its paired 330130 extension cable and 330180 proximitor before entering the field, the technician can confirm static sensitivity and eliminate component-level faults before the machine is taken offline. A pre-staged replacement kit — including the probe, cable, proximitor, and any required terminal hardware — should be assembled and verified before the maintenance window begins.

During the replacement window, the existing program logic in the 3300 XL monitor cards should not be altered unless a deliberate setpoint change is part of the scope. Alarm and danger thresholds should be temporarily bypassed at the DCS level — not deleted — to prevent spurious trips during the gap adjustment procedure. Once the probe is installed and the gap voltage is confirmed within the linear range, the bypass should be removed and the system returned to normal monitoring mode. A post-installation functional test, including a simulated vibration input or a physical bump test, should be performed before the machine is restarted to confirm end-to-end signal integrity from probe tip to DCS display.

For facilities with redundant monitoring channels, the replacement can often be performed on one channel while the redundant channel remains active, further reducing risk exposure during the maintenance window. This approach is particularly effective in 3300/16 Dual Voting configurations where two-out-of-two or one-out-of-two voting logic is in use.

Retrofit Support FAQ

Q: Is the 330103-00-06-10-02-00 a direct replacement for older 330103 series probes?
A: Yes. The 330103-00-06-10-02-00 is dimensionally and electrically compatible with other 330103 series variants used in 3300 XL monitoring loops. Minor suffix differences may reflect cable length or connector options; confirm the integral cable length and connector type match your installation requirements before ordering.

Q: What gap voltage should I set after installing this probe?
A: For 8mm probes in the 3300 XL system, the recommended gap voltage is typically –10.0 VDC (corresponding to approximately 1.0 mm gap) when using the 330180 series proximitor. Always refer to the specific proximitor calibration curve and the Bently Nevada installation manual for your exact configuration, as target gap voltage may vary by application.

Q: Can this probe be used with a Bently Nevada 3500 series rack?
A: The 330103-00-06-10-02-00 is designed for the 3300 XL platform. While the 3500 series uses the same eddy-current probe technology, the monitor card interface and configuration software differ. Consult the 3500 series documentation to confirm probe compatibility before cross-platform use.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. All units undergo pre-shipment functional testing and dimensional inspection. Warranty claims require return of the defective unit with a description of the failure mode. Contact sales@smartnexmsk.com to initiate a warranty claim.
