Bently Nevada 330103-00-06-10-12-00 Spare 3300 XL: Precision Replacement for Industrial Condition Monitoring

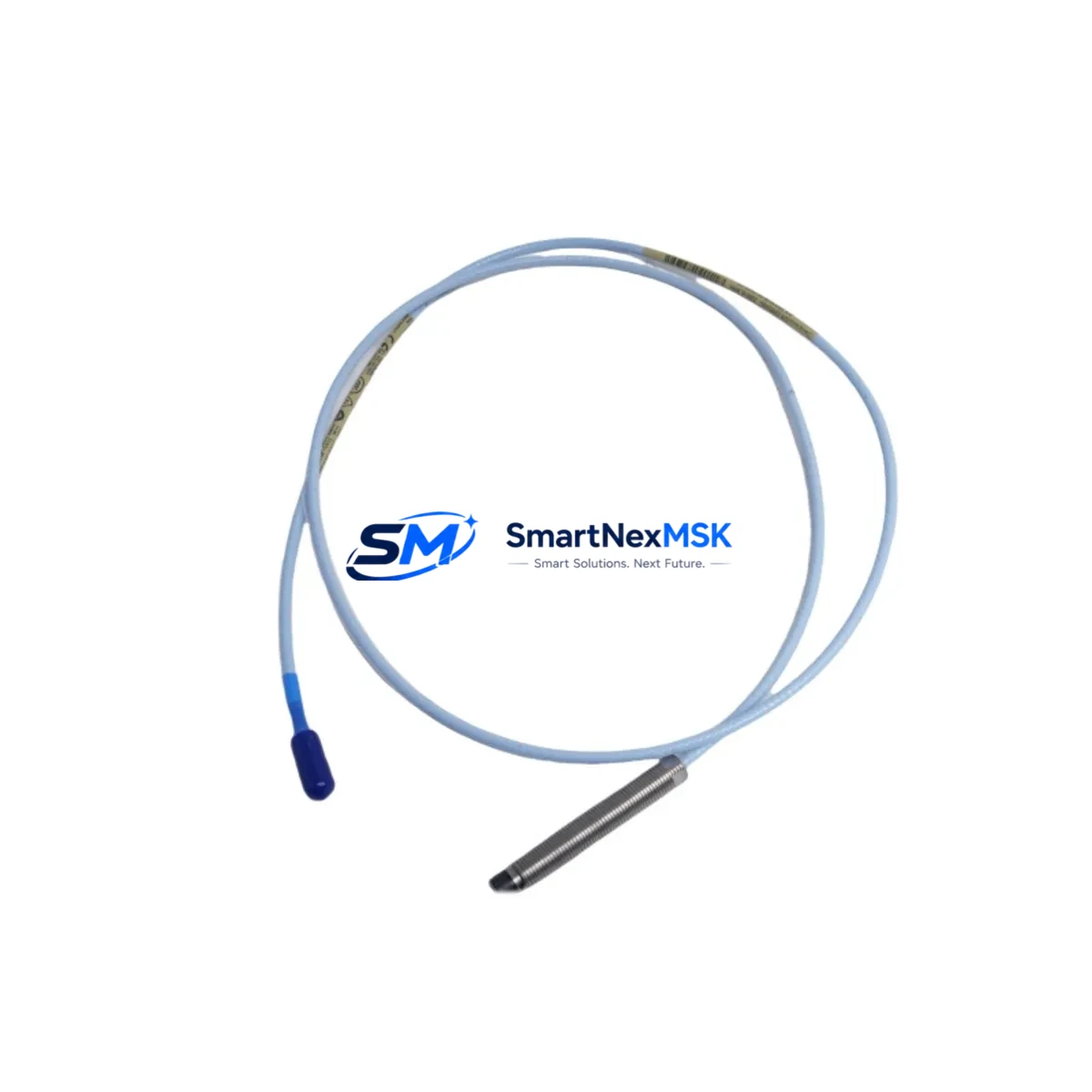

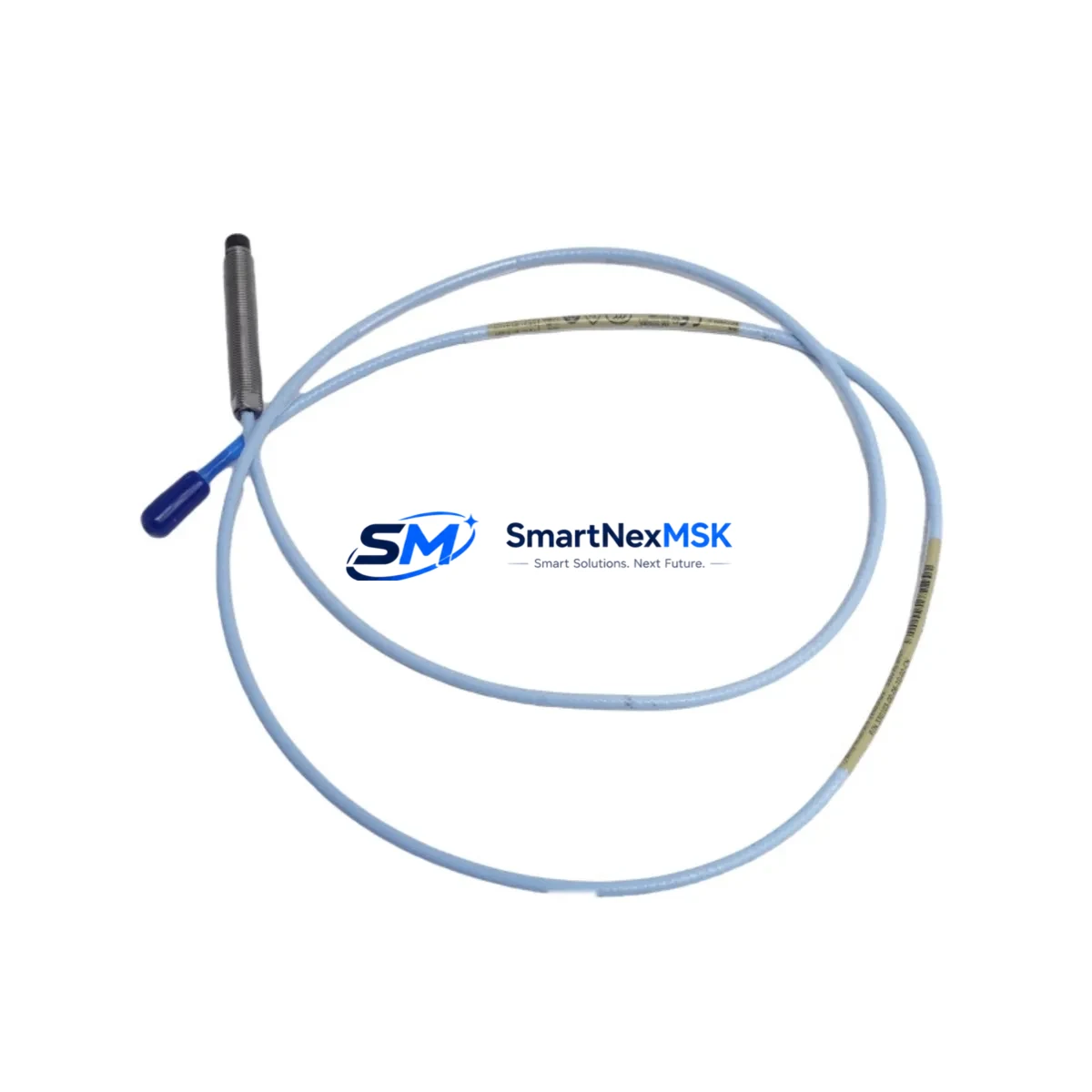

The Bently Nevada 330103-00-06-10-12-00 is an 8mm eddy current proximity probe engineered for the 3300 XL Series condition monitoring system. Designed for continuous shaft vibration, axial position, and differential expansion measurement in rotating machinery, this probe is a critical spare for turbines, compressors, pumps, and generators operating in demanding industrial environments. When a proximity probe fails or degrades, the entire vibration monitoring loop is compromised — leading to unplanned shutdowns, missed fault detection, and potential catastrophic equipment damage. Stocking a verified replacement is not optional; it is a fundamental element of any serious predictive maintenance program.

Every unit supplied by SMARTNEXMSK is sourced from authorized channels, individually tested prior to shipment, and backed by a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, planned outages, and long-term spare parts programs for facilities running Bently Nevada 3300 XL monitoring systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330103-00-06-10-12-00 probe is rarely an isolated task. Maintenance engineers performing a planned outage or responding to a vibration alarm should treat the probe replacement as the starting point of a broader inspection of the entire measurement chain. Begin by verifying the condition of the 330130 series extension cable — connector corrosion, jacket cracking, or shield continuity failures are common causes of signal drift that are often misdiagnosed as probe failure. Inspect the 3300 XL Proximitor module (typically a 330180 or 330181) for output voltage stability and confirm the gap voltage is within the linear range after probe installation.

At the rack level, check the 3300 XL monitoring rack power supply for output ripple and voltage regulation. A degraded rack power supply can introduce noise into the proximity measurement and trigger false alarms. If the facility runs a 3500 series monitoring rack alongside legacy 3300 XL hardware, verify that the field wiring segregation between systems is intact to prevent ground loop interference. For installations where the proximity probe feeds into a Bently Nevada 3300/20 dual-channel monitor or a 3300/25 position monitor, confirm that the monitor’s OK relay output is functioning correctly after the probe swap — a latched fault state can mask a successful replacement.

In control cabinet inspections, pay attention to the terminal blocks and field junction boxes connecting the probe cable to the monitor rack. Loose terminations and moisture ingress at field junction boxes are leading causes of intermittent vibration readings. If the system includes signal isolators or barriers for intrinsically safe installations, verify that the barrier’s working voltage and entity parameters remain compatible with the replacement probe. For facilities using a DCS historian or plant asset management system to trend vibration data, confirm that the new probe’s calibration data is entered correctly to avoid baseline drift in long-term trend records.

Where the proximity probe measurement is used as a trip input to a turbine control system or emergency shutdown system, coordinate the replacement with the control room to ensure the trip logic is bypassed appropriately during installation and re-enabled with a functional test before returning the machine to service. Stocking a minimum of two 330103-00-06-10-12-00 probes per critical machine train, alongside matched extension cables and a spare Proximitor module, is the recommended baseline for facilities targeting less than four hours mean time to repair on vibration monitoring faults.

Site Replacement Workflow

Step 1 — Isolation and de-energization: Coordinate with operations to place the machine in a safe state. Isolate the Proximitor power supply at the rack and confirm zero voltage at the probe connector before disconnecting the integral cable.

Step 2 — Probe removal: Unthread the probe from the probe holder using the correct spanner. Record the existing gap distance (typically measured as gap voltage, e.g. –10.0 VDC at nominal gap) before removal to use as a reference for the replacement installation.

Step 3 — Compatibility verification: Confirm the replacement 330103-00-06-10-12-00 probe matches the original part number, cable length, and connector type. Verify that the Proximitor module is the correct 8mm driver variant. Do not substitute a 5mm probe (e.g. 330101 series) into an 8mm probe holder — the thread pitch and linear range are not interchangeable.

Step 4 — Installation and gap setting: Thread the new probe into the holder and adjust the gap to achieve the target gap voltage specified in the machine’s vibration monitoring setpoint documentation. Typical target is –10.0 VDC ± 0.5 VDC for a 1.0 mm nominal gap on AISI 4140 steel shafts.

Step 5 — Functional verification: Re-energize the Proximitor and confirm the OK LED is illuminated. Verify the gap voltage at the monitor rack front panel or via the DCS. Check that the vibration channel is reading a plausible value (near zero on a stationary shaft) and that no alarms or trips are active before releasing the bypass.

Step 6 — Documentation: Record the replacement in the maintenance management system with the new probe serial number, installation date, gap voltage, and technician sign-off. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q: Is the 330103-00-06-10-12-00 compatible with both 3300 XL and legacy 3300 series monitors?
A: The 330103-00-06-10-12-00 is designed for the 3300 XL 8mm system. While the physical probe thread may fit legacy 3300 series holders, the Proximitor driver must be the XL variant (330180/330181) to achieve the correct sensitivity and linear range. Using a non-XL Proximitor will result in incorrect output scaling and potential false trips. Always verify the complete probe-cable-Proximitor system compatibility before installation.

Q: What is included in the 12-month warranty and what does pre-shipment testing cover?
A: Every 330103-00-06-10-12-00 unit is tested for output sensitivity, linear range, and OK status continuity before shipment. The 12-month warranty covers manufacturing defects and performance deviations from the published specification under normal operating conditions. It does not cover damage resulting from incorrect installation, gap setting errors, or operation outside the rated temperature range. Warranty claims are supported with a replacement unit dispatched upon receipt of the failed part.

Q: How should I manage long-term spare parts inventory for 3300 XL proximity probes?
A: For critical rotating machinery (turbines, compressors, large pumps), maintain a minimum of two probes per measurement plane per machine train. Probes stored in original packaging in a dry, temperature-controlled environment have an indefinite shelf life. Inspect stored probes annually for connector corrosion and cable jacket integrity. Establish a reorder trigger at one unit remaining to ensure replenishment before the safety stock is consumed during an emergency.

Q: Can SMARTNEXMSK support ongoing supply for multi-site spare parts programs?
A: Yes. SMARTNEXMSK maintains standing inventory of 3300 XL series components to support both emergency single-unit orders and scheduled bulk procurement for multi-site maintenance programs. Lead times for standard orders are typically 3–7 business days. For facilities requiring consignment stock or vendor-managed inventory arrangements, contact our sales team to discuss program terms. All shipments include a test report and certificate of conformance.
