Bently Nevada 330103-00-07-10-02-00 Maintenance-Ready Spare for 3300 XL Automation

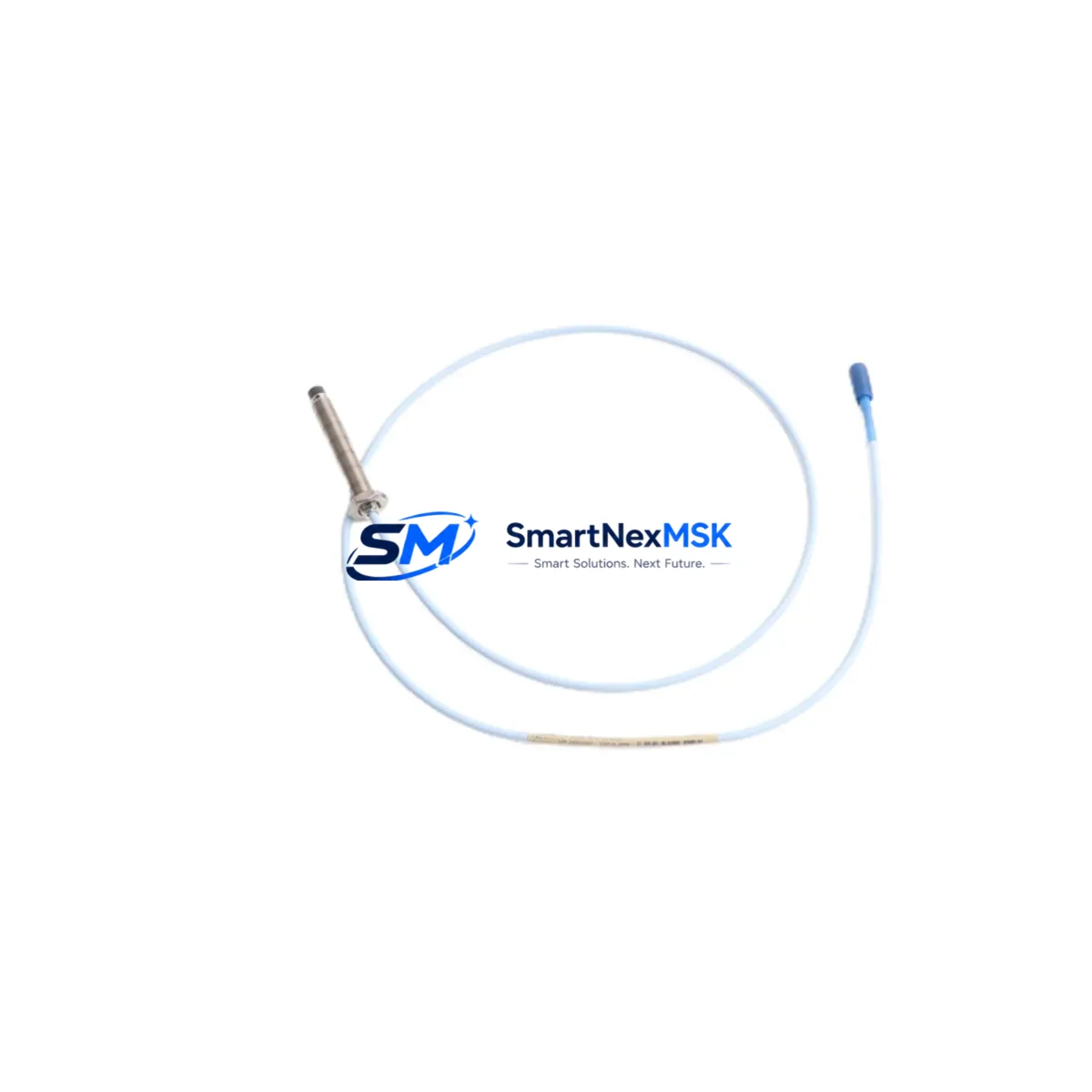

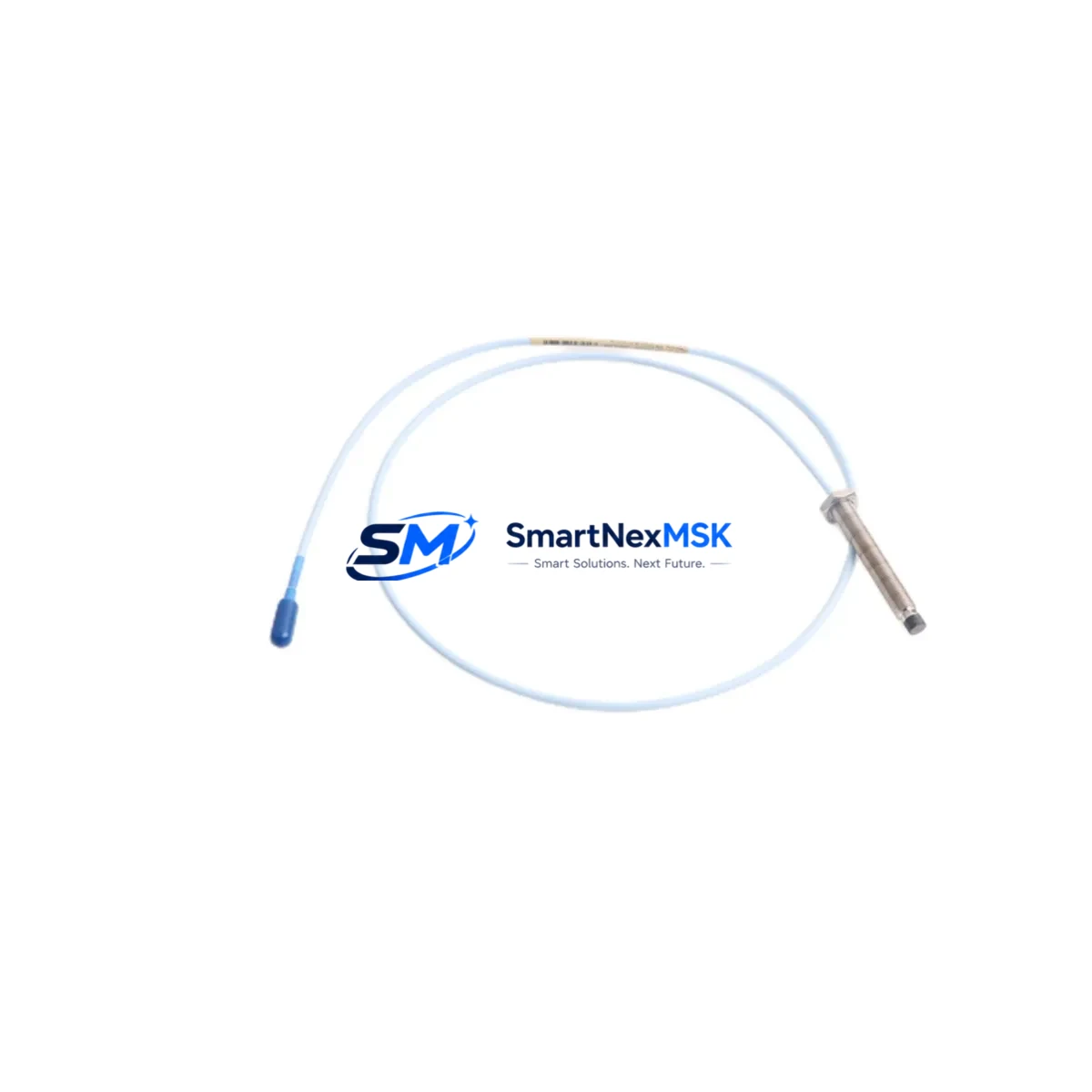

The Bently Nevada 330103-00-07-10-02-00 is an original 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a critical spare inventory for turbines, compressors, pumps, or gearboxes, this probe is a direct, verified replacement that restores system integrity without recalibration or signal chain rework.
For maintenance engineers and reliability teams operating Baker Hughes / Bently Nevada 3300 XL monitor racks, sourcing a tested, original-specification proximity probe is the single most time-critical step in stopping downtime from extending beyond the first shift. This unit ships tested, packaged, and ready for immediate field installation.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330103-00-07-10-02-00 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 XL |
| Probe Type | 8mm Eddy-Current Proximity Probe |
| Cable Length | 7.62 m (25 ft) — encoded in SKU segment “-07” |
| Connector | 10-32 UNF, standard Bently Nevada termination |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) nominal |
| Operating Gap Range | 0.25 mm – 2.54 mm (10 – 100 mil) |
| Supply Voltage | –24 VDC (via 3300 XL Proximitor® driver) |
| Target Material Compatibility | Steel, 4140, 4340, 17-4 PH stainless |
| Temperature Range | –35°C to +177°C (probe tip) |
| Ingress Protection | IP67 (probe body) |
| Compatible Monitor Modules | 3300/16, 3300/20, 3300/25, 3300/46, 3300/55 |
| Origin | USA |
| Warranty | 12 Months — tested before shipment |
| Condition | Original spare — new or surplus stock, fully tested |
| Lead Time | In-stock: ships within 1–3 business days |
Maintenance Planning for Continuous Operation
When a 3300 XL proximity probe such as the 330103-00-07-10-02-00 is flagged during a control cabinet inspection or triggers a “Not OK” (NOK) status on the monitor rack, the fault is rarely isolated to the probe alone. A disciplined maintenance engineer will simultaneously verify the condition of the paired 330130-080-01-00 Proximitor® extension cable and the 330180-X0-05 Proximitor® sensor driver, since cable jacket abrasion, connector corrosion, or driver output drift can produce identical NOK symptoms. Replacing the probe without checking the driver and cable risks a repeat trip within weeks.
At the monitor rack level, inspect the 3300/16 or 3300/20 monitor module for alarm setpoint integrity and verify that the 3300/46 Keyphasor® module — if installed in the same rack — is outputting a clean once-per-revolution pulse. A degraded Keyphasor signal will corrupt phase and 1X amplitude readings even after a perfect probe swap. While the rack is open, check the 3300/55 power supply module output voltage; a sagging –24 VDC rail will shift probe gap voltage and produce false vibration readings across all channels.
For facilities running parallel protection on critical assets, the 330103-00-07-10-02-00 is often stocked alongside the 330103-00-12-10-02-00 (12 m cable variant) to cover both bearing-end and drive-end installations on the same machine train. Procurement engineers building a minimum viable spare kit for a single compressor train typically include: one probe per measurement plane (radial X/Y plus axial), one extension cable set, one Proximitor® driver, and one spare monitor module — ensuring that any single-component failure can be resolved within one maintenance window without waiting on international freight.
During planned outages, use a TK-3 or equivalent proximity probe calibration kit to bench-verify the replacement probe’s scale factor before installation. Document the as-found gap voltage and compare against the original commissioning record. If the machine uses a 3500 Series rack in an adjacent train, note that 330103-series probes are not directly interchangeable with 3500/42 channel inputs without reconfiguration — a common source of field errors during emergency cross-train cannibalization.
Site Replacement Workflow
Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitor channel at the rack. Place the affected channel in bypass mode using the 3300 monitor front-panel or DCS override to prevent a spurious trip during probe removal.
Step 2 — As-Found Documentation: Record the existing gap voltage (typically –10.0 VDC ± 0.5 V at nominal gap) using a calibrated DVM. Photograph the probe tip condition, cable routing, and connector seating before disassembly.
Step 3 — Probe Removal: Disconnect the extension cable at the junction box. Unthread the probe from the bracket using the correct spanner — avoid gripping the cable. Note the thread engagement depth for reinstallation reference.
Step 4 — Replacement Installation: Install the 330103-00-07-10-02-00 to the same thread depth. Reconnect the extension cable and verify connector seating. Apply anti-vibration locking compound to the locknut if specified by the OEM bracket design.
Step 5 — Gap Setting & Verification: Adjust the probe gap to achieve –10.0 VDC ±0.2 V at the monitor input. Confirm the NOK indicator clears on the monitor module. Remove the bypass and verify alarm setpoints are active.
Step 6 — Return to Service: Log the replacement in the CMMS with the new probe serial number, gap voltage, and date. Update the spare parts inventory to trigger reorder of the consumed unit — maintaining at least one on-shelf spare per critical machine train is the minimum recommended stock posture.
Spare Parts Support FAQ
Q1: Is the 330103-00-07-10-02-00 a direct drop-in replacement for older 330103-series probes?
Yes. The 330103 family uses a consistent mechanical interface and electrical output specification across production runs. Minor revision changes do not affect field interchangeability with 3300 XL Proximitor® drivers. Always verify the cable length suffix matches your installation requirement before ordering.
Q2: How is the unit tested before shipment?
Each 330103-00-07-10-02-00 unit is bench-tested for output sensitivity (200 mV/mil ±10%), insulation resistance, and connector continuity prior to packaging. A test report is available upon request. Units that do not meet OEM specification are not shipped.
Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and out-of-specification performance under normal operating conditions. The warranty does not cover physical damage from improper installation, incorrect gap setting, or operation outside the rated temperature range. Warranty claims are processed within 5 business days of receipt of the returned unit.
Q4: Can you support long-term or blanket purchase orders for this SKU?
Yes. For facilities managing multiple machine trains or planning multi-year maintenance contracts, we support blanket PO arrangements with agreed pricing, reserved stock allocation, and priority shipment scheduling. Contact our sales team to discuss volume requirements and lead time commitments.
