Bently Nevada 330103-00-07-20-02-CN Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330103-00-07-20-02-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

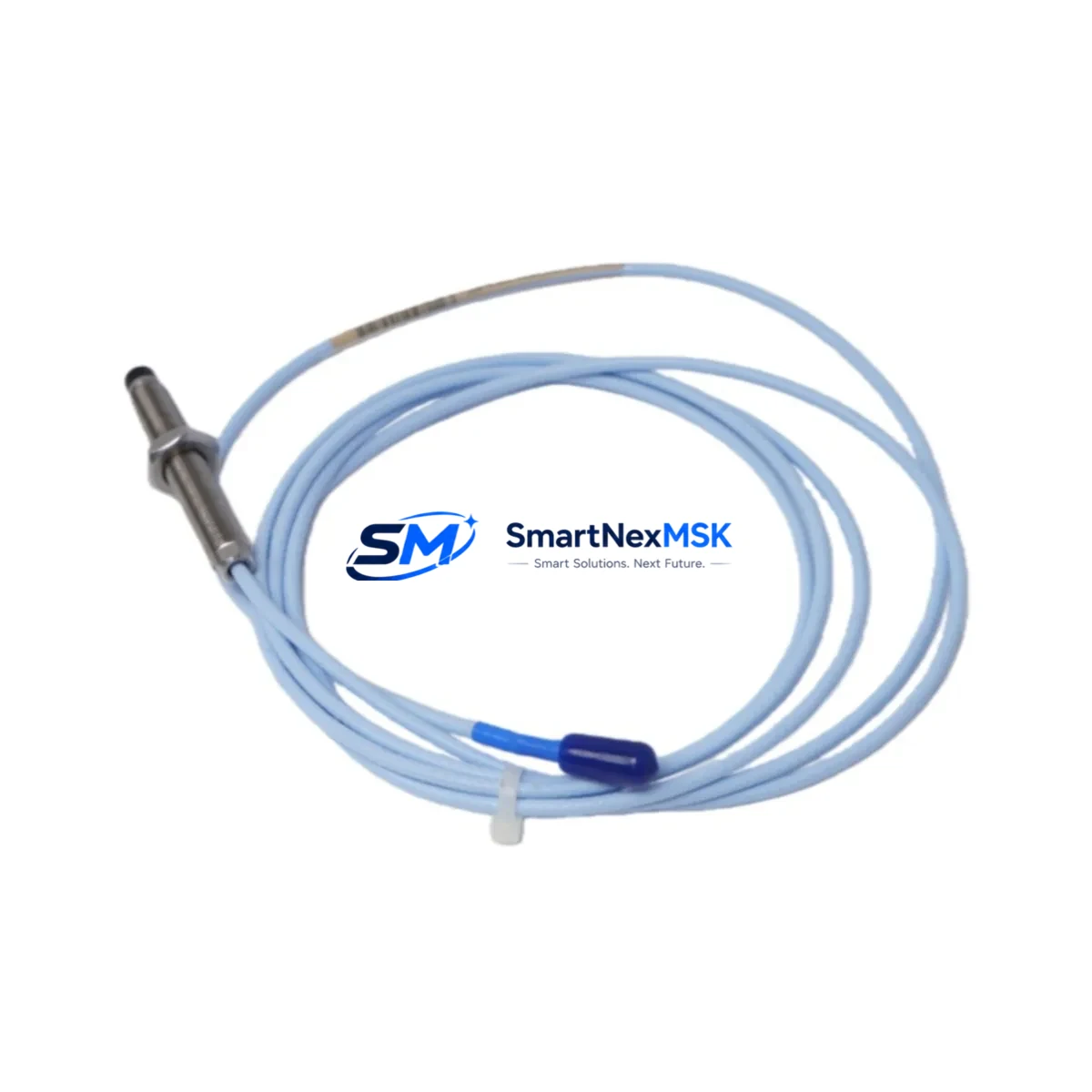

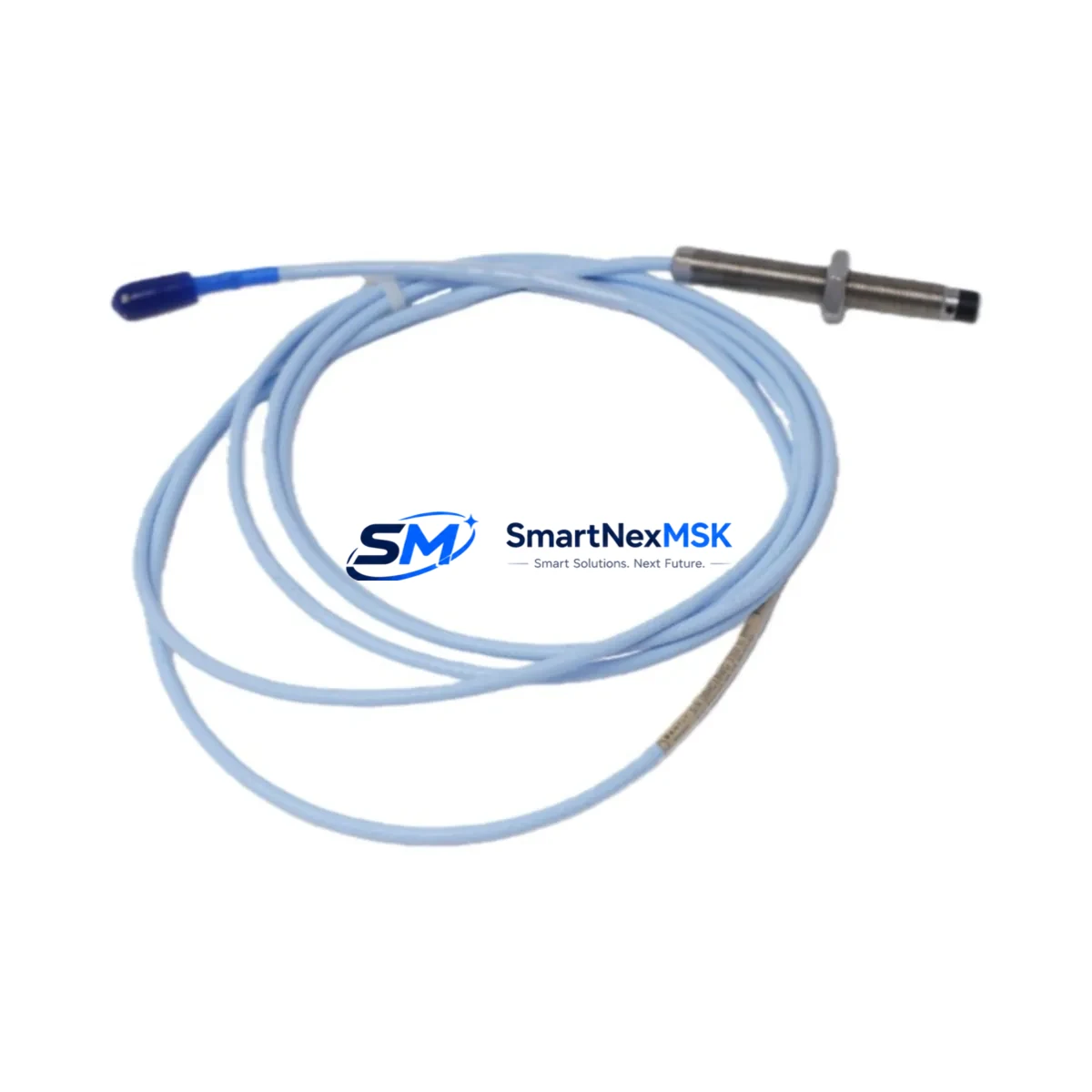

The Bently Nevada 330103-00-07-20-02-CN is an 8 mm eddy-current proximity probe engineered for direct retrofit into existing 3300 XL vibration monitoring systems. As legacy Bently Nevada 3300 series installations approach end-of-support milestones, plant engineers and reliability teams increasingly require a verified, drop-in replacement that preserves original signal chain integrity without forcing a full system overhaul. This probe delivers exactly that: a mechanically and electrically compatible upgrade path that protects your existing wiring, conduit runs, and Proximitor® sensor pairings while meeting the sensitivity and gap voltage specifications your 3300 XL monitors expect.

Whether you are replacing a failed probe on a critical compressor train, upgrading a turbine bearing pedestal, or consolidating spare-parts inventory ahead of a planned outage, the 330103-00-07-20-02-CN is stocked and ready to ship. Each unit undergoes bench testing against Bently Nevada factory sensitivity curves before dispatch, and is covered by a 12-month warranty from the date of delivery.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330103-00-07-20-02-CN retrofit begins well before the probe reaches the machine. Start by auditing the full signal chain: the probe itself, the 330180-series Proximitor® sensor mounted in the junction box, the 330130 armored extension cable running through the conduit, and the 3300/16 or 3300/20 monitor card seated in the rack. If any of these components show signs of insulation breakdown, connector corrosion, or sensitivity drift, replace them as a matched set rather than substituting the probe alone — a mismatched chain is the leading cause of false trips after retrofit.

Next, review the rack power budget. The 3300 XL rack typically draws power from a dedicated Bently Nevada power supply module; confirm that adding or swapping probes does not push the supply beyond its rated output. If the rack is already near capacity — common in older installations where additional I/O modules or communication cards have been added over the years — consider upgrading the power supply in the same outage window.

For sites running System 1 condition monitoring software, the probe replacement is transparent at the software layer provided the Proximitor® driver and monitor card remain unchanged. However, if the retrofit is part of a broader migration from an older 3300 Series rack to a 3500 Series rack, you will need to re-map channel addresses, update transducer tables in System 1, and verify that any Modbus or OPC-DA links to the plant DCS or historian are re-established after the rack swap. In these cases, the 3500/42M proximity monitor card and its associated 3500/92 communication gateway are the typical landing points for migrated 3300 XL channels.

I/O wiring adaptation is straightforward for like-for-like probe swaps: the two-conductor shielded cable terminates at the Proximitor® sensor, not at the monitor card, so panel wiring inside the control cabinet is unaffected. For installations where the junction box has been relocated or the conduit run extended, use a 330130 armored extension cable cut to the new length — do not splice the probe cable, as this introduces impedance discontinuities that degrade sensitivity linearity.

If the machine also carries a Keyphasor® transducer (typically a 330980 or 190501 series), verify that the Keyphasor® signal is still correctly routed to the 3300/25 or 3300/46 monitor after the probe swap. Keyphasor® phase reference is critical for 1X and 2X vector calculations, and a loose or corroded Keyphasor® connector is frequently disturbed during adjacent probe work. Similarly, check the velocity transducer (seismic) inputs on the 3300/55 monitor if the machine uses both proximity and seismic channels — these share the same rack backplane and can be affected by card reseating during the retrofit.

Finally, update the maintenance management system (CMMS) with the new probe serial number, installation date, and gap voltage reading recorded at commissioning. This baseline gap voltage — typically −10 VDC to −12 VDC for a 1.0–1.5 mm gap on AISI 4140 steel — becomes the reference for future trend analysis and alarm setpoint validation.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe retrofit requires a disciplined pre-outage preparation sequence. Before the machine is taken offline, download and archive the current System 1 configuration file, including all alarm setpoints, transducer scale factors, and channel enable/disable states. This archive is your recovery baseline: if the new probe or Proximitor® sensor produces an unexpected output, you can compare live readings against the archived configuration to isolate whether the discrepancy is mechanical (gap error), electrical (cable fault), or software (scale factor mismatch).

During the outage, follow a parallel-verification approach: install the 330103-00-07-20-02-CN and its matched 330180 Proximitor® sensor, then power the channel and measure gap voltage with a calibrated voltmeter before reconnecting to the monitor card. This step catches wiring errors and connector faults before they generate spurious trips that could delay restart. Once gap voltage is confirmed, reconnect to the monitor, observe the direct vibration (DV) and gap (DC) readings in System 1, and compare against the pre-outage baseline. Vibration readings should be at or near zero with the machine at rest; gap readings should match the measured mechanical gap within ±0.5 VDC.

For critical machines where even a brief loss of vibration monitoring is unacceptable, consider a hot-standby approach: install the new probe in an adjacent port (if available) and verify its output while the original probe remains in service. Once the new probe is confirmed good, switch the monitor channel input and remove the old probe — total unmonitored time is reduced to the seconds required for the connector swap. This technique is particularly effective on large steam turbines and centrifugal compressors where the 3300/16 monitor supports dual-probe inputs per channel.

After restart, monitor the first 30 minutes of operation closely. Thermal expansion of the shaft and bearing housing will shift the gap voltage by 0.5–1.5 VDC as the machine reaches operating temperature — this is normal and should not trigger an alarm if setpoints were correctly configured for the original probe. If alarm trips occur during warm-up, verify that the danger and alert setpoints in the 3300 XL monitor have not been inadvertently reset to factory defaults during the card reseating process.

Retrofit Support FAQ

Q: Is the 330103-00-07-20-02-CN a direct replacement for the original Bently Nevada 330103-00-07-20-02-CN, or does it require recalibration?
A: It is a direct drop-in replacement with identical sensitivity (7.87 V/mm), connector type, and cable length. No recalibration of the 3300 XL monitor is required provided the target material is AISI 4140 steel. If the target material differs, a field calibration check against the Proximitor® sensor is recommended before returning the machine to service.

Q: What pre-shipment testing is performed on each unit?
A: Every 330103-00-07-20-02-CN is bench-tested against Bently Nevada factory sensitivity curves using a calibrated target and a reference Proximitor® sensor. Gap voltage linearity is verified across the full 0.25–2.54 mm range, and the test report is available upon request. Units that fall outside factory tolerance are rejected before dispatch.

Q: Can this probe be used with a 3500 Series monitor during a phased migration?
A: Yes. The 330103-00-07-20-02-CN is compatible with the 3500/42M proximity monitor when paired with the correct 330180-series Proximitor® sensor. During a phased migration where 3300 XL and 3500 racks coexist, the probe and Proximitor® can be moved to the 3500 rack without replacement, provided the channel configuration in the 3500/42M is updated to match the probe’s sensitivity and linear range.

Q: What does the 12-month warranty cover, and how is a claim initiated?
A: The 12-month warranty covers manufacturing defects, sensitivity drift beyond ±5% of the factory specification, and connector or cable failures under normal operating conditions. To initiate a claim, contact sales@smartnexmsk.com with the unit serial number, installation date, and a description of the observed fault. Replacement units are dispatched within 3 business days of claim approval, and failed units are returned for root-cause analysis at no charge to the customer.
