Bently Nevada 330103-00-08-10-12-00 Maintenance-Ready Spare 3300 XL Automation

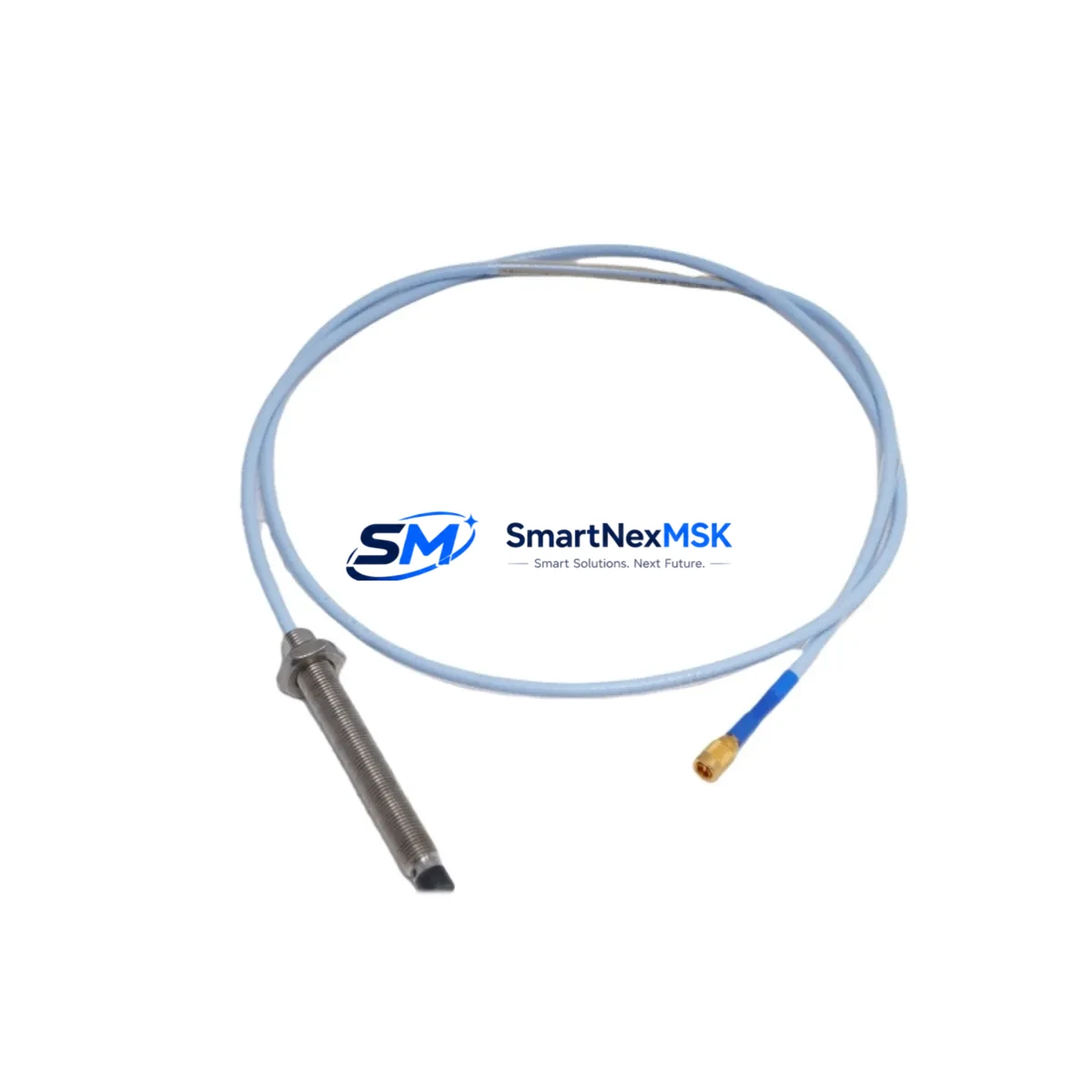

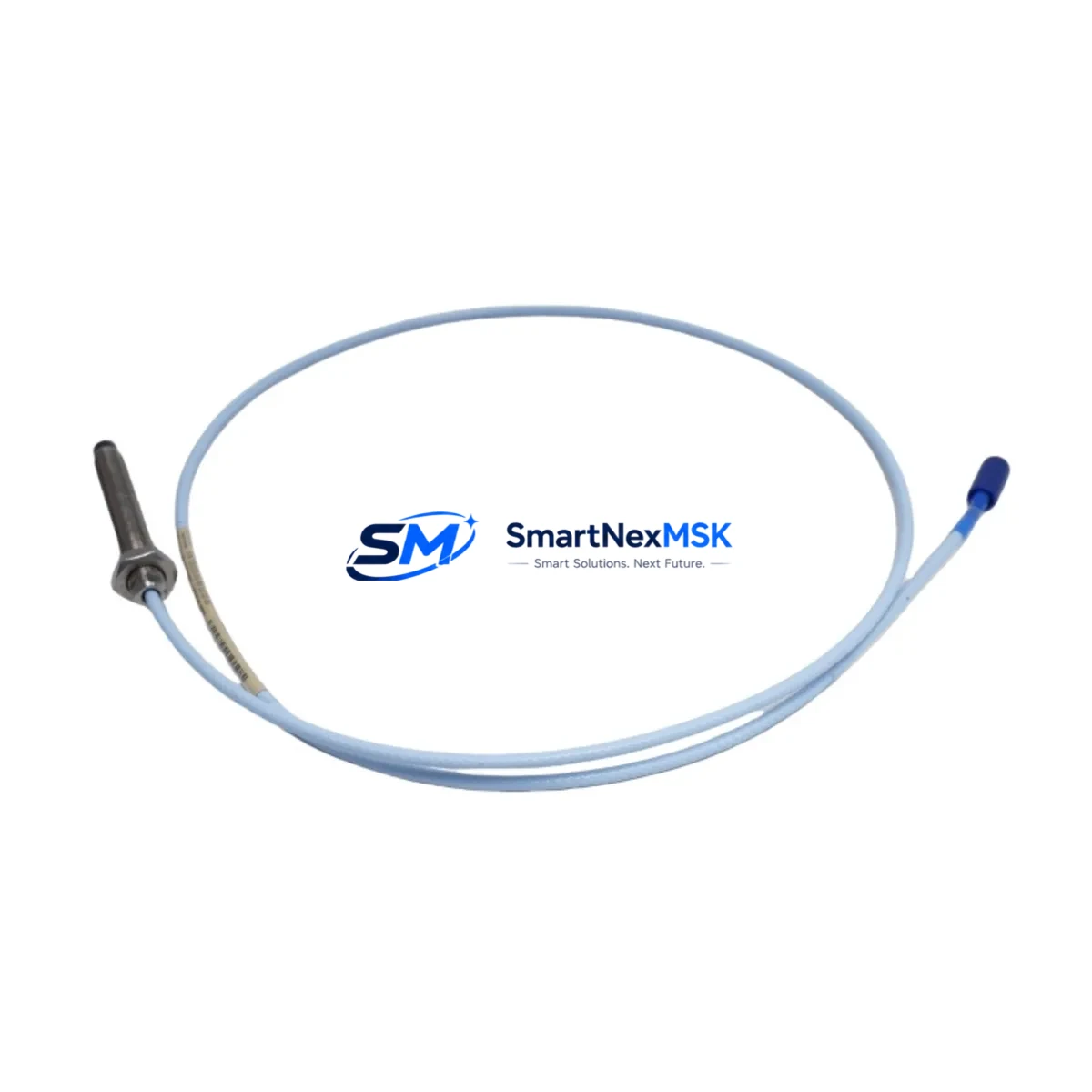

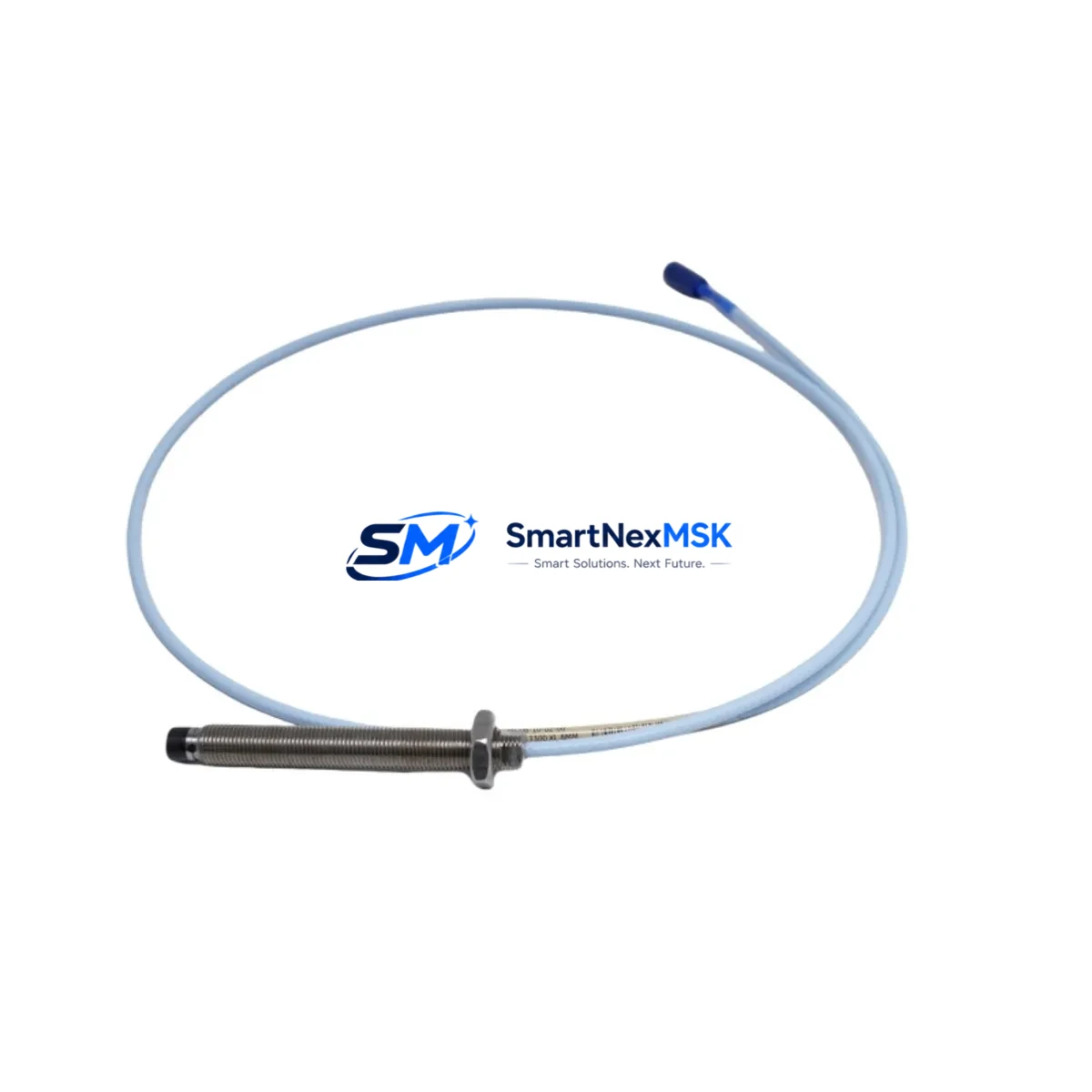

The Bently Nevada 330103-00-08-10-12-00 is an 8mm eddy current proximity probe engineered for the 3300 XL series continuous vibration monitoring system. Designed for OEM-grade replacement in rotating machinery protection applications — including turbines, compressors, pumps, and motors — this probe delivers the same gap voltage linearity, sensitivity, and frequency response as the original factory-installed unit. For maintenance engineers managing aging machinery protection systems, sourcing a verified original spare is the single most critical step in minimizing unplanned downtime and restoring full system confidence after a probe failure event.
Eddy current proximity probes are among the highest-wear sensing components in any rotating machinery protection loop. Unlike passive sensors, they operate continuously in close proximity to rotating shafts, exposed to heat, oil mist, vibration, and mechanical shock. When a probe in a 3300 XL monitoring loop fails or drifts out of calibration, the entire channel becomes unreliable — triggering nuisance trips or, worse, masking real fault conditions. Stocking a verified replacement such as the 330103-00-08-10-12-00 is therefore not optional for any facility running Bently Nevada-based machinery protection.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330103-00-08-10-12-00 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Probe Type | Eddy Current Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Cable Length | 1.0 m (integral cable) |
| Extension Cable Length | 1.2 m (system total: 5.0 m with standard extension) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm – 2.26 mm (10 – 89 mil) |
| Frequency Response | DC to 10,000 Hz |
| Operating Temperature | -35°C to +177°C |
| Target Material Compatibility | AISI 4140 steel (standard); other alloys per calibration |
| System Compatibility | 3300 XL Proximitor® Sensor, 3300 XL 8mm System |
| Connector Type | Integral coaxial, compatible with 330130 extension cable |
| Installation Thread | M10 x 1.0 (standard mounting) |
| Application | Radial vibration, axial position, differential expansion |
| Origin | USA |
| Condition | Original New / Tested Spare |
| Warranty | 12 Months |
Maintenance Planning for Continuous Operation
When replacing the 330103-00-08-10-12-00 in a live 3300 XL monitoring loop, a disciplined maintenance engineer will not stop at the probe itself. The probe is one node in a complete measurement chain, and any degraded component upstream or downstream will compromise the restored channel’s accuracy and reliability.
Begin with the 330130-080-00-00 extension cable — the coaxial link between the probe and the Proximitor sensor. Extension cables are frequently overlooked during probe replacements, yet they are equally susceptible to insulation breakdown, connector corrosion, and impedance drift caused by repeated thermal cycling. Inspect the full cable run for kinking, abrasion, and connector integrity before reconnecting the new probe.
Next, verify the condition of the 330180-51-05 Proximitor® sensor (or the applicable 3300 XL Proximitor variant installed in your cabinet). The Proximitor drives the probe’s oscillator circuit and converts gap distance to a DC voltage output. A Proximitor with degraded internal components will produce a non-linear output even with a brand-new probe installed, making gap calibration impossible and rendering the channel unreliable.
Within the control cabinet, inspect the 3300/20 rack power supply or equivalent 3300 XL system power module. Voltage ripple or supply instability directly affects the Proximitor’s output stability and can introduce false vibration readings. Use a calibrated multimeter to verify supply rail voltages before commissioning the replacement probe.
For facilities running 3500 series machinery protection racks alongside legacy 3300 XL systems, confirm that any shared I/O or relay output modules — such as the 3500/32 4-Channel Relay Module — are correctly configured for the restored channel’s trip setpoints. A probe replacement is an ideal opportunity to audit relay logic and confirm that OK relay outputs, danger relays, and alert relays are all functioning correctly.
If the monitoring loop feeds a 3300 XL 16-channel monitor or a System 1® condition monitoring platform, verify that the channel configuration in the monitor matches the probe’s sensitivity constant (7.87 V/mm for standard 8mm probes on AISI 4140 targets). Incorrect sensitivity entries will cause systematic measurement errors that are difficult to diagnose after the fact.
For installations where the proximity probe monitors axial position or differential expansion in addition to radial vibration, also inspect the associated 3300 XL thrust position monitor and its interconnecting wiring. Axial position channels are safety-critical in turbomachinery and must be verified independently after any probe replacement in the measurement chain.
Finally, review the condition of terminal blocks, cable glands, and grounding connections within the junction box or field enclosure. Loose terminations and compromised cable shields are a leading cause of noise-induced false trips in eddy current monitoring systems. Tighten all connections, verify shield grounding at one end only, and document the as-found and as-left conditions for your maintenance records.
Site Replacement Workflow
Replacing the 330103-00-08-10-12-00 in the field follows a structured sequence designed to minimize machine downtime and eliminate the risk of commissioning errors. Before removing the failed probe, record the as-found gap voltage using the existing Proximitor output — this baseline confirms whether the probe, the extension cable, or the Proximitor itself is the root cause of the fault.
With the machine at rest and the monitoring channel placed in bypass (per your site’s machinery protection bypass procedure), remove the probe from its mounting boss. Note the thread engagement depth and the locknut position — these determine the installed gap and must be replicated precisely with the replacement unit. Clean the probe mounting boss threads and inspect for damage before installing the 330103-00-08-10-12-00.
Install the new probe to the same thread engagement depth, connect the extension cable, and apply power to the Proximitor. Measure the gap voltage at the Proximitor output and adjust the probe position until the output falls within the linear range center (typically 10.0 VDC ± 0.5 VDC for a standard 1.0 mm gap on AISI 4140 steel). Tighten the locknut to the specified torque and re-verify the gap voltage after locking.
Before removing the channel bypass, confirm that the OK relay has energized, that the channel reading is stable, and that no alert or danger conditions are present at the monitor. Remove the bypass, restore the channel to normal monitoring mode, and document the completed replacement in your maintenance management system. This workflow is compatible with both planned outage replacements and emergency in-service replacements where machine restart time is critical.
For facilities managing older 3300 series installations that predate the 3300 XL platform, the 330103-00-08-10-12-00 provides a direct upgrade path. The 8mm probe format and standard coaxial connector are backward-compatible with earlier 3300 series Proximitor sensors, allowing maintenance teams to standardize on a single probe SKU across mixed-generation monitoring systems and simplify spare parts inventory management.
Spare Parts Support FAQ
Q: Is the 330103-00-08-10-12-00 compatible with both 3300 and 3300 XL series Proximitor sensors?
A: Yes. The 330103-00-08-10-12-00 is designed for the 3300 XL 8mm system but maintains coaxial connector and sensitivity compatibility with earlier 3300 series Proximitor sensors. Always verify the Proximitor model number and confirm the sensitivity constant matches the probe specification before commissioning.
Q: How should I verify the probe is functioning correctly before installing it on the machine?
A: Each unit shipped from our inventory undergoes bench testing using a calibrated Proximitor and a standard AISI 4140 steel target. The gap voltage linearity across the full linear range is verified and documented. Upon receipt, you can perform a quick functional check by connecting the probe to a spare Proximitor and measuring the output voltage at a known gap distance before installation.
Q: What is your spare parts stocking recommendation for a facility running multiple 3300 XL monitoring loops?
A: For facilities with five or more 3300 XL channels, we recommend maintaining a minimum of two 330103-00-08-10-12-00 probes in on-site inventory, along with at least one spare 330130 extension cable and one spare Proximitor sensor. This ensures that any single-component failure can be resolved within one shift without waiting for external supply.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, electrical performance outside published specifications, and premature failure under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair at no additional cost. Damage caused by incorrect installation, overvoltage, or mechanical impact is excluded from warranty coverage.
