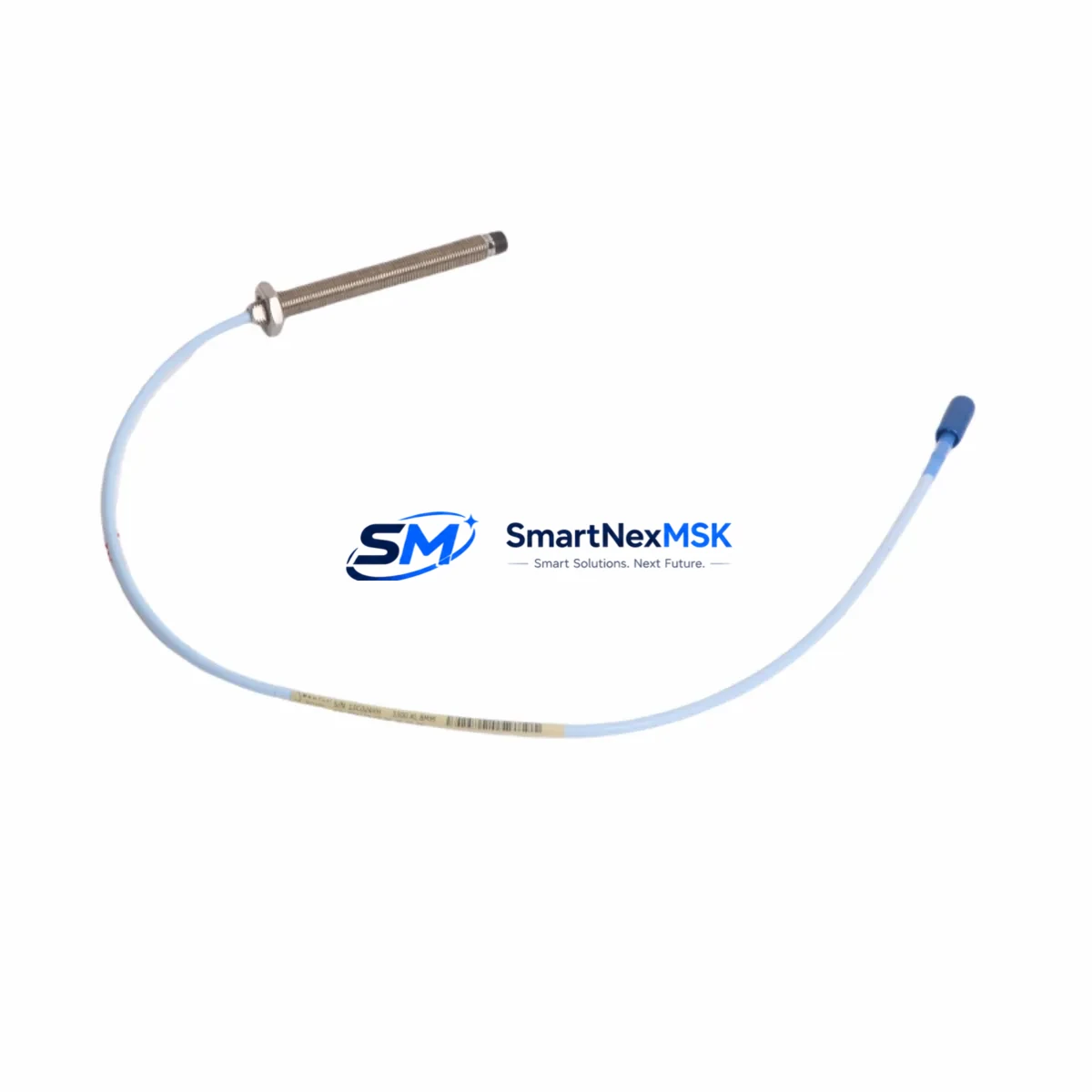

The Bently Nevada 330103-00-09-05-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical shaft monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical vibration, extreme temperatures, and corrosive atmospheres, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and water treatment facilities worldwide.

In high-stakes control architectures — where a single point of measurement failure can cascade into unplanned downtime, equipment damage, or personnel hazard — the 330103-00-09-05-02-00 delivers the signal integrity and mechanical durability that safety engineers and reliability teams depend on. Its non-contact sensing principle eliminates mechanical wear, ensuring consistent output over extended service intervals without drift or degradation. The probe integrates seamlessly with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 driver), forming a complete eddy-current measurement chain that feeds directly into vibration monitoring systems, safety instrumented systems (SIS), and distributed control systems (DCS).

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330103-00-09-05-02-00 probe does not operate in isolation. It is the field-sensing front end of a layered protection architecture. The probe’s coaxial output connects to a Bently Nevada 330130-040-00-00 extension cable and then to a 3300 XL Proximitor Sensor (330180-X1-05) mounted in the control enclosure. The Proximitor conditions the raw eddy-current signal into a clean DC voltage that is then routed to a Bently Nevada 3500/42M Proximitor Monitor card installed in the 3500 rack system.

Within the 3500 rack, the monitor card interfaces with the 3500/20 Rack Interface Module for Modbus or Ethernet/IP communication to the plant DCS or SCADA. Power to the rack is supplied through a 3500/15 Power Supply Module, which accepts 88–264 VAC or 18–32 VDC input and provides regulated, isolated DC rails to all monitoring cards — protecting the measurement chain from power line surges and voltage fluctuations common in heavy industrial substations.

For facilities operating under IEC 61511 functional safety requirements, the proximity measurement signal from the 330103-00-09-05-02-00 is often voted in a 2oo3 (two-out-of-three) logic configuration using a Triconex Tricon Safety Controller or a Rockwell Automation GuardLogix Safety PLC. Surge protection at the field terminal strip — typically a Phoenix Contact TRABTECH surge arrester or equivalent — guards against transient overvoltage events caused by nearby motor starts, welding operations, or lightning coupling on long cable runs.

In high-vibration environments such as compressor trains or turbine pedestals, cable routing integrity is maintained using Bently Nevada armored extension cables and stainless-steel conduit fittings rated for the installation zone. Where the probe is deployed in ATEX Zone 1 or Zone 2 classified areas, the complete measurement loop — probe, extension cable, and Proximitor — must be configured as an intrinsically safe circuit using certified Zener barriers or galvanic isolators (such as the MTL 787S+ or P+F KFD2-STC4-Ex1 series) to prevent ignition risk from electrical faults.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 330103-00-09-05-02-00 is widely deployed on centrifugal compressors, boiler feed pumps, and reactor agitators in refineries and ethylene crackers. In these environments, continuous shaft radial vibration and axial position monitoring is mandated by API 670 and plant safety management systems. A probe failure or signal drift in this context can mask developing bearing wear or rotor instability, leading to catastrophic machinery failure and potential process release. The 3300 XL probe’s high-temperature tolerance and EMI immunity make it the preferred choice for installations near fired heaters and high-voltage motor control centers.

Power Generation: Steam turbine and gas turbine protection systems in power plants rely on eddy-current proximity probes for shaft eccentricity, differential expansion, and thrust position measurement. The 330103-00-09-05-02-00, paired with the 3500 monitoring rack, provides the real-time data that enables turbine runback or trip actions before mechanical damage occurs. Its API 670-compliant design ensures compatibility with OEM turbine protection specifications from GE, Siemens, and Mitsubishi.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme vibration, dust ingress, and wide temperature swings. The IP67-rated probe body and shielded cable construction of the 330103-00-09-05-02-00 resist contamination and maintain measurement accuracy in these conditions, supporting predictive maintenance programs that reduce unplanned mill stoppages.

Water & Wastewater Treatment: Large vertical turbine pumps and blower trains in municipal water treatment facilities use proximity probes to detect bearing degradation before it leads to pump failure and service interruption. The non-contact sensing principle of the 330103-00-09-05-02-00 eliminates the maintenance burden of contact-type sensors in wet, corrosive environments.

Metallurgy & Steel Production: Rolling mill drives, continuous casters, and induction furnace cooling pumps operate in environments with intense electromagnetic fields from high-current bus bars and induction heating equipment. The 3300 XL probe’s robust EMI shielding maintains signal integrity in these conditions, ensuring that vibration alarms and trips are triggered by actual machinery events — not electrical noise.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330103-00-09-05-02-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or full refund, subject to inspection. Our warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on this probe?
Every 330103-00-09-05-02-00 unit undergoes a functional output verification test prior to dispatch. This includes continuity check of the coaxial cable assembly, insulation resistance measurement, and confirmation of the probe’s DC output response within the specified scale factor tolerance. A test record is available upon request for quality-critical procurement.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330103-00-09-05-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and the 3500 Series Monitoring Rack. It is a direct replacement for earlier 3300 series probes in the same 8mm diameter, 9-meter cable configuration. No recalibration of the Proximitor is required when replacing a like-for-like probe in the same installation.

Q4: Can long-term supply continuity be assured for maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated stock of Bently Nevada 3300 XL series components, including probes, extension cables, and Proximitor sensors, to support planned maintenance shutdowns, emergency replacements, and multi-unit spare parts programs. We supply to industrial end-users, EPC contractors, and MRO distributors globally, with typical lead times of 1–3 business days for in-stock items.
