Bently Nevada 330103-00-10-05-01-00 Spare for 3300 XL Automation: Precision Spare Parts Replacement for Continuous Vibration Monitoring

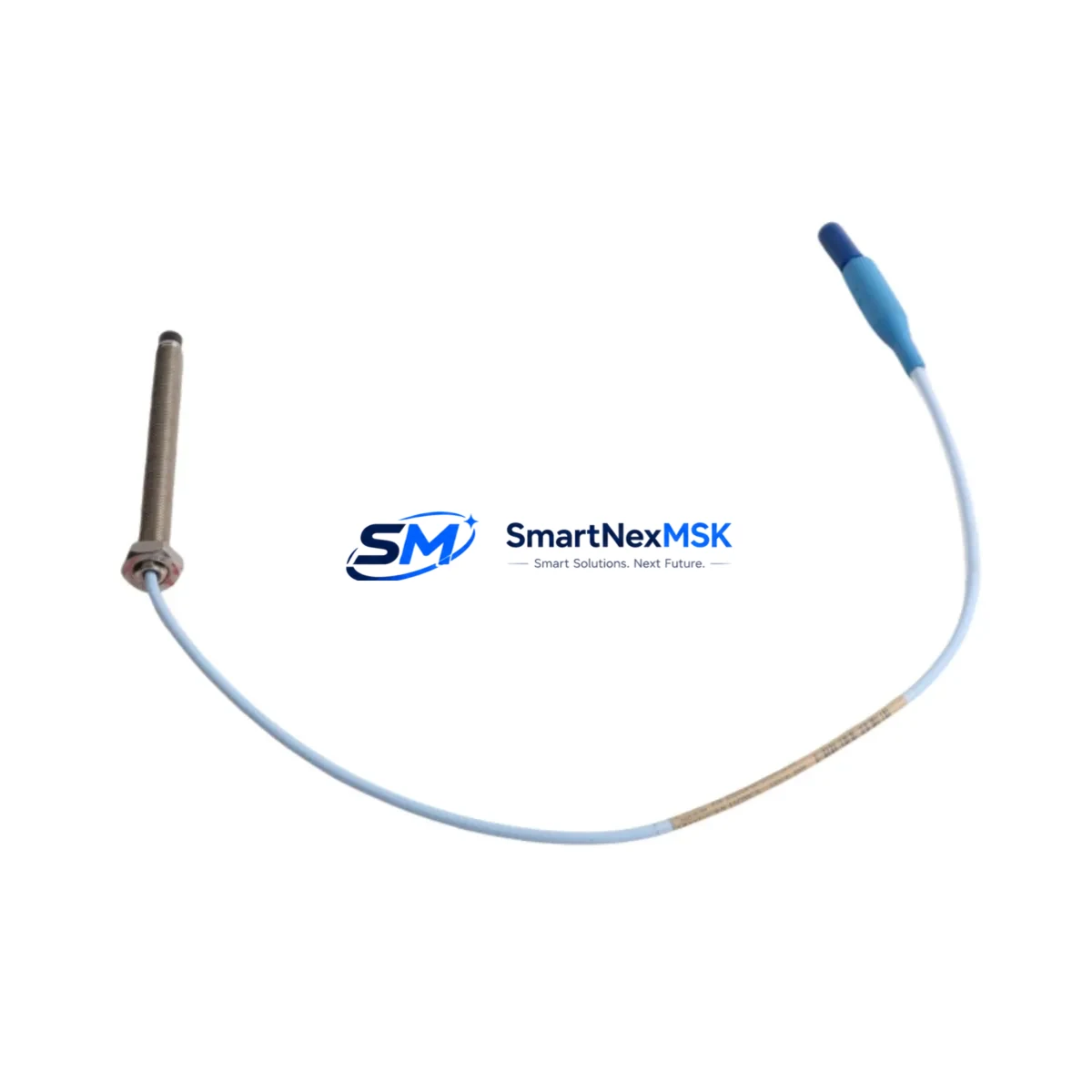

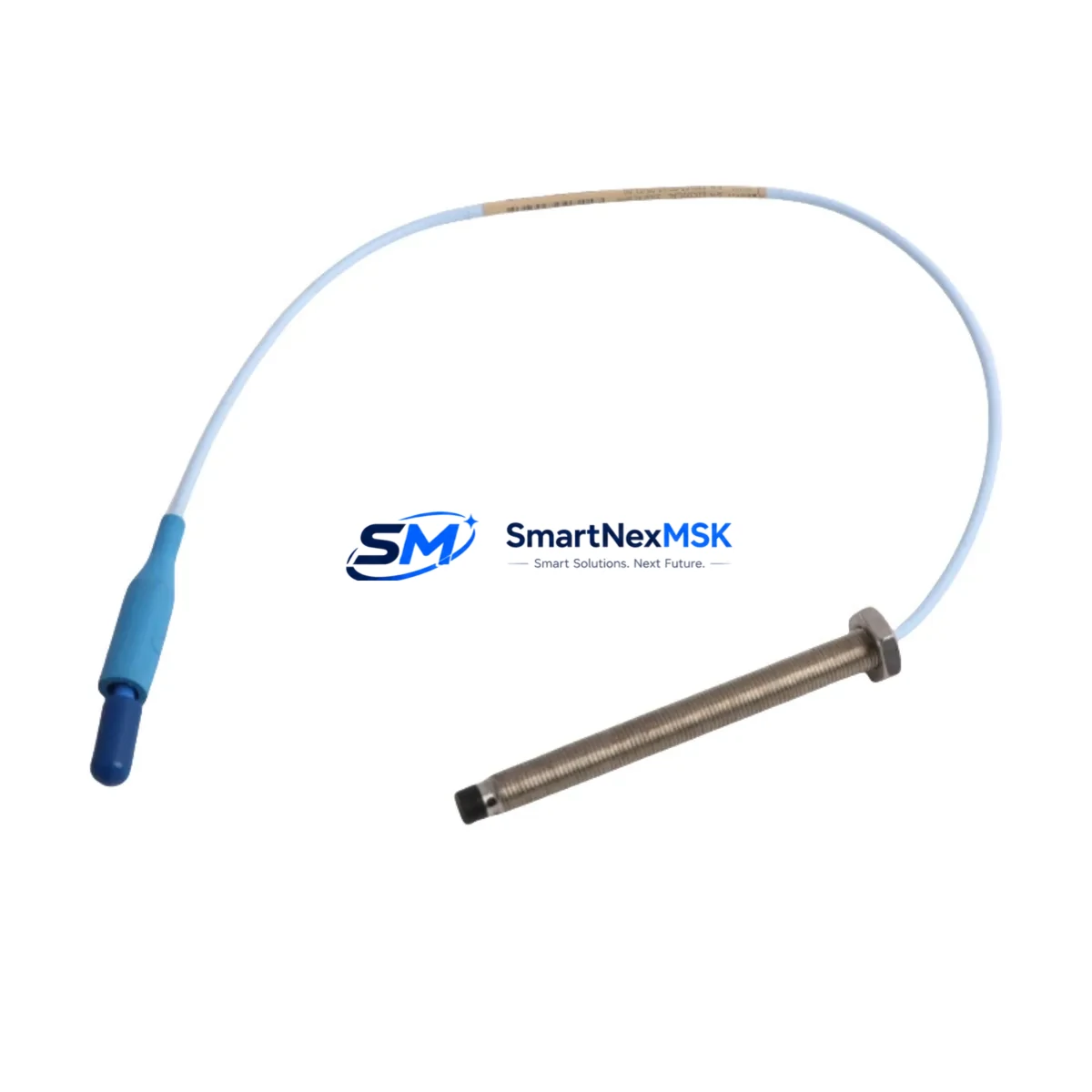

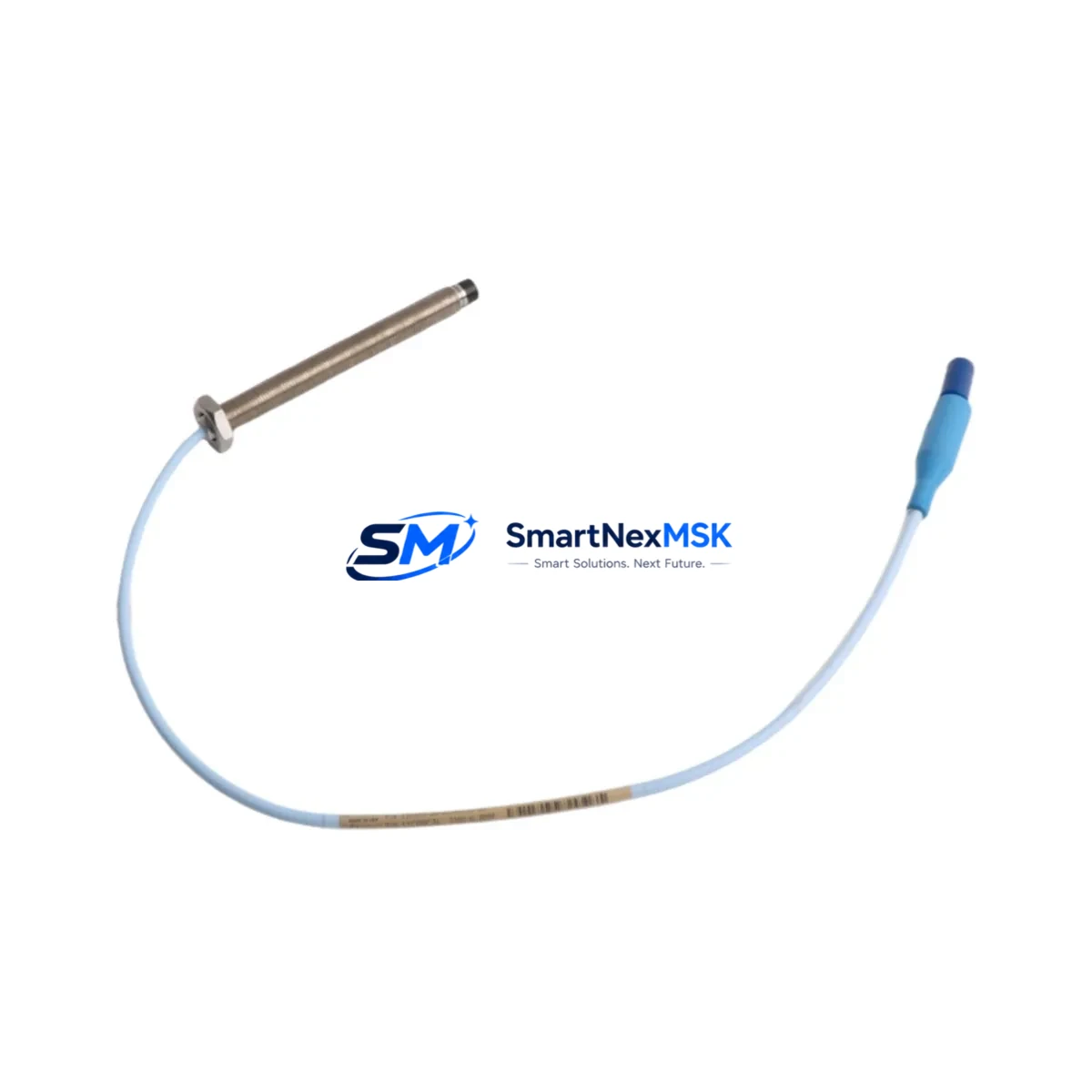

The Bently Nevada 330103-00-10-05-01-00 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and motors, this probe delivers reliable shaft displacement measurement in demanding industrial environments. For maintenance engineers managing aging machinery protection systems, having a verified OEM-compatible spare on hand is the single most effective strategy to minimize unplanned downtime and accelerate fault recovery.
At SMARTNEXMSK, every 330103-00-10-05-01-00 unit is sourced from authorized supply channels, inspected prior to dispatch, and shipped with a 12-month warranty. We support long-term supply continuity for facilities running legacy 3300 XL installations where OEM availability has become constrained.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330103-00-10-05-01-00 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Probe Type | Eddy-Current Proximity Probe |
| Probe Diameter | 8 mm |
| Cable Length | 1.0 m (integral cable) |
| Extension Cable | 330130 Series compatible |
| Driver / Proximitor | 3300 XL 8mm Proximitor (330180 Series) |
| Measurement Range | 0–2.0 mm (linear range) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -35°C to +177°C |
| Target Material | AISI 4140 steel or equivalent |
| Connector Type | 3-pin MIL-C-5015 style |
| Installation | Threaded housing, M10 x 1 mm |
| Application | Radial vibration, axial position, differential expansion |
| Compliance | API 670 compatible |
| Warranty | 12 Months — tested and verified before shipment |
Maintenance Planning for Continuous Operation
When replacing the 330103-00-10-05-01-00 proximity probe during a planned or emergency maintenance event, a thorough inspection of the surrounding measurement loop is essential to ensure system integrity and prevent repeat failures. Maintenance engineers should treat this replacement as an opportunity to audit the complete vibration monitoring chain.
Begin with the 330130 Series extension cable — the integral cable on the probe connects to the proximitor via this extension, and any damage, moisture ingress, or connector corrosion will introduce signal noise or complete signal loss even with a new probe installed. Inspect the full cable run for abrasion, pinch points, and connector seating. Next, verify the 330180 Series 3300 XL 8mm Proximitor output voltage at the OK relay terminal; a drifting or out-of-range proximitor will cause false trips even after probe replacement.
At the rack level, inspect the 3300/16 I/O module or equivalent channel card for proper seating and terminal block integrity. Loose terminal connections on the signal input or power supply rail are a common source of intermittent alarms. The 3300/05 Power Supply module should be checked for output voltage stability — an aging power supply delivering marginal voltage will degrade probe sensitivity and proximitor performance across all channels simultaneously.
For facilities running dual-channel redundant configurations, the 3300/55 Dual Voting Logic module should be tested for correct trip threshold settings after any probe swap. Procurement engineers building a comprehensive spare parts kit for a 3300 XL rack should also stock the 3300/46M Tachometer Input module if speed-referenced vibration analysis is part of the monitoring strategy, as tachometer signal integrity directly affects phase-referenced measurements.
In control cabinet inspections, verify the condition of DIN rail terminal blocks (Phoenix Contact or equivalent) used for field wiring termination, and check that signal isolators on any 4–20 mA retransmission outputs are functioning correctly. For older installations, surge protection modules on the field cable entry points should be inspected and replaced on a scheduled basis to protect the proximitor inputs from transient damage. Finally, confirm that the System 1 Evolution software configuration reflects the correct probe gap voltage and alarm setpoints for the replacement unit, as probe-to-probe sensitivity variations may require minor calibration adjustments.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the replacement 330103-00-10-05-01-00 probe matches the original part number exactly, including the suffix digits which encode cable length, connector type, and temperature rating. Substituting an incorrect suffix variant is a common field error that results in out-of-range gap voltage and immediate system alarm.
Step 2 — Safe isolation: Inhibit the affected channel in the monitoring system before disconnecting the probe to prevent spurious trips during removal. Document the existing gap voltage reading (typically -10.0 to -18.0 VDC for a correctly gapped 8mm probe) as a reference baseline for the new installation.
Step 3 — Mechanical installation: Install the replacement probe to the manufacturer-specified gap using a non-ferrous feeler gauge. The standard initial gap for the 330103-00-10-05-01-00 is 1.0 mm (40 mil), yielding approximately -10.4 VDC output. Torque the locknut to specification and secure the cable to prevent vibration-induced connector wear.
Step 4 — Signal verification: With the machine at rest, verify the gap voltage at the proximitor OK terminal. Re-enable the channel and confirm the System 1 or equivalent monitoring software shows a valid, stable signal within the OK band before returning the machine to service.
Step 5 — Documentation: Record the new probe serial number, installation date, gap voltage, and technician ID in the maintenance management system. This data supports future predictive maintenance trending and warranty tracking.
Spare Parts Support FAQ
Q: Is the 330103-00-10-05-01-00 a direct drop-in replacement for older 330103 series probes?
A: Yes, the 330103-00-10-05-01-00 is backward-compatible with earlier 3300 XL 8mm probe installations provided the extension cable and proximitor are also 3300 XL Series components. Always verify the full suffix to confirm cable length and connector compatibility before installation.
Q: What pre-shipment testing is performed on each unit?
A: Every 330103-00-10-05-01-00 unit dispatched by SMARTNEXMSK undergoes electrical continuity verification, insulation resistance testing, and gap sensitivity confirmation against OEM specifications. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and performance deviations.
Q: How should this probe be stored as a long-term spare?
A: Store in the original packaging or an anti-static, moisture-controlled environment at 15–35°C. Avoid storage near strong magnetic fields or corrosive atmospheres. Inspect the connector and cable jacket annually. Properly stored units maintain full specification compliance for 5+ years.
Q: Can SMARTNEXMSK support ongoing supply for facilities with multiple 3300 XL racks?
A: Yes. We maintain standing inventory of the 330103-00-10-05-01-00 and related 3300 XL components to support multi-rack facilities and long-term maintenance contracts. Contact our team to discuss volume pricing, consignment stock arrangements, and scheduled delivery programs.
