Bently Nevada 330103-00-10-10-01-CN Spare 3300 XL

Bently Nevada 330103-00-10-10-01-CN Spare 3300 XL: Proximity Probe Replacement for Industrial Downtime Control

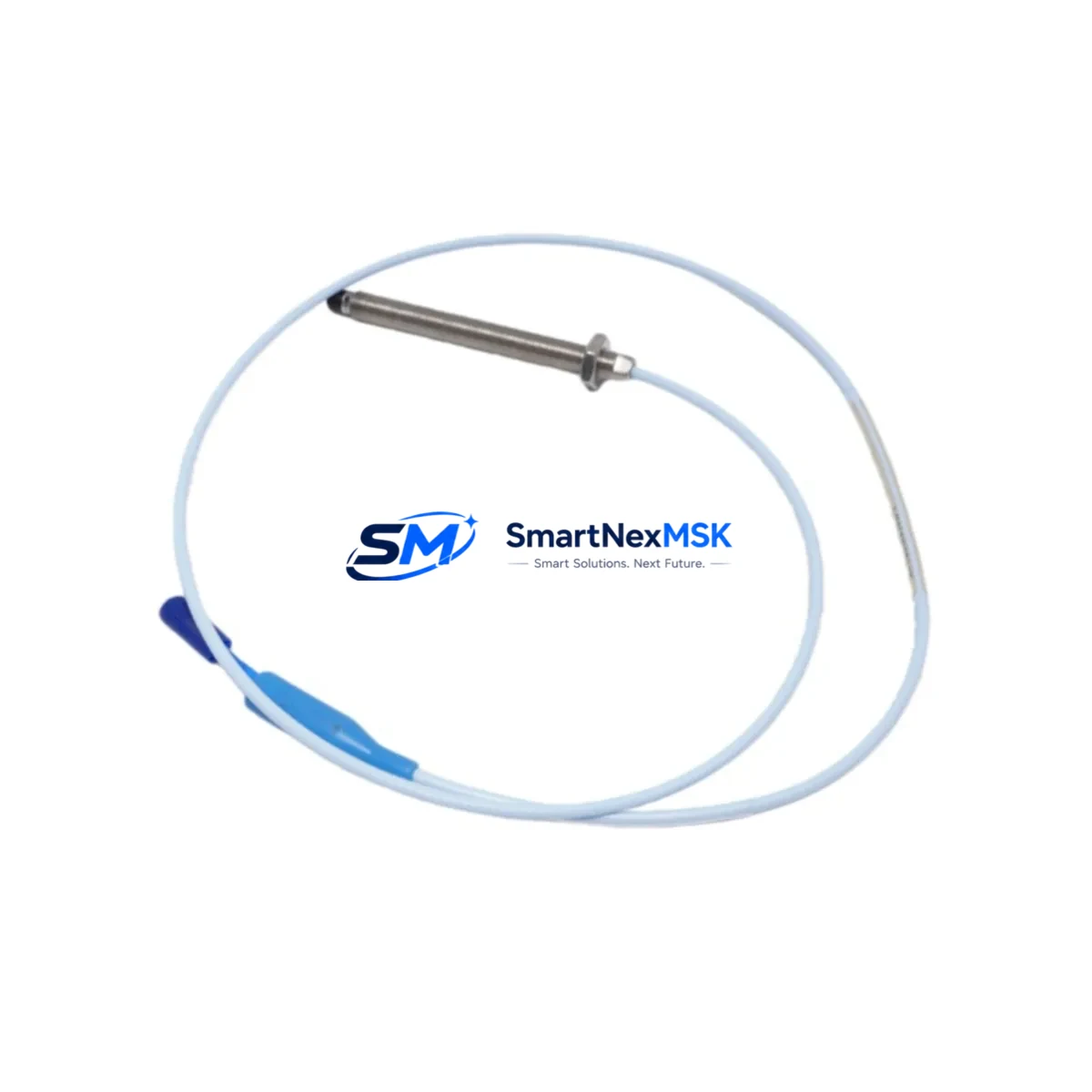

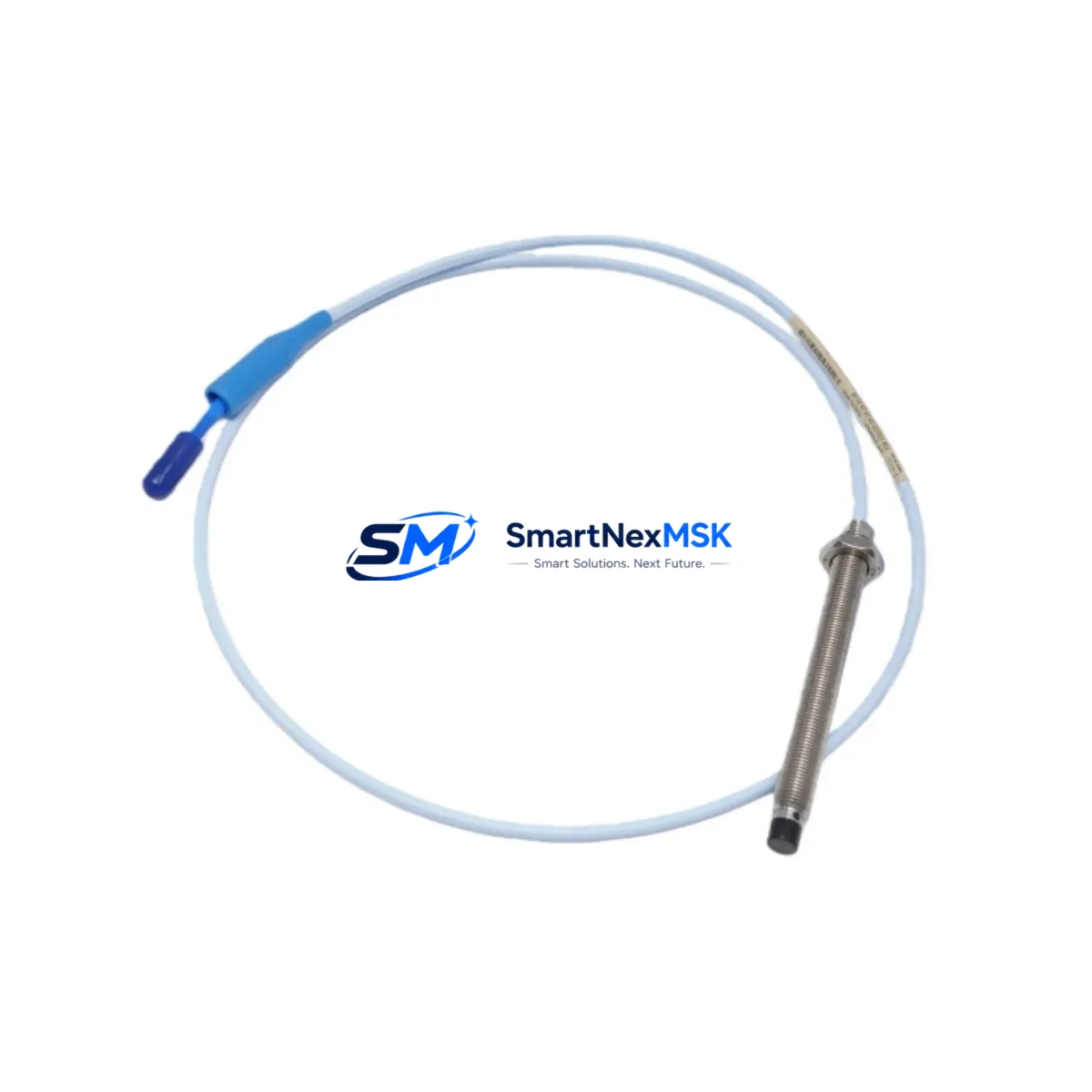

The Bently Nevada 330103-00-10-10-01-CN is an original eddy-current proximity probe from the 3300 XL series, engineered for continuous shaft vibration and position monitoring in rotating machinery. Designed for turbines, compressors, pumps, and gearboxes operating in demanding industrial environments, this probe delivers reliable radial and axial displacement measurements that are critical to predictive maintenance programs and machinery protection systems.

For maintenance engineers managing rotating equipment, the 330103-00-10-10-01-CN represents a precision-grade spare that must be sourced correctly. Its metric-thread housing, CN-type connector, and 10 mm tip diameter are factory-specified for direct compatibility with 3300 XL extension cables and proximitor sensors. Substituting with an incorrect variant risks calibration drift, false trips, or undetected shaft excursions — all of which translate directly into unplanned downtime and production loss.

At SMARTNEXMSK, every 330103-00-10-10-01-CN unit is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty. We maintain ready stock to support emergency replacement, planned turnaround, and long-term spare parts inventory programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-10-10-01-CN proximity probe during a planned outage or emergency shutdown, maintenance engineers should treat the replacement as an opportunity to audit the entire vibration monitoring loop. The probe does not operate in isolation — its accuracy and reliability depend on the condition of every component in the signal chain.

Begin by inspecting the 330130 series extension cable that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation, particularly in high-vibration or high-temperature zones. A worn extension cable will introduce signal noise even with a new probe installed. Simultaneously, verify the condition of the 3300 XL Proximitor Sensor (typically a 3300/16 or 3300/20 model) — the proximitor converts the probe’s oscillator signal into a DC voltage proportional to gap distance, and a failing proximitor will produce erratic readings regardless of probe condition.

Check the 3300 XL I/O module and its terminal block connections within the machinery protection rack. Loose or oxidized terminals are a common source of intermittent faults that are misdiagnosed as probe failures. If the system uses a 3500 series rack for machinery protection, inspect the 3500/42M Proximitor/Seismic Monitor card for firmware currency and channel calibration records.

For facilities running Bently Nevada systems integrated with a DCS or safety instrumented system, confirm that the 4–20 mA output signal from the proximitor is correctly received at the DCS I/O card. Signal isolators or barriers — such as those used in hazardous area installations — should be tested for loop integrity. A degraded Zener barrier or galvanic isolator can attenuate the vibration signal and mask developing machinery faults.

During cabinet inspection, also verify the 24 VDC power supply feeding the proximitor. Voltage sag or ripple on the supply rail will directly affect the probe’s gap voltage output and trigger nuisance alarms. Fuse holders and terminal blocks within the control cabinet should be checked for heat discoloration, which indicates intermittent overload conditions.

For older systems where the 3300 XL series is approaching end-of-support, consider stocking the 330103-00-10-10-05-CN (5 m cable variant) alongside the standard 1 m version to cover different machine frame depths. Maintaining a minimum of two probe assemblies per critical machine train — including matched extension cables and a spare proximitor — is standard practice in ISO 13373-compliant predictive maintenance programs.

Finally, after installation, perform a static gap check using a calibrated gap tool and verify the DC gap voltage falls within the linear range specified in the 3300 XL system manual (typically –10 VDC ± 0.5 V at nominal gap). Document the as-found and as-left gap readings in the equipment maintenance record before returning the machine to service.

Site Replacement Workflow

Step 1 — Identify and Isolate: Confirm the probe location on the machine drawing. Isolate the vibration monitoring channel at the rack before disconnecting the probe to avoid false trip signals to the safety system. Tag out the channel per site LOTO procedure.

Step 2 — Remove the Old Probe: Unscrew the probe from the mounting bracket using the correct spanner. Note the as-found gap distance (number of turns from flush). Inspect the probe tip for physical damage, pitting, or contamination from shaft contact — this indicates a bearing or alignment issue that must be addressed before reinstallation.

Step 3 — Install the 330103-00-10-10-01-CN: Thread the new probe into the bracket and set the gap to the manufacturer-specified distance (typically 1.0–1.5 mm for 10 mm probes). Connect the extension cable and verify the CN connector is fully seated and locked. Route the cable away from high-temperature surfaces and secure with cable ties at existing clamp points.

Step 4 — Verify Signal: Restore power to the proximitor and measure the DC gap voltage at the proximitor output terminals. Confirm the reading is within the linear range. Check the DCS or rack display for a valid, stable channel reading with no alarm or fault indication.

Step 5 — Return to Service and Document: Remove the LOTO tag, restore the monitoring channel, and confirm the machine protection system is fully armed before restarting the machine. Record the replacement in the CMMS with the new probe serial number, installation date, and gap voltage reading. Update the spare parts inventory to trigger reorder of the consumed unit.

This workflow minimizes restart risk, ensures system compatibility, and maintains the audit trail required for machinery protection compliance. The 330103-00-10-10-01-CN is a direct replacement for legacy 330103 series probes and requires no firmware changes or rack reconfiguration when installed in an existing 3300 XL system.

Spare Parts Support FAQ

Q1: What is the shelf life and storage requirement for the 330103-00-10-10-01-CN?
When stored in original packaging in a dry, temperature-controlled environment (10°C–40°C, <70% RH), the 330103-00-10-10-01-CN has an effective shelf life of 5+ years. The eddy-current probe contains no active electronics in the probe body itself — the oscillator circuit is housed in the proximitor — so long-term storage does not degrade probe performance. Inspect the CN connector and cable jacket for oxidation or cracking before installation if the unit has been stored for more than 2 years.

Q2: Is the 330103-00-10-10-01-CN compatible with both 3300 XL and 3500 series racks?
Yes. The 330103-00-10-10-01-CN is compatible with any Bently Nevada rack or monitor that accepts 3300 XL system components, including the 3500/42M Proximitor/Seismic Monitor. The key compatibility requirement is matching the probe, extension cable, and proximitor as a calibrated system — all three must be from the 3300 XL 10 mm series. Mixing components from different series (e.g., pairing a 3300 XL probe with a 7200 series proximitor) will produce calibration errors and is not supported.

Q3: How does SMARTNEXMSK verify the condition of spare units before shipment?
Each 330103-00-10-10-01-CN unit undergoes a pre-shipment inspection that includes visual examination of the probe tip, cable jacket, and CN connector; continuity and insulation resistance checks on the coaxial cable; and verification of the part number label against the physical unit. Units that do not pass inspection are quarantined and not shipped. A test report is available upon request for critical applications. All units are shipped in anti-static, padded packaging to prevent transit damage.

Q4: What is covered under the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects, premature electrical failure under normal operating conditions, and connector or cable faults not caused by mechanical damage or improper installation. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, fault description, and photographs of the failed unit. SMARTNEXMSK will arrange return shipping and dispatch a replacement unit within 5 business days of receiving the returned item. Warranty does not cover damage from shaft contact, chemical exposure, incorrect gap setting, or use outside the specified operating temperature range.
