Bently Nevada 330103-00-10-10-02-CN 3300 XL Spare

Bently Nevada 330103-00-10-10-02-CN 3300 XL Maintenance-Ready Spare for Industrial Automation

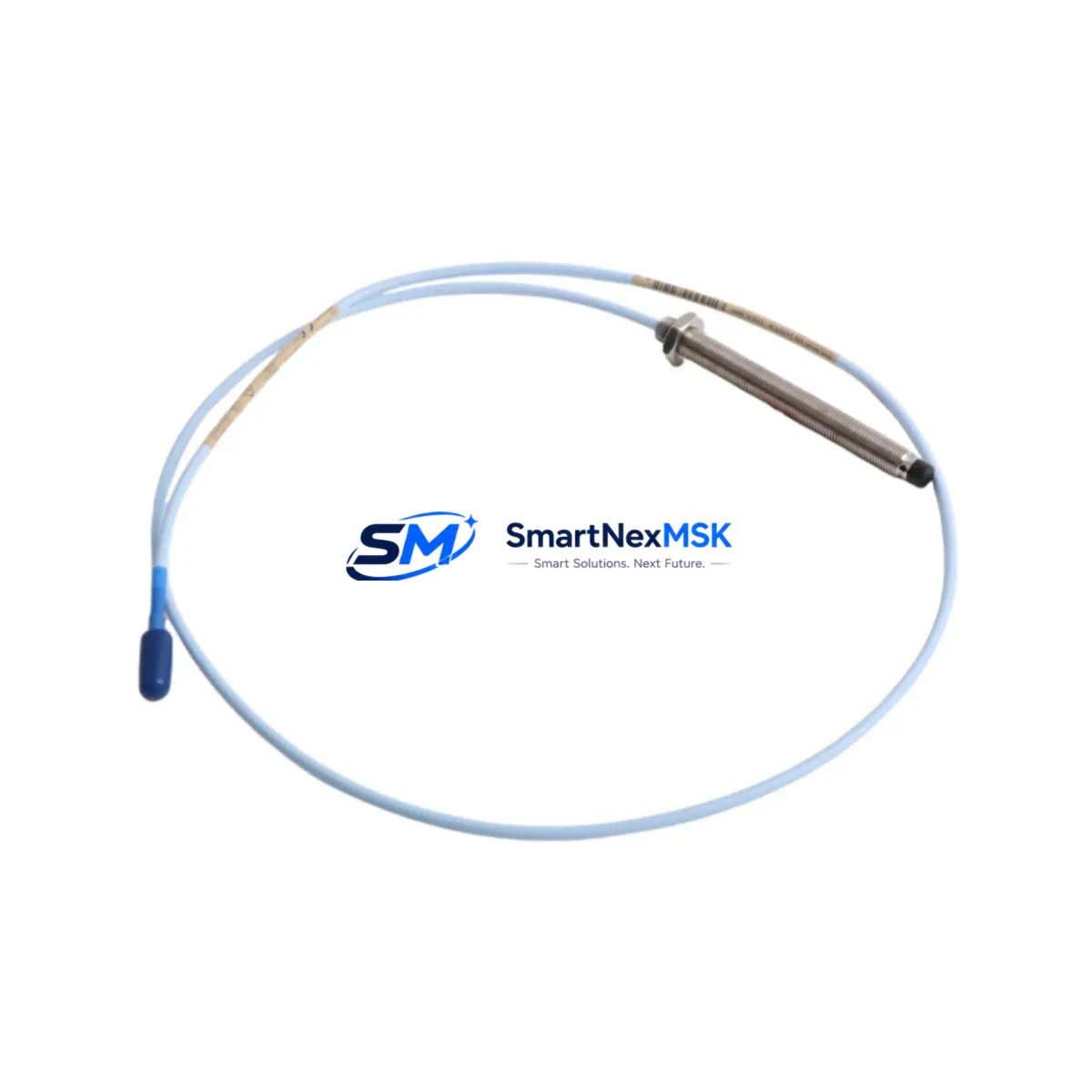

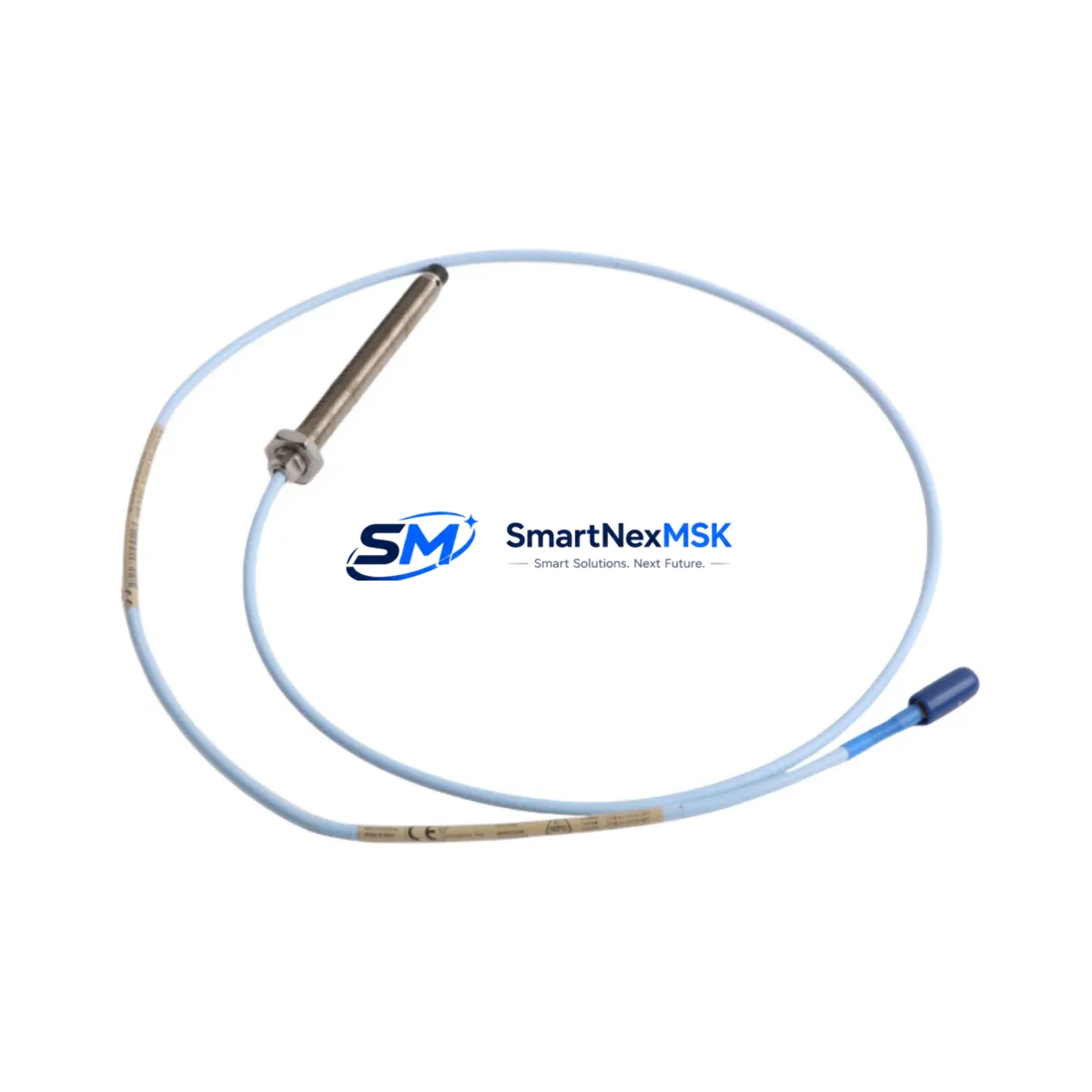

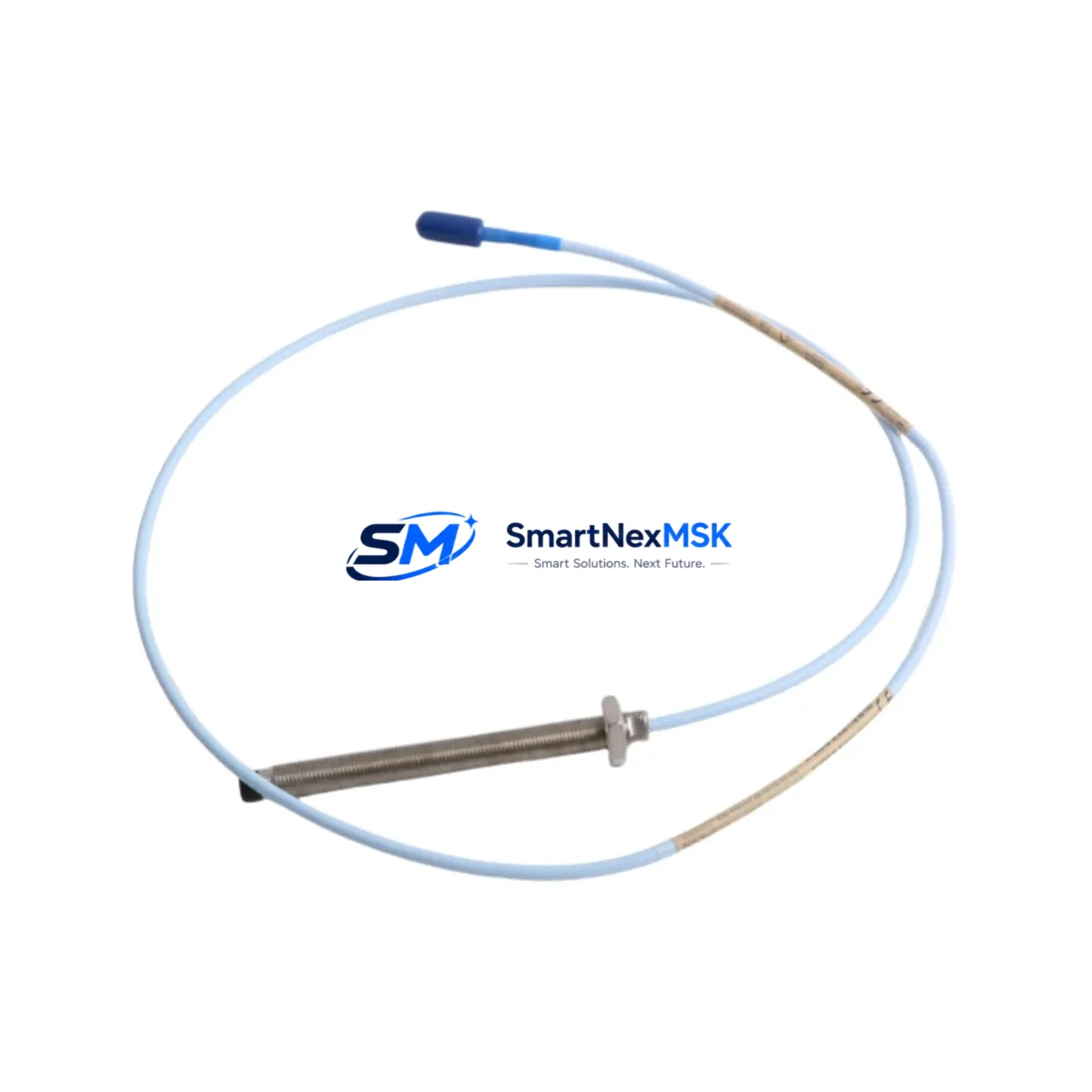

The Bently Nevada 330103-00-10-10-02-CN is an original eddy-current proximity probe assembly from the industry-standard 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. For maintenance engineers managing turbines, compressors, pumps, and generators, this probe is a critical front-line sensor whose failure directly triggers unplanned shutdowns. Stocking a verified replacement unit of the 330103-00-10-10-02-CN is a fundamental element of any proactive spare parts strategy for facilities running Bently Nevada vibration monitoring systems.

This probe assembly features a 10 mm tip diameter, 1000 mm cable length, and is calibrated for use with the standard Bently Nevada driver/extension cable system. It operates within the 3300 XL signal conditioning architecture, delivering a linear output voltage proportional to the gap between the probe tip and the observed shaft surface. The CN suffix designates the connector type, ensuring direct plug-in compatibility with existing 3300 XL field wiring without modification. Each unit shipped by SMARTNEXMSK is sourced from authorized channels, individually inspected, and covered by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-10-10-02-CN proximity probe is flagged during routine vibration analysis or fails during a scheduled outage, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A thorough inspection of the complete measurement loop is essential to restore system integrity and prevent repeat failures.

Begin by verifying the 330130-series extension cable that connects the probe to the driver. Extension cables are subject to mechanical fatigue, especially in high-vibration environments, and a degraded cable will produce erratic gap voltage readings even with a new probe installed. Next, inspect the 3300 XL proximitor/driver module — typically a 3300/16 or 3300/20 series unit — mounted in the monitor rack. A driver with a drifting bias voltage or failed oscillator circuit will invalidate probe calibration and must be replaced concurrently.

Within the monitor rack, check the associated 3500/40M or 3500/42M Proximitor I/O module for alarm relay integrity and channel configuration. Relay outputs feeding the DCS or safety PLC should be tested under simulated trip conditions. If the facility uses a 3500 Rack Monitor System, confirm that the rack’s 3500/20 Power Supply module is delivering stable ±24 VDC to all I/O slots — power supply degradation is a common root cause of intermittent probe faults that are misdiagnosed as probe failures.

For installations where the 3300 XL signal feeds into a DCS analog input card (such as an Emerson DELTAV AI card or Honeywell C300 I/O module), verify the 4–20 mA or voltage signal at the marshalling cabinet terminal block. Loose or corroded terminals on DIN rail terminal blocks — particularly Phoenix Contact or Weidmüller series — are a frequent source of signal noise in high-humidity environments. Signal isolators or galvanic isolation barriers installed between the proximitor output and the DCS input should also be tested for drift.

If the machine is equipped with a Keyphasor module (Bently Nevada 3500/25 or standalone 3300 XL Keyphasor driver), confirm that the once-per-revolution reference signal is clean and properly phased — a degraded Keyphasor signal will corrupt all vector-based vibration analysis. Finally, review the HMI trend displays on the operator workstation or historian to establish a pre-fault baseline, and confirm that alarm setpoints in the monitor rack are correctly configured for the replacement probe’s calibrated sensitivity.

Stocking the 330103-00-10-10-02-CN alongside its companion extension cable and a spare proximitor driver ensures that your maintenance team can complete a full loop replacement within a single planned outage window, minimizing downtime and avoiding secondary call-outs.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the monitor rack channel associated with the failed probe. Record the existing gap voltage and vibration baseline from the historian before disconnection.

Step 2 — Probe Removal: Unthread the probe from its holder. Inspect the probe tip for mechanical damage, contamination, or corrosion. Inspect the probe holder threads and replace if worn. Disconnect the extension cable at the probe end and at the driver end.

Step 3 — Cable Inspection & Replacement: Perform a continuity and insulation resistance check on the existing 330130-series extension cable. If resistance is outside specification, replace the cable with a matched-length unit before installing the new probe. Mismatched cable lengths will shift the system calibration.

Step 4 — New Probe Installation: Install the 330103-00-10-10-02-CN into the probe holder. Set the air gap to the manufacturer-specified nominal gap (typically 1.0 mm for 10 mm probes, yielding approximately -10.0 VDC bias). Use a calibrated gap-setting tool and verify with a digital multimeter at the driver output terminals.

Step 5 — System Verification: Re-energize the monitor channel. Confirm bias voltage is within the linear range (-10 VDC ± 1 VDC). Verify alarm and danger setpoints are active. Perform a slow-roll check if the machine can be safely rotated. Confirm the DCS or safety system is receiving a valid signal before returning the machine to service.

Step 6 — Documentation: Record the replacement in the CMMS with the new probe serial number, installation date, gap voltage, and technician sign-off. Update the spare parts inventory to trigger reorder of the consumed 330103-00-10-10-02-CN unit.

Spare Parts Support FAQ

Q1: Is the 330103-00-10-10-02-CN a direct drop-in replacement for older 330103 series probes?
Yes. The 330103-00-10-10-02-CN is backward compatible with all standard 3300 XL driver and extension cable assemblies. The CN connector designation ensures field-wiring compatibility without adapter cables. Always verify the cable length suffix matches your existing extension cable to maintain system calibration.

Q2: How does SMARTNEXMSK verify probe condition before shipment?
Every 330103-00-10-10-02-CN unit undergoes a pre-shipment inspection covering physical integrity, connector condition, and cable continuity. Where test equipment is available, bias voltage output is verified against the 3300 XL calibration standard. Units are shipped in anti-static packaging with a test record. The 12-month warranty covers functional defects identified after installation.

Q3: What is the recommended spare parts stocking strategy for this probe?
For facilities with 4 or more 3300 XL measurement channels, we recommend maintaining a minimum of 2 units of the 330103-00-10-10-02-CN on-site, along with one matched extension cable and one spare proximitor driver. This supports a full loop replacement during an unplanned outage without waiting for expedited freight. SMARTNEXMSK offers volume pricing for multi-unit orders to support planned spare parts budgets.

Q4: Can this probe be used to extend the life of legacy 3300 XL systems that are no longer in production?
Yes. The 3300 XL platform, while mature, remains widely installed across global power generation, oil & gas, and petrochemical facilities. SMARTNEXMSK maintains long-term supply of 330103-series probes and associated 3300 XL components to support system life extension programs. Our sourcing network covers both new-old-stock and tested-surplus units, providing supply continuity for systems where OEM support has been discontinued.
