Bently Nevada 330103-00-10-10-12-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330103-00-10-10-12-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

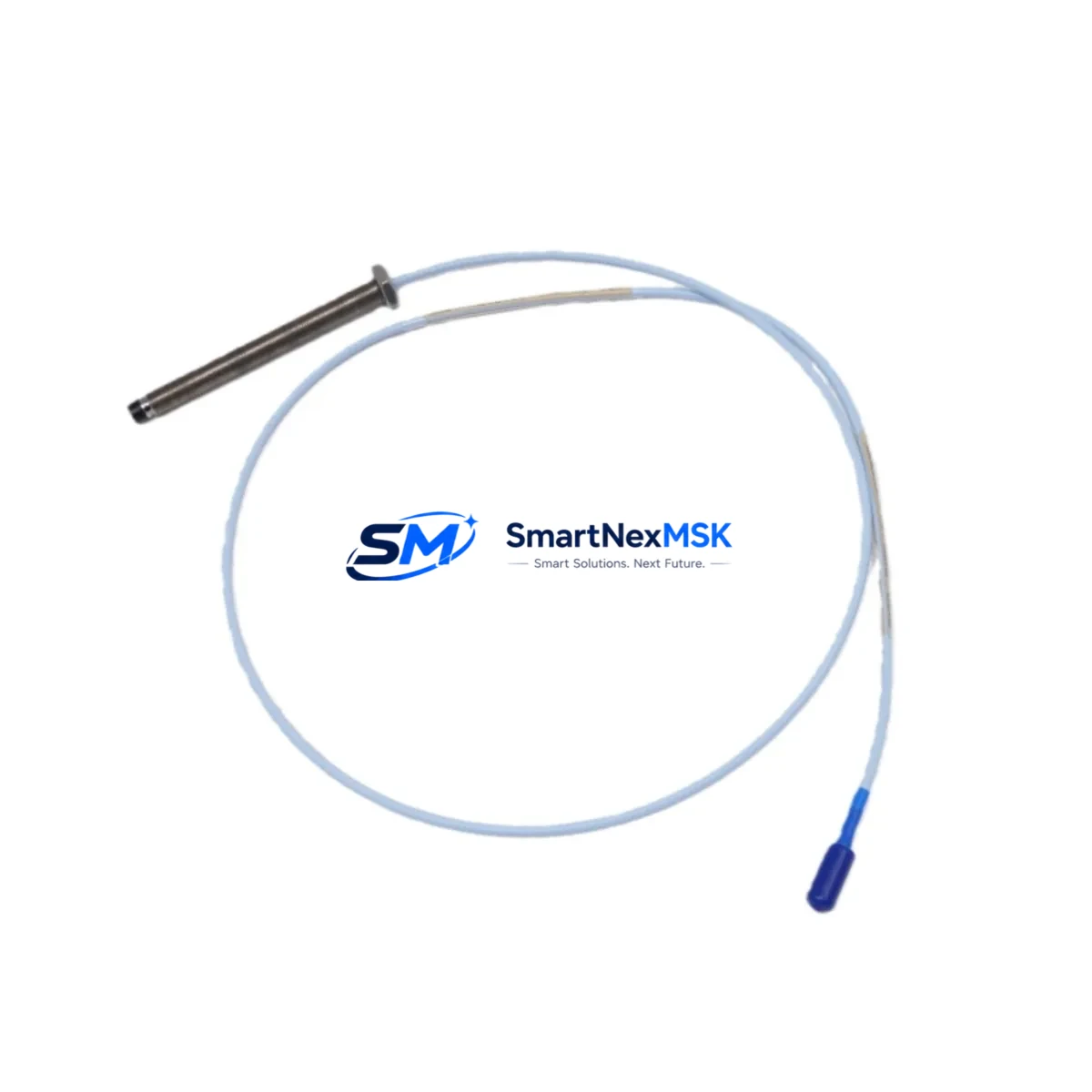

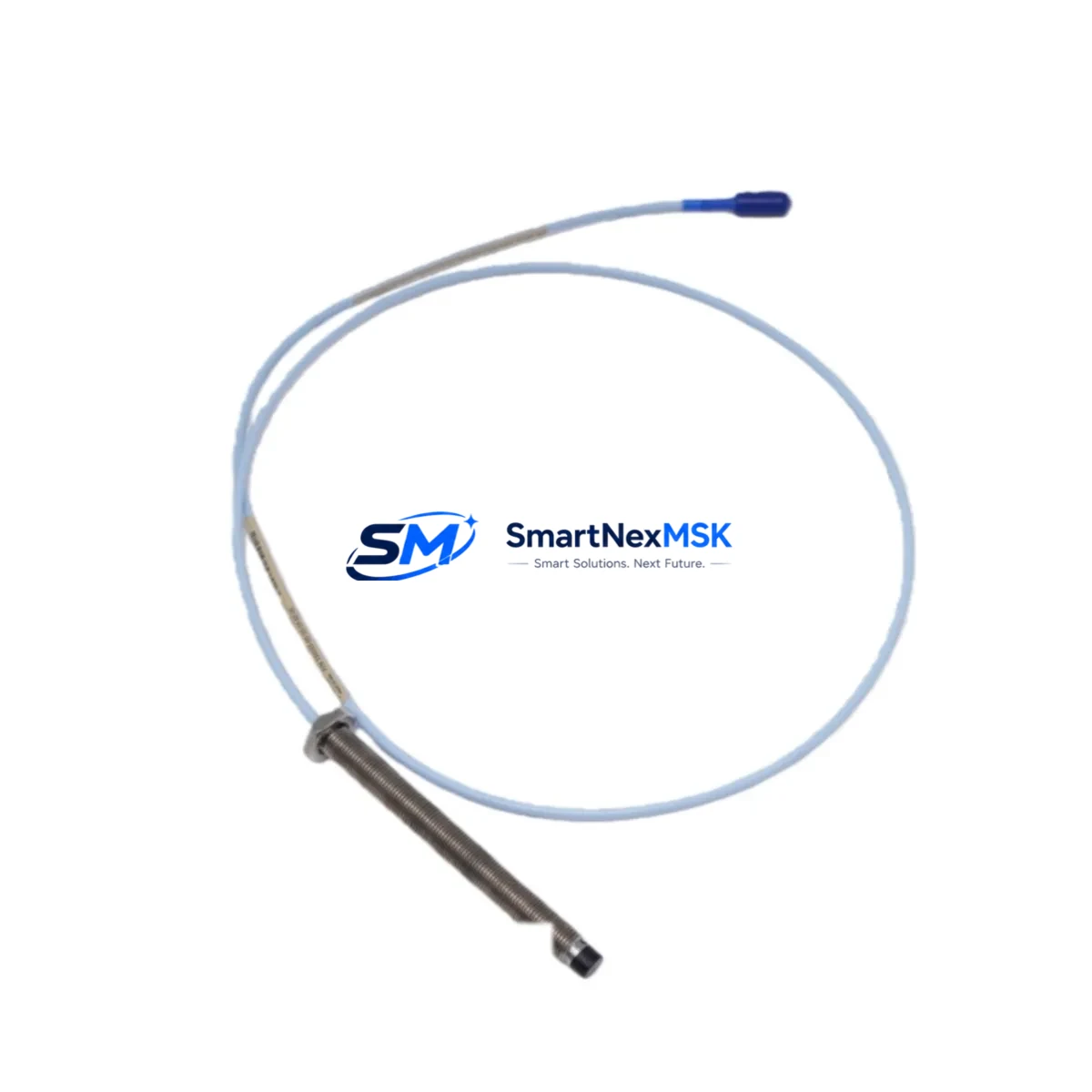

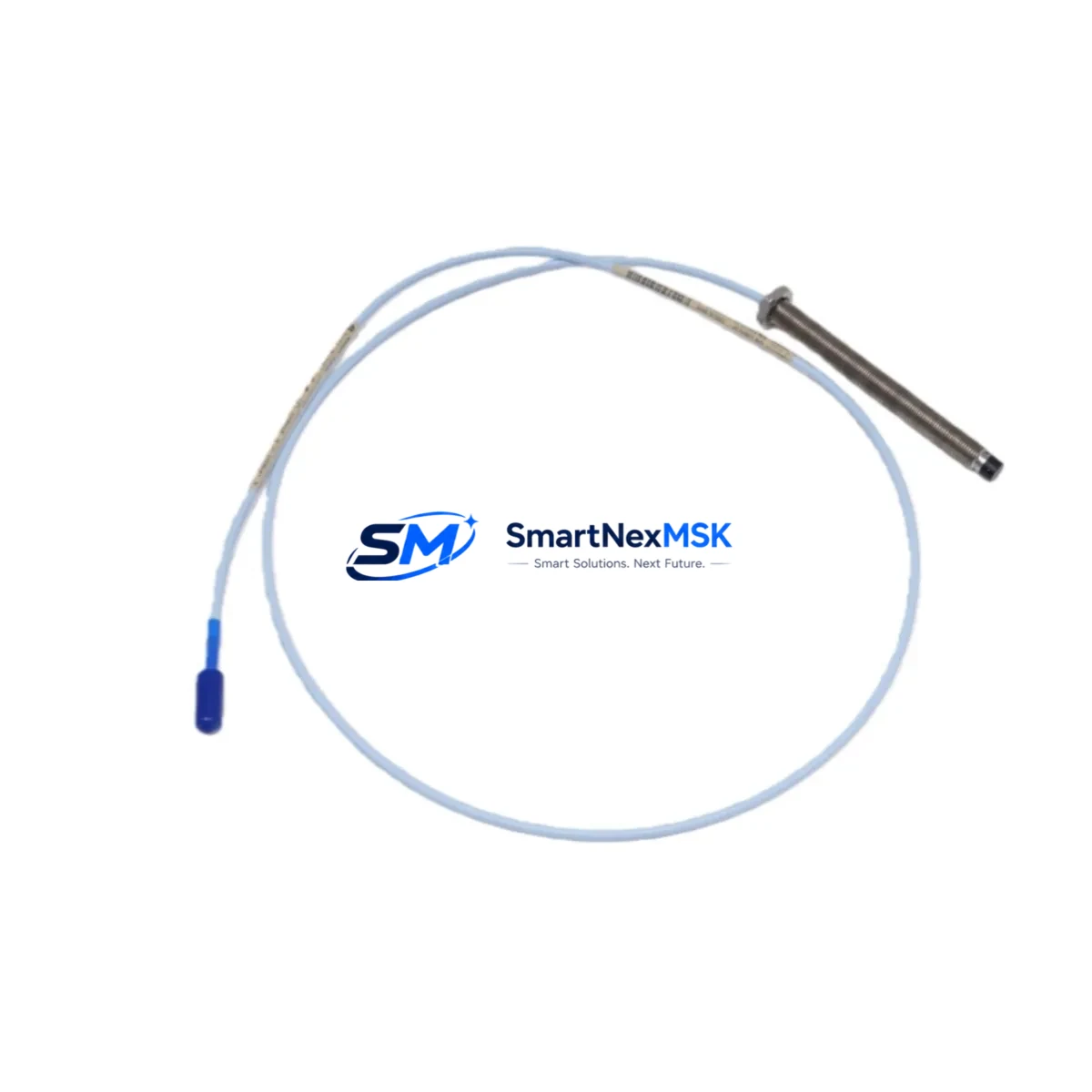

The Bently Nevada 330103-00-10-10-12-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-support cycles, this probe serves as a direct retrofit replacement for aging or discontinued 3300 Series sensors, enabling plant engineers to restore full vibration monitoring capability without redesigning the measurement chain or replacing the entire monitoring rack.

This unit is fully compatible with the 3300 XL proximitor/seismic transducer system. It maintains the same 5-metre integral cable length, standard TNC connector termination, and -24 VDC bias voltage output characteristics as the original factory part. Engineers migrating from earlier 3300 Series probes or consolidating multi-vendor sensor inventories will find this probe a reliable, specification-matched substitute that requires no firmware changes to the monitoring system.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-00-10-10-12-05 into an existing vibration monitoring loop requires a structured review of the full measurement chain. Begin at the proximitor module — typically a 3300 XL/16-channel proximitor or a 3300 XL/01 single-channel unit mounted in the monitoring rack. Confirm that the proximitor’s power supply input is within specification and that the -24 VDC supply rail is stable before connecting the new probe. A degraded power supply module in the rack is a common root cause of false probe failures and should be inspected or replaced as part of any retrofit exercise.

Trace the signal path from the probe tip through the integral cable to the TNC bulkhead connector, then through the 330130-series extension cable to the proximitor input. Inspect all connectors for moisture ingress, corrosion, or mechanical damage — particularly in outdoor or high-humidity installations. Replace any damaged extension cables before commissioning the new probe to avoid introducing measurement error.

At the monitoring rack level, verify that the 3500/40M proximitor I/O module or equivalent channel card is configured for the correct probe type and sensitivity. If the plant is running Bently Nevada System 1 software for condition monitoring, confirm that the channel’s scale factor, full-scale range, and alert/danger setpoints are correctly mapped. No software reconfiguration is typically required when replacing within the 330103 family, but a channel verification routine should be run after installation.

For plants upgrading from older 3300 Series racks to the 3500 Series platform, the 330103-00-10-10-12-05 probe remains compatible when paired with the appropriate 3500/40M or 3500/42M monitor module. This migration path is common in turbine, compressor, and pump protection upgrades where the rotating machinery itself is retained but the monitoring electronics are modernised. In these scenarios, engineers should also audit the Keyphasor module — typically a 3500/25 — and the associated 330180-series Keyphasor probe to ensure the phase reference signal is correctly re-established after rack replacement.

I/O wiring at the junction box or marshalling cabinet should be documented before disconnection. Label each terminal against the original loop drawing, noting shield grounding points and drain wire routing. The 3300 XL system uses a coaxial signal path that is sensitive to ground loops; ensure that the shield is grounded at one end only, consistent with the original installation. After rewiring, perform a continuity check and insulation resistance test before applying power.

If the plant’s DCS or safety system receives a 4–20 mA vibration signal derived from the proximitor output, verify that the signal conditioner or transmitter module — such as a 3300/55 or equivalent — is recalibrated after probe replacement. HMI faceplates displaying vibration trend data should be reviewed to confirm that engineering unit scaling and alarm thresholds remain valid after the retrofit.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe retrofit requires pre-staging all replacement components before the maintenance window opens. Confirm that the 330103-00-10-10-12-05 probe, the appropriate 330130-series extension cable, and any required probe holder or adaptor are on-site and functionally tested before the machine is taken offline. A pre-shipment functional test certificate is included with each unit shipped by SMARTNEXMSK, confirming that bias voltage output and sensitivity are within factory specification.

During the outage, follow a defined sequence: isolate the monitoring channel at the rack, disconnect the extension cable at the bulkhead, remove the existing probe from the probe holder, install the new probe and set the air gap using a Bently Nevada probe driver and a calibrated digital voltmeter, reconnect the extension cable, and restore power to the monitoring channel. The entire probe swap can typically be completed within 30–60 minutes by a trained instrumentation technician, provided the probe holder thread is undamaged and the gap-setting target surface is clean.

Before returning the machine to service, perform a slow-roll check at low shaft speed to record mechanical runout. Compare the runout vector against the historical baseline stored in System 1 or the plant’s condition monitoring database. If the runout is within acceptable limits, the machine can be brought to operating speed with confidence that the vibration monitoring loop is functioning correctly. Alert and danger setpoints should be re-confirmed active in the monitoring rack before the machine reaches full load.

For plants operating continuous processes where a full shutdown is not feasible, consider a hot-standby probe installation using a dual-probe holder arrangement, allowing the new probe to be installed and gapped while the machine remains online, with a controlled switchover at the next scheduled slow-roll or load reduction.

Retrofit Support FAQ

Q1: Is the 330103-00-10-10-12-05 a direct replacement for the 330103-00-10-10-12-00?
A: Yes. The primary difference between these part numbers is the integral cable length suffix. The -12-05 designates a 5-metre cable; the -12-00 designates no integral cable. Both probes share the same 8mm tip diameter, TNC connector, and 200 mV/mil sensitivity. Confirm your extension cable arrangement before ordering to ensure the total cable length from probe tip to proximitor input is within the 3300 XL specification (typically 5m or 9m total).

Q2: Will this probe work with a 3500 Series monitoring rack?
A: Yes, with the correct proximitor or I/O module. The 330103-00-10-10-12-05 is compatible with the 3500/40M and 3500/42M monitor modules when used with a 3300 XL proximitor. Verify channel configuration in the 3500 rack software and confirm that the probe type selection matches the 3300 XL 8mm standard. No hardware modification to the probe is required.

Q3: What commissioning checks are required after installation?
A: Set the probe air gap to achieve a bias voltage of -10.0 VDC ±0.5 V at the proximitor output, measured with the shaft stationary. Record the slow-roll mechanical runout vector and compare against the historical baseline. Verify that the monitoring channel is active, that alert and danger setpoints are armed, and that the System 1 trend display is updating correctly. Document the gap voltage and runout values in the plant maintenance record.

Q4: What does the 12-month warranty cover, and is a test certificate included?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit is functionally tested prior to dispatch, and a test certificate confirming bias voltage output and sensitivity compliance is included in the shipment. Warranty claims are processed through SMARTNEXMSK; contact sales@smartnexmsk.com with the order reference and a description of the fault.
