Bently Nevada 330103-00-10-15-02-05 Spare 3300 XL

Bently Nevada 330103-00-10-15-02-05 Spare 3300 XL: Precision Replacement for Vibration Monitoring Continuity

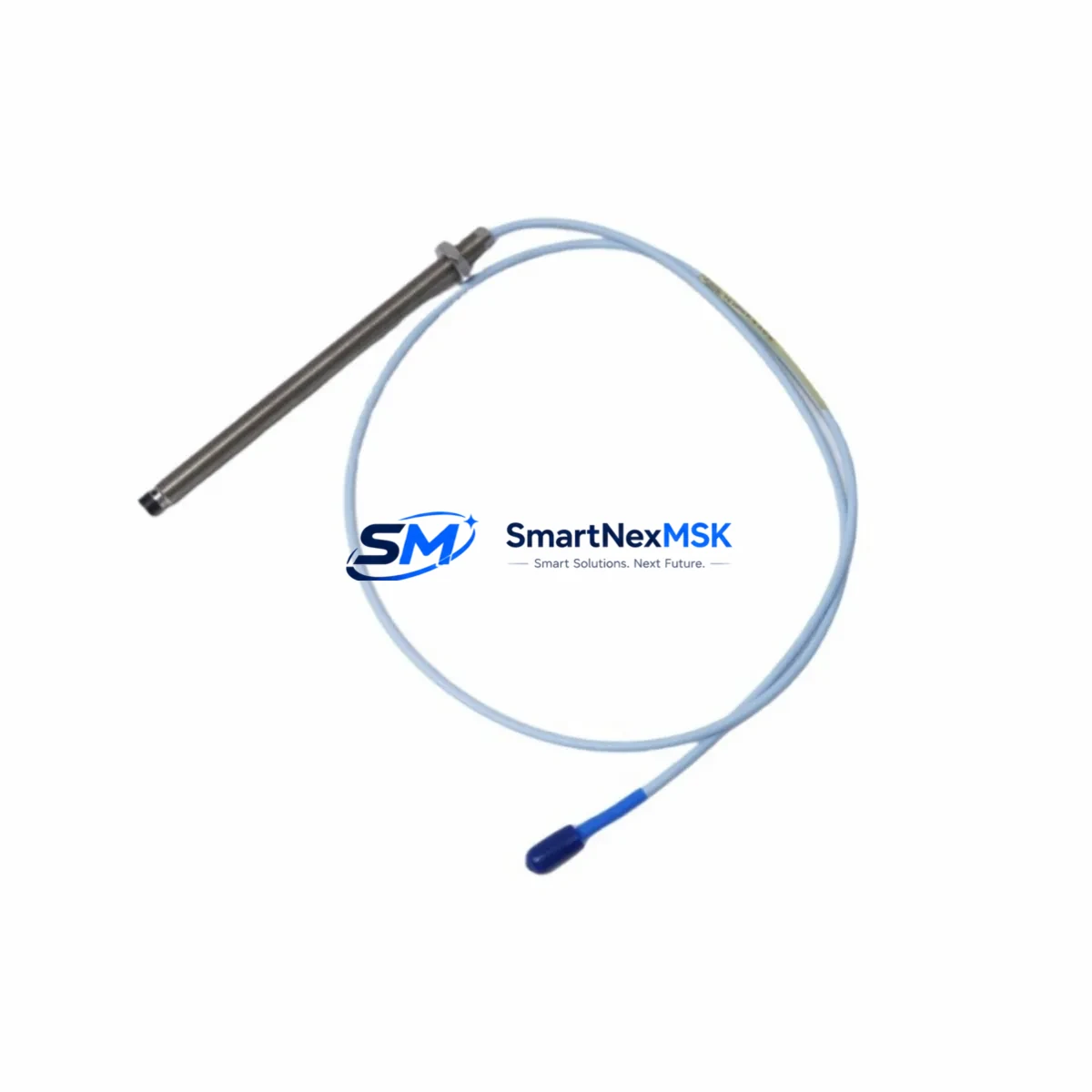

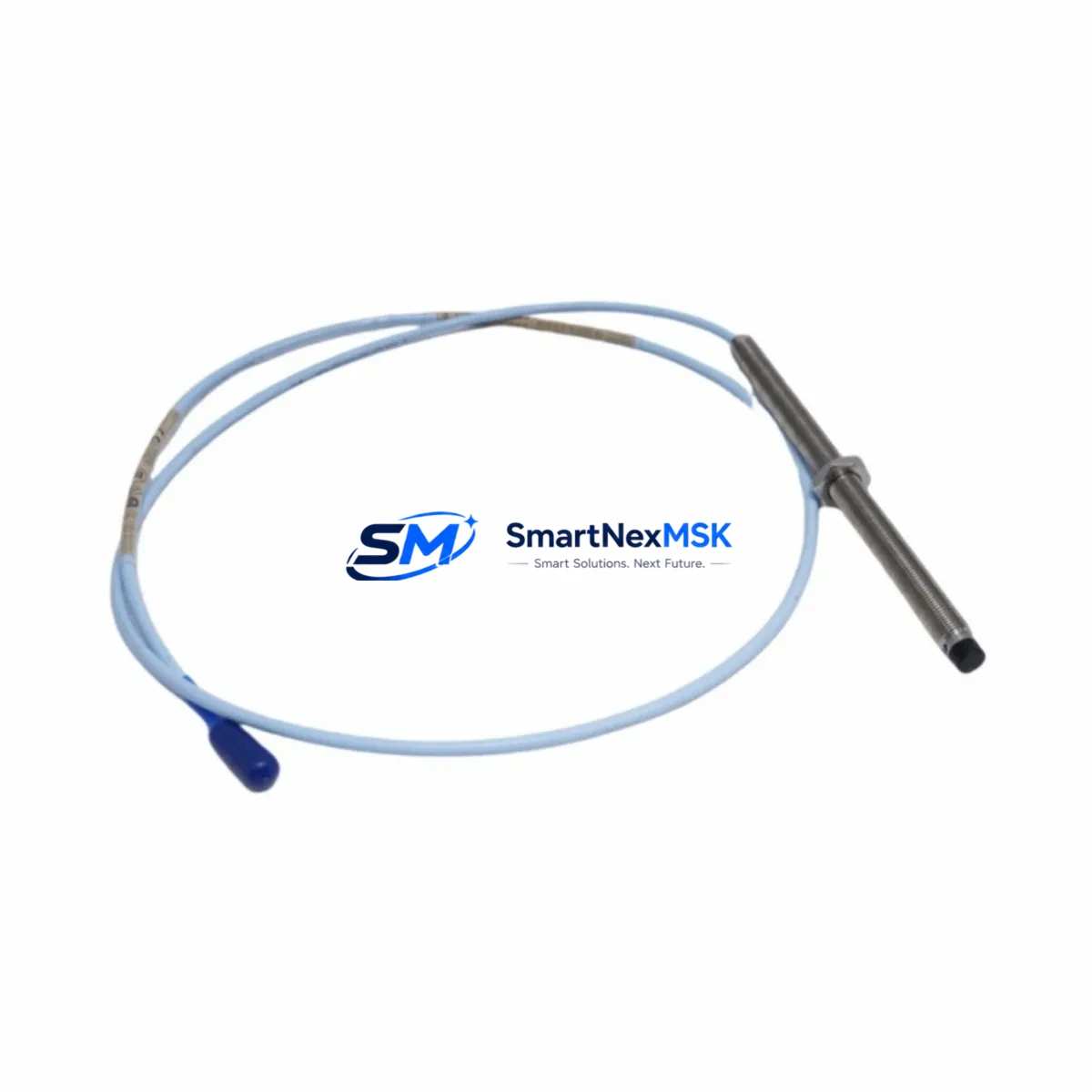

Unplanned downtime in rotating machinery monitoring is one of the most costly events in industrial maintenance. The Bently Nevada 330103-00-10-15-02-05 is an original 8mm proximity transducer engineered for the 3300 XL Series vibration monitoring system — a platform widely deployed in turbines, compressors, pumps, and critical rotating equipment across oil & gas, power generation, petrochemical, and heavy manufacturing facilities.

Stocking a verified replacement unit of the 330103-00-10-15-02-05 is a fundamental element of any predictive maintenance (PdM) or reliability-centered maintenance (RCM) program. When a transducer fails or drifts out of calibration tolerance, the ability to swap in a tested, original spare within hours — rather than waiting weeks for procurement — directly determines whether a production line stays running or faces an extended outage.

This listing provides a maintenance-ready, tested spare of the Bently Nevada 330103-00-10-15-02-05, shipped with full inspection documentation and backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault or drift condition on the 330103-00-10-15-02-05 proximity transducer, the replacement workflow rarely ends with the transducer alone. A thorough site inspection and system audit should accompany every transducer swap to prevent repeat failures and ensure the integrity of the entire vibration monitoring loop.

Extension cable integrity is the first checkpoint. The Bently Nevada 330130-10-00-05 or 330180-51-00 extension cables connecting the transducer to the proximitor are subject to mechanical wear, connector corrosion, and insulation degradation — particularly in high-vibration or high-temperature zones. A cable with compromised shielding will introduce noise into the gap voltage signal and trigger false alarms or missed trips.

The 3300 XL Proximitor / Oscillator-Demodulator (typically the 330180-X1-05 module) should be bench-tested or replaced concurrently if the unit has accumulated significant operating hours or shows signs of output drift. The proximitor converts the transducer’s oscillator signal into a DC voltage proportional to gap distance — a degraded proximitor will produce inaccurate readings even with a new transducer installed.

At the rack level, inspect the 3300/16-channel monitor or the relevant 3500 Series rack card if the system has been migrated. Verify that the I/O terminal block connections are tight, free of oxidation, and correctly wired per the system drawing. Loose or corroded terminals are a common source of intermittent channel faults that are misdiagnosed as transducer failures.

Power supply health is equally critical. The −24 VDC bias supply feeding the proximitor must be within tolerance (typically −24 V ±1 V). A sagging or noisy DC supply — often originating from an aging 3300/20 power supply module or an external DIN-rail PSU — will directly affect transducer gap voltage output and system accuracy. Measure supply voltage at the proximitor terminals, not just at the panel bus.

For systems with signal conditioning or isolation in the loop, check any installed signal isolators or barriers (such as MTL or P+F units) for drift or failure. In hazardous area installations, Zener barriers protecting the intrinsically safe transducer circuit must be verified for correct resistance and continuity.

Finally, if the machine has been running with a degraded transducer for an extended period, review the vibration trend data in the historian or DCS to confirm that the new baseline readings after replacement are consistent with historical norms. Anomalous post-replacement readings may indicate a shaft, bearing, or alignment issue that the faulty transducer was masking.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the proximitor supply at the rack. Do not disconnect the transducer cable under live bias voltage.

Step 2 — Gap measurement baseline: Before removing the old transducer, record the existing gap voltage (typically −10 to −18 VDC for a healthy 8mm transducer at nominal gap). This provides a reference for the replacement unit.

Step 3 — Transducer removal: Unscrew the transducer from the mounting bracket. Note the thread engagement depth — the 330103-00-10-15-02-05 uses a standard M10 thread. Clean the mounting hole and inspect for thread damage.

Step 4 — Replacement installation: Install the new 330103-00-10-15-02-05. Set the gap to the manufacturer-specified nominal (typically 1.0–1.5 mm / 40–60 mil for 8mm transducers) using a non-ferrous feeler gauge or gap-setting tool. Lock the jam nut securely.

Step 5 — Cable reconnection and continuity check: Reconnect the extension cable. Verify connector seating and locking ring engagement. Perform a continuity and insulation resistance check on the cable before re-energizing.

Step 6 — System re-energization and verification: Restore power to the proximitor. Measure gap voltage at the monitor input. Confirm the reading falls within the system’s configured OK range. Clear any latched alarms and verify the channel returns to normal status in the DCS or safety system.

Step 7 — Documentation: Record the replacement in the CMMS, including the new transducer serial number, gap setting, and post-installation gap voltage. Update the spare parts inventory to trigger reorder of a replacement unit.

Spare Parts Support FAQ

Q1: Is the 330103-00-10-15-02-05 a direct drop-in replacement for older 3300 XL transducers?
Yes. The 330103-00-10-15-02-05 is the current production part number for the Bently Nevada 3300 XL 8mm proximity transducer family. It is backward-compatible with existing 3300 XL extension cables and proximitor modules. No firmware or configuration changes are required at the monitor level when replacing a like-for-like unit.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes electrical continuity verification, output sensitivity check, and visual inspection prior to dispatch. Units are shipped in anti-static packaging with individual test records. The 12-month warranty covers manufacturing defects and out-of-specification performance from the date of delivery.

Q3: How should this spare be stored in a maintenance inventory?
Store in a dry, temperature-controlled environment (0–40°C), away from strong magnetic fields and mechanical vibration. Keep in original anti-static packaging until installation. Recommended shelf life before re-inspection is 3 years. Label with receipt date and assign a dedicated bin location in your CMMS for rapid retrieval during emergency callouts.

Q4: Can this transducer be used with non-Bently Nevada extension cables or proximitors?
The 330103-00-10-15-02-05 is designed and calibrated for use within the Bently Nevada 3300 XL system architecture. Use with third-party extension cables or proximitors may result in calibration errors, out-of-tolerance gap voltage, or system faults. For guaranteed performance and warranty validity, always pair with genuine Bently Nevada 330130 or 330180 series extension cables and the corresponding 3300 XL proximitor module.
