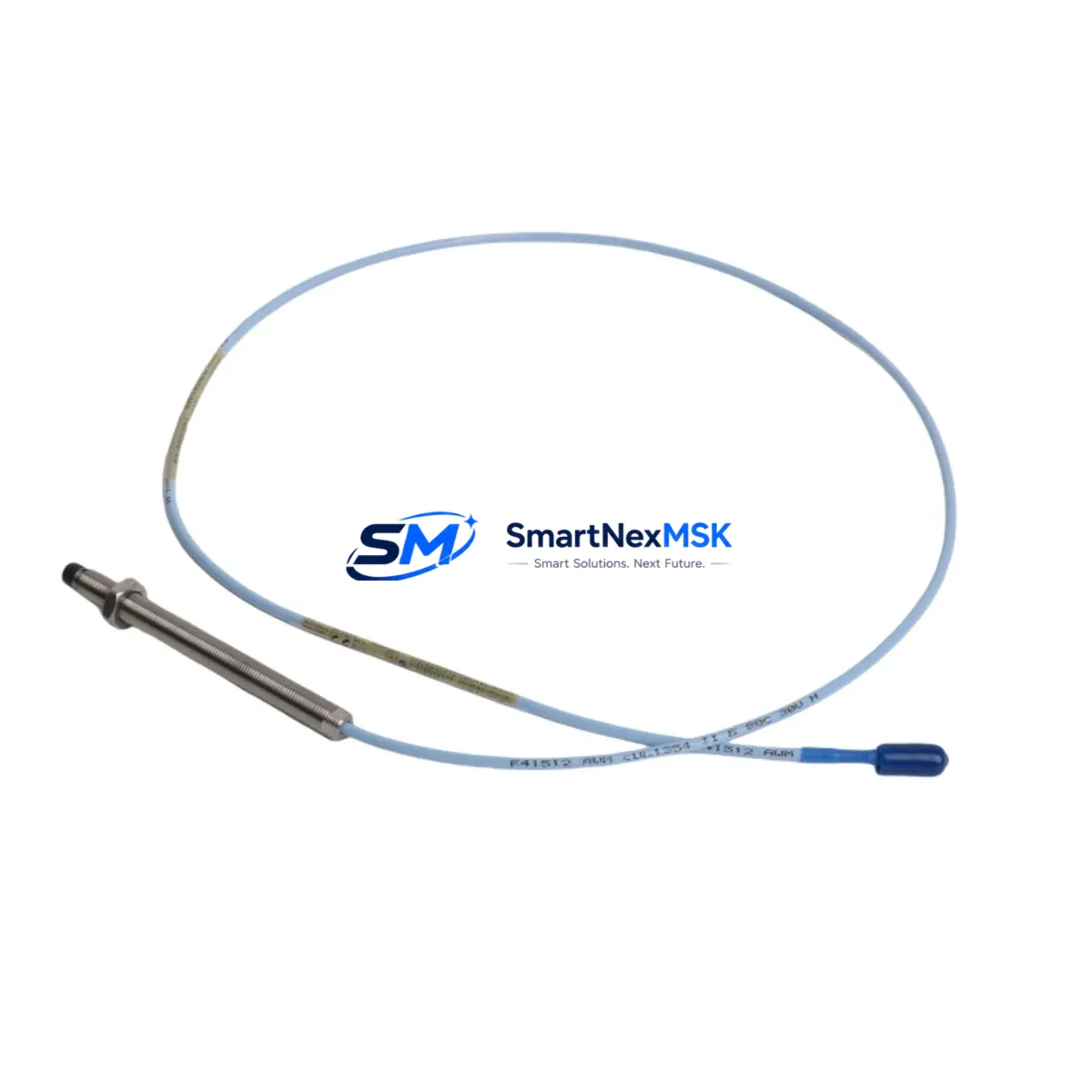

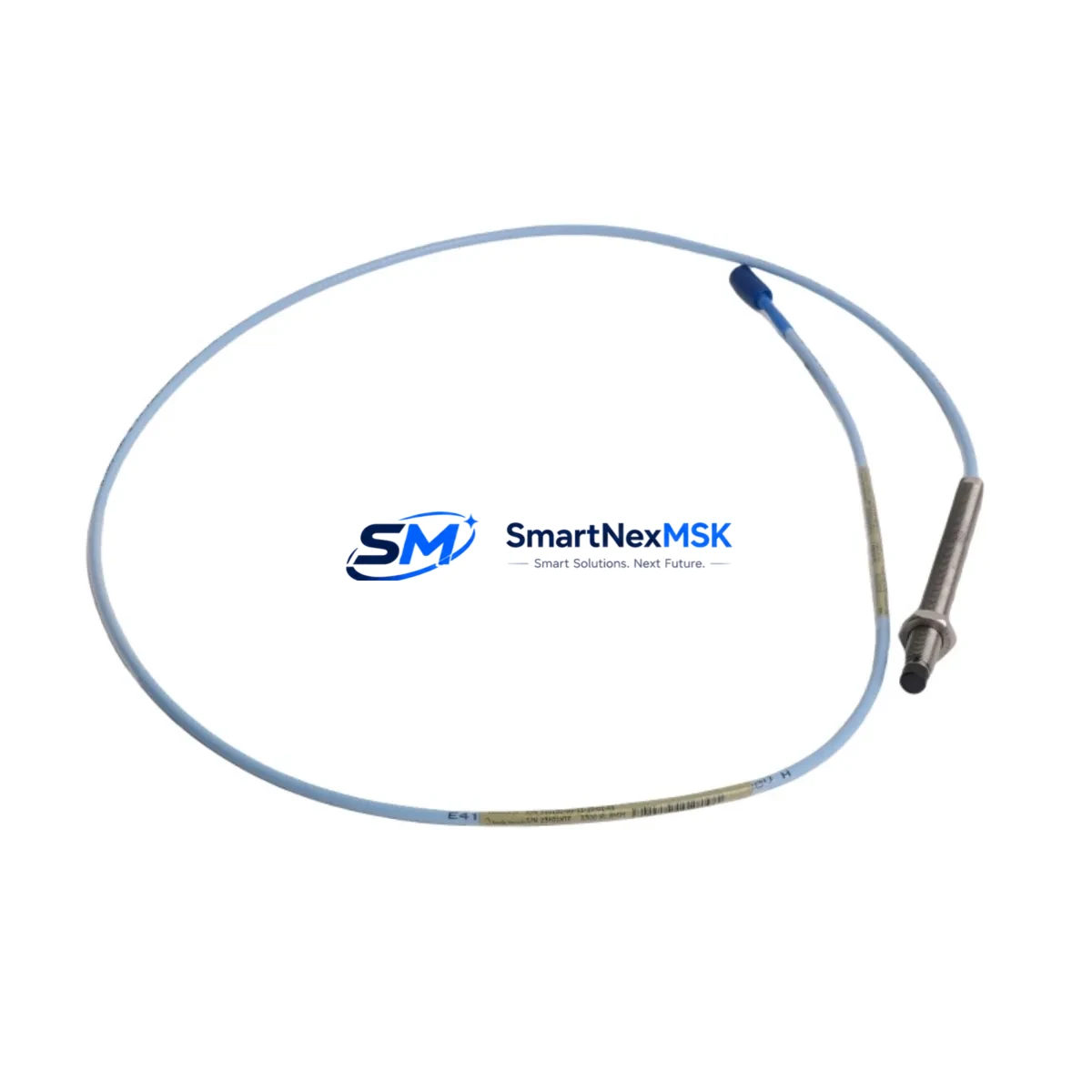

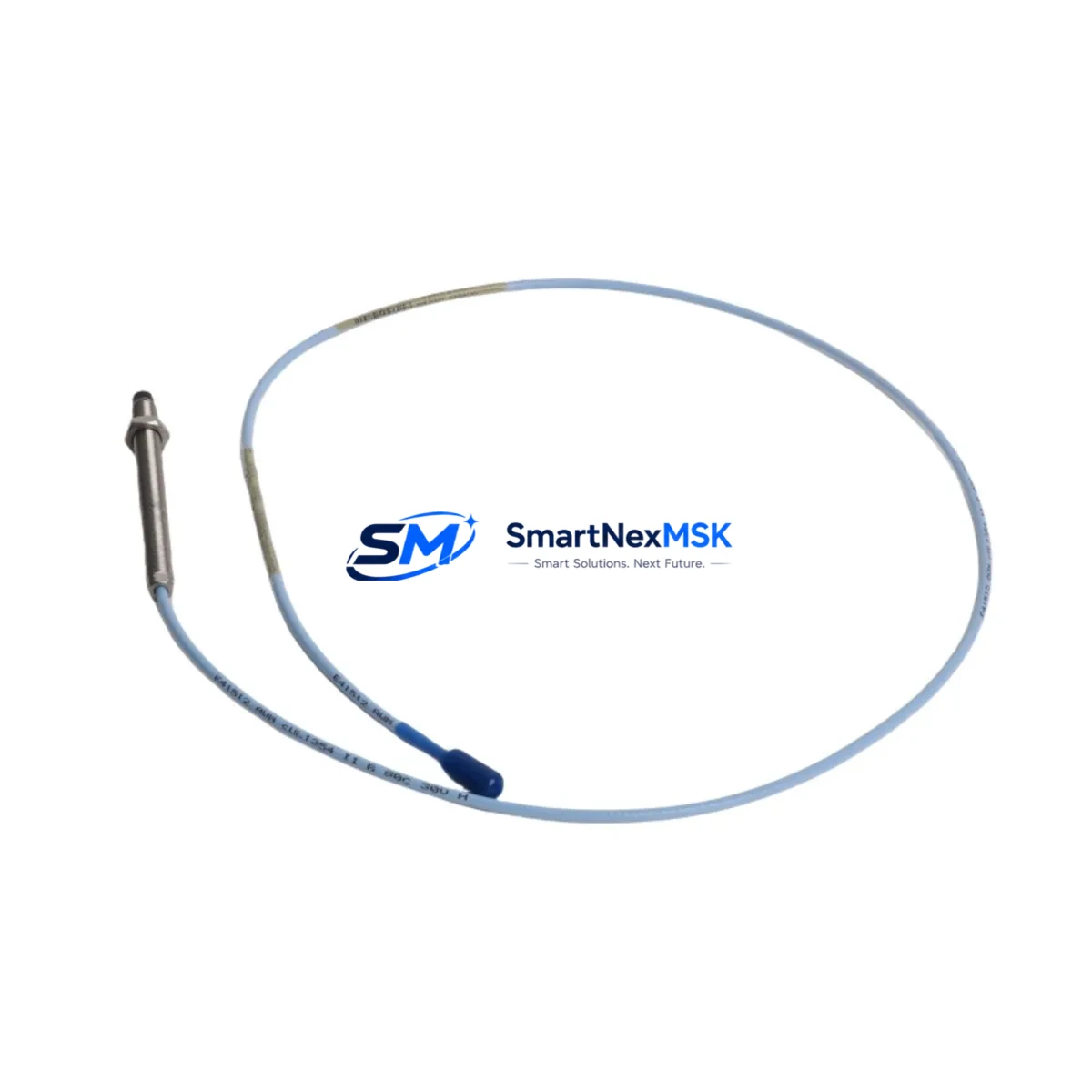

Bently Nevada 330103-00-11-10-12-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330103-00-11-10-12-00 is an 8mm eddy-current proximity probe designed for the 3300 XL Series continuous vibration monitoring platform. As legacy rotating machinery protection systems age and OEM support windows close, this probe remains one of the most frequently requested drop-in replacements for facilities operating steam turbines, compressors, pumps, and gearboxes under API 670-compliant monitoring architectures. Whether you are executing a planned outage upgrade, responding to an unplanned probe failure, or modernizing a control cabinet that still runs original 3300 Series hardware, the 330103-00-11-10-12-00 provides a verified, field-tested retrofit path with no firmware changes required on the monitoring rack.
This probe is engineered to interface directly with the Bently Nevada 3300 XL 8mm Extension Cable (330130 series) and the 3300 XL Proximitor Sensor (330180 series), preserving the original signal chain from the probe tip through to the 3500 Series rack or legacy 3300 rack I/O modules. Facilities that have already migrated their protection logic to the Bently Nevada 3500/42M Proximitor I/O Module or the 3500/40M Proximitor I/O Module can continue to use this probe without recalibrating the gap voltage setpoints, provided the extension cable length and target material remain unchanged from the original installation.
Upgrade Compatibility Table
| Parameter | 330103-00-11-10-12-00 Specification | Retrofit / Replacement Notes |
|---|---|---|
| Probe Diameter | 8 mm | Direct fit for all 3300 XL 8mm probe housings; no adapter required |
| Cable Length | 1.0 m integral cable | Pair with 330130-080-00-00 (8m) or 330130-045-00-00 (4.5m) extension cable to match original run |
| Thread Size | M10 × 1.0 | Compatible with standard 3300 XL probe holders; verify locknut torque to 14 N·m |
| Proximitor Compatibility | 3300 XL Proximitor (330180 series) | Also compatible with 3500/40M and 3500/42M I/O modules; verify gap voltage 10.0–12.0 VDC |
| Target Material | AISI 4140 steel (standard) | Confirm shaft material before commissioning; stainless or non-ferrous shafts require scale factor correction |
| Operating Temperature | −35 °C to +177 °C | Suitable for high-temperature bearing housings; verify cable routing away from exhaust surfaces |
| Supply Voltage | −24 VDC (nominal) | Confirm power supply capacity on the 3300 XL rack; each probe draws approx. 12 mA |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) | Matches original 3300 XL calibration curves; no Proximitor rescaling required for like-for-like swap |
| Installation Standard | API 670 / ISO 10816 | Suitable for machinery protection systems requiring API 670 fourth or fifth edition compliance |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report on request |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330103-00-11-10-12-00 begins well before the maintenance window opens. The first step is a full audit of the existing probe-to-rack signal path. In most installations, the probe connects through a 330130 Series Extension Cable to a 330180 Series Proximitor Sensor, which in turn feeds a differential voltage signal into the 3300 XL monitor card or, in modernized cabinets, into a 3500 Series rack slot occupied by a 3500/40M or 3500/42M Proximitor I/O Module. Each of these components must be inspected for connector corrosion, cable jacket integrity, and correct gap voltage before the new probe is installed.
Power budget verification is critical when multiple probes share a single 3300 XL power supply module. A standard 3300 XL rack may house eight or more proximity probe channels, and adding replacement probes during a partial upgrade can push the supply rail toward its rated current limit. Engineers should calculate the total probe current draw — typically 10–14 mA per channel — and confirm that the existing 3300 XL Power Supply (330152 series) or the replacement 3500/15 Power Supply Module has sufficient headroom before energizing the new probe.
Terminal wiring adaptation is another common challenge in retrofit projects. Older installations may use screw-terminal junction boxes with non-standard color coding, while newer cabinets use the 3500 Series I/O terminal blocks with spring-clamp connectors. When migrating from a legacy 3300 rack to a 3500 rack, technicians must remap the probe signal, common, and shield conductors to the correct terminal positions on the 3500/40M or 3500/42M I/O module. Incorrect shield grounding at this stage is a leading cause of noise-induced false trips after commissioning.
For facilities that have upgraded their operator interface to a modern DCS or SCADA platform, the 3500 rack communicates via Modbus RTU, Modbus TCP, or the Bently Nevada System 1 software over Ethernet. If the original 3300 rack used a hardwired 4–20 mA output to a legacy DCS I/O card, the migration to a 3500 rack with a 3500/92 Communication Gateway Module will require updates to the DCS tag database and alarm setpoint configuration. HMI screens that display vibration trend data will also need to be relinked to the new Modbus register map or System 1 data tags.
Where I/O expansion is part of the upgrade scope, the 3500 rack’s modular architecture allows the addition of 3500/42M Proximitor I/O Modules alongside 3500/20 Tachometer I/O Modules and 3500/45 Position Monitor Modules within the same chassis, enabling a consolidated protection rack that replaces multiple legacy 3300 enclosures. This consolidation reduces cabinet footprint, simplifies cable management, and provides a single Ethernet connection for all vibration, position, and speed data.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe retrofit requires a structured hot-swap or parallel-commissioning strategy. Where process conditions permit, the preferred approach is to commission the new 330103-00-11-10-12-00 probe on a spare channel of the existing 3300 XL or 3500 rack while the original probe remains in service. This allows gap voltage verification, sensitivity confirmation, and alarm setpoint validation to be completed under live process conditions before the cutover.
When a parallel channel is not available, the maintenance team should prepare a detailed cutover checklist that includes: bypassing the affected channel in the 3500 rack or 3300 XL monitor to prevent a spurious trip during probe removal; documenting the existing gap voltage and vibration baseline from the System 1 historian or DCS trend display; installing and gapping the new probe to the manufacturer-specified 1.0 mm gap (corresponding to −10.0 VDC output); and restoring the channel bypass only after the new probe output has been verified stable within the normal operating band.
Original PLC or DCS program logic does not require modification for a like-for-like probe replacement, provided the Proximitor model and extension cable length remain unchanged. However, if the retrofit involves migrating from a 3300 rack to a 3500 rack, the protection logic — including danger and alert setpoints, time delays, and voting logic — must be re-entered into the 3500 rack configuration using Bently Nevada’s Rack Configuration Software (RCS). A full functional test of the protection trip chain, from probe gap simulation through to the final element (e.g., turbine trip solenoid or compressor unload valve), should be completed and documented before returning the machine to service.
Retrofit Support FAQ
Q1: Is the 330103-00-11-10-12-00 a direct replacement for the original Bently Nevada part?
Yes. This probe is manufactured to the same dimensional, electrical, and sensitivity specifications as the original 330103-00-11-10-12-00. It is a drop-in replacement for all 3300 XL 8mm proximity probe applications and does not require recalibration of the associated Proximitor sensor or monitor card when used with the same extension cable length and target material.
Q2: What pre-shipment testing is performed?
Each unit undergoes a functional output test verifying sensitivity (200 mV/mil ± 5%), gap voltage linearity across the 0.25–2.5 mm measurement range, and cable continuity. A test report is available on request. Units are shipped in anti-static packaging with protective tip caps to prevent damage during transit.
Q3: Can this probe be used with a 3500 Series rack instead of the original 3300 XL rack?
Yes. The 330103-00-11-10-12-00 is fully compatible with the 3500/40M and 3500/42M Proximitor I/O Modules. The probe, extension cable, and Proximitor form a complete measurement chain that interfaces with the 3500 rack’s differential input terminals. Verify that the 3500 rack’s channel configuration in RCS is set to 8mm probe type with the correct scale factor for your shaft material.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the specified temperature and voltage range. Warranty claims are processed within 5 business days of receiving the returned unit, with replacement or full refund at the buyer’s option.
