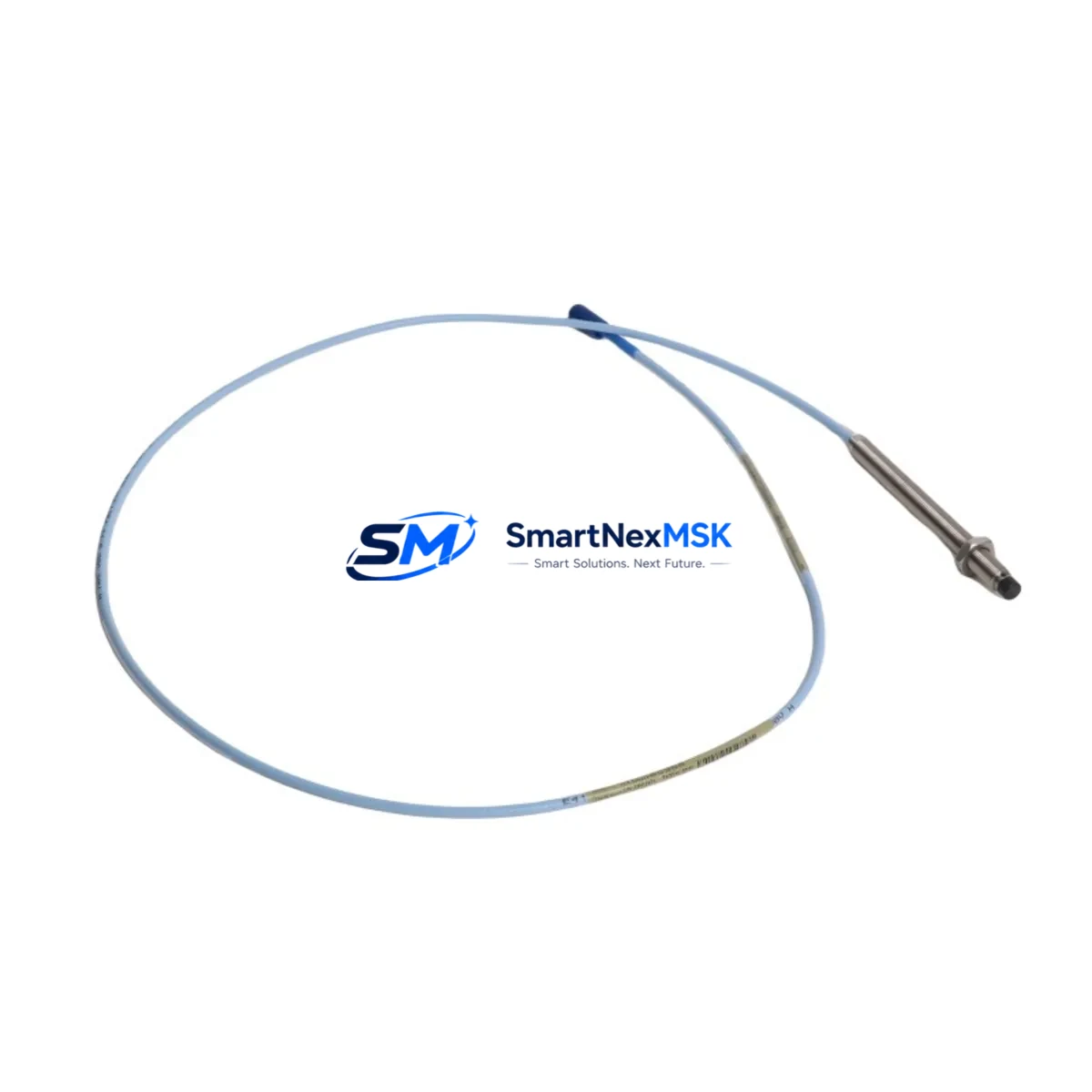

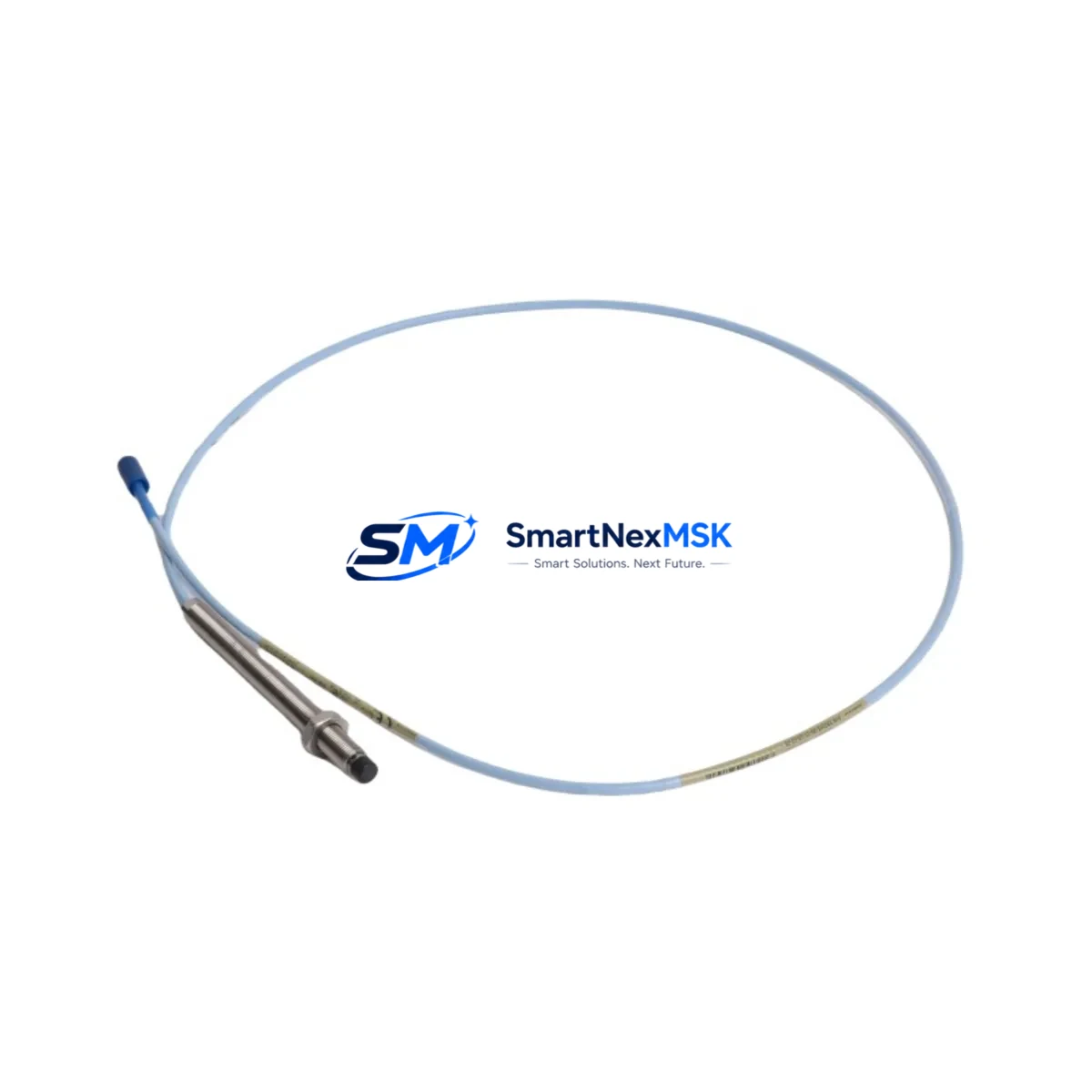

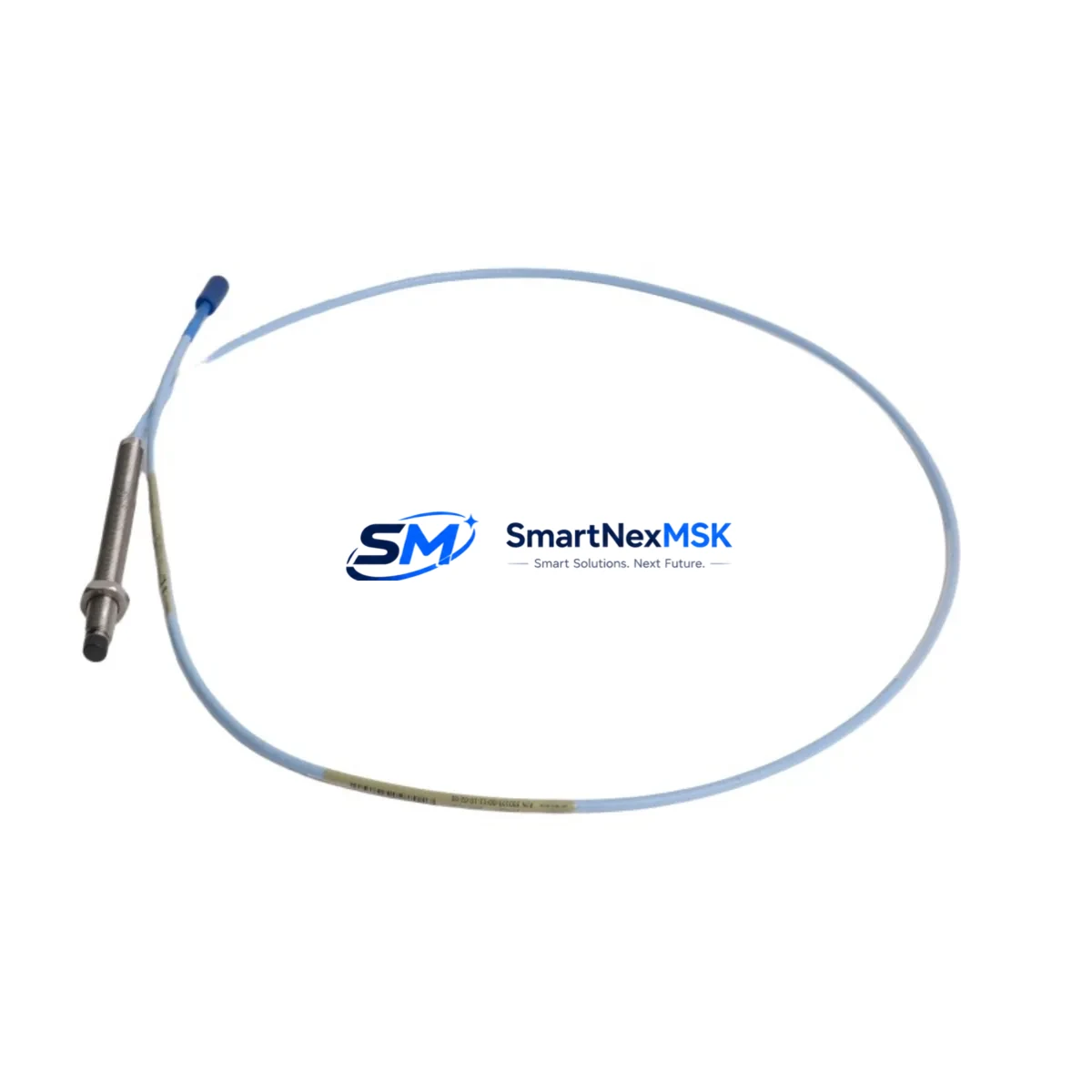

The Bently Nevada 330103-00-11-50-02-00 is an 8mm eddy current proximity probe engineered for seamless integration into existing 3300 XL Series vibration monitoring systems. Whether you are replacing a discontinued sensor, upgrading an aging control cabinet, or restoring a critical rotating machinery protection loop, this probe delivers the dimensional accuracy, signal linearity, and connector compatibility required for a drop-in retrofit without reprogramming or rewiring the host monitor.

Industrial facilities operating turbines, compressors, pumps, and gearboxes under continuous monitoring rely on the 3300 XL platform for shaft displacement and radial vibration measurement. When the original probe reaches end-of-life or becomes unavailable through OEM channels, sourcing a verified replacement with confirmed gap voltage characteristics and cable length matching is essential to maintaining system calibration and avoiding nuisance trips. The 330103-00-11-50-02-00 meets these requirements with a 5-metre armored extension cable, standard TNC connector, and a sensitivity of 200 mV/mil (7.87 V/mm) that aligns directly with the input specifications of the 3300 XL Proximitor® monitor.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-11-50-02-00 into an operating plant begins well before the maintenance window opens. Engineers should first audit the existing 3300 XL Proximitor® monitor — typically a 3300/16 or 3300/20 series rack-mounted unit — to confirm that the driver module firmware version supports the probe’s sensitivity curve. In most installations, the Proximitor® driver and the probe are paired at the factory; replacing only the probe while retaining the original driver is straightforward provided the cable length and connector type are unchanged.

Next, inspect the junction box and field wiring. The 330103-00-11-50-02-00 uses a standard three-conductor shielded cable terminated at the Proximitor® with a BNC-to-TNC adapter in legacy installations, or directly via TNC in newer cabinets. Confirm that the existing conduit run accommodates the 5-metre armored extension without additional splices, as any mid-run junction introduces impedance variation that can shift the gap voltage reading by several millivolts — enough to trigger a false alert on a tightly configured alarm setpoint.

For facilities migrating from an older 7200 Series probe system to the 3300 XL platform, the physical mounting thread (M10 × 1) is identical, but the Proximitor® driver must be replaced with a 3300 XL-compatible unit such as the 330180-51-05 driver module. The rack backplane, typically a 3300/05 or 3300/10 chassis, should be inspected for corrosion on the edge connectors before the new probe loop is energized. Power supply capacity is another critical checkpoint: each 3300 XL probe channel draws approximately 25 mA at −24 VDC, and adding channels to an existing rack requires verifying that the 3300/05 power supply module has sufficient headroom.

I/O mapping in the host DCS or safety PLC must also be reviewed. The 3300 XL monitor outputs a 4–20 mA signal proportional to shaft gap, and the corresponding analog input card in the DCS — whether a Honeywell C300 controller I/O module, an Emerson DeltaV S-series card, or a Rockwell ControlLogix 1756-IF16 analog input module — must have its engineering unit scaling updated to reflect the new probe’s linear range. Failure to update the scaling will result in incorrect vibration readings on the operator HMI screen, potentially masking a developing fault.

Where the plant uses a Modbus RTU or PROFIBUS DP communication link between the vibration monitoring rack and the control room, the 3300 XL monitor’s communication card — such as the 3300/55 Modbus interface — should be reconfigured to confirm that the register map for the replaced channel still aligns with the SCADA or historian tag database. This is particularly important in facilities that have migrated from a standalone vibration monitoring system to an integrated condition monitoring platform.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement requires a structured hot-swap protocol. Where the process permits a brief bypass, the 3300 XL monitor’s channel inhibit function should be activated before the probe is disconnected. This prevents the monitor from issuing a danger trip signal to the machinery protection relay while the probe loop is open. The inhibit status should be logged in the plant’s permit-to-work system and communicated to the control room operator before any field work begins.

The replacement probe should be pre-gapped on the bench using a non-conductive gap-setting tool and a calibrated millivolt meter before it is installed in the probe holder. Setting the gap to 1.0 mm (−10.4 VDC ± 0.5 VDC) on the bench reduces the time spent adjusting the probe in the field, where access to the shaft is often restricted by guards and insulation. Once the probe is installed and the gap voltage is confirmed in the field, the channel inhibit is released and the monitor is returned to normal operation. The entire procedure, from inhibit activation to inhibit release, can typically be completed within 30 to 45 minutes by a trained instrumentation technician, keeping the machinery protection system offline for the shortest possible interval.

For critical machines where even a brief protection gap is unacceptable, a temporary portable vibration monitor can be connected in parallel to the existing probe wiring during the replacement window, maintaining continuous shaft displacement monitoring while the permanent channel is reconfigured. After the new 330103-00-11-50-02-00 probe is commissioned and the permanent monitor channel is restored, the portable unit is disconnected and the original alarm and danger setpoints are verified against the baseline vibration signature recorded before the outage.

Retrofit Support FAQ

Q1: Is the 330103-00-11-50-02-00 a direct replacement for the discontinued 330103-00-11-50-00-00?
Yes. The -02-00 suffix designates the armored cable variant with an integral TNC connector. It is dimensionally and electrically identical to the earlier -00-00 suffix version and can be installed in the same probe holder without modification. The gap voltage characteristics and sensitivity are unchanged, so no recalibration of the 3300 XL Proximitor® monitor is required.

Q2: What commissioning checks are required after installation?
After mechanical installation, connect the probe to the Proximitor® driver and apply −24 VDC supply power. Measure the output voltage at the monitor’s test point with the shaft stationary. The reading should be −10.4 VDC ± 0.5 VDC at a 1.0 mm gap. If the reading is outside this range, adjust the probe axial position in the holder until the correct gap voltage is achieved, then lock the probe in place with the locknut. Record the as-found and as-left gap voltages in the maintenance management system before returning the channel to service.

Q3: Can this probe be used with a non-Bently Nevada Proximitor® driver?
The 330103-00-11-50-02-00 is optimized for use with Bently Nevada 3300 XL series Proximitor® drivers. While the probe’s physical dimensions and connector type may be compatible with third-party eddy current driver modules, signal linearity and gap voltage accuracy cannot be guaranteed outside the validated Bently Nevada driver ecosystem. For safety-critical machinery protection applications, use of the matched 3300 XL driver module is strongly recommended.

Q4: What does the 12-month warranty cover?
All units are tested for gap voltage linearity, cable continuity, and connector integrity before shipment. The 12-month warranty covers manufacturing defects in the probe body, cable assembly, and connector. It does not cover damage resulting from incorrect installation gap, mechanical impact, chemical exposure, or operation outside the specified supply voltage range. Warranty claims are processed within 5 business days of receipt of the returned unit.
