Bently Nevada 330103-00-13-05-02-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330103-00-13-05-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

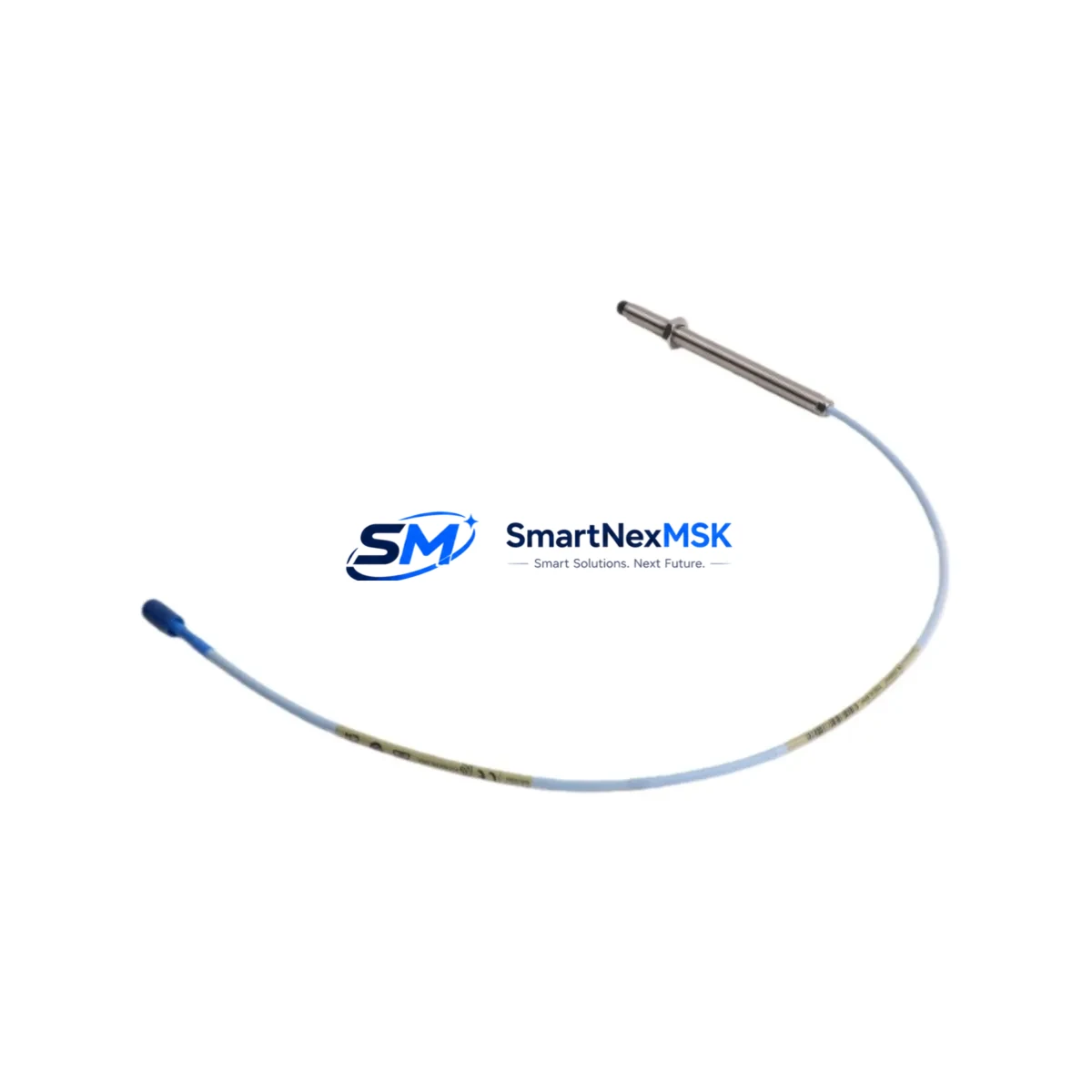

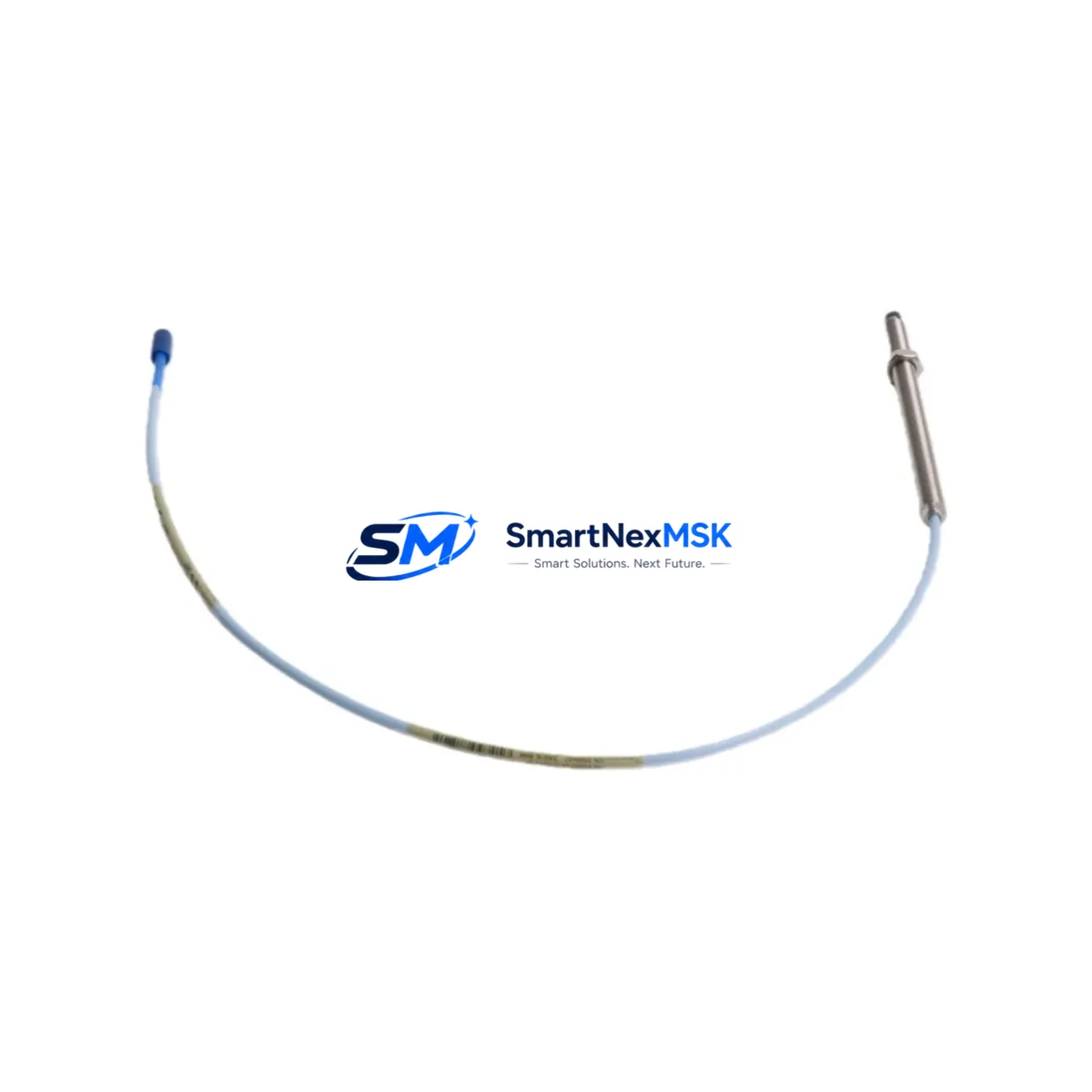

The Bently Nevada 330103-00-13-05-02-05 is a high-precision eddy-current proximity probe engineered for the 3300 XL Series machinery protection platform. As aging 3300 Series installations approach end-of-service life, this probe serves as the primary retrofit solution for facilities transitioning from legacy 3300 standard-series hardware to the 3300 XL architecture — without requiring full rack replacement or rewiring of existing field cabling.

Designed to deliver continuous shaft vibration and position monitoring in rotating machinery environments, the 330103-00-13-05-02-05 integrates directly with the 3300 XL proximitor/seismic monitor modules. Its 5-metre armored extension cable and 8 mm tip diameter make it mechanically interchangeable with the majority of previously installed Bently Nevada 330103 family probes, significantly reducing retrofit labor time and minimizing exposure to unplanned downtime during system migration.

For facilities operating turbines, compressors, pumps, or gearboxes under API 670 machinery protection requirements, this probe supports the full measurement chain from field sensor through to the 3300 XL monitor rack, including compatibility with the 3300/16 and 3300/20 monitor cards. Engineers planning a control system upgrade should verify the existing proximitor model — typically a 3300 XL 8mm proximitor — to confirm signal conditioning compatibility before installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-13-05-02-05 into an existing machinery protection system begins well before the maintenance window opens. The first step is a full audit of the current rack configuration. Most legacy installations pair the 3300 standard probe with a 3300 XL proximitor already mounted in a 3300 XL rack — meaning the probe itself is often the only component requiring replacement. However, facilities that have not yet migrated their monitor cards should plan to upgrade to the 3300/16 XL or 3300/20 XL monitor modules simultaneously to take full advantage of the XL platform’s expanded diagnostic capabilities.

Terminal wiring is a critical checkpoint. The 330103-00-13-05-02-05 uses the same connector pinout as the legacy 330103 family, so existing field cable terminations at the junction box and at the proximitor input terminals typically require no modification. Engineers should nonetheless perform a point-to-point continuity check on the extension cable and verify shield grounding at a single point to prevent ground loops that can introduce noise into the vibration signal chain.

Backplane and rack compatibility should be confirmed before ordering. The 3300 XL rack accepts standard 3300 XL monitor modules, and the 330103-00-13-05-02-05 probe is designed to work within this ecosystem. If the existing rack is a legacy 3300 non-XL chassis, a rack replacement to the 3300 XL rack may be required — a scope item that should be included in the project budget and shutdown schedule. In some installations, a 3500 Series rack migration is also evaluated at this stage, particularly where the facility is standardizing on the Bently Nevada 3500/42M proximitor I/O module for centralized monitoring.

Program and configuration compatibility is another area requiring attention. The 3300 XL monitor modules store alert and danger setpoints, full-scale ranges, and OK relay logic in non-volatile memory. When replacing a probe, the existing configuration should be exported using System 1 software or the Rack Configuration Software (RCS) before any hardware is disturbed. This ensures that setpoints can be restored exactly after the new probe is installed and gap voltage is verified. HMI screens connected to the machinery protection system — whether running on a DCS operator station or a standalone System 1 workstation — should be reviewed to confirm that tag names and alarm priorities remain consistent after the swap.

Communication link integrity between the 3300 XL rack and the plant DCS or safety system should be verified as part of the commissioning checklist. Most 3300 XL installations use a Modbus RTU or Modbus TCP gateway, or in newer facilities, a direct OPC DA/UA connection through a System 1 server. Confirming that the communication link remains active and that the probe channel data is correctly mapped in the DCS historian prevents data gaps in the post-retrofit trending record.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe retrofit requires a structured pre-outage preparation process. All replacement components — including the 330103-00-13-05-02-05 probe, the 3300 XL 8mm proximitor if required, and any replacement extension cable — should be on-site and bench-tested before the maintenance window begins. Bench testing involves connecting the probe and proximitor to a portable power supply and verifying the gap voltage output against the calibration curve supplied with the unit.

During the outage, the sequence of operations should follow a defined isolation and restoration procedure: isolate the monitor channel, remove the legacy probe, install the 330103-00-13-05-02-05, set the air gap to the manufacturer-specified target (typically 1.0 mm for an 8 mm probe, yielding –10 VDC output), and restore power to the monitor channel before releasing the machine for restart. The OK relay status on the 3300 XL monitor card provides immediate confirmation that the probe and proximitor are operating within the valid measurement range.

For facilities where continuous operation is critical, a hot-standby probe arrangement using a dual-probe bracket can allow probe replacement without a full machine shutdown, provided the monitor card supports channel switching. This approach is particularly valuable in applications where the 3300/20 XL dual-channel monitor is already installed. Maintaining the original program logic, alarm setpoints, and HMI display configuration throughout the swap ensures that control room operators experience no interruption in machinery health visibility.

SMARTNEXMSK maintains in-stock inventory of the 330103-00-13-05-02-05 and related 3300 XL Series components to support urgent retrofit and emergency replacement requirements. All units are subject to pre-shipment functional testing and are covered by a 12-month warranty against manufacturing defects.

Retrofit Support FAQ

Q: Is the 330103-00-13-05-02-05 a direct drop-in replacement for the legacy 330103-00-13-05-02-00?
A: Yes. The 330103-00-13-05-02-05 is mechanically and electrically compatible with the legacy 330103-00-13-05-02-00 and other 330103 family variants sharing the same 8 mm tip diameter and 5 m cable configuration. The primary difference is the XL-series calibration curve, which requires gap voltage verification after installation using the 3300 XL proximitor.

Q: What wiring changes are required when installing this probe in an existing 3300 XL rack?
A: In most cases, no wiring changes are required. The probe connector and extension cable terminations are identical to the legacy 330103 family. A continuity check and shield ground verification are recommended as standard commissioning steps, but field cable replacement is typically not necessary.

Q: How do I verify compatibility with my existing 3300 XL monitor card?
A: Confirm the monitor card model number (e.g., 3300/16 XL or 3300/20 XL) and the proximitor model (3300 XL 8mm Proximitor). The 330103-00-13-05-02-05 is designed for use with the 3300 XL 8mm proximitor. If your installation uses a non-XL proximitor, a proximitor upgrade should be included in the retrofit scope.

Q: What warranty coverage is provided, and has the unit been tested before shipment?
A: All 330103-00-13-05-02-05 units supplied by SMARTNEXMSK are subject to pre-shipment functional testing and are covered by a 12-month warranty against manufacturing defects from the date of delivery. Warranty claims are supported directly by our technical team.
