Bently Nevada 330103-00-18-05-02-05 Retrofit Probe

Bently Nevada 330103-00-18-05-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

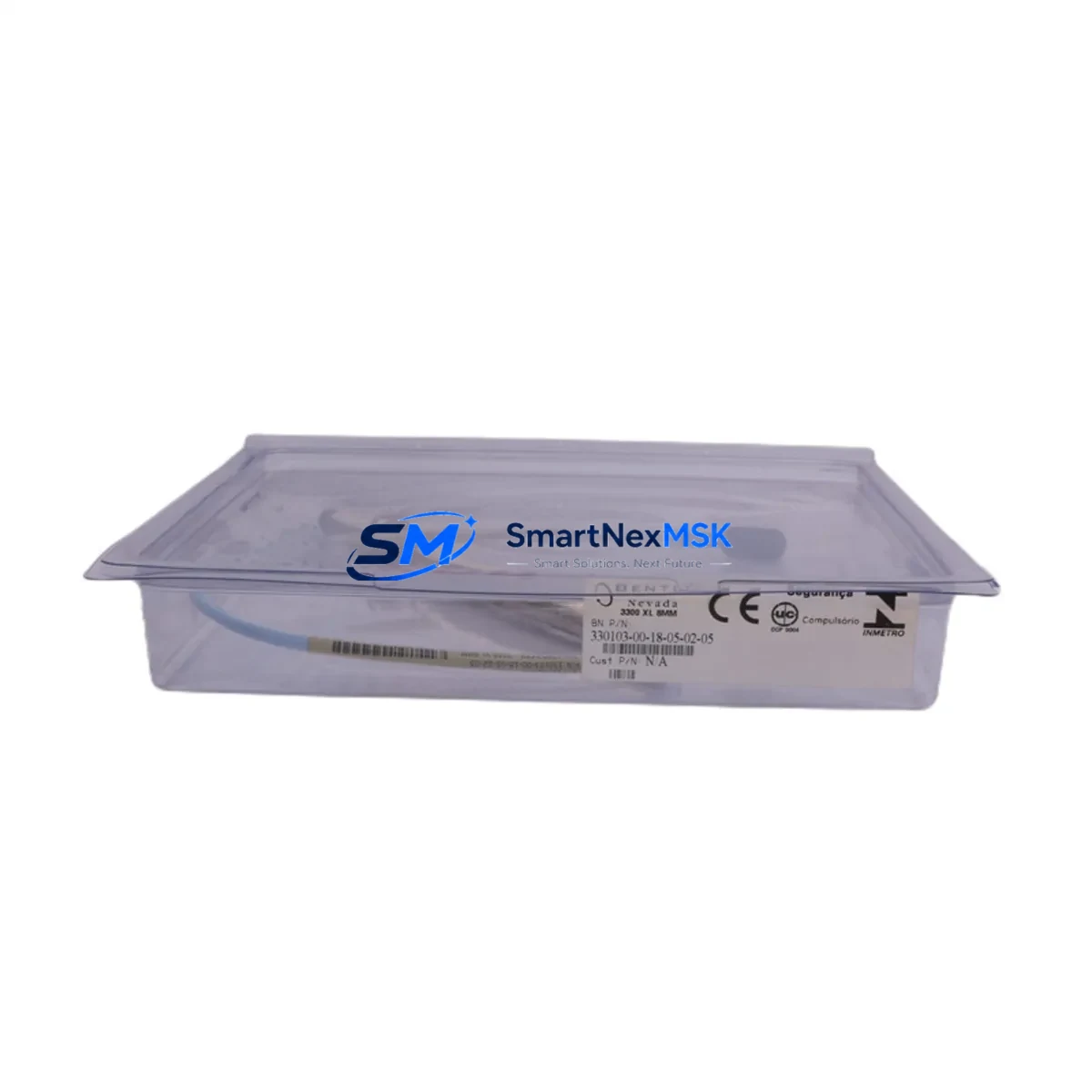

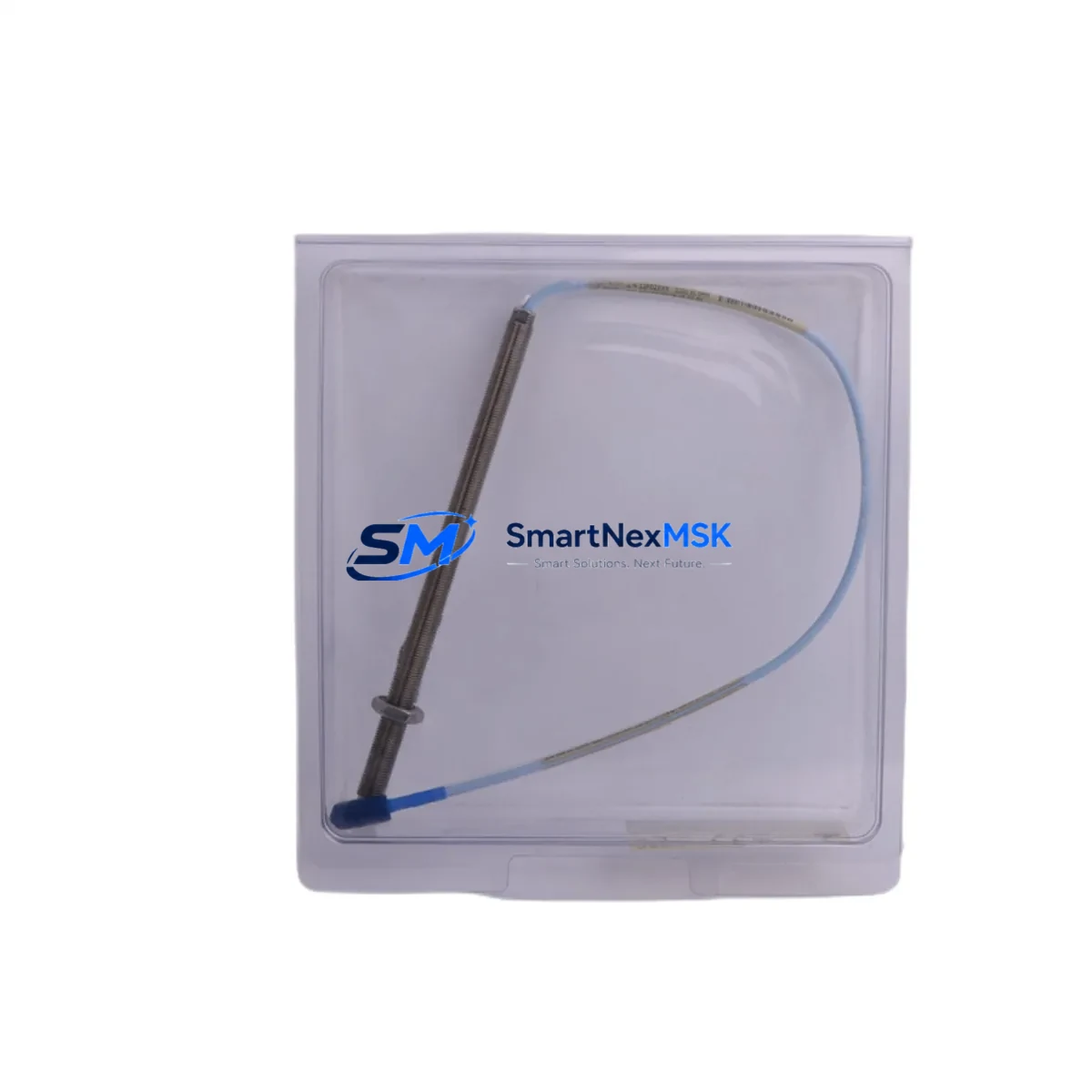

The Bently Nevada 330103-00-18-05-02-05 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. As legacy 3300 XL monitoring systems approach end-of-support milestones, plant engineers and reliability teams increasingly rely on this probe as a verified drop-in replacement that preserves existing wiring, conduit runs, and signal conditioning infrastructure. Whether you are executing a planned outage upgrade or responding to an unplanned component failure, the 330103-00-18-05-02-05 delivers the electrical and mechanical compatibility required to restore full-system functionality with minimal engineering rework.

This probe operates within the standard Bently Nevada -24 VDC bias voltage range and produces a linear output of -18 mV/mil (approximately -0.7 V/mm), making it directly interchangeable with earlier 3300 series probes without recalibrating the paired Bently Nevada 3300 XL 8mm Extension Cable or the 3300 XL Proximitor Sensor. The 330103-00-18-05-02-05 ships with an 18-inch (457 mm) armored probe cable, a 5-meter extension cable, and a 2-meter driver cable — a complete probe system ready for immediate installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When replacing the 330103-00-18-05-02-05 in an operating plant, the first step is to audit the existing Bently Nevada 3300 XL Proximitor Sensor to confirm firmware revision and gap voltage baseline. If the Proximitor has been in service for more than ten years, consider replacing it simultaneously with a current-production 3300 XL Proximitor to eliminate a second unplanned outage. Document the existing gap voltage reading — typically between -10 VDC and -18 VDC at the monitor input — before removing the old probe, so the new probe can be gapped to the same operating point.

Terminal block wiring should be photographed and labeled before disconnection. The 330103-00-18-05-02-05 uses a standard coaxial connector at the Proximitor end; verify that the existing Bently Nevada 330130 Extension Cable connector is free of corrosion and that the cable jacket shows no cracking or abrasion damage. If the extension cable is compromised, replace it with a matched-length 330130 series cable to maintain system accuracy. At the monitor rack, confirm that the Bently Nevada 3500/40M Proximitor Monitor or equivalent 3500 series I/O module is configured for 8mm probe sensitivity before re-energizing the loop.

For plants running a Bently Nevada 3500 rack alongside a distributed control system, the analog output from the Proximitor feeds directly into the DCS analog input card — typically a 4–20 mA or ±10 VDC signal. No protocol migration is required, but it is good practice to verify the DCS tag scaling in the historian and confirm that alarm setpoints in the Bently Nevada System 1 software still reflect the correct engineering units after the probe swap. If the plant uses a Modbus or PROFIBUS gateway to bridge the 3500 rack to a Siemens S7 or Allen-Bradley ControlLogix PLC, verify gateway address mapping has not shifted.

Where the retrofit involves expanding I/O — for example, adding a second radial vibration channel on a previously single-channel bearing — a Bently Nevada 3500/42M Four-Channel Proximitor Monitor can be installed in an adjacent 3500 rack slot without disrupting existing channels. Pair this with an additional 330103-00-18-05-02-05 probe and a matched 330130 extension cable to bring the new channel online. Ensure the rack backplane has sufficient power headroom; a Bently Nevada 3500/15 Power Supply Module should be verified against total rack load before adding new monitor cards.

HMI screens tied to the vibration monitoring loop should be reviewed after any probe replacement. Confirm that the Bently Nevada System 1 trend display shows a clean, noise-free signal within the expected gap voltage window. If the plant uses a third-party SCADA or HMI platform, update the tag descriptor and engineering unit label to reflect the new probe serial number for traceability. All pre-shipment units are functionally tested and supplied with a test report confirming sensitivity, linearity, and insulation resistance — documentation that supports your site acceptance test and quality records.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist. Before the maintenance window, stage the complete 330103-00-18-05-02-05 probe system — probe, extension cable, and driver cable — alongside a calibrated gap tool, a digital voltmeter, and a copy of the Bently Nevada installation drawing for the specific machine train. Pre-verify the replacement probe’s sensitivity using a bench test against a known target material (typically 4140 steel) to confirm the -18 mV/mil output before the probe enters the field.

During the outage, follow a lock-out/tag-out procedure on the Bently Nevada 3500 rack power supply before disconnecting any probe wiring. Preserve the original PLC or DCS program logic — do not modify ladder logic, function block diagrams, or structured text routines during the probe swap, as the signal conditioning and alarm logic upstream of the analog input card remains unchanged. After re-gapping and re-wiring, energize the Proximitor and confirm gap voltage at the monitor front panel before releasing the machine to operations. A typical probe swap on a single bearing can be completed in under two hours when all materials are staged and the gap voltage baseline is documented in advance.

For multi-bearing machines requiring simultaneous probe replacement across several measurement points, coordinate with the control room to place the affected 3500 monitor channels in bypass mode rather than allowing spurious trips during the installation window. Restore each channel from bypass individually, confirming a stable gap voltage reading before proceeding to the next bearing. This sequential approach protects the original program logic and maintains control continuity across the machine train throughout the migration.

Retrofit Support FAQ

Q: Is the 330103-00-18-05-02-05 a direct replacement for earlier 330103 series probes?
A: Yes. The 330103-00-18-05-02-05 is electrically and mechanically compatible with all 330103 series variants sharing the 8mm tip diameter and -18 mV/mil sensitivity. No changes to the Proximitor sensor, extension cable termination, or monitor configuration are required for a like-for-like swap.

Q: What commissioning steps are required after installation?
A: After securing the probe in its holder and reconnecting the extension cable, energize the Proximitor and measure the gap voltage at the monitor input terminal. Adjust the probe gap until the voltage falls within the linear range specified on the installation drawing — typically -10 VDC to -18 VDC. Confirm the reading is stable and noise-free before releasing the channel from bypass. No software changes to the 3500 monitor or DCS are required.

Q: Can this probe be used with a Bently Nevada 3500/40M monitor and a Siemens S7 PLC simultaneously?
A: Yes. The 330103-00-18-05-02-05 outputs a standard analog voltage signal to the 3500/40M Proximitor Monitor, which in turn provides a 4–20 mA or voltage output to the DCS or PLC analog input card. The probe itself is protocol-agnostic; compatibility depends on the monitor and gateway configuration, not the probe.

Q: What does the 12-month warranty cover, and is a test report included?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Every unit is functionally tested prior to dispatch, and a test report confirming sensitivity, linearity, and insulation resistance is included with the shipment. This documentation supports your incoming inspection, site acceptance test, and quality management records.
