Bently Nevada 330103-00-25-10-02-00 Maintenance-Ready Spare for 3300 XL Automation

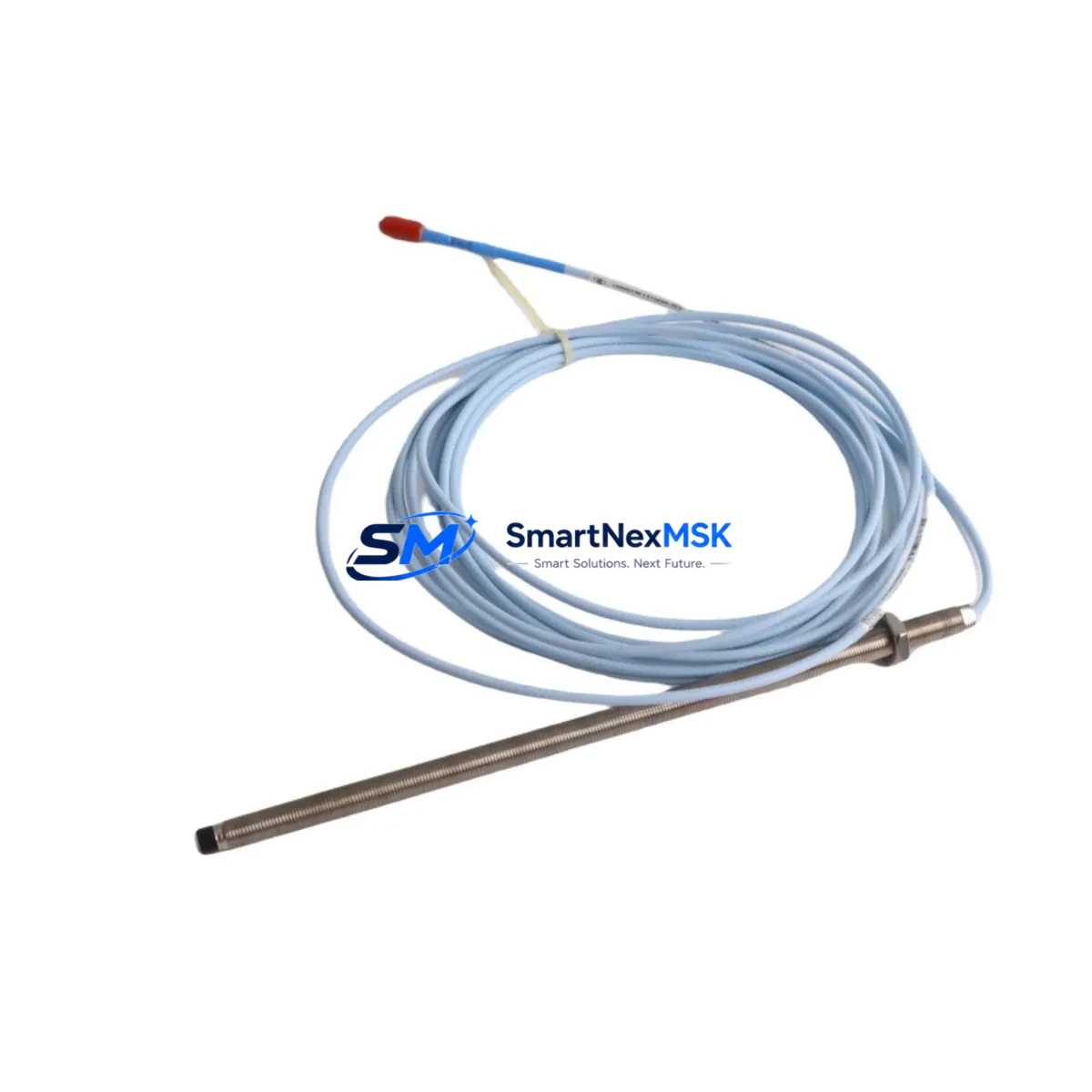

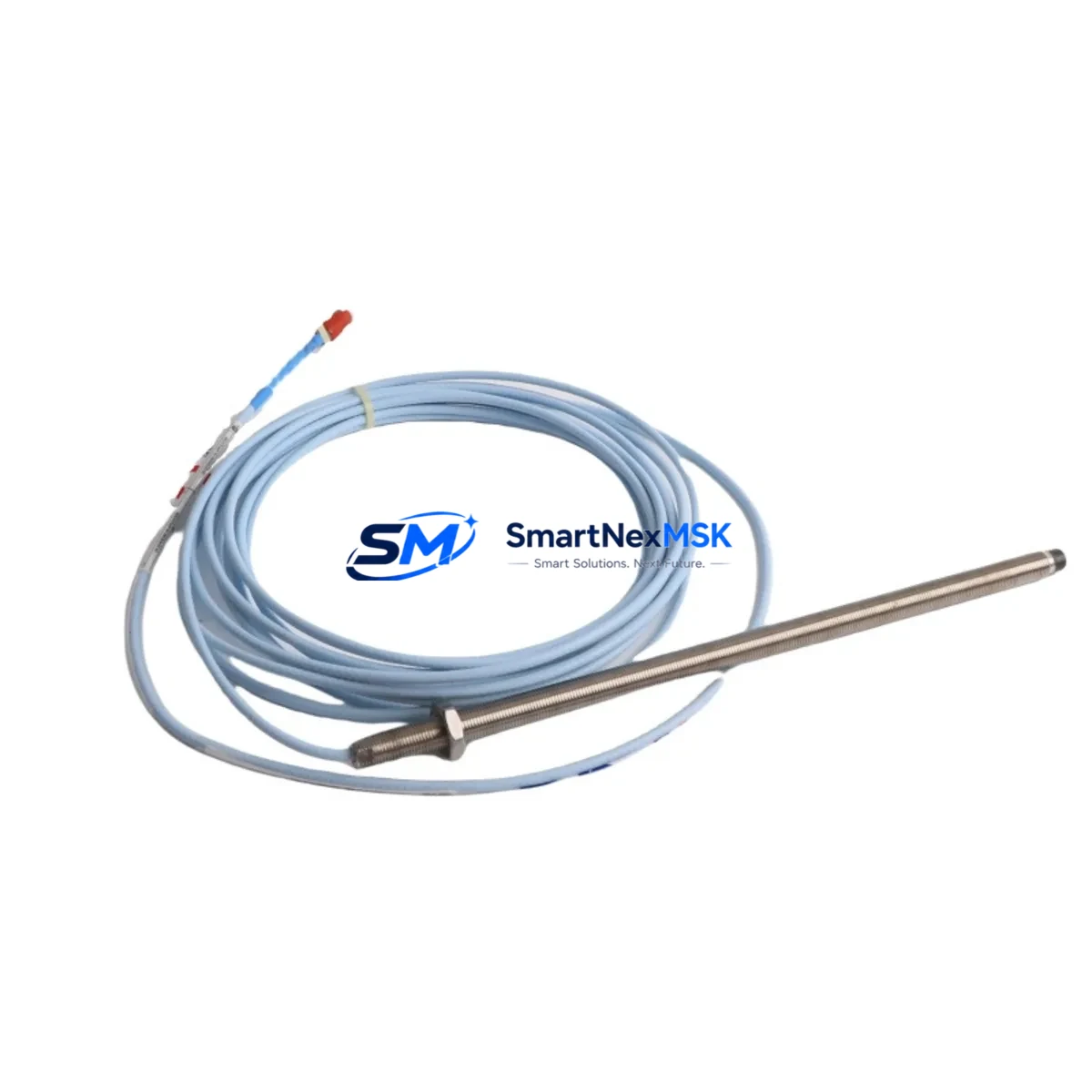

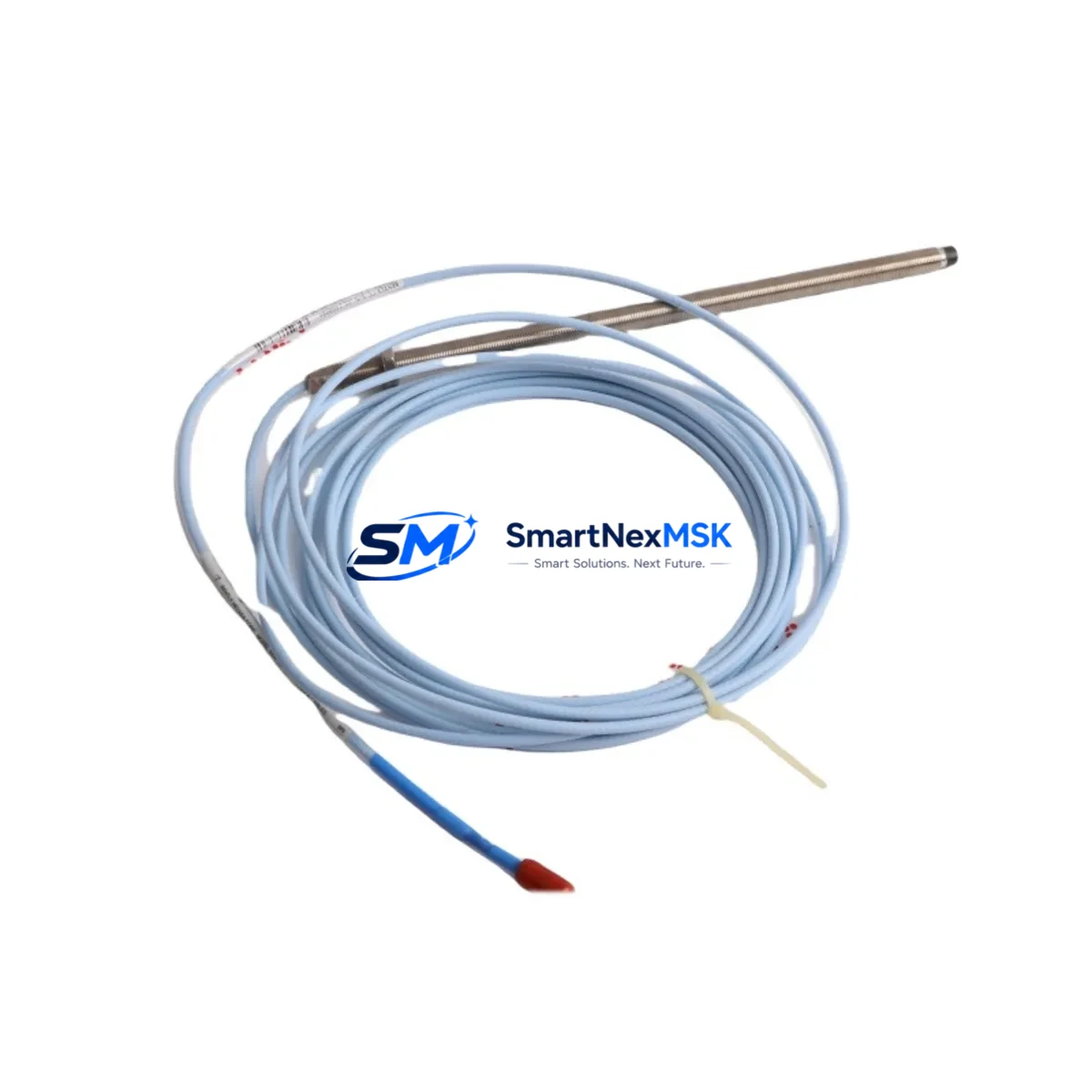

The Bently Nevada 330103-00-25-10-02-00 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. For maintenance engineers managing rotating machinery — turbines, compressors, pumps, and gearboxes — this probe is a critical field-replaceable unit. Unplanned probe failure directly triggers a monitoring gap, which in safety-critical installations can force a controlled shutdown or, worse, leave rotating assets unprotected. Stocking a verified original spare eliminates that risk and restores full monitoring capability within a single maintenance window.
The 330103-00-25-10-02-00 is specified as an 8mm probe with a 25 cm (10 in) integral cable, designed to interface with the 3300 XL proximitor/extension cable system. Its eddy-current sensing principle provides non-contact, continuous measurement of shaft radial vibration and position — the foundation of API 670-compliant machinery protection. When replacing this probe on-site, maintenance teams should treat the swap as a full loop verification exercise, not merely a mechanical exchange.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330103-00-25-10-02-00 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Probe Diameter | 8 mm Eddy-Current |
| Integral Cable Length | 25 cm (10 in) |
| Extension Cable Compatibility | 3300 XL Extension Cable (e.g. 330130 series) |
| Proximitor Compatibility | 3300 XL Proximitor (e.g. 330180 / 330185 series) |
| Measurement Type | Radial Vibration, Axial Position, Differential Expansion |
| Standard Compliance | API 670 |
| Operating Temperature | -35°C to +120°C (probe tip) |
| Installation Environment | Industrial — turbines, compressors, pumps, gearboxes |
| Origin | USA |
| Condition | Original / New |
| Warranty | 12 Months |
| Pre-shipment Testing | Functional verification before dispatch |
Maintenance Planning for Continuous Operation
A proximity probe replacement should never be treated in isolation. The 3300 XL monitoring loop is a three-component system: the probe (330103-00-25-10-02-00), the extension cable (typically a 330130-series cable matched to the total system length), and the proximitor (330180 or 330185 series). When the probe is replaced, the extension cable connectors and jacketing should be inspected for corrosion, mechanical damage, or moisture ingress — a degraded cable will corrupt the gap voltage signal even with a new probe installed.
At the proximitor end, verify the 3300 XL Proximitor output voltage and confirm the gap voltage falls within the linear range (typically –10 VDC ±0.2 VDC at the calibrated gap). If the proximitor has accumulated significant operating hours or shows drift, consider replacing it alongside the probe as a matched pair. The 3300 XL system rack — including the 3300/16 or 3300/20 monitor cards — should be inspected for alarm setpoint integrity and I/O wiring continuity at the terminal blocks.
For installations where the 3300 XL rack feeds a DCS or safety system, confirm that the 4–20 mA or relay output signals are correctly received at the downstream controller after the probe swap. If the plant uses a Bently Nevada System 1 or System 1 Evolution software platform for online machinery diagnostics, re-verify the channel configuration and trend baseline after reinstallation. Barrier modules or Zener barriers used in hazardous-area installations should also be checked for correct voltage clamping and continuity.
Procurement engineers building a spare parts inventory for a 3300 XL-equipped train should consider holding at minimum one probe per monitored bearing position, one matched extension cable set, and one proximitor per critical machine. For plants with multiple identical machines, a pooled spare strategy — covering the 330103-00-25-10-02-00 alongside complementary thrust probe assemblies and keyphasor probes — significantly reduces mean time to repair (MTTR) during unplanned outages.
Site Replacement Workflow
Step 1 — Isolation and permit: Obtain a work permit and confirm the machine is in a safe state. For online replacement in a redundant monitoring configuration, confirm the bypass or inhibit function is active in the 3300 XL monitor to prevent spurious trips during the swap.
Step 2 — Mechanical removal: Disconnect the extension cable from the probe. Remove the probe from the bracket, noting the gap distance (typically 1.0–1.5 mm for 8mm probes). Record the existing gap voltage for reference.
Step 3 — New probe installation: Install the 330103-00-25-10-02-00 in the bracket. Set the gap to the plant-specified distance using a non-ferrous feeler gauge or by monitoring the gap voltage at the proximitor. Target gap voltage per the original calibration record.
Step 4 — Loop verification: Reconnect the extension cable. At the proximitor, confirm gap voltage is within specification. Check the 3300 XL monitor for a valid, alarm-free reading. Verify the signal at the DCS or safety system input.
Step 5 — Documentation and release: Record the new gap voltage, installation date, and part number in the maintenance management system (CMMS). Remove the bypass/inhibit. Return the machine to normal monitored operation.
This workflow is compatible with both direct replacement of the 330103-00-25-10-02-00 and with upgrading from older 3300 series probes, maintaining full backward compatibility within the 3300 XL loop architecture.
Spare Parts Support FAQ
Q1: Is the 330103-00-25-10-02-00 compatible with both 3300 and 3300 XL series monitors?
The 330103-00-25-10-02-00 is designed for the 3300 XL system. While the physical connector and gap voltage characteristics are similar to earlier 3300 series probes, compatibility should be confirmed against the specific monitor card and proximitor revision in your installation. We recommend providing your monitor card model number for a pre-sale compatibility check.
Q2: What pre-shipment testing is performed before dispatch?
Each unit undergoes functional verification including gap voltage output check and cable continuity test before shipment. Units are shipped with original packaging and documentation where available. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.
Q3: How should I manage long-term spare parts inventory for 3300 XL probes?
For critical rotating machinery, industry best practice recommends holding a minimum of one spare probe per monitored position, stored in a controlled environment (dry, temperature-stable, away from strong magnetic fields). Probes should be inspected annually for connector corrosion and cable jacket integrity even in storage. For plants with aging 3300 XL installations, establishing a lifecycle replacement schedule — rather than waiting for failure — significantly reduces unplanned downtime risk.
Q4: Can this probe be used as a direct replacement for a failed unit without recalibration?
Yes, provided the replacement probe is the same model (330103-00-25-10-02-00) and the extension cable and proximitor remain unchanged. The gap must be reset to the plant-specified distance and the gap voltage verified at the proximitor. If the proximitor or extension cable is also being replaced, a full loop calibration per the Bently Nevada installation manual is recommended to ensure measurement accuracy.
