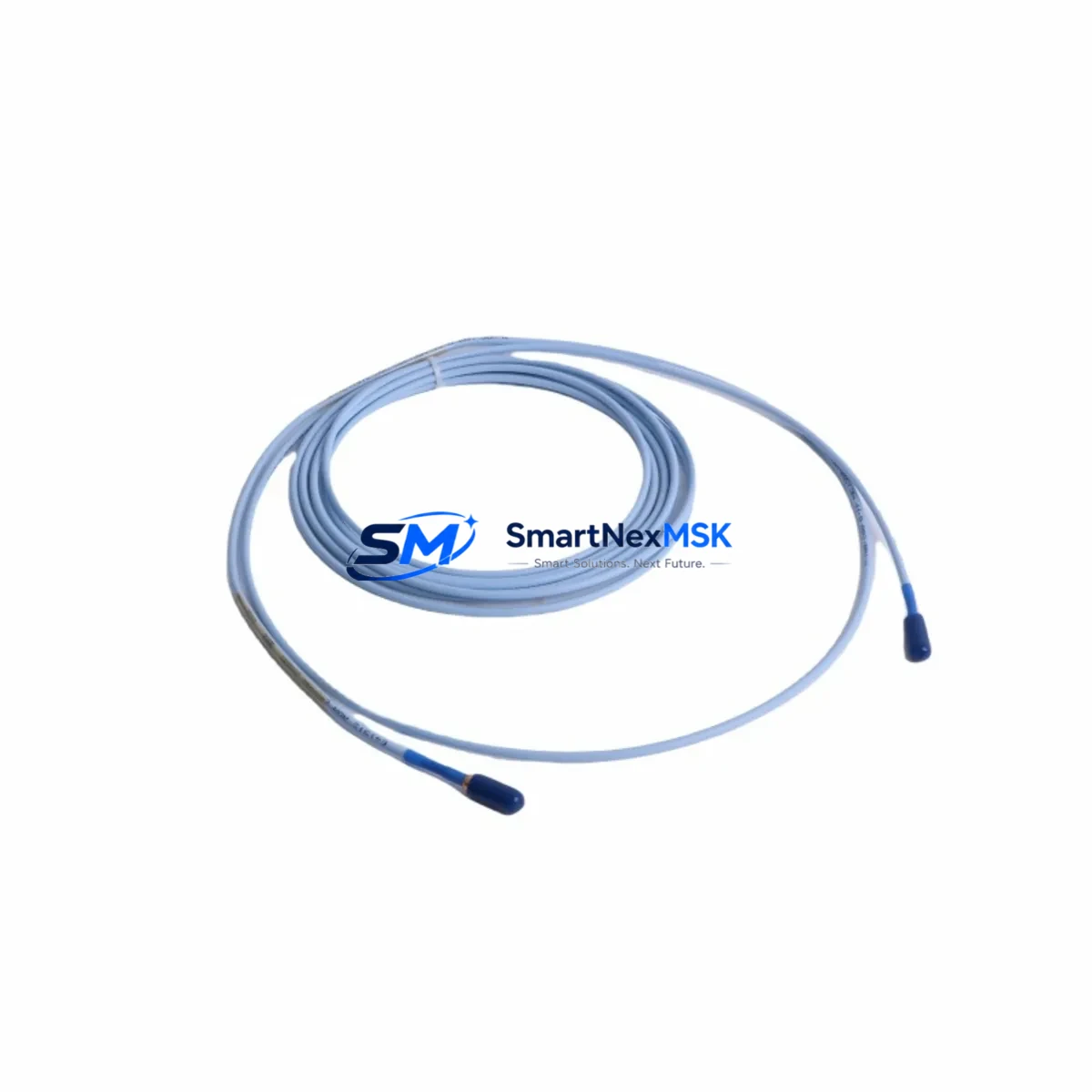

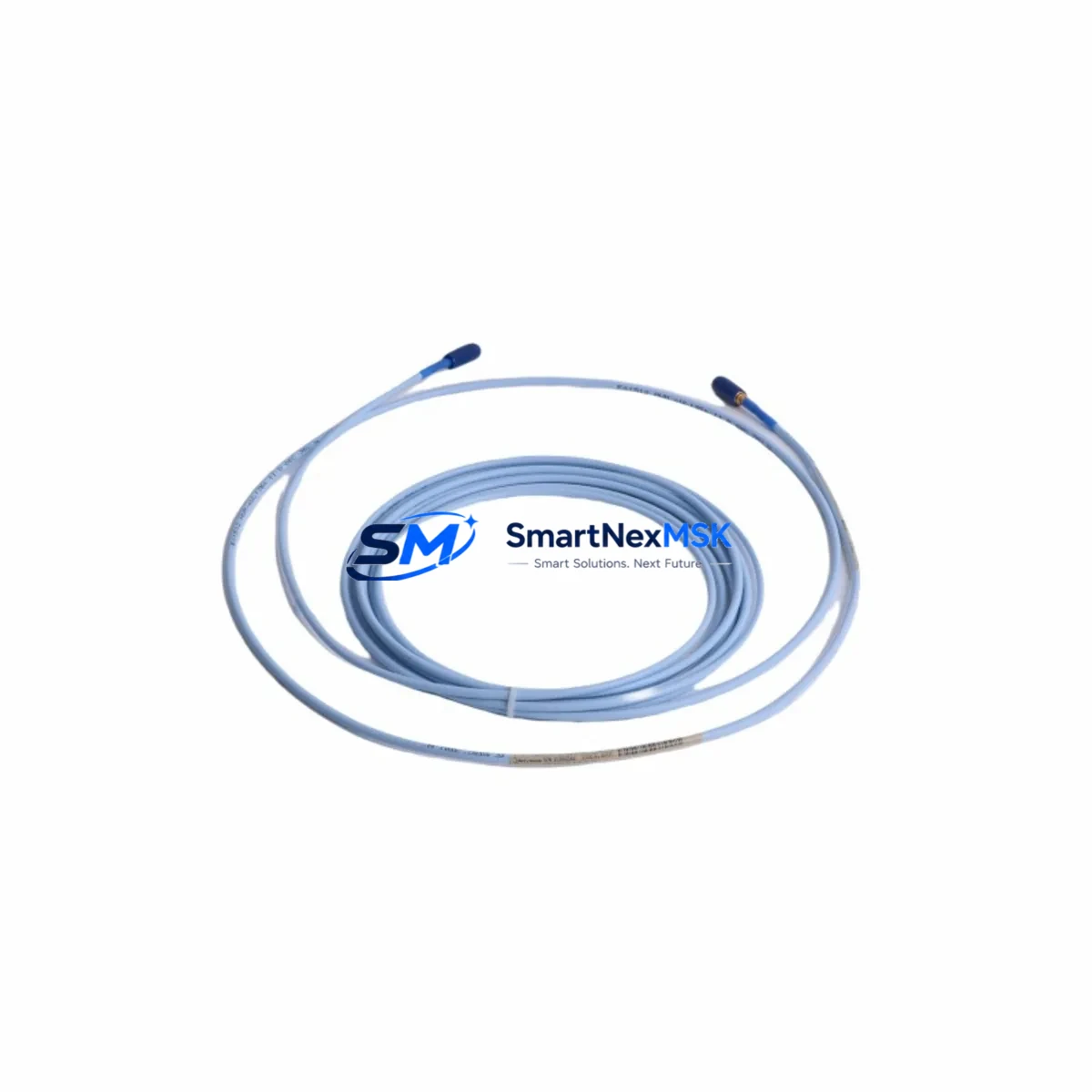

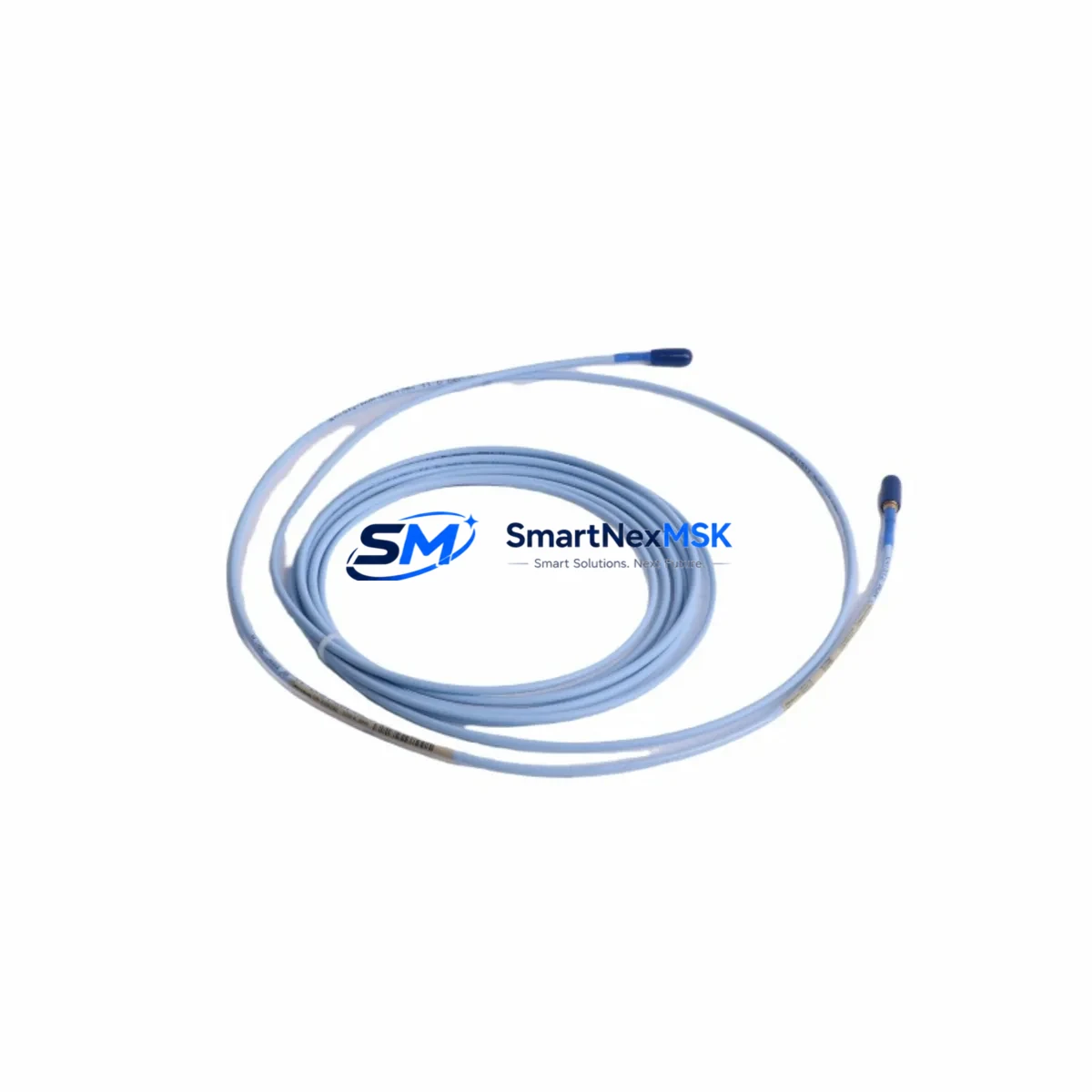

Bently Nevada 330103-01-09-50-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330103-01-09-50-02-00 is an 8mm eddy-current proximity transducer engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 XL monitoring systems approach end-of-support cycles, this unit serves as a direct retrofit replacement — preserving existing wiring, conduit runs, and signal conditioning infrastructure while restoring full measurement accuracy and system compliance. Whether you are recovering from a failed transducer, upgrading a worn-out sensing chain, or modernizing a turbine protection panel, the 330103-01-09-50-02-00 delivers a verified drop-in solution with no firmware changes required.
This transducer is designed to interface directly with the Bently Nevada 3300 XL monitor series, including the 3300/16 and 3300/20 rack-mounted monitors. It operates within the standard Bently Nevada proximitor/transducer system architecture, pairing with the 330180 proximitor extension cable and the 330130 or 330100 series proximitor sensors to form a complete sensing chain. When replacing a failed unit in an existing installation, engineers should verify that the proximitor — typically a 3300 XL 8mm proximitor such as the 330780-50-05 — is also within calibration tolerance, as transducer replacement alone will not correct a drifted proximitor output.
Upgrade Compatibility Table
| Parameter | 330103-01-09-50-02-00 (This Unit) | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8 mm | Matches standard 3300 XL 8mm mounting bosses; no re-boring required |
| Cable Length | 0.9 m (integral) | Pair with 330180 extension cable to reach proximitor junction box |
| Connector Type | Standard Bently Nevada coaxial | Direct mating with existing 3300 XL proximitor inputs; no adapter required |
| Target Material Compatibility | Steel / Alloy Steel | Confirm shaft material; non-magnetic or stainless targets require scale factor correction |
| Monitor Compatibility | 3300/16, 3300/20, 3500/42M | Also compatible with 3500 series via appropriate proximitor; verify channel configuration |
| Communication Protocol | Analog (voltage output via proximitor) | No protocol migration required; signal feeds directly into existing 3300 XL monitor cards |
| Installation Requirement | Gap setting: 1.0 mm nominal | Use gap-setting tool; verify output voltage at -10.0 VDC ±0.5 V at nominal gap |
| Commissioning Check | Static calibration + dynamic runout verification | Record 1X and 2X vibration baseline before returning to service |
| Warranty | 12-Month Warranty — covers manufacturing defects; includes pre-shipment functional test report | |
Retrofit Planning for Existing Automation Systems
A successful 330103-01-09-50-02-00 retrofit begins well before the transducer arrives on site. Start by auditing the full sensing chain: the transducer, the 330180 proximitor extension cable, and the proximitor itself — commonly a 330780-50-05 or 330730-50-05 8mm proximitor. If the extension cable shows signs of jacket cracking, connector corrosion, or impedance drift, replace it concurrently to avoid a repeat outage. Inspect the 3300 XL monitor rack for any I/O module faults; a 3300/16 or 3300/20 monitor card with a latched channel fault may mask a successful transducer swap and generate a false alarm during restart.
For installations where the 3300 XL rack is being migrated toward a 3500 series platform, the 330103-01-09-50-02-00 transducer remains compatible when paired with the appropriate 3500-series proximitor and a reconfigured 3500/42M monitor card. In this scenario, engineers must update the channel configuration in System 1 software to reflect the new proximitor scale factor and gap voltage. HMI screens tied to the legacy 3300 XL rack — whether running on a dedicated workstation or integrated into a DCS via Modbus or 4–20 mA hardwired loops — will require tag remapping if the monitor rack changes. Plan this remapping during the pre-outage engineering phase to avoid surprises during commissioning.
Terminal wiring at the junction box should be documented before disconnection. The 330103-01-09-50-02-00 uses a standard coaxial signal path; the center conductor carries the proximitor output signal and the shield is grounded at the monitor end only — a single-point ground scheme that must be preserved to avoid noise injection. If the existing conduit run includes a 330180 extension cable longer than 5 meters, verify that the total system cable length does not exceed the proximitor’s specified range, as excessive cable capacitance will shift the gap voltage curve and introduce measurement error.
Where the control system includes a Bently Nevada 3300 XL keyphasor module — such as the 3300/55 or 3300/65 — confirm that the keyphasor signal is stable and properly phased before recording post-installation vibration data. A drifting keyphasor reference will corrupt 1X vector data and make it impossible to distinguish mechanical unbalance from electrical noise. If the keyphasor transducer is also aged, replace it alongside the radial vibration transducer to consolidate outage work.
Downtime Control During System Migration
Minimizing downtime during a 330103-01-09-50-02-00 replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, gather the following: the current gap voltage reading from the 3300 XL monitor display, the channel alarm setpoints (Alert and Danger thresholds), the proximitor serial number and calibration date, and a photograph of the terminal wiring at the junction box. This documentation allows the replacement transducer to be installed and verified against known-good baseline values, eliminating the need for a full recalibration from scratch.
During the outage window, follow a sequential workflow: remove the failed transducer, inspect the mounting boss for thread damage or contamination, install the 330103-01-09-50-02-00 with fresh anti-seize compound, set the gap to the nominal 1.0 mm using a feeler gauge or gap-setting tool, reconnect the 330180 extension cable, and power up the proximitor. Measure the output voltage at the monitor terminal strip before enabling the channel. If the voltage reads within the specified range (-10.0 VDC ±0.5 V at nominal gap), the transducer and proximitor chain is functioning correctly. Enable the channel, clear any latched faults on the 3300 XL monitor card, and verify that the vibration reading is stable and consistent with historical baseline data before releasing the machine to operations.
For sites where a hot-standby or redundant monitoring channel is available — such as a dual-channel 3300/20 configuration — the replacement can be staged without a full machine shutdown by switching the monitor to the redundant channel, replacing the failed transducer, and then switching back. This approach requires careful coordination with the control room operator and a clear communication protocol to avoid inadvertent alarm inhibit during the swap. All pre-shipment units are functionally tested and supplied with a test report, supporting rapid on-site verification and reducing commissioning time.
Retrofit Support FAQ
Q: Is the 330103-01-09-50-02-00 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. This unit is manufactured to the same dimensional and electrical specifications as the original 330103-01-09-50-02-00. It mates with existing 330180 extension cables and 3300 XL proximitors without modification. A pre-shipment functional test report is included with each unit.
Q: What commissioning steps are required after installation?
A: Set the probe gap to 1.0 mm nominal and verify the proximitor output voltage at the monitor terminal strip (-10.0 VDC ±0.5 V). Clear any latched channel faults on the 3300 XL monitor card, confirm alarm setpoints are correctly configured, and record a post-installation vibration baseline before returning the machine to service.
Q: Can this transducer be used with a Bently Nevada 3500 series monitor?
A: Yes, with the appropriate 3500-series 8mm proximitor (e.g., 330780-50-05 configured for 3500 compatibility) and a reconfigured 3500/42M monitor channel. System 1 software channel parameters must be updated to reflect the new proximitor scale factor. Consult the 3500/42M configuration guide for channel setup details.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects in materials and workmanship for 12 months from the date of shipment. Each unit is functionally tested prior to dispatch and supplied with a test report. Warranty claims are processed via sales@smartnexmsk.com with the original order reference and a description of the fault.
