Bently Nevada 330103-02-08-10-02-RU Spare 3300 XL

Bently Nevada 330103-02-08-10-02-RU Spare 3300 XL: Precision Spare for Vibration Monitoring Downtime Control

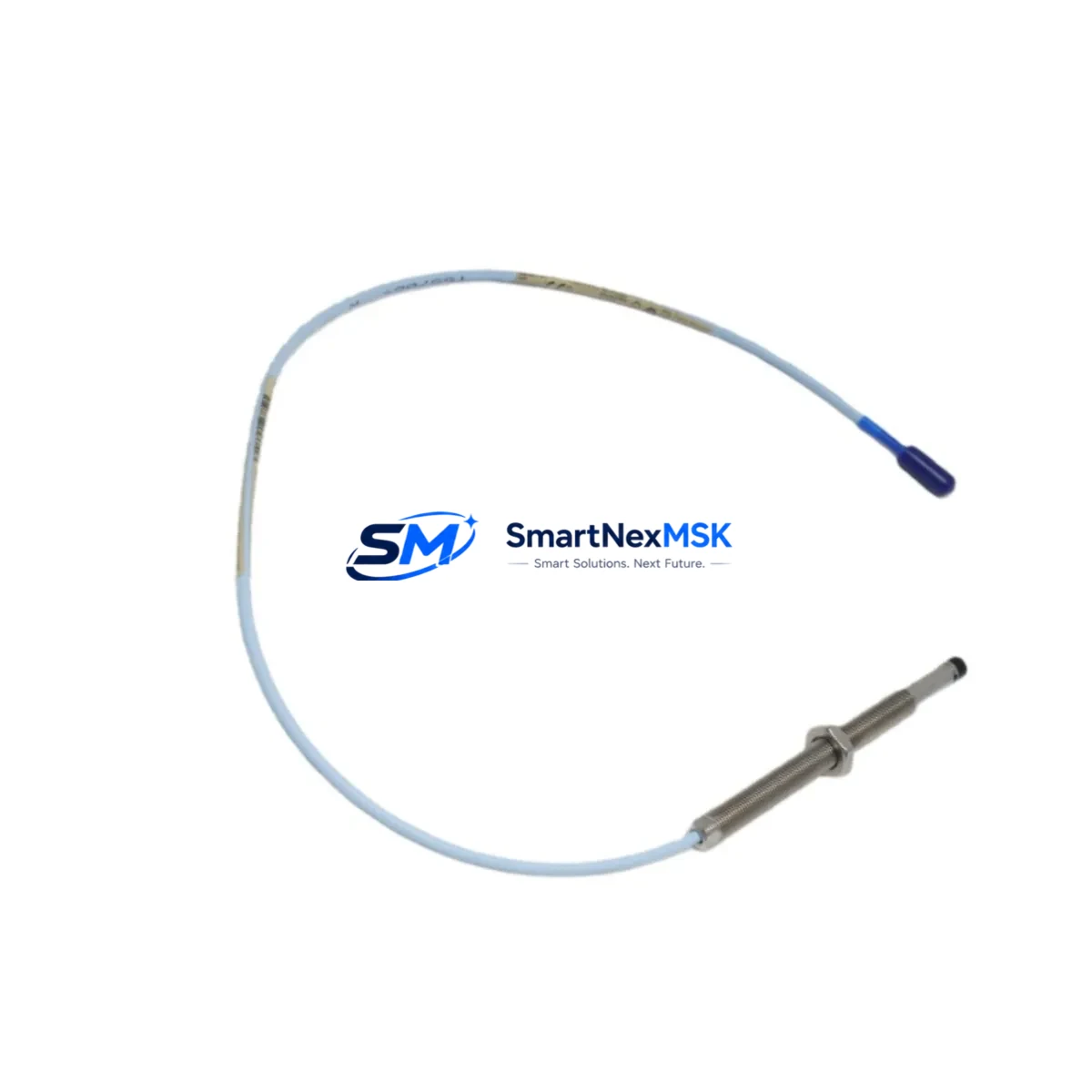

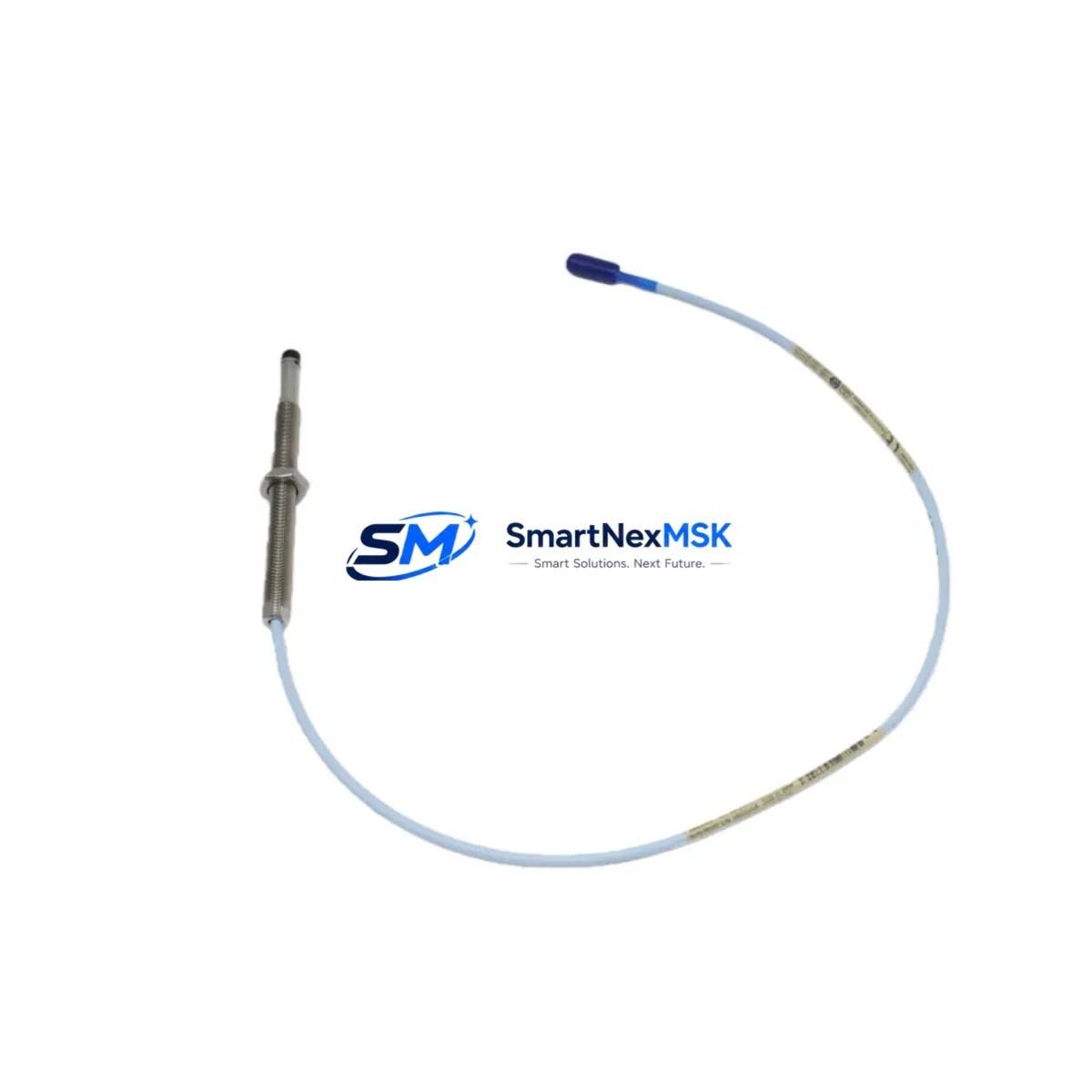

The Bently Nevada 330103-02-08-10-02-RU is an 8mm eddy current proximity probe designed for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor responsible for detecting shaft radial vibration, axial position, and differential expansion. When this component fails or degrades, the entire protection loop is compromised, exposing critical assets to undetected mechanical faults and unplanned shutdowns.

Sourced as an original Bently Nevada spare, the 330103-02-08-10-02-RU is stocked for maintenance engineers who require immediate replacement capability without waiting on long lead-time procurement cycles. Each unit is inspected and tested prior to shipment, backed by a 12-month warranty, and packaged to preserve calibration integrity during transit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330103-02-08-10-02-RU in the field is rarely an isolated task. A proximity probe failure in a 3300 XL monitoring loop typically signals the need for a broader inspection of the entire measurement chain. Maintenance engineers should treat this replacement as an opportunity to audit adjacent components before returning the machine to service.

Begin with the 330130-080-00-00 extension cable and its associated connectors. Integral cable probes are susceptible to jacket cracking and connector corrosion in high-temperature or high-humidity environments; a degraded extension cable will introduce noise into the vibration signal even after a new probe is installed. Inspect the 3300 XL Proximitor® Sensor (typically a 330180 or 330100 series driver) for output voltage drift — a driver operating outside its –18 VDC to –24 VDC supply window will misread gap distance and trigger false alerts.

Inside the control cabinet, verify the 3500/15 Power Supply Module output rails. Voltage ripple or sag on the –24 VDC bus directly affects Proximitor® linearity. If the rack hosts multiple monitoring channels, check the 3500/22M Transient Data Interface and 3500/42M Proximitor®/Seismic Monitor cards for firmware currency and channel calibration status. Loose or corroded terminal connections on the 3500 Series I/O module terminal blocks are a common source of intermittent alarms that are misdiagnosed as probe failures.

For plants running legacy 3300 Series racks alongside newer 3500 infrastructure, confirm that the probe’s sensitivity curve (7.87 V/mm) is correctly entered in the monitor’s configuration. Mismatched sensitivity settings between the probe and the monitor card will produce systematic measurement errors across the entire operating range. Where the system interfaces with a System 1® Evolution or TDXnet data acquisition node, validate the communication link and confirm that the new probe’s serial number and calibration data are logged in the asset database.

Procurement engineers building a spare parts inventory for 3300 XL-based protection systems should consider stocking the 330103-02-08-10-02-RU alongside the 330130 extension cable set, a spare 3300 XL Proximitor® driver, and at minimum one spare 3500/15 power supply. For older installations approaching end-of-life, maintaining a buffer stock of these components is the most cost-effective strategy for extending system service life without a full platform migration.

Site Replacement Workflow

1. Pre-replacement verification. Before removing the existing probe, record the current gap voltage at the Proximitor® output (typically –10.0 VDC ±0.5 VDC at the nominal 1.0 mm gap). This baseline confirms whether the fault is in the probe, the extension cable, or the driver — and provides a reference for post-installation validation.

2. Safe isolation. Coordinate with the control room to place the affected channel in bypass mode within the 3500 rack monitor. Do not remove the probe under live machine conditions unless the plant’s safety procedures explicitly permit hot-swap maintenance on non-critical channels.

3. Mechanical removal. Loosen the locknut and back the probe out carefully. Inspect the probe tip for impact damage or target material buildup (common in oil-mist environments). Clean the mounting boss and verify thread condition before installing the replacement 330103-02-08-10-02-RU.

4. Gap setting. Install the new probe and adjust the gap to achieve the nominal –10.0 VDC output at the Proximitor®. Use a calibrated gap tool or feeler gauge. Tighten the locknut to the specified torque (typically 2.3 N·m for M10 probes) to prevent vibration-induced loosening.

5. Signal validation. With the machine at rest, confirm the static gap voltage. Then, if possible, perform a slow-roll check to verify the dynamic vibration signal is clean and within expected amplitude. Remove the bypass and return the channel to normal monitoring mode.

6. Documentation. Log the replacement in the CMMS, record the new probe serial number, and update the asset’s calibration record. This step is critical for warranty traceability and for identifying recurring probe failures that may indicate a mechanical root cause (shaft runout, bearing wear, or misalignment).

Spare Parts Support FAQ

Q1: Is the 330103-02-08-10-02-RU a direct drop-in replacement for older 330103 series probes?
Yes. The 330103-02-08-10-02-RU is dimensionally and electrically compatible with earlier 330103 variants used in 3300 XL systems. The probe body, thread pitch, sensitivity, and connector type are unchanged. Always verify the extension cable part number matches the probe cable length to ensure the combined probe-cable system falls within the Proximitor®’s calibrated range.

Q2: How is the unit tested before shipment?
Each 330103-02-08-10-02-RU is bench-tested against a calibrated target to verify sensitivity (7.87 V/mm ±3%), linear range, and output voltage at nominal gap. Units that fail to meet Bently Nevada’s published specification are quarantined and not shipped. A test report is available upon request for quality-critical applications.

Q3: What is covered under the 12-month warranty?
The warranty covers manufacturing defects, calibration drift beyond published tolerances, and connector or cable failures under normal operating conditions. It does not cover damage resulting from mechanical impact, chemical exposure, incorrect installation gap, or operation outside the specified temperature and voltage range. Warranty claims are processed with photographic evidence and the original order reference.

Q4: Can you support long-term or blanket purchase orders for this part?
Yes. For maintenance teams managing multiple 3300 XL or 3500 Series installations, we support scheduled release orders and consignment stock arrangements. Contact our team to discuss volume pricing, lead-time commitments, and consolidated shipment options that reduce per-unit logistics costs.
