Bently Nevada 330103-03-10-10-11-00 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330103-03-10-10-11-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

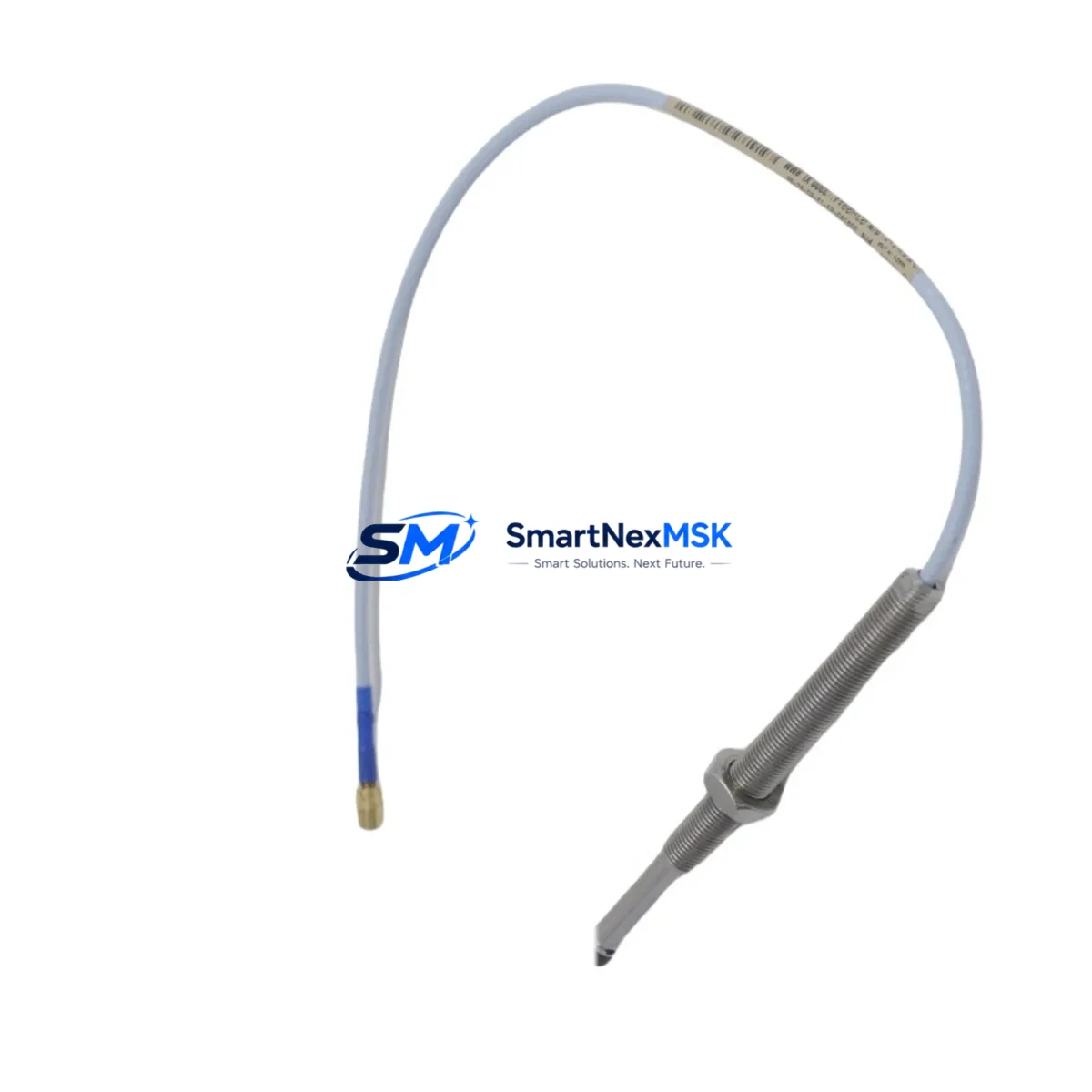

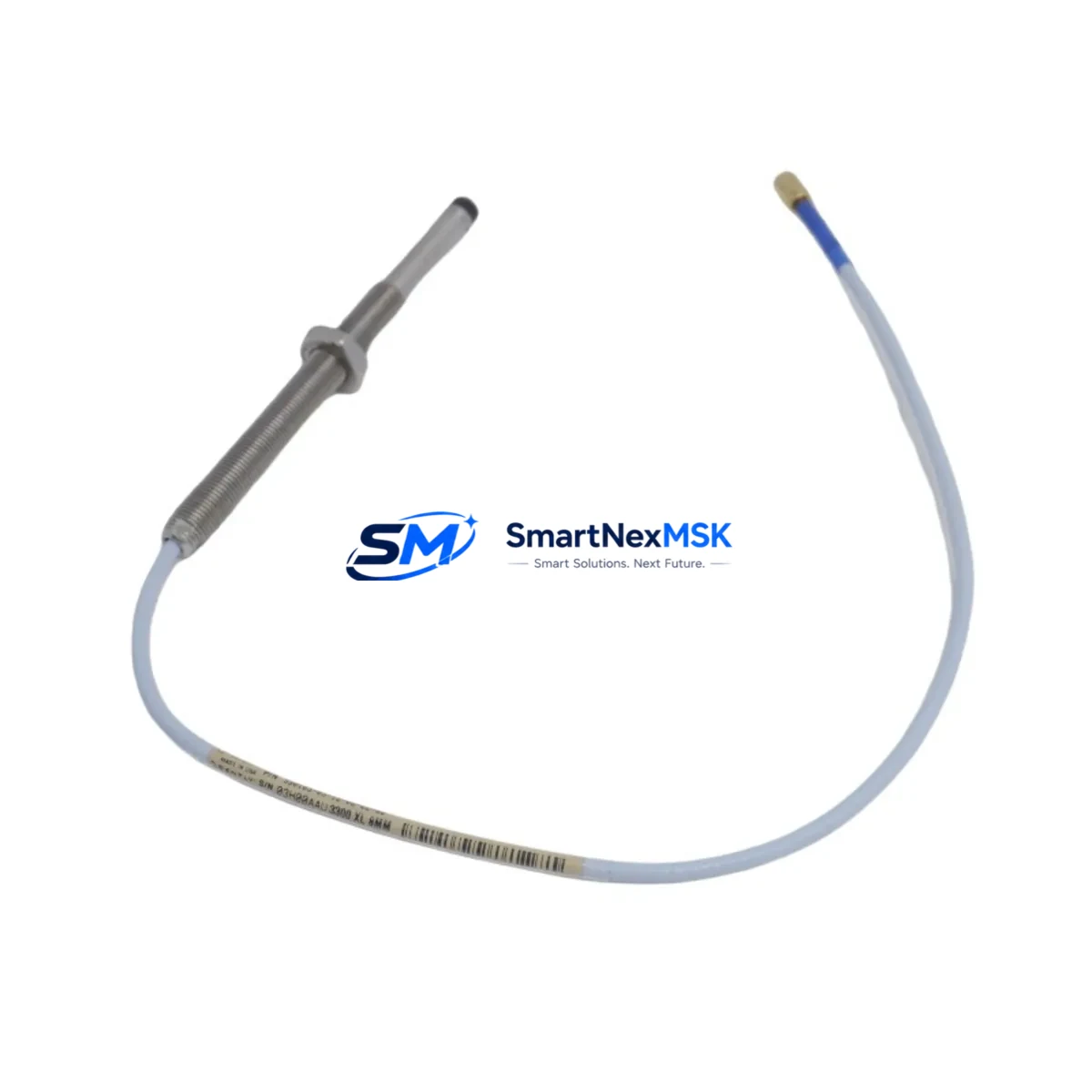

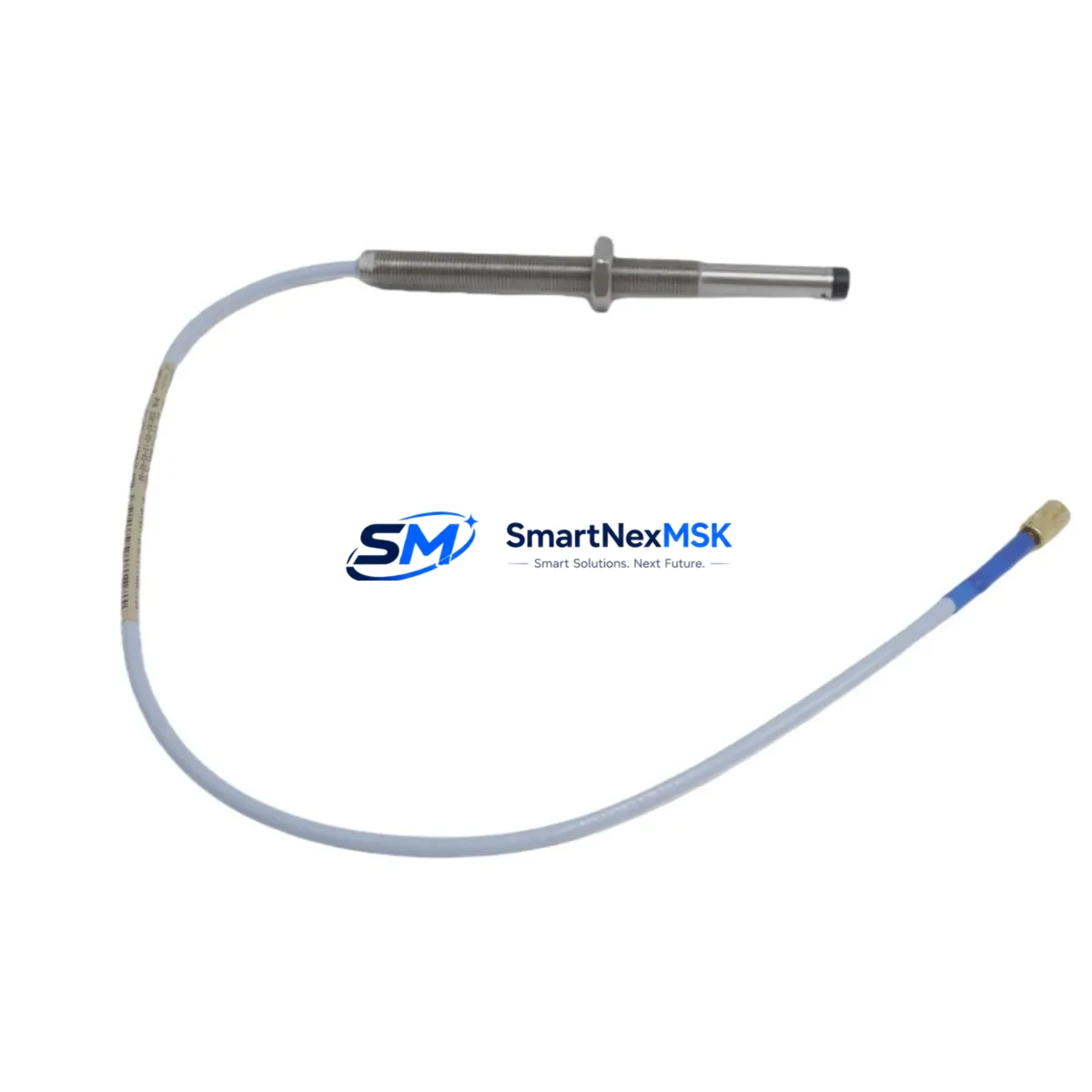

The Bently Nevada 330103-03-10-10-11-00 is an 8mm eddy current proximity probe engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy rotating machinery protection systems reach end-of-service life, this probe serves as a verified drop-in replacement for discontinued or worn-out sensors across turbines, compressors, pumps, and gearboxes operating under continuous vibration and axial position monitoring requirements. Whether you are executing a planned control cabinet upgrade, recovering from an unplanned sensor failure, or migrating an aging DCS-integrated monitoring loop to a modernized architecture, the 330103-03-10-10-11-00 provides the dimensional, electrical, and signal compatibility needed to restore system integrity with minimal downtime.

This probe is designed to interface directly with the Bently Nevada 3300 XL proximitor/seismic transducer system. The standard cable length and connector configuration match the original factory specification, allowing technicians to complete a swap without rerouting conduit or modifying terminal blocks. The probe tip diameter, thread pitch, and locknut geometry are identical to the original, ensuring correct installation depth and gap setting in existing probe holders and brackets. Output sensitivity is rated at 200 mV/mil (7.87 V/mm), consistent with the signal conditioning expectations of the 3300 XL proximitor module and downstream monitors such as the 3300/16 and 3300/20 series rack-mounted monitors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-03-10-10-11-00 into an existing machinery protection loop requires a structured pre-installation review. Begin by auditing the current proximitor model installed in the field — the 330180-91-05 or 330180-91-00 are the most common 8mm proximitors paired with this probe family. Confirm that the proximitor’s power supply input (typically –24 VDC from the rack) is within tolerance and that the barrier or isolator in the signal path, if present, is rated for the probe’s output impedance.

Terminal block wiring should be verified against the original loop drawing before disconnecting the old probe. The three-conductor shielded cable carries the supply, common, and output signal lines; polarity reversal or shield grounding errors are the most frequent commissioning mistakes during probe replacement. If the installation uses a junction box or field-mounted terminal strip, inspect for corrosion or loose terminations that may have contributed to the original probe failure.

For systems where the 3300 XL rack feeds vibration data into a DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA platform — confirm that the analog input card receiving the 4–20 mA or voltage signal is correctly scaled. A probe replacement that changes the gap voltage offset will shift the zero reference and may trigger nuisance alarms or mask real machinery faults until the DCS input scaling is recalibrated. This is particularly important in turbine protection applications where the 3500/40M proximitor monitor feeds both the DCS historian and the emergency shutdown system.

In multi-channel rack configurations, the 3300/16 monitor card manages up to eight channels of radial vibration or position measurement. When replacing a probe on one channel, it is good practice to inspect adjacent channels for probe wear or cable degradation, especially if the machine has been running beyond its recommended maintenance interval. Companion components commonly addressed during the same maintenance window include the 330130 extension cable, the 330180 proximitor, and the 3300/16 monitor card itself. If the rack also hosts a 3300/55 temperature monitor or a 3300/65 tachometer input card, verify that the rack power budget — typically supplied by a 3300/05 power supply module — remains within capacity after any card additions or substitutions.

For facilities planning a longer-term migration from the 3300 XL platform to the Bently Nevada 3500 Series, the 330103-03-10-10-11-00 probe remains compatible with the 3500/42M four-channel proximitor monitor when used with the appropriate 330180 proximitor. This allows a phased upgrade strategy where probes and cables are retained while rack hardware is modernized, reducing capital expenditure and limiting the scope of program changes required in the safety instrumented system. The 3500 rack’s Modbus TCP gateway also enables integration with modern SCADA platforms without replacing field wiring.

Downtime Control During System Migration

Minimizing production interruption during a proximity probe replacement requires preparation that begins well before the machine is taken offline. The most effective approach is to pre-configure and bench-test the replacement probe and proximitor assembly before the maintenance window opens. Using a Bently Nevada gap-setting tool or a calibrated oscilloscope, set the probe gap to the nominal voltage specified in the original loop calibration record — typically –10.0 VDC at the design gap for an 8mm probe. This allows the technician to confirm probe and proximitor health before installation and reduces the time spent on gap adjustment at the machine.

During the outage, preserve the original program logic in the 3300 or 3500 monitor by documenting all alarm and danger setpoints, OK relay configurations, and time-delay settings before powering down the rack. Many sites store this configuration in the System 1 condition monitoring software or in a rack configuration file exported via the Bently Nevada rack interface module. Restoring from a saved configuration file after hardware replacement eliminates manual re-entry errors and accelerates return-to-service.

If the machine cannot be fully shut down, some 3500 Series racks support hot-swap of monitor cards while the rack remains energized — but probe replacement itself always requires the measurement channel to be taken out of service. Coordinate with the control room to place the affected channel in bypass mode in the DCS and ESD logic before disconnecting the probe, and restore the bypass only after the new probe has been gapped, the OK relay has closed, and the vibration reading has been confirmed stable. This sequence protects against spurious trips and maintains control continuity on the remaining channels throughout the swap.

Retrofit Support FAQ

Q1: Is the 330103-03-10-10-11-00 a direct replacement for the original Bently Nevada part?
Yes. This probe matches the original dimensional, electrical, and signal specifications of the Bently Nevada 330103-03-10-10-11-00. It is compatible with the 3300 XL 8mm proximitor system and requires no modification to existing probe holders, cables, or monitor cards. Each unit undergoes output sensitivity and linearity verification prior to shipment.

Q2: What gap voltage should I set during commissioning?
The nominal gap voltage for an 8mm probe in the 3300 XL system is –10.0 VDC ± 0.5 VDC at the design air gap (typically 1.0 mm to 1.5 mm depending on the application). Use a calibrated digital voltmeter at the proximitor output terminal or the monitor card input to verify the gap voltage after installation. Refer to the original loop calibration sheet for the site-specific target value.

Q3: Can this probe be used with the Bently Nevada 3500 Series rack?
Yes, when paired with a compatible 330180 series 8mm proximitor, the 330103-03-10-10-11-00 is compatible with the 3500/42M four-channel proximitor monitor. This makes it suitable for phased migration projects where field probes and cables are retained while the rack is upgraded from 3300 XL to 3500 Series hardware.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, signal output non-conformance, and mechanical integrity of the probe body, cable, and connector. Warranty claims require the unit to be returned with a description of the fault and the installation conditions. Units showing evidence of mechanical damage from improper installation, incorrect gap setting, or operation outside the specified linear range are not covered. Contact sales@smartnexmsk.com to initiate a warranty claim.
