Bently Nevada 330104-00-02-50-02-05 Maintenance-Ready Spare for 3300 XL Automation

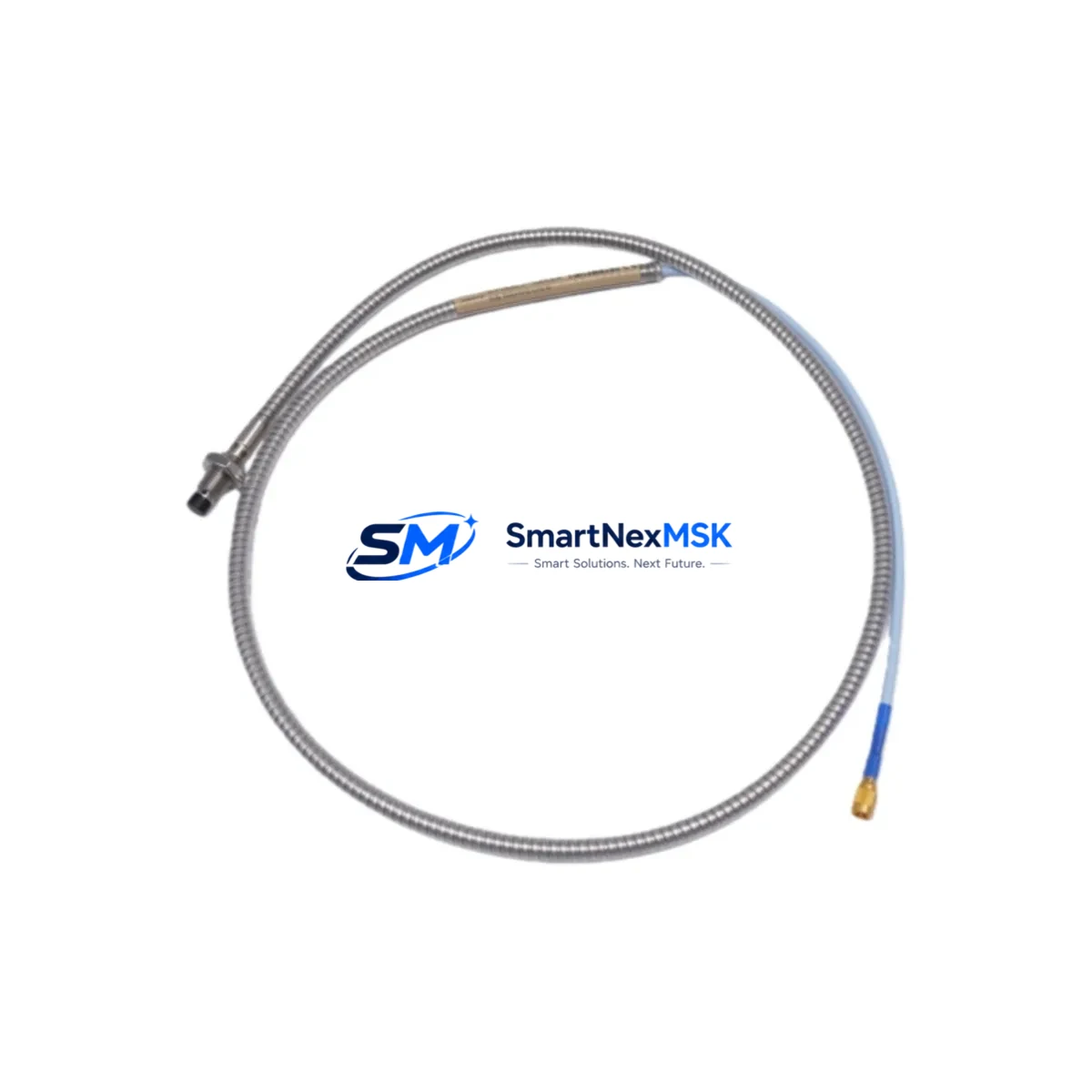

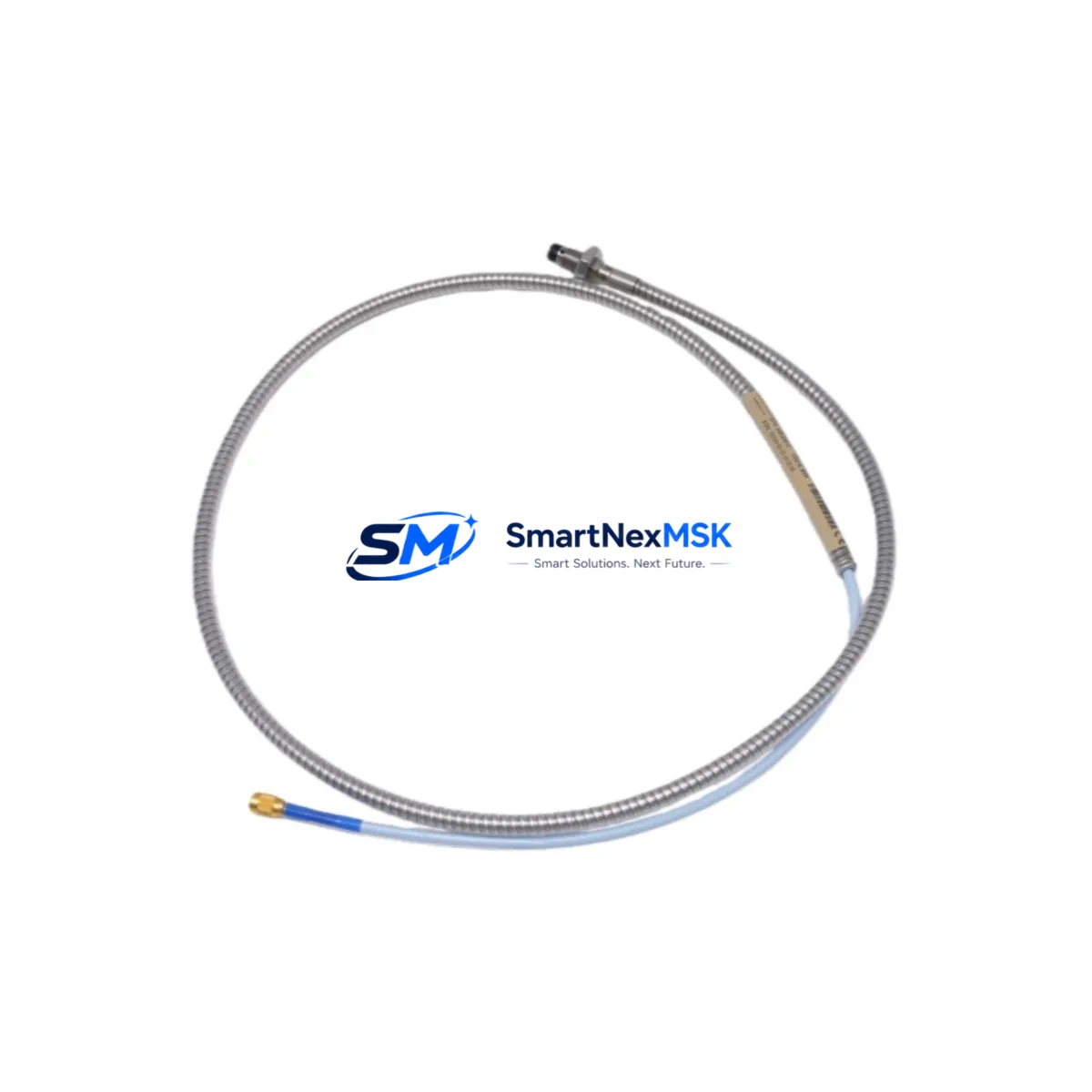

The Bently Nevada 330104-00-02-50-02-05 is an original 3300 XL Series 5mm proximity probe with a 5-meter extension cable, designed for continuous shaft vibration and position monitoring in rotating machinery. As a genuine OEM spare, this unit is a critical component in turbine protection systems, compressor trains, pump monitoring panels, and other high-availability industrial installations where unplanned downtime carries significant operational and financial risk.
For maintenance engineers managing aging Bently Nevada 3300 XL systems, sourcing a verified, tested replacement probe is the first step in a structured downtime-recovery workflow. This unit ships pre-tested against Bently Nevada factory specifications, with full documentation confirming output sensitivity (200 mV/mil), gap voltage linearity, and cable continuity — ensuring drop-in compatibility without field recalibration delays.
Procurement engineers will find this SKU stocked for immediate dispatch, supported by a 12-month warranty and traceable quality inspection records. Whether you are replenishing a critical-spares cabinet, responding to an active fault alarm, or executing a planned turnaround, the 330104-00-02-50-02-05 is available with short lead times and export documentation for international sites.
Spare Maintenance Table
| SKU / Part Number | 330104-00-02-50-02-05 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Product Type | Eddy-Current Proximity Probe |
| Probe Tip Diameter | 5 mm |
| Cable Length | 5 m (extension cable included) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) |
| Operating Gap Range | 0.25 mm – 2.25 mm (nominal linear range) |
| Supply Voltage | −24 VDC (via 3300 XL Proximitor® driver) |
| Temperature Range | −35°C to +177°C (probe tip) |
| Compatibility | Bently Nevada 3300 XL Proximitor® Sensor, 3300/16 Monitor, 3500/42 Module |
| Installation | M8 threaded body, locknut included; radial or axial mounting |
| Application Environment | Turbines, compressors, pumps, gearboxes, motors — API 670 compliant installations |
| Maintenance Recommendation | Replace probe and extension cable as a matched set; re-verify gap voltage after installation |
| Origin | USA |
| Warranty | 12 Months — tested before shipment |
Maintenance Planning for Continuous Operation
When replacing the 330104-00-02-50-02-05 in a 3300 XL monitoring loop, a thorough site inspection should extend beyond the probe itself. The matched 3300 XL Proximitor® extension cable (typically the 330130 series) must be inspected for jacket damage, connector corrosion, and continuity, as a degraded cable will introduce gap voltage errors even with a new probe installed. The 3300 XL Proximitor® driver module (e.g., 330180 series) should be checked for output voltage stability and verified against the system’s gap voltage setpoints.
At the monitor rack level, the Bently Nevada 3300/16 Dual Voting Monitor or 3500/42 Proximitor®/Seismic Monitor card should be inspected for alarm relay contact wear, OK relay status, and any latched fault conditions that may persist after probe replacement. Terminal blocks and field wiring within the junction box should be torqued to specification and checked for moisture ingress — a common cause of intermittent OK dropouts in outdoor or wash-down environments.
For installations where the 3300 XL system interfaces with a DCS or safety PLC, verify that the 4–20 mA output signal from the monitor card is reaching the DCS input card correctly. Signal isolators or galvanic isolation barriers in the loop should be tested for drift, particularly in older installations where these components may not have been replaced during previous maintenance cycles. If the system uses a Bently Nevada 3500 rack, inspect the 3500/20 Rack Interface Module and communication gateway for firmware compatibility and alarm configuration integrity.
Spare parts planning for a 3300 XL vibration monitoring system should include at minimum: the probe (330104 series), the extension cable (330130 series), the Proximitor® driver, a spare monitor card, and a set of terminal block connectors. For sites running API 670-compliant machinery protection, maintaining at least one complete probe-cable-driver set per critical machine train is standard practice to support rapid swap-out during a forced outage.
Site Replacement Workflow
Step 1 — Isolate and document: Before removing the 330104-00-02-50-02-05, record the existing gap voltage reading from the Proximitor® driver output. This baseline confirms the probe was functional and helps distinguish a probe fault from a monitor or wiring fault.
Step 2 — Remove matched set: Disconnect the extension cable at both the probe and Proximitor® ends. Remove the probe from its mounting bracket, noting the locknut position and thread engagement depth for reinstallation reference.
Step 3 — Inspect mounting surface: Check the target shaft area for surface damage, runout, or contamination. Clean the target surface and verify that the mounting boss threads are undamaged before installing the replacement probe.
Step 4 — Install and set gap: Thread the new 330104-00-02-50-02-05 into the mounting bracket and adjust the gap to achieve the nominal gap voltage specified in the system’s alarm setpoint documentation (typically −10 VDC ±0.5 V for a 1.0 mm gap). Secure the locknut without disturbing the set gap.
Step 5 — Reconnect and verify: Reconnect the extension cable, restore power to the Proximitor® driver, and confirm the OK relay energizes. Verify the gap voltage, direct vibration reading, and 4–20 mA output at the DCS or monitor display. Clear any latched alarms and confirm the system returns to normal monitoring status.
This workflow minimizes downtime by ensuring each step is completed in sequence, reducing the risk of repeat faults caused by overlooked wiring or configuration issues. For legacy 3300 XL installations being maintained beyond their original design life, this replacement procedure also provides an opportunity to document the as-found condition and flag any components approaching end-of-life for the next planned maintenance window.
Spare Parts Support FAQ
Q: Is the 330104-00-02-50-02-05 compatible with both the 3300 XL and 3500 series monitors?
A: The 330104-00-02-50-02-05 is a 3300 XL series probe optimized for use with the 3300 XL Proximitor® driver. It is also compatible with the Bently Nevada 3500/42 monitor when used with the correct Proximitor® sensor. Always verify the system’s gap voltage and sensitivity specifications before installation to confirm compatibility with your specific monitor card configuration.
Q: Should the probe and extension cable be replaced together?
A: Yes. Bently Nevada recommends replacing the probe and extension cable as a matched set, as the system is calibrated for a specific combined cable length and impedance. Mixing a new probe with an aged or damaged extension cable can introduce measurement errors and may cause nuisance OK dropouts or inaccurate vibration readings.
Q: What testing is performed before shipment?
A: Each 330104-00-02-50-02-05 unit is tested for output sensitivity, gap voltage linearity across the specified operating range, and cable continuity prior to dispatch. A quality inspection record is included with each shipment. The unit is covered by a 12-month warranty from the date of delivery.
Q: How should this spare be stored in a critical-spares inventory?
A: Store the probe in its original packaging in a dry, temperature-controlled environment away from strong magnetic fields and mechanical shock. Inspect the connector and cable jacket annually. For long-term storage beyond 24 months, re-test the probe against factory specifications before placing it into service to confirm that the eddy-current coil and cable have not degraded during storage.
