Bently Nevada 330104-00-02-50-02-CN Maintenance-Ready Spare for 3300 XL Automation

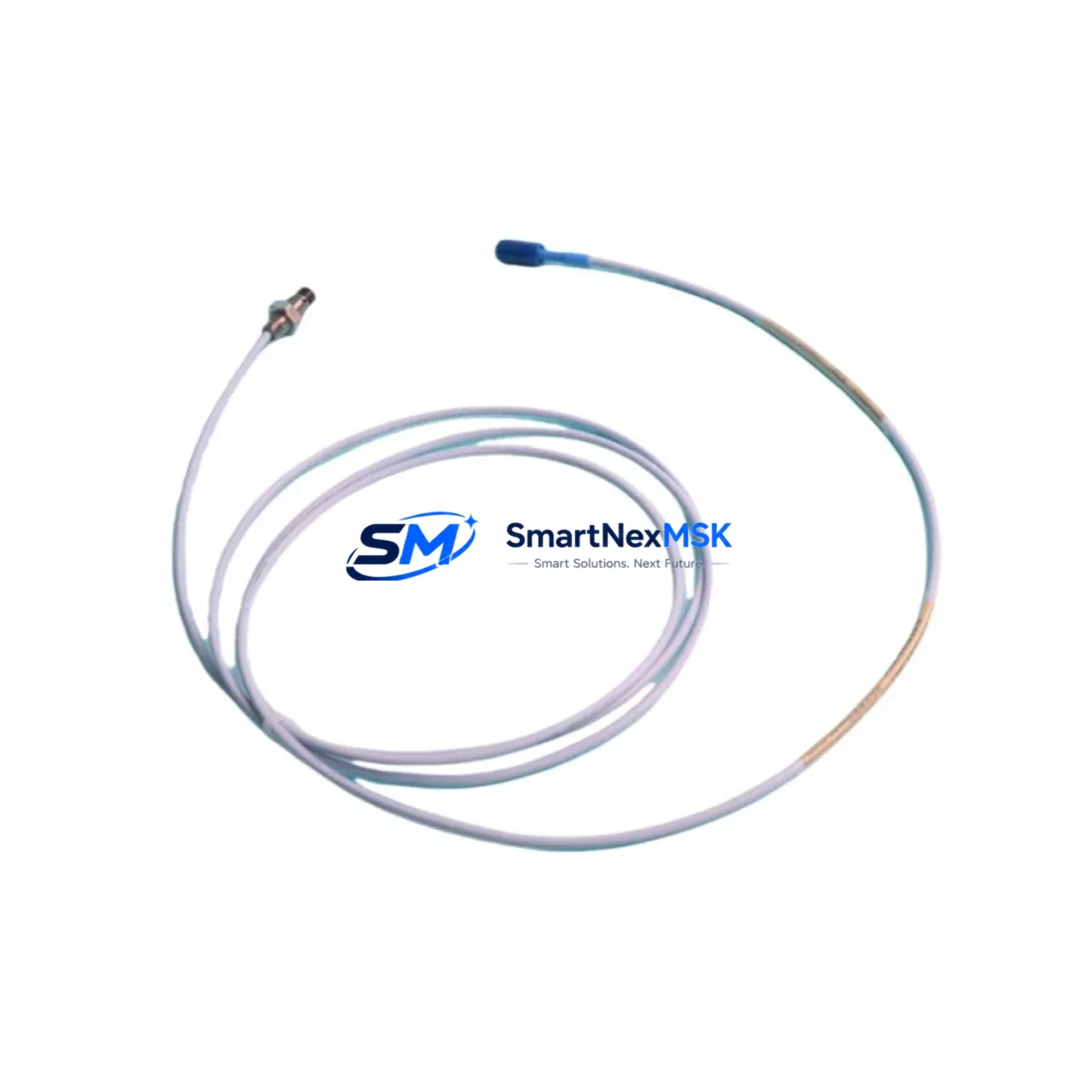

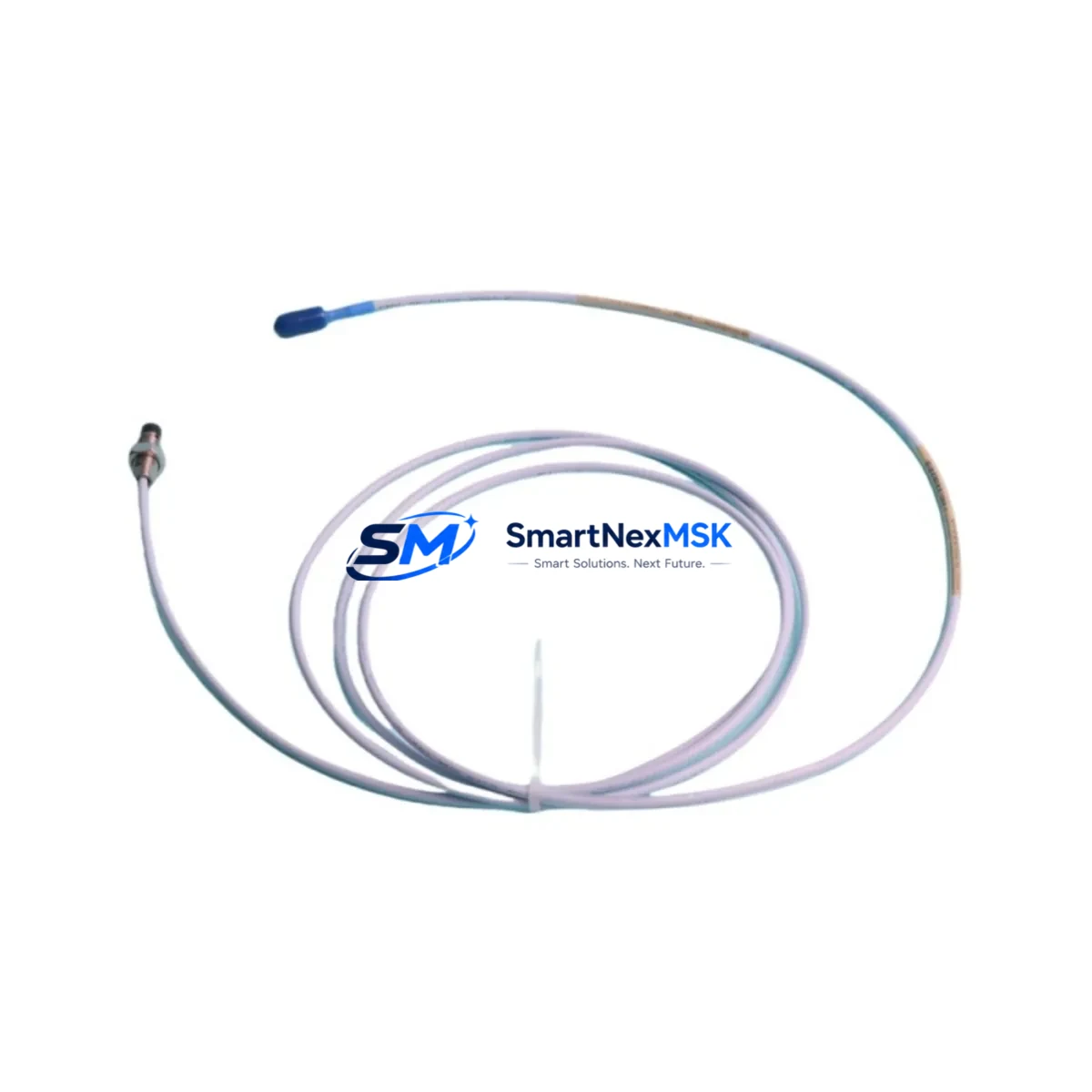

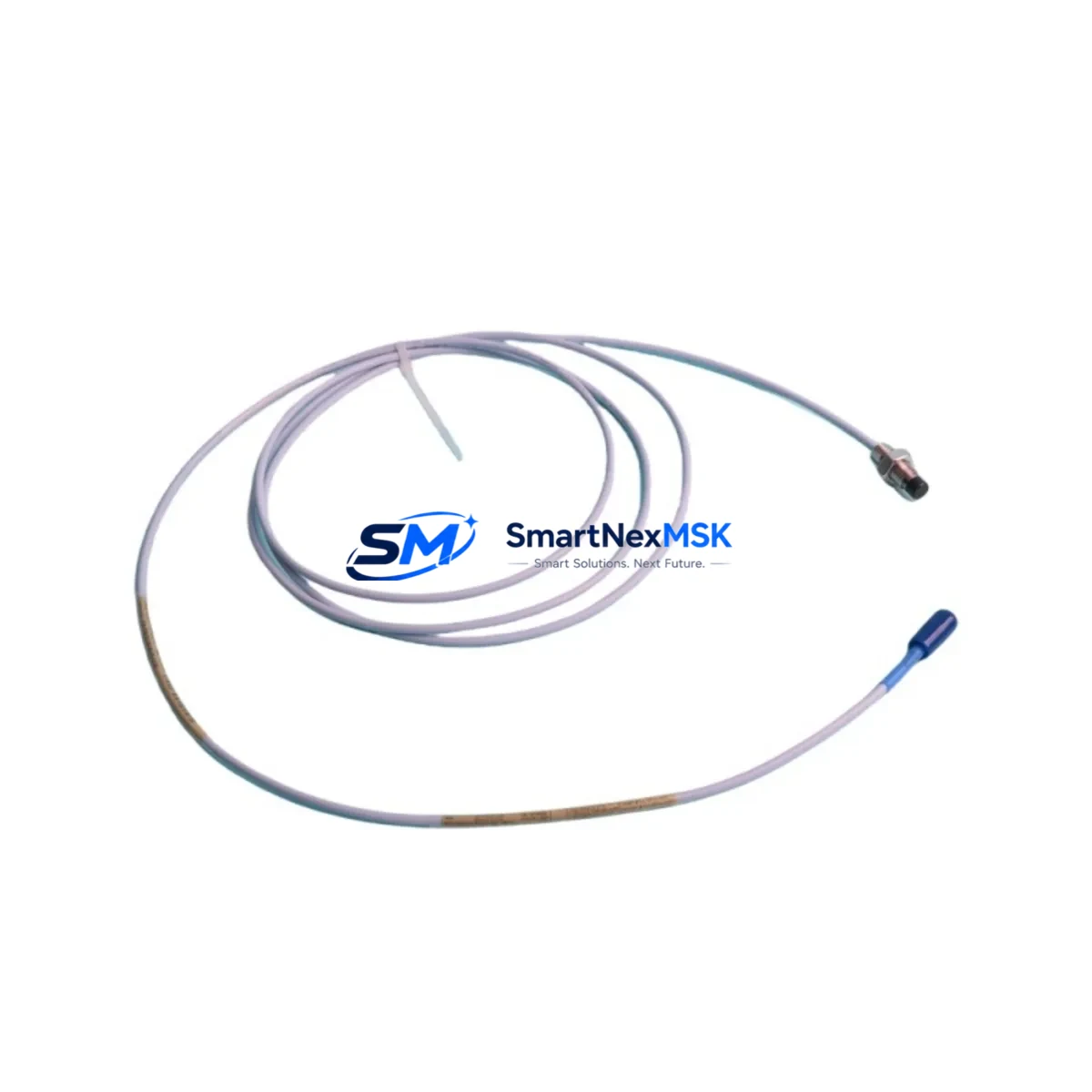

The Bently Nevada 330104-00-02-50-02-CN is an original 8mm eddy-current proximity probe engineered for the 3300 XL continuous vibration monitoring system. Designed for critical rotating machinery applications — including turbines, compressors, pumps, and motors — this probe delivers precise radial and axial shaft displacement measurements essential to predictive maintenance programs and API 670-compliant protection systems. Holding a verified replacement unit of the 330104-00-02-50-02-CN in your spare parts inventory is one of the most effective strategies for minimizing unplanned downtime in facilities where continuous vibration monitoring is a safety and reliability requirement.
For maintenance engineers managing aging 3300 XL installations, the 330104-00-02-50-02-CN represents a direct, plug-compatible replacement that requires no recalibration of the monitoring rack when the probe cable length and extension cable are matched correctly. The -50 suffix denotes a 5-metre integral cable, and the -02-CN suffix confirms the standard connector configuration used across the majority of 3300 XL field installations. Procurement engineers sourcing this part should verify the full SKU against the installed probe to avoid cable-length mismatches that can introduce signal offset errors in the Proximitor® sensor output.
Each unit shipped from our inventory undergoes pre-dispatch functional verification, is packaged in anti-static protective material, and is accompanied by a 12-month warranty covering manufacturing defects and performance conformance to Bently Nevada factory specifications.
Spare Maintenance Table
| SKU / Part Number | 330104-00-02-50-02-CN |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 XL 8mm Proximity Transducer System |
| Probe Type | Eddy-Current Proximity Probe, 8mm tip diameter |
| Integral Cable Length | 5.0 m (50 designation) |
| Connector | Standard -02-CN configuration |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Linear Range | 0.25 mm – 2.26 mm (10 – 89 mil) |
| Operating Temperature | -35°C to +177°C (probe body) |
| Target Material | AISI 4140 steel or equivalent ferromagnetic alloy |
| Compatibility | 3300 XL Proximitor® Sensor (330180 series), 3300 XL Rack Monitor |
| Application | Radial shaft vibration, axial position, differential expansion monitoring |
| Standards | API 670, ISO 10816 |
| Origin | USA |
| Warranty | 12 Months — covers manufacturing defects and performance conformance |
| Shipping | Pre-dispatch functional test, anti-static packaging, express available |
Maintenance Planning for Continuous Operation
When a 330104-00-02-50-02-CN proximity probe is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers treat the event as a trigger for a broader inspection of the entire vibration monitoring loop. The probe itself is only one element in a signal chain that must be evaluated holistically to restore reliable protection.
Begin by inspecting the 330180-91-00 Proximitor® sensor paired to the probe. The Proximitor converts the probe’s raw eddy-current signal into a calibrated DC voltage; a degraded or contaminated Proximitor can produce drift errors that mimic probe failure. If the probe is being replaced due to suspected signal noise, the Proximitor should be bench-tested or swapped simultaneously.
Next, examine the extension cable assembly (typically a 330130 series cable) connecting the probe to the Proximitor. Extension cable damage — particularly at conduit entry points and junction boxes exposed to vibration or thermal cycling — is a leading cause of intermittent signal faults that are frequently misattributed to probe failure. Inspect the cable jacket, connector pins, and shield continuity before closing the work order.
Within the 3300 XL monitoring rack, verify the condition of the 3300/20 Rack Interface Module and any installed 3300/25 or 3300/55 monitor cards associated with the replaced channel. Loose backplane connectors and oxidized card-edge contacts are common in high-vibration environments and can cause false alerts even after a probe replacement. The 3300 XL power supply module should also be checked for output voltage stability, as undervoltage conditions directly affect Proximitor bias voltage and probe sensitivity.
For facilities running integrated machinery protection, the replacement event is also an appropriate time to inspect barrier isolators or Zener barriers installed in intrinsically safe loops, terminal blocks and DIN rail assemblies within the junction box, and any signal conditioners or isolators feeding the DCS or safety PLC. If the vibration channel feeds a Bently Nevada 3500 series rack or a third-party safety system, confirm that the channel configuration and trip setpoints remain valid after the probe swap.
Facilities with aging 3300 XL installations should consider maintaining a minimum spare inventory that includes at least one 330104-00-02-50-02-CN probe, one matched extension cable, and one Proximitor sensor per critical machine train. This three-component spare set enables a complete loop replacement within a single maintenance window, eliminating the risk of a second unplanned outage caused by a secondary component failure discovered after the initial repair.
Site Replacement Workflow
Step 1 — Isolation and Lockout: Follow site LOTO procedures. Inhibit the vibration channel at the monitor rack to prevent spurious trips during probe removal. Document the existing gap voltage reading (typically -10 VDC ± 1 VDC for a correctly installed 8mm probe at the nominal gap) as a baseline for the replacement unit.
Step 2 — Probe Removal: Unthread the probe from the probe holder. Inspect the probe tip for impact damage, corrosion, or contamination. Inspect the probe holder threads and the shaft surface in the measurement zone for scoring or buildup that could affect the new probe’s gap setting.
Step 3 — Installation and Gap Setting: Install the 330104-00-02-50-02-CN and set the air gap to the value specified in the machine’s vibration monitoring datasheet (commonly 1.0 mm to 1.5 mm for most rotating equipment). Use a calibrated gap-setting tool or a non-ferrous feeler gauge. Connect the integral cable to the extension cable and verify connector seating.
Step 4 — Signal Verification: With the Proximitor powered, measure the output DC voltage at the monitor rack input terminals. Confirm the gap voltage is within the linear range and matches the pre-removal baseline within acceptable tolerance. Check for noise on the signal using an oscilloscope if available.
Step 5 — System Restoration: Remove the channel inhibit, restore normal monitoring, and confirm that the rack display shows valid vibration and gap readings. Update the maintenance management system with the replacement record, including the new probe serial number and gap voltage.
This workflow is compatible with both direct 3300 XL replacements and cross-upgrades from earlier Bently Nevada 7200 series probes where adapter hardware is available, enabling legacy system life extension without full rack replacement.
Spare Parts Support FAQ
Q1: Is the 330104-00-02-50-02-CN a direct replacement for earlier Bently Nevada 330104 variants with different cable lengths?
The 330104 series probes share the same 8mm tip geometry and sensitivity specification, but the integral cable length (encoded in the -50 suffix, indicating 5 metres) must match the installed extension cable to maintain the correct total system cable length required by the Proximitor. Substituting a probe with a different cable length without adjusting the extension cable will shift the Proximitor’s operating point and may cause calibration errors. Always verify the full part number before ordering.
Q2: What pre-shipment testing is performed on each unit?
Each 330104-00-02-50-02-CN unit undergoes electrical continuity verification, insulation resistance testing, and functional output voltage confirmation using a calibrated Proximitor driver prior to dispatch. Units that do not meet Bently Nevada factory output specifications are quarantined and not shipped. A test record is available upon request.
Q3: How should this spare be stored to maintain long-term reliability?
Store the probe in its original anti-static packaging in a dry environment between -40°C and +85°C, away from strong magnetic fields and mechanical shock. Inspect the connector and cable jacket annually if the spare is held in long-term inventory. The probe tip should not be exposed to ferromagnetic particles during storage, as surface contamination can affect the eddy-current field geometry.
Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects, connector failures, cable jacket integrity, and output voltage non-conformance under normal operating conditions. Warranty claims are initiated by contacting our technical support team with the unit serial number, purchase order reference, and a description of the observed fault. We will arrange return shipping and provide a replacement or repair within an agreed lead time. Warranty does not cover damage resulting from incorrect installation, gap setting errors, or exposure to conditions outside the published operating range.
