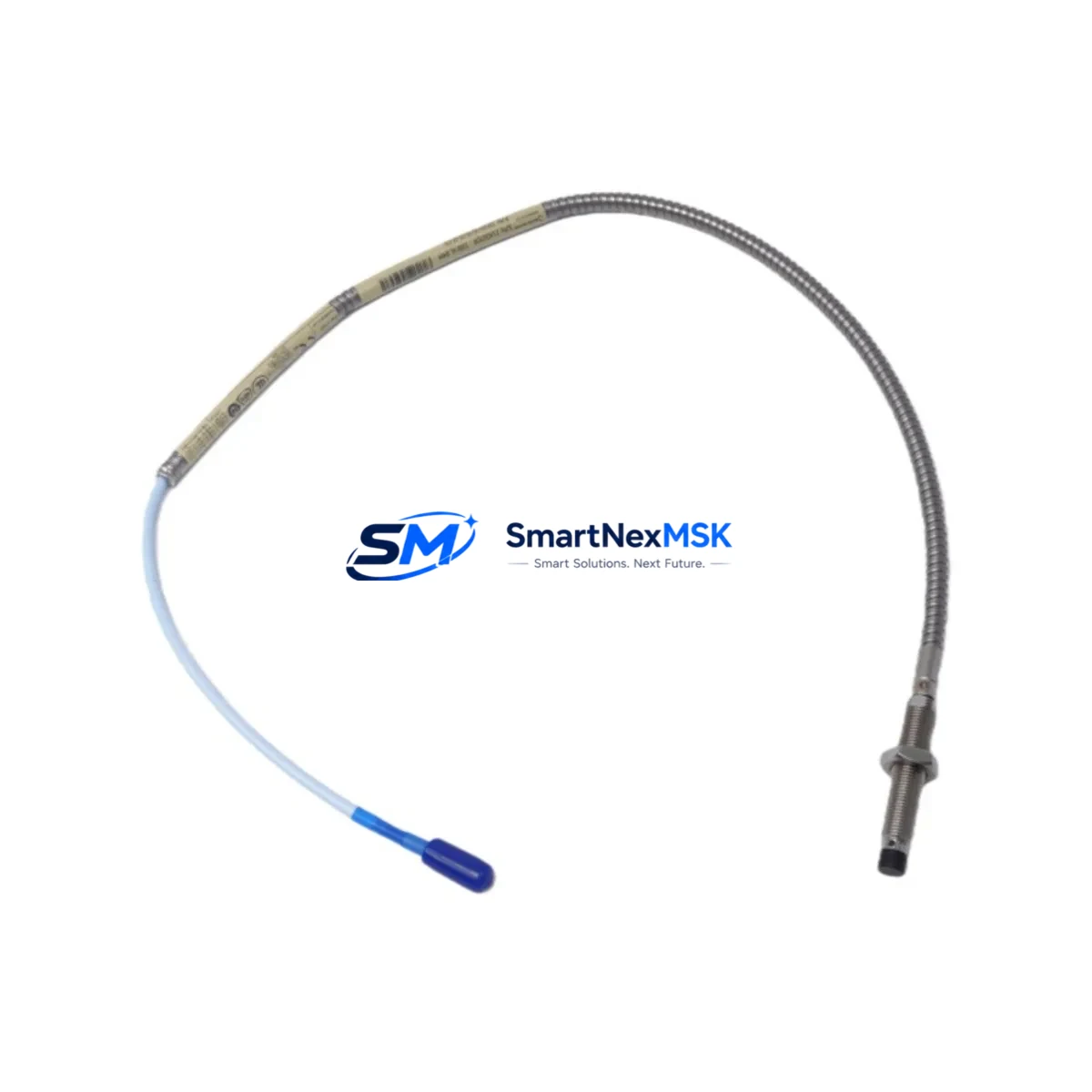

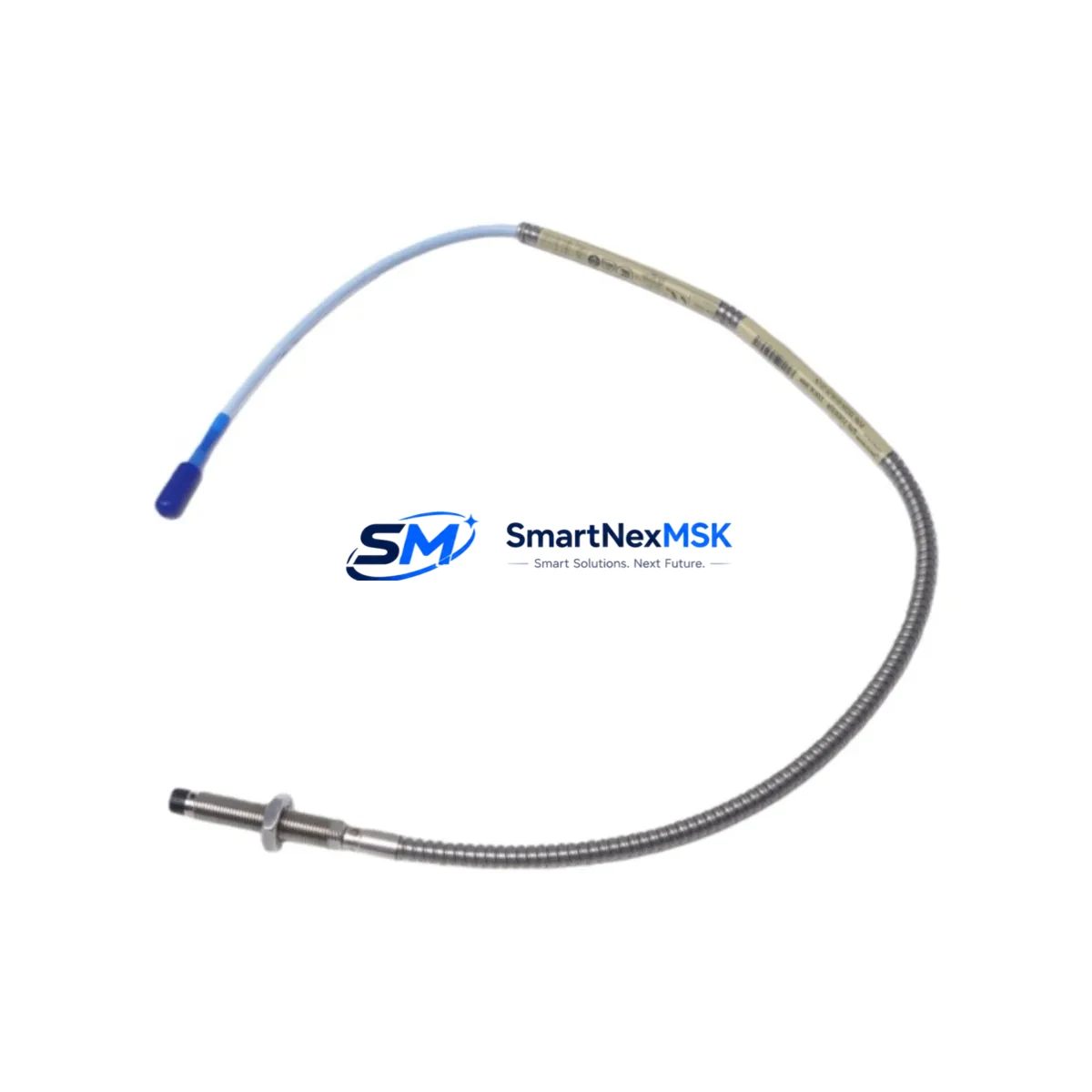

The Bently Nevada 330104-00-05-05-01-05 is a 5-mm proximity probe engineered for seamless integration into legacy and active 3300 XL Series vibration monitoring systems. Whether you are replacing a failed probe on a critical rotating machine, upgrading an aging condition monitoring loop, or restoring a decommissioned panel to full operational status, this probe delivers the dimensional accuracy, cable geometry, and signal output required for a verified drop-in substitution — without reprogramming the host monitor or recalibrating the entire measurement chain.

Industrial facilities running Bently Nevada 3300 XL monitors frequently encounter obsolescence challenges: original probes reach end-of-life, spare parts inventories are depleted, and OEM lead times extend beyond acceptable maintenance windows. The 330104-00-05-05-01-05 addresses this directly by maintaining full electrical and mechanical compatibility with the 330180 Proximitor® Sensor and the broader 3300 XL signal conditioning architecture. The probe tip diameter, thread pitch, and armored cable assembly conform to the original factory specification, allowing field technicians to complete a swap during a planned outage without modifying existing conduit runs or junction box wiring.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-00-05-05-01-05 begins well before the maintenance window opens. Engineering teams should pull the existing loop drawing and confirm the 330180 Proximitor barrier terminal assignments, the junction box cable entry points, and the I/O card slot address within the 3300 XL rack. If the rack also houses a 3300/16 XL Dual Voting Logic card or a 3300/55 XL Keyphasor® module, those cards must remain powered during the probe swap to avoid triggering a spurious trip on the safety relay output.

For facilities that have already migrated their DCS to a newer platform — such as a System 1 condition monitoring software environment — the analog output from the 330180 Proximitor feeds directly into the existing 3500/42M or legacy 3300 series I/O interface without signal conversion. This means the HMI trend displays, alarm setpoints, and historical data buffers in System 1 remain intact after the probe replacement, eliminating the need for a full re-commissioning of the vibration monitoring loop.

When the control cabinet also contains a 3300/20 XL Radial Vibration Monitor alongside relay output modules and a TK-3 Transducer Qualification Kit, technicians should use the TK-3 to simulate probe output and verify that the monitor card responds correctly before installing the physical probe. This step is especially important in applications where the machine cannot be run at speed for a functional check — such as large compressors, steam turbines, or cooling tower fans with long restart cycles.

Extension cable routing is another critical planning item. The 330130-045-00-00 extension cable must be routed away from high-voltage power cables and VFD output conductors to prevent induced noise on the proximity signal. If the existing conduit shares space with 24 VDC power supply wiring for other field instruments, a dedicated shielded conduit run is recommended. The shield drain wire must be terminated at one end only — typically at the Proximitor barrier — to avoid ground loops that corrupt the DC gap voltage reading.

For sites upgrading from an older 3300/05 XL or 3300/10 XL monitor to a current-generation card, the probe itself does not change — only the monitor card slot assignment and the rack backplane address require updating in the System 1 configuration database. This makes the 330104-00-05-05-01-05 a cost-effective anchor component in a phased upgrade strategy where the probe and extension cable are standardized first, and the monitor electronics are refreshed in a subsequent outage.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured hot-swap protocol. Before breaking the probe connection, the technician should place the affected 3300 XL monitor channel into bypass mode using the front-panel keyswitch or the System 1 software inhibit function. This prevents the open-circuit condition during disconnection from triggering a machine trip through the relay output card.

The original program logic — including vibration alarm setpoints, danger thresholds, and time-delay relay settings — is stored in the monitor card’s non-volatile memory and is not affected by a probe replacement. There is no need to re-enter setpoints or reload configuration files after installing the 330104-00-05-05-01-05, provided the monitor card itself is not replaced in the same outage. This significantly reduces the commissioning time and the risk of human error during parameter re-entry.

Once the new probe is installed and the gap voltage is confirmed within specification, the channel inhibit is released and the monitor resumes normal operation. The entire procedure — from isolation to return-to-service — can typically be completed within a two-hour maintenance window on a machine that remains at rest, making this probe an ideal choice for facilities that operate on tight turnaround schedules.

All units are functionally tested prior to shipment. The pre-shipment test verifies gap sensitivity, cable continuity, and shield integrity, ensuring that the probe arrives ready for immediate installation without requiring bench testing on site.

Retrofit Support FAQ

Q1: Is the 330104-00-05-05-01-05 a direct replacement for the original Bently Nevada probe in my 3300 XL system?
Yes. This probe maintains the same tip diameter, thread specification, cable geometry, and output sensitivity as the original factory part. It is compatible with the 330180 Proximitor and all 3300 XL monitor cards without modification to the existing wiring or configuration.

Q2: What gap voltage should I set during commissioning?
The nominal gap voltage is −10.0 VDC ± 0.5 V, measured at the Proximitor output with the probe tip at the manufacturer-specified air gap (typically 1.0–1.5 mm depending on target material). Use a calibrated voltmeter or the Bently Nevada TK-3 Transducer Qualification Kit to verify the gap before releasing the channel from bypass.

Q3: Can I use this probe with a 3500 Series monitor if I am migrating from a 3300 XL rack?
The 330104-00-05-05-01-05 probe and its associated 330180 Proximitor are designed for the 3300 XL platform. If you are migrating to a 3500 Series rack, you will need to evaluate whether the 3500/42M or 3500/40M monitor card accepts the same Proximitor output signal. In many cases, the Proximitor output is compatible, but the rack wiring and I/O termination block assignments will differ. Contact our technical team for a migration assessment.

Q4: What does the 12-month warranty cover, and is a pre-shipment test included?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Every unit undergoes a pre-shipment functional test verifying gap sensitivity, cable continuity, and shield integrity. Test records are available upon request for quality documentation purposes.
