Bently Nevada 330104-00-06-10-02-00 3300 XL Probe

Bently Nevada 330104-00-06-10-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

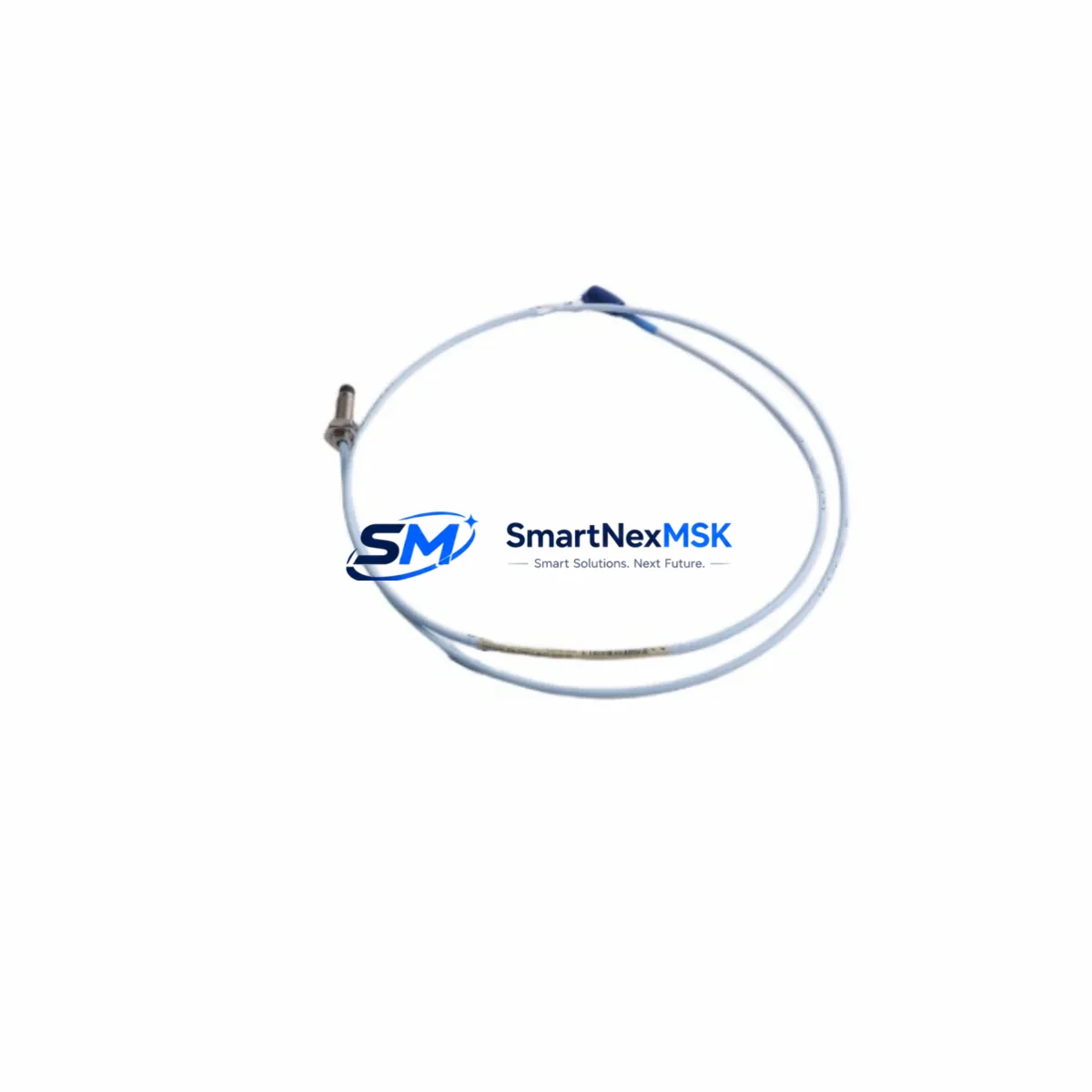

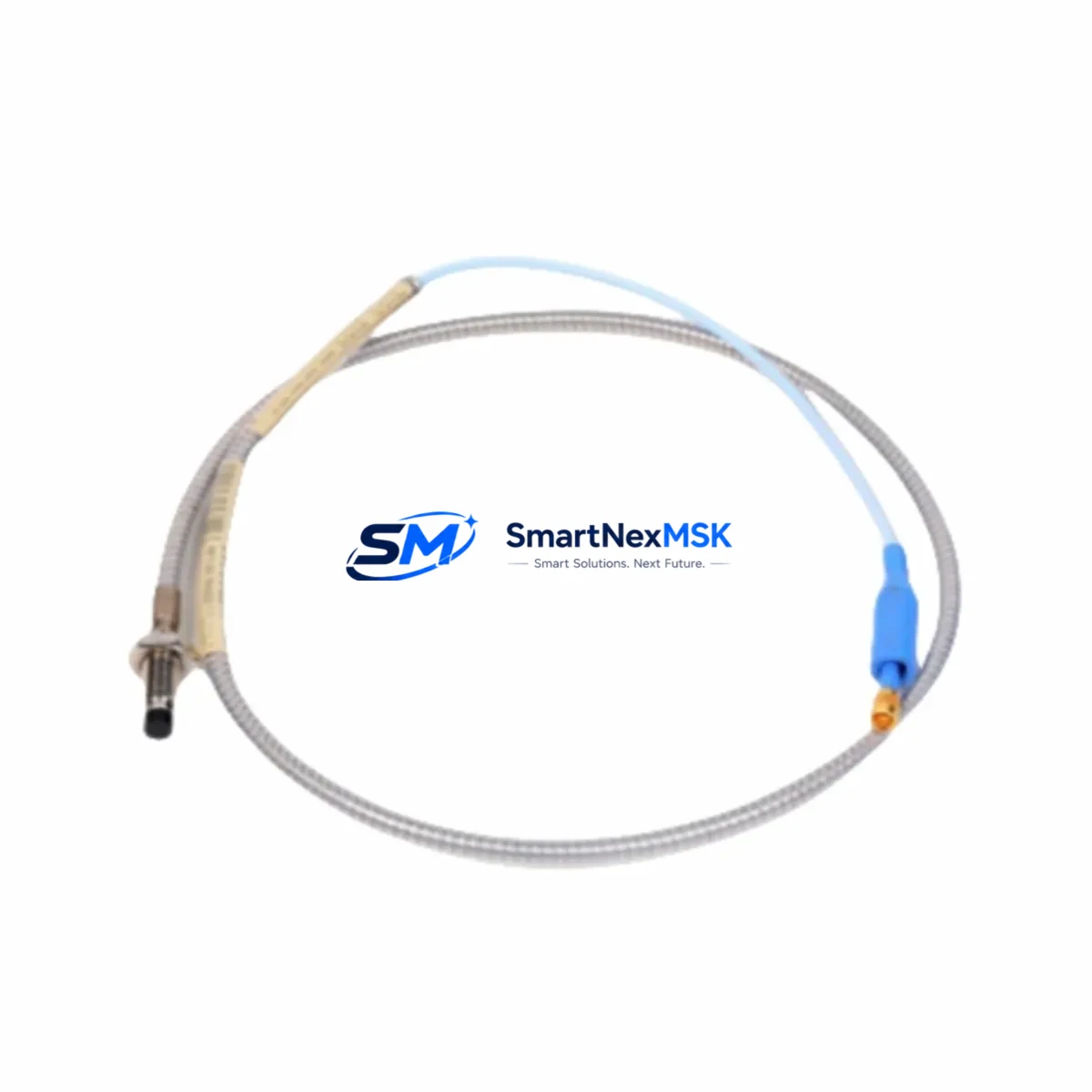

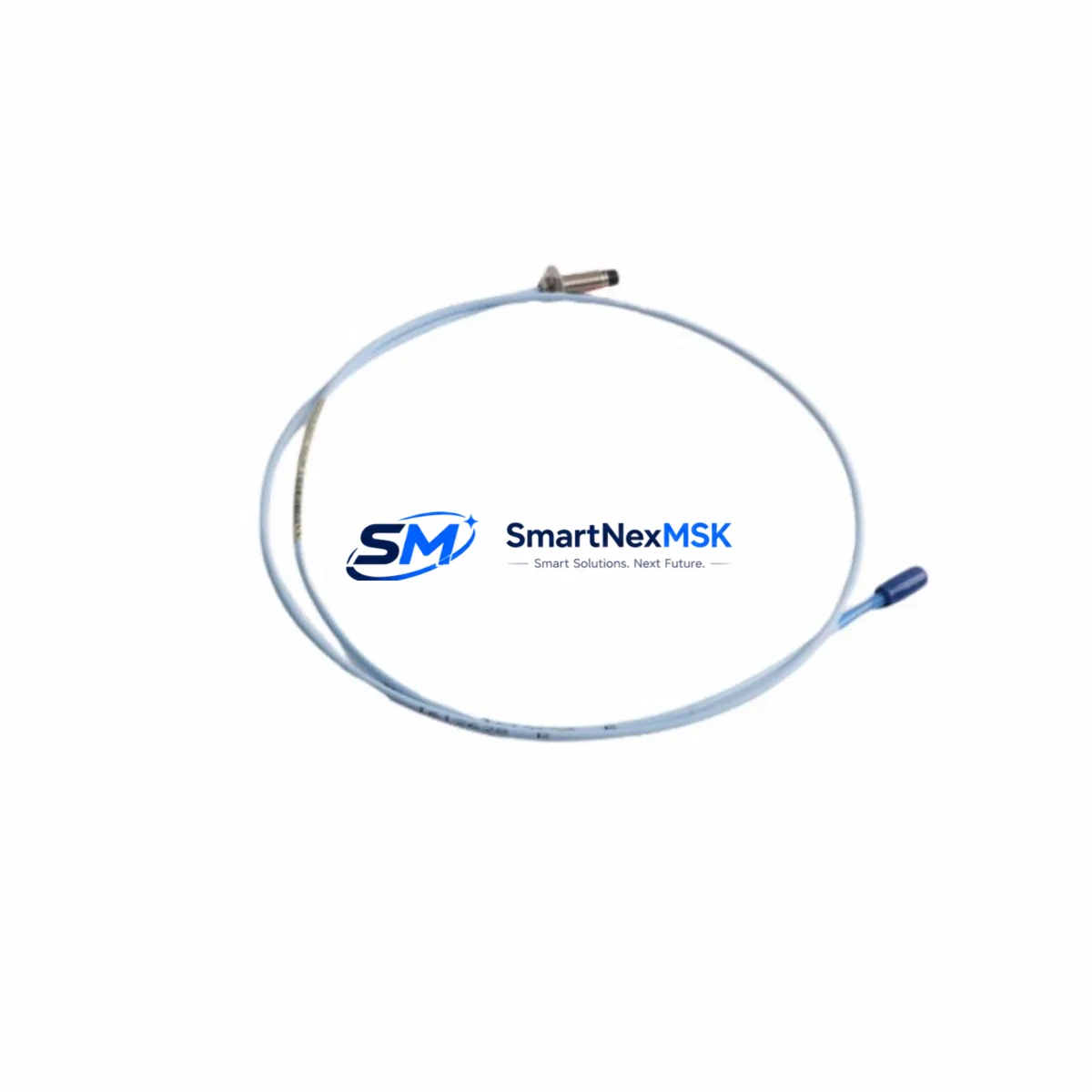

The Bently Nevada 330104-00-06-10-02-00 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications worldwide. As legacy installations age and OEM support windows close, this probe remains a critical retrofit and replacement component for facilities operating steam turbines, compressors, pumps, and gearboxes that depend on continuous shaft vibration monitoring for safe operation.

Whether you are replacing a failed probe in an emergency shutdown scenario, upgrading an aging 3300 Series installation to the 3300 XL standard, or consolidating spare parts inventory ahead of a planned outage, the 330104-00-06-10-02-00 provides a verified drop-in solution with full electrical and mechanical compatibility. Each unit ships pre-tested against Bently Nevada factory specifications, with a 12-month warranty covering manufacturing defects and performance conformance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting the 330104-00-06-10-02-00 into an existing machinery protection cabinet requires a structured approach that goes well beyond simply swapping the probe. Field engineers must begin by auditing the full transducer chain: the probe itself, the extension cable (typically a 330130-series armored cable in 3300 XL installations), and the Proximitor sensor module mounted inside the control cabinet. If the existing Proximitor is a legacy 3300/05 driver, it must be replaced with a 3300 XL-compatible unit such as the 330180-X1-05 before the new probe will operate within specification.

Inside the control cabinet, the 3300 XL monitor rack — often a 3500/22M or 3500/42M transient data interface card — must be verified for firmware compatibility with the updated transducer chain. If the rack is running older firmware, a field upgrade using the System 1 configuration software may be required before the new probe’s gap voltage readings will be accepted without a channel fault alarm. Engineers should also inspect the terminal block wiring on the I/O side: the coaxial shield drain must be grounded at one end only to prevent ground loop interference that can corrupt vibration amplitude readings.

Power supply capacity is another critical checkpoint. The 3300 XL Proximitor draws power from the monitor rack’s internal -24 VDC bus. If the rack is already loaded with multiple channels — for example, a full complement of 3500/15 power supply modules feeding eight or more transducer channels — the addition of a replacement probe channel should be validated against the total current budget. Overloaded power rails are a common cause of intermittent NOT OK alarms after retrofit work.

For facilities migrating from older Bently Nevada 7200 Series probes to the 3300 XL platform, the physical mounting geometry will differ. The 7200 Series used a 14mm probe body, so existing probe holders and brackets must be replaced or re-bored to accept the 8mm thread of the 330104-00-06-10-02-00. A new gap setting procedure is mandatory: the standard air gap for 8mm probes is typically 1.0–1.5mm, verified with a digital voltmeter reading -18 VDC ±1V at the Proximitor output terminals.

Where the machinery protection system feeds a DCS or SCADA platform — for example, a Honeywell Experion PKS or Emerson DeltaV system — the analog 4–20mA output from the 3300 XL monitor card must be re-ranged in the DCS I/O configuration if the probe’s sensitivity factor differs from the previous installation. OPC-DA or OPC-UA gateway configurations should also be reviewed to ensure tag scaling reflects the new transducer chain’s output range. Failure to update these parameters will result in incorrect vibration trend data in the historian and may mask developing machinery faults.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all components before the maintenance window opens. The 330104-00-06-10-02-00 should be bench-tested against a known-good Proximitor sensor before the machine is taken offline, confirming that the gap voltage output falls within the -17 to -19 VDC acceptance band. This eliminates the risk of discovering a defective replacement unit after the machine has already been shut down.

Before disconnecting the existing probe, the current vibration baseline — including 1X and 2X amplitude, phase angle, and DC gap voltage — should be recorded from the 3500 Series monitor display or exported from the System 1 software historian. These values serve as the commissioning acceptance criteria for the replacement probe. If the new probe’s gap voltage or sensitivity factor produces readings that differ by more than 5% from the baseline, the gap must be re-adjusted and the Proximitor output re-verified before the machine is returned to service.

For critical machinery where continuous monitoring cannot be interrupted — such as main steam turbines or high-pressure compressors — a temporary bypass relay can be used to hold the OK output in the energized state during the probe swap, preventing a spurious trip signal from reaching the emergency shutdown system. This bypass must be authorized under the facility’s management of change procedure and removed immediately after the new probe is confirmed in service. The entire swap sequence, from machine coast-down to probe verification and bypass removal, can typically be completed within a two-hour maintenance window when all components are pre-staged and the engineering team is familiar with the 3300 XL transducer chain.

Retrofit Support FAQ

Q1: Is the 330104-00-06-10-02-00 a direct drop-in replacement for earlier 330104 revisions?
In most cases, yes. The 330104-00-06-10-02-00 is electrically and mechanically compatible with earlier 330104 revisions used in 3300 XL installations. However, you should verify the Proximitor driver part number and confirm that the gap voltage calibration is performed after installation, as minor sensitivity variations between production batches can affect the DC gap reading by ±0.5V.

Q2: What commissioning checks are required after installation?
After installing the probe and setting the air gap, measure the DC gap voltage at the Proximitor output terminals with the machine stationary. The reading should be -18 VDC ±1V. Next, verify that the monitor channel’s OK relay is energized and that no channel fault alarms are present on the 3500 Series rack display. Finally, confirm that the vibration amplitude reading at slow-roll speed is consistent with the pre-outage baseline before returning the machine to full-speed operation.

Q3: Can this probe be used with non-Bently Nevada monitor systems?
The 330104-00-06-10-02-00 outputs a standard eddy-current proximity signal compatible with any monitor that accepts a -18 VDC bias voltage transducer input. It can be interfaced with third-party vibration monitors provided the monitor’s input impedance and bias voltage supply are compatible with the 3300 XL Proximitor specification. Always verify the monitor’s input specification before connecting a non-Bently Nevada driver.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects in materials and workmanship, as well as electrical performance conformance to the 3300 XL transducer specification. It does not cover damage resulting from incorrect installation, mechanical impact, chemical contamination, or operation outside the specified temperature and gap range. Warranty claims require return of the defective unit with a completed failure report describing the installation conditions and observed fault mode.
