Bently Nevada 330104-00-08-10-01-CN Retrofit 3300 XL Probe: Compatible Modernization for Legacy Vibration Monitoring Systems

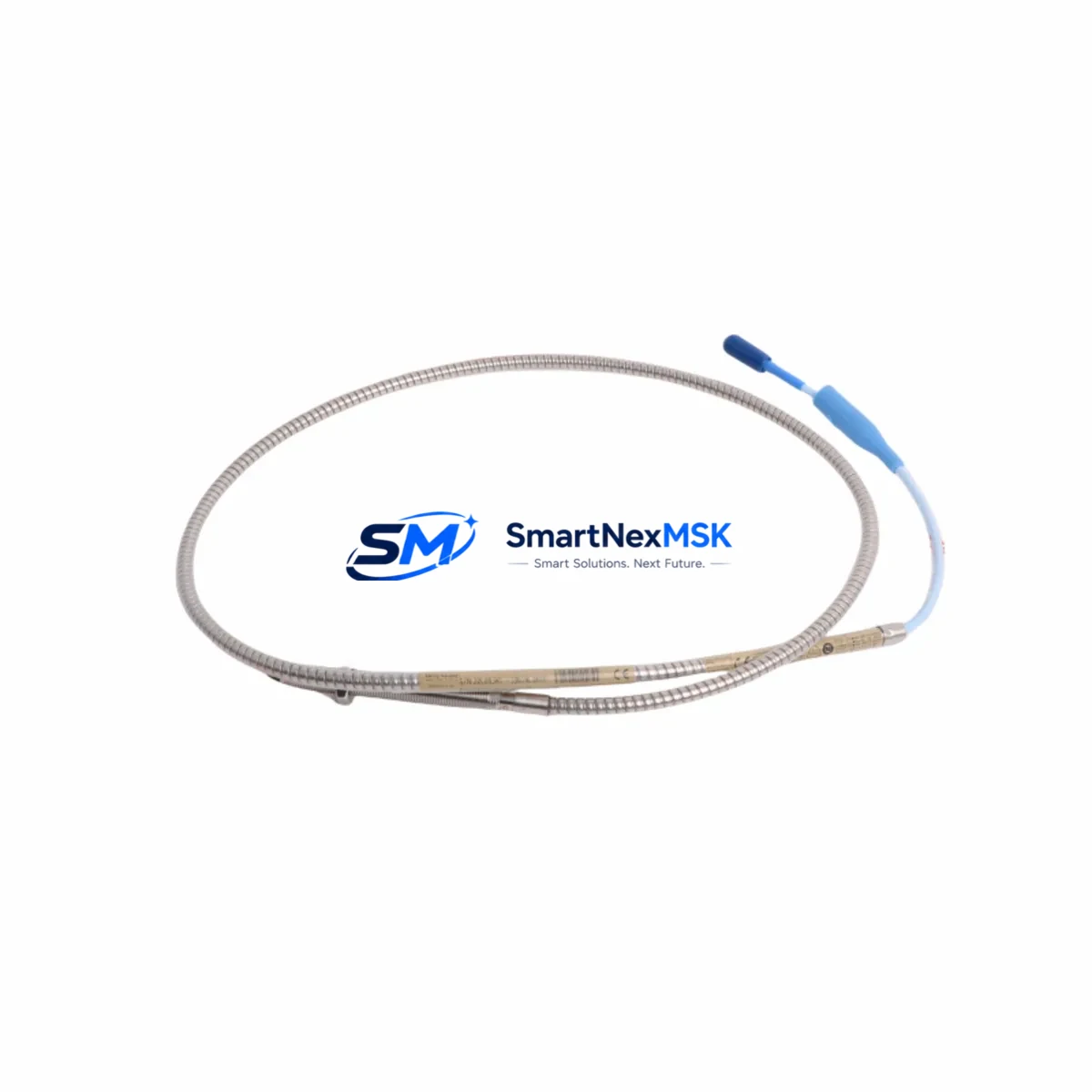

The Bently Nevada 330104-00-08-10-01-CN is an 8mm eddy current proximity probe engineered for the Bently Nevada 3300 XL vibration monitoring platform. Designed as a direct retrofit replacement for aging or discontinued probe assemblies, this unit supports smooth migration from legacy 3300 Series installations to current-generation monitoring architectures without requiring full system overhaul. Whether you are managing a turbine protection panel, compressor train, or pump monitoring cabinet, this probe delivers the dimensional accuracy, gap voltage linearity, and signal integrity required for continuous machinery protection.
The 330104-00-08-10-01-CN is part of the 3300 XL 8mm Proximity Transducer System, which includes the probe, extension cable, and proximitor sensor as a matched set. When retrofitting, engineers must confirm that the replacement probe is paired with a compatible Bently Nevada 3300 XL 8mm Proximitor Sensor (such as the 3300/16-05-01-01-00-00-00) and the correct 3300 XL Extension Cable to maintain system calibration. Mismatched cable lengths or proximitor models will shift the gap voltage output and invalidate vibration amplitude readings.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 330104-00-08-10-01-CN |
| Series | Bently Nevada 3300 XL |
| Probe Tip Diameter | 8mm Eddy Current |
| Cable Length | 1.0m (probe body) |
| Installation Type | Threaded, direct mount — compatible with existing 3300 Series probe holders |
| Proximitor Compatibility | 3300 XL 8mm Proximitor Sensor (matched set required) |
| Extension Cable Compatibility | 3300 XL Extension Cable, matched length to maintain calibration |
| Communication / Signal | Analog voltage output (–24 VDC supply), standard 3300 XL signal chain |
| Replaces / Supersedes | Legacy 3300 Series 8mm probes; discontinued Bently Nevada probe assemblies |
| Retrofit Recommendation | Replace probe, extension cable, and proximitor as a matched set for full calibration integrity |
| Commissioning Note | Verify gap voltage at –12 VDC nominal; re-enter probe factor in monitoring rack if changed |
| Warranty | 12-Month Warranty — covers manufacturing defects and signal performance |
Retrofit Planning for Existing Automation Systems
Retrofitting a vibration monitoring loop in an operating plant requires careful sequencing to avoid unplanned shutdowns. The 330104-00-08-10-01-CN integrates into the existing Bently Nevada 3500 Series Monitoring Rack or legacy 3300 Series rack infrastructure without requiring new conduit runs, provided the original probe holder thread and clearance dimensions are preserved. Before pulling the old probe, technicians should document the current gap voltage reading and compare it against the original commissioning sheet to establish a baseline for the replacement unit.
In systems where the Bently Nevada 3500/42M Proximitor I/O Module or 3500/40M Proximitor Monitor is installed, the probe factor and scale factor stored in the rack configuration must be verified against the replacement probe’s calibration data sheet. If the plant is migrating from an older 3300/55 Dual Voting Monitor to a current 3500-series card, this probe replacement is an ideal entry point for a phased upgrade — the probe and cable can be swapped first, with the monitor card replaced in a subsequent planned outage.
For plants running Bently Nevada System 1 condition monitoring software, the probe channel configuration in the software database must be updated to reflect the new probe serial number and calibration coefficients. Failure to update System 1 records can result in false alarm thresholds or masked vibration trends. Similarly, if the plant uses a DCS integration via Modbus or 4–20mA output from the 3500 rack, the analog output scaling should be re-verified after probe replacement to confirm that the DCS historian is receiving accurate engineering-unit values.
Terminal wiring for the 330104-00-08-10-01-CN follows the standard 3300 XL coaxial cable convention: the probe body connects to the extension cable via the standard MIL-spec connector, and the extension cable terminates at the proximitor sensor barrier terminal. In hazardous-area installations, confirm that the Bently Nevada Zener Barrier or galvanic isolator in the junction box is rated for the probe’s drive frequency and that the intrinsic safety documentation remains current after the swap. The 3300 XL Junction Box and field wiring should be inspected for corrosion or moisture ingress before the new probe is energized.
Where I/O expansion is part of the upgrade scope — for example, adding axial position monitoring alongside radial vibration — the 3500/45 Position Monitor or an additional 3500/42M channel can be added to the existing rack without disturbing the probe wiring already in service. This modular approach minimizes the scope of any single outage window and allows the plant to validate each new channel before proceeding to the next.
Downtime Control During System Migration
Minimizing unplanned downtime during a probe retrofit begins with pre-staging all replacement components — probe, extension cable, proximitor sensor, and any required junction box hardware — before the maintenance window opens. The 330104-00-08-10-01-CN ships pre-tested and includes a calibration data sheet, allowing the technician to pre-configure the rack channel offline using the documented probe factor before the machine is taken off-line.
Where the plant protection philosophy permits, a temporary bypass of the vibration trip channel (with appropriate management-of-change authorization) allows the probe to be replaced while the machine remains in service, with the channel returned to active protection immediately after gap voltage is confirmed within specification. This approach is commonly used in turbine and compressor applications where a full outage carries significant production cost.
Original PLC or DCS program logic does not require modification for a like-for-like probe replacement within the same 3300 XL system family. The analog signal chain — probe → extension cable → proximitor → rack monitor → 4–20mA or relay output — remains identical, preserving all existing HMI display configurations, historian tags, and alarm setpoints. If the replacement is part of a broader migration from a 3300-series rack to a 3500-series rack, the program logic at the DCS level will require re-mapping of I/O addresses, but the field probe wiring itself remains unchanged, significantly reducing field labor time.
Post-replacement commissioning should include a static gap check, a dynamic signal verification using a calibrated oscilloscope or the rack’s built-in OK relay status, and a functional test of the trip and alarm relay outputs. Document all as-found and as-left readings in the plant maintenance management system to support future reliability analysis and regulatory compliance.
Retrofit Support FAQ
Q1: Is the 330104-00-08-10-01-CN a direct drop-in replacement for my existing 3300 XL 8mm probe?
Yes, provided the replacement probe is paired with the correct 3300 XL 8mm extension cable and proximitor sensor as a matched set. The probe body thread, tip diameter, and signal output are identical to the original 3300 XL specification. Always verify the gap voltage after installation against the original commissioning baseline.
Q2: Do I need to reconfigure my 3500 rack or DCS after replacing the probe?
For a like-for-like replacement within the same 3300 XL system, no rack reconfiguration is required. However, if the probe factor on the calibration data sheet differs from the value stored in the rack, update the rack configuration accordingly. DCS scaling and HMI tag assignments remain unchanged.
Q3: Can this probe be used in hazardous-area (Ex) installations?
The 330104-00-08-10-01-CN is designed for use with the standard 3300 XL intrinsic safety barrier and zener barrier accessories. Confirm that the existing barrier certification and entity parameters are compatible with the replacement probe before energizing in a classified area. Consult the plant’s Ex documentation and the Bently Nevada system approval certificate.
Q4: What does the 12-month warranty cover, and how is it supported?
The 12-month warranty covers manufacturing defects, signal output non-conformance, and mechanical integrity of the probe body and connector. Each unit is functionally tested prior to shipment. Warranty claims are supported by SMARTNEXMSK with replacement or repair, and all units ship with a test report. Contact our technical team for RMA procedures if a warranty issue arises during the coverage period.
