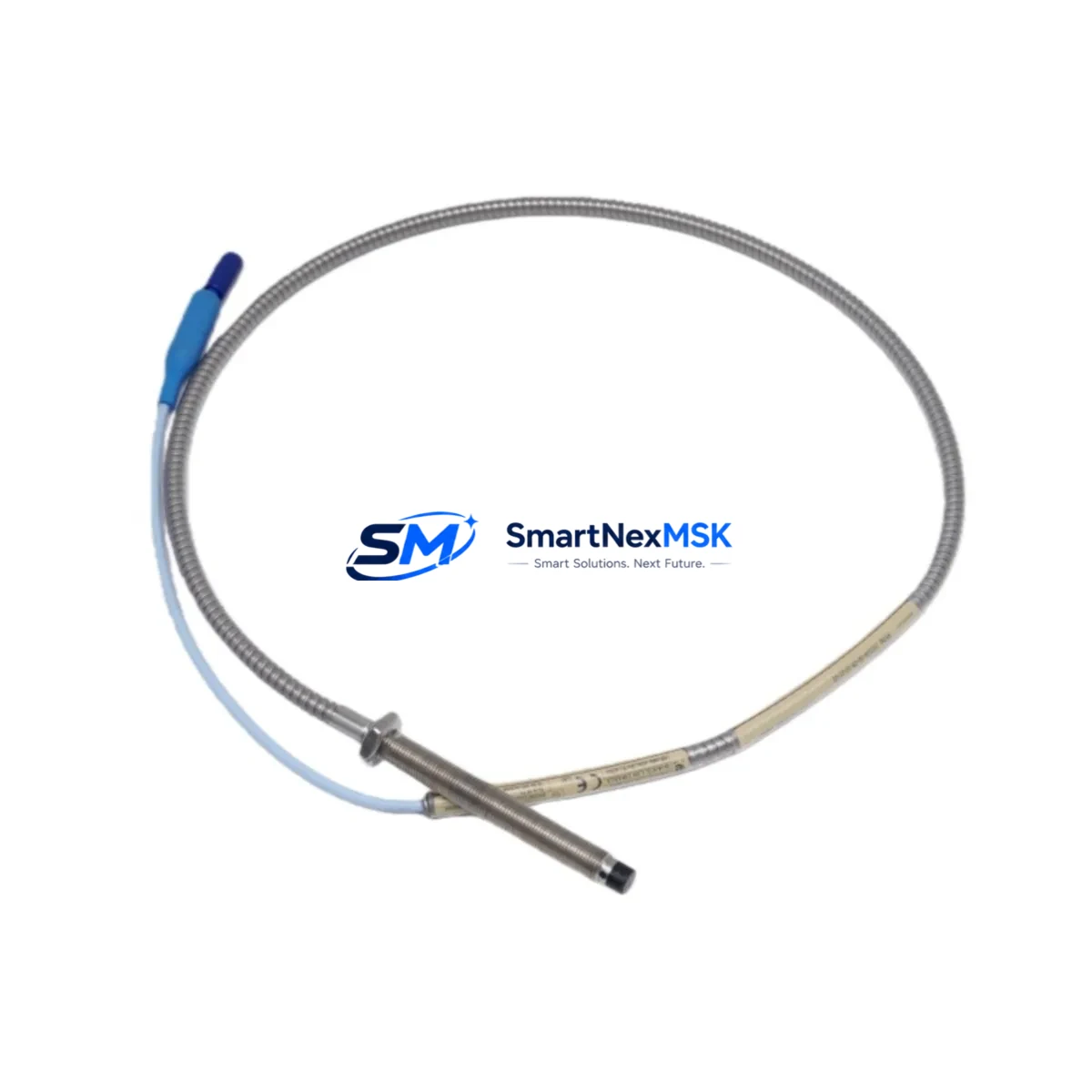

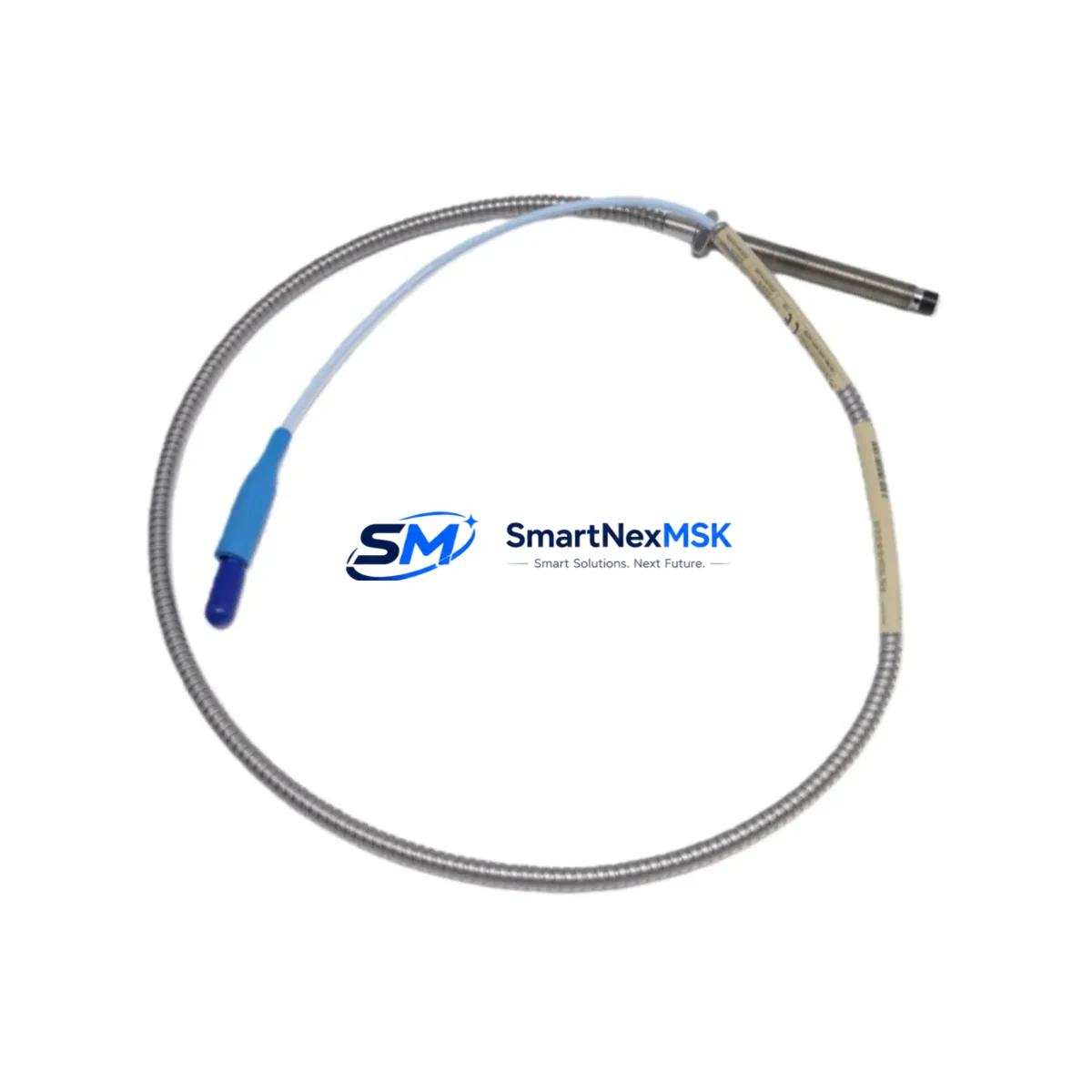

The Bently Nevada 330104-00-08-50-12-00 is an 8 mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. As the primary sensing element in rotating machinery protection circuits, this probe measures radial shaft displacement and delivers real-time feedback to the 3300 XL monitor rack. When this component degrades or fails, the entire vibration monitoring loop is compromised — leaving turbines, compressors, pumps, and motors without protection against catastrophic mechanical failure.

Maintaining a verified spare on the shelf is not optional in high-availability industrial environments; it is a fundamental requirement of any responsible maintenance strategy. At SMARTNEXMSK, every 330104-00-08-50-12-00 unit is sourced from authorized supply channels, inspected against OEM specifications, and shipped with full traceability documentation. Our 12-month warranty covers functional performance under normal operating conditions, giving maintenance engineers and procurement teams the confidence to stock this probe as a long-term replacement asset.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-00-08-50-12-00 proximity probe is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A thorough inspection of the entire vibration monitoring loop is essential to restore full system integrity and prevent repeat failures.

Begin with the 330130 Series extension cable connecting the probe to the Proximitor sensor. Extension cables are subject to mechanical stress, connector corrosion, and insulation degradation — particularly in high-temperature or high-vibration environments. A compromised cable will produce erratic gap voltage readings even with a new probe installed. Inspect the full cable run, connectors, and conduit entry points before closing the cabinet.

Next, verify the condition of the 330180 Series 3300 XL 8mm Proximitor Sensor. This oscillator-demodulator converts the probe’s impedance change into a DC voltage signal. If the Proximitor has been exposed to voltage transients or moisture ingress, its output linearity may be degraded. Bench-test the Proximitor against a known-good probe before reinstalling the assembly.

Within the 3300 XL Monitor Rack, inspect the I/O module and the monitor card assigned to the affected channel. Loose terminal connections on the 3300 XL I/O Module are a common source of intermittent alarms misdiagnosed as probe failures. Torque all terminal screws to specification and verify channel configuration in the rack software. For sites running a Bently Nevada 3500 Series rack in parallel or as a migration target, confirm that the probe-cable-Proximitor combination is compatible with the 3500/42M Proximitor I/O Module before commissioning — mismatched scale factors will cause incorrect vibration readings and potential false trips.

Do not overlook the power supply module feeding the monitor rack. A sagging or noisy DC rail — typically a dedicated 24 VDC or 28 VDC supply — can introduce noise into the gap voltage signal and trigger nuisance alarms. Measure rail voltage under load and inspect the power supply’s output capacitors if the unit has been in service for more than five years.

In control cabinets housing both vibration monitoring and process control equipment, inspect signal isolators on the 4–20 mA outputs from the monitor rack. These isolators protect DCS or PLC input cards from ground loops and transient voltages. Degraded isolators can corrupt vibration data at the control system level even when the probe and monitor are functioning correctly.

Review the relay output module within the 3300 XL rack. Relay contacts used for alarm and trip outputs should be tested for continuity and proper actuation. A welded or high-resistance relay contact can prevent a legitimate trip signal from reaching the turbine control system, creating a dangerous latent fault. Pair this inspection with a functional test of the connected solenoid valve or trip relay in the machinery protection circuit.

Finally, check the terminal blocks and grounding bars inside the control cabinet. Loose or corroded terminals on signal wiring are a frequent root cause of measurement drift in eddy-current monitoring systems. Re-torque all signal terminals and verify shield grounding continuity at the rack end. Stocking the 330104-00-08-50-12-00 alongside its associated extension cable, Proximitor sensor, and a spare I/O module card creates a complete replacement kit that enables single-shift restoration of vibration monitoring capability — minimizing production loss and eliminating the risk of operating unprotected rotating machinery.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Inhibit the affected channel in the 3300 XL monitor rack to prevent a false trip during probe removal. Document the existing gap voltage reading before disconnection.

Step 2 — Probe Removal: Disconnect the extension cable at the Proximitor end first. Unthread the probe from the mounting bracket using the correct spanner. Note the installed gap (typically 1.0–1.5 mm for 8 mm probes on steel targets) using a feeler gauge or the gap voltage reference chart.

Step 3 — New Probe Installation: Thread the 330104-00-08-50-12-00 into the bracket and set the gap to the documented value. Reconnect the extension cable. Apply anti-vibration thread-locking compound if specified by the OEM installation guide.

Step 4 — Gap Voltage Verification: With the shaft stationary, measure the DC gap voltage at the Proximitor output. For an 8 mm probe with a 1.0 mm gap on AISI 4140 steel, the expected output is approximately −7.87 VDC. Adjust gap as needed to achieve the target voltage within ±0.25 VDC.

Step 5 — Channel Reinstatement and Functional Test: Remove the channel inhibit in the rack software. Observe the vibration reading during machine run-up. Confirm the reading is stable, within historical baseline, and that no alarms are active. Log the replacement in the site CMMS.

This workflow supports both direct replacement of legacy 330104 Series probes and migration from older 7200 Series probe systems, provided the correct Proximitor and extension cable are used. The 330104-00-08-50-12-00 is a drop-in replacement for worn or damaged probes in existing 3300 XL installations, requiring no rack reconfiguration when the same probe diameter and cable length are maintained.

Spare Parts Support FAQ

Q1: What is the recommended spare parts inventory strategy for the 330104-00-08-50-12-00 in a critical rotating machinery application?
For turbines, compressors, and other critical machines monitored by the 3300 XL system, industry best practice recommends holding a minimum of two probe-cable-Proximitor assemblies per machine train as on-site cold spares. For plants with multiple identical machines, a pooled spare strategy with three to five assemblies per probe model is cost-effective. SMARTNEXMSK supports bulk procurement with volume pricing and long-term supply agreements to support multi-year maintenance plans.

Q2: How is each 330104-00-08-50-12-00 unit tested before shipment?
Every unit undergoes electrical continuity verification, insulation resistance testing, and gap voltage linearity confirmation against a calibrated test rig prior to packaging. Units that do not meet OEM-equivalent performance thresholds are quarantined and not shipped. A test report is available upon request for quality-critical procurement requirements.

Q3: Can the 330104-00-08-50-12-00 replace older Bently Nevada 330100 Series probes?
The 330104-00-08-50-12-00 is part of the 3300 XL product family and is designed for use with 3300 XL Proximitor sensors. It is not directly interchangeable with the legacy 330100 Series without verifying Proximitor compatibility. If your site is running older 330100-compatible Proximitors, contact our technical team to confirm the correct replacement path before ordering.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as defined by Bently Nevada installation guidelines. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside specified environmental limits. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the failure mode. Replacement units are dispatched within 5 business days of claim approval.
