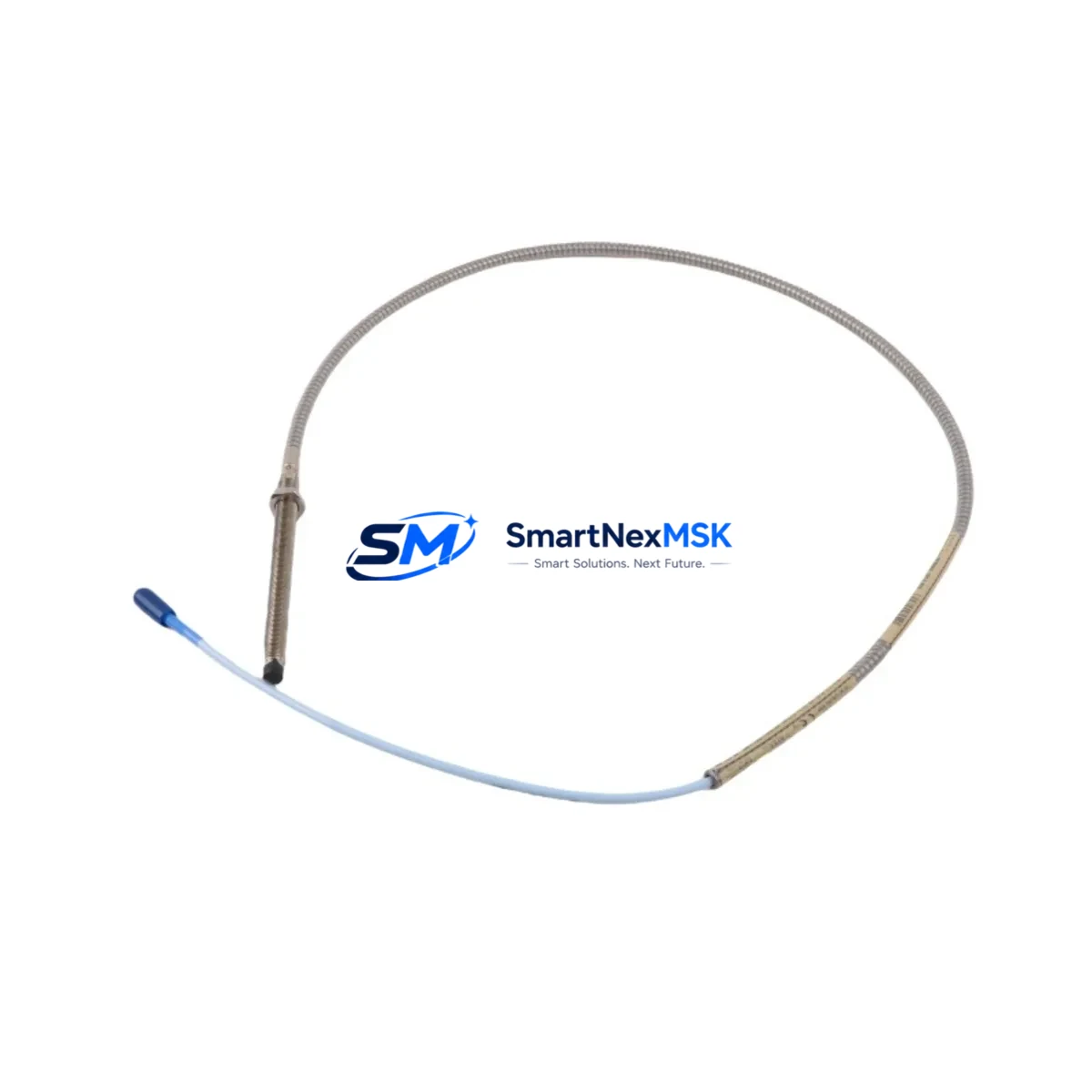

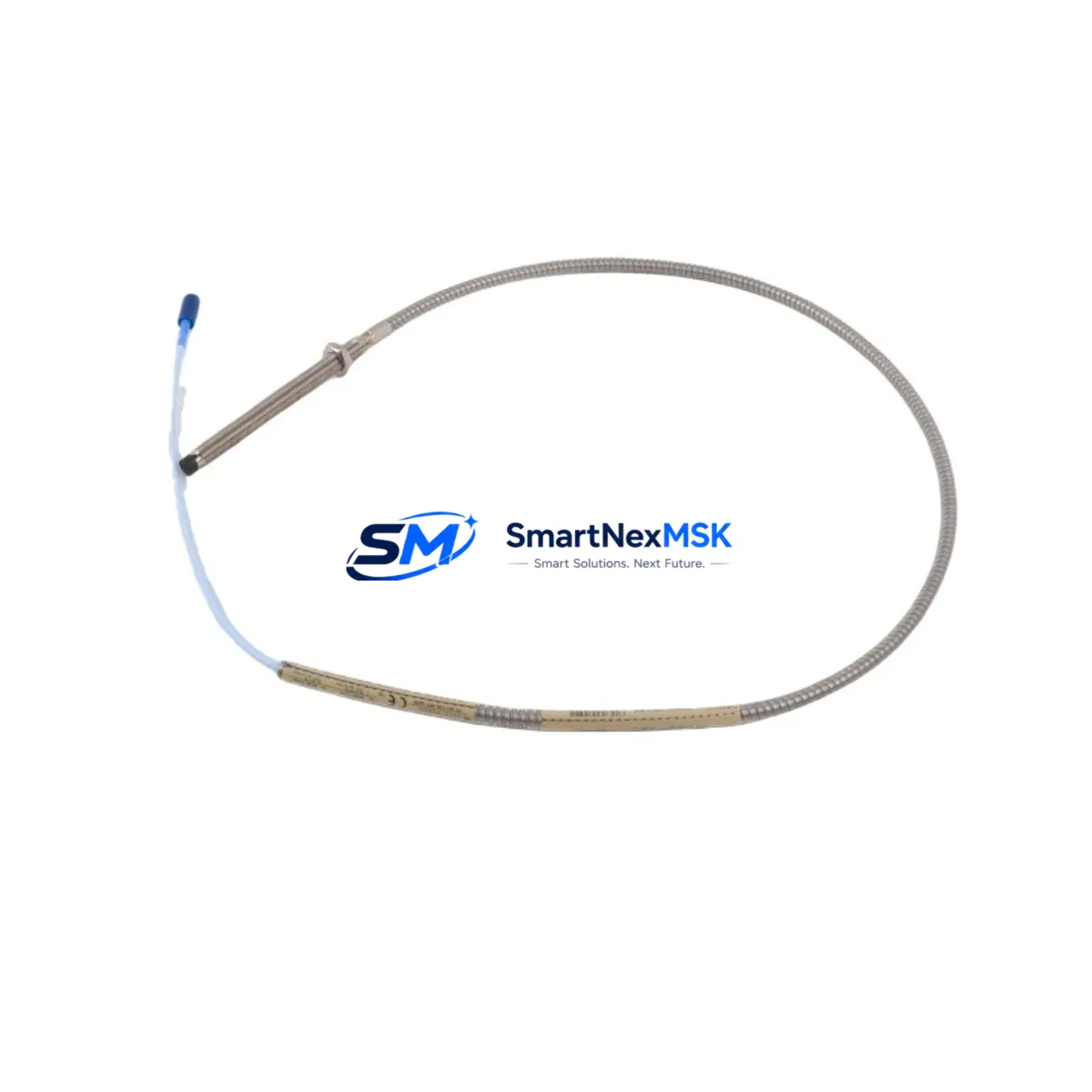

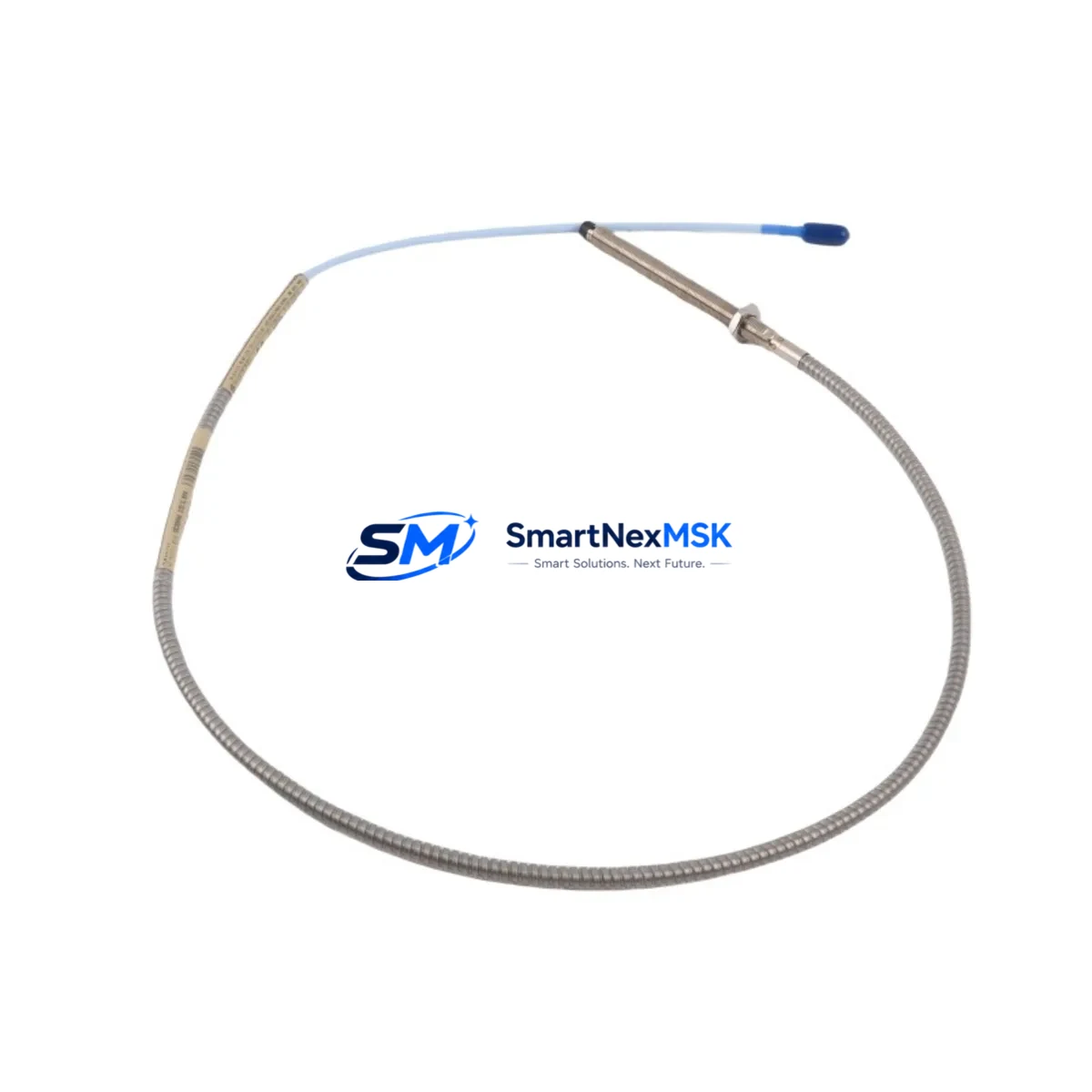

Bently Nevada 330104-00-11-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330104-00-11-10-01-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Proximity Transducer System. As legacy vibration monitoring infrastructure ages across rotating machinery installations — turbines, compressors, pumps, and gearboxes — this probe serves as a verified drop-in replacement for discontinued or worn-out field sensors. Whether you are executing a planned outage upgrade, responding to an unplanned sensor failure, or modernizing a control cabinet that still runs original 3300 XL hardware, this unit delivers the dimensional accuracy, cable geometry, and signal output required for seamless integration without reprogramming the monitoring rack.
Procurement teams and reliability engineers sourcing this SKU typically face one of three scenarios: a direct like-for-like swap of a failed probe in an existing 3300 XL channel, a partial system upgrade where the 3300 XL Extension Cable and 3300 XL Proximitor Sensor are retained while only the probe tip is replaced, or a full rack modernization where the probe is paired with a new 3500/42M Proximitor Monitor module and the existing field wiring is reused. In all three cases, the 330104-00-11-10-01-00 is compatible, provided the installation gap, sensitivity factor, and cable length are verified against the original system documentation.
Upgrade Compatibility Table
| Parameter | 330104-00-11-10-01-00 Specification | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8mm | Matches standard 3300 XL 8mm channel; no bracket modification required |
| Cable Length | 1.0m integral cable | Verify total system cable length with extension cable; max system length per Bently Nevada spec |
| Sensitivity | 7.87 V/mm (200 mV/mil) | Matches 3300 XL Proximitor calibration; no monitor recalibration needed for like-for-like swap |
| Target Material Compatibility | AISI 4140 steel (standard) | Confirm shaft material; non-standard alloys require sensitivity correction factor |
| Connector Type | Standard Bently Nevada coaxial | Direct mating with 3300 XL Extension Cable connector; no adapter required |
| Operating Temperature | -35°C to +120°C | Suitable for high-temperature bearing housings and turbine pedestals |
| Monitor Compatibility | 3300 XL, 3500 Series | Compatible with 3500/42M, 3500/40M, and legacy 3300 XL rack monitors |
| Installation Gap | 1.0mm nominal (per channel config) | Set gap voltage to -10.0 VDC ±0.5V at nominal gap; verify with Proximitor output |
| Warranty | 12-Month Warranty — covers manufacturing defects; includes pre-shipment functional test report | |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330104-00-11-10-01-00 into an operating plant begins well before the maintenance window opens. The first step is a full audit of the existing transducer chain. This means documenting the installed 3300 XL Proximitor Sensor model number, the length and condition of the 3300 XL Extension Cable, and the rack slot assignment of the associated 3500/42M Proximitor Monitor or legacy 3300 XL monitor card. If the existing Proximitor is also due for replacement, it is common practice to order the probe and Proximitor as a matched set to ensure the sensitivity calibration remains consistent across the channel.
For installations where the control cabinet also houses a 3500/20 Rack Interface Module or a 3500/22M Transient Data Interface, the retrofit plan must account for any Modbus or Ethernet/IP communication links that feed vibration data to the plant DCS or historian. Replacing the probe alone will not interrupt these links, but if the Proximitor is also swapped, the technician must verify that the new unit’s output scaling matches the alarm setpoints configured in the 3500 Rack Configuration Software. Failure to do so can result in nuisance trips or, more critically, missed alarm conditions during the post-commissioning period.
In older installations where the vibration monitoring rack feeds a System 1 Condition Monitoring Platform or a third-party SCADA via a TDXnet Data Acquisition Module, the retrofit team should also confirm that the channel tag assignments and engineering unit conversions are preserved after the probe swap. This is particularly important in multi-shaft train configurations — such as a gas turbine driving a compressor through a gearbox — where the 3500/45 Position Monitor and 3500/50M Tachometer Module share the same rack and any channel renumbering can cascade into incorrect speed and position readings on the HMI.
Physical installation considerations include confirming that the probe mounting boss thread (M10 x 1.0 for standard 8mm probes) is clean and undamaged, that the armored cable routing does not create a bend radius tighter than the probe cable specification, and that the field junction box connector is free of moisture ingress. If the existing extension cable shows signs of insulation degradation or connector corrosion, it should be replaced simultaneously with the probe to avoid introducing a new fault into a freshly commissioned channel.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational constraint in any proximity probe retrofit. For a single-channel swap of the 330104-00-11-10-01-00, the typical on-site replacement time — from isolating the channel at the 3500/20 Rack Interface Module to restoring normal monitoring — is under two hours when the replacement probe and extension cable are staged in advance. The critical path is the gap-setting procedure: the technician must use a calibrated DC voltmeter to set the probe-to-shaft gap to the correct voltage (nominally -10.0 VDC) before the channel can be returned to service.
To protect the original program logic and alarm configuration during the migration, the recommended practice is to export the full rack configuration from the 3500 Rack Configuration Software before beginning any hardware work. This configuration file captures all channel parameters — sensitivity, alarm setpoints, OK limits, and communication tag assignments — and can be reloaded in minutes if a monitor card is inadvertently reset during the probe replacement. For plants running the System 1 Evolution software suite, the historian trend data for the affected channel should be archived before the outage to preserve the pre-retrofit baseline for post-commissioning comparison.
In cases where the machine cannot be taken offline for a full probe replacement, some facilities opt for a hot-standby approach using a spare 3500/42M Proximitor Monitor card pre-configured in a bench rack. The new probe and Proximitor are commissioned and verified offline, then swapped into the live rack during a brief process hold. This approach reduces the channel-offline window to under 15 minutes and is particularly effective in continuous-process industries where even a short unplanned shutdown carries significant production cost.
Retrofit Support FAQ
Q1: Is the 330104-00-11-10-01-00 a direct replacement for the original Bently Nevada probe in my 3300 XL system?
Yes. This probe is dimensionally and electrically equivalent to the original 3300 XL 8mm proximity probe specification. It mates directly with the standard 3300 XL Extension Cable and Proximitor Sensor without requiring any bracket modification, cable adapter, or monitor recalibration, provided the existing Proximitor is calibrated for 200 mV/mil sensitivity.
Q2: What commissioning checks are required after installation?
After physical installation, set the probe-to-shaft gap to achieve a Proximitor output of -10.0 VDC ±0.5V at the nominal gap distance. Verify the OK relay status at the 3500/42M or 3300 XL monitor card, confirm that the channel is reading within the expected vibration baseline for the machine, and check that the System 1 or DCS historian is receiving valid data on the channel tag. Document the as-left gap voltage and initial vibration reading in the maintenance record.
Q3: Does the probe ship with a functional test report, and what does the 12-month warranty cover?
Yes. Each unit ships with a pre-shipment functional test report confirming sensitivity, OK voltage range, and cable continuity. The 12-month warranty covers manufacturing defects in the probe body, integral cable, and connector. It does not cover damage resulting from incorrect gap setting, mechanical impact, or installation in an environment exceeding the rated temperature range. Warranty claims are processed through sales@smartnexmsk.com with the test report and purchase order as reference documents.
Q4: Can this probe be used with the newer 3500 Series monitors, or is it limited to 3300 XL racks?
The 330104-00-11-10-01-00 is compatible with both the legacy 3300 XL rack and the current 3500 Series monitoring platform, including the 3500/42M Proximitor Monitor. This makes it suitable for phased upgrade projects where the field probes and extension cables are replaced first, and the rack monitors are upgraded in a subsequent maintenance window — a common migration strategy that avoids a full system cutover and reduces the risk of simultaneous multi-channel outages.
