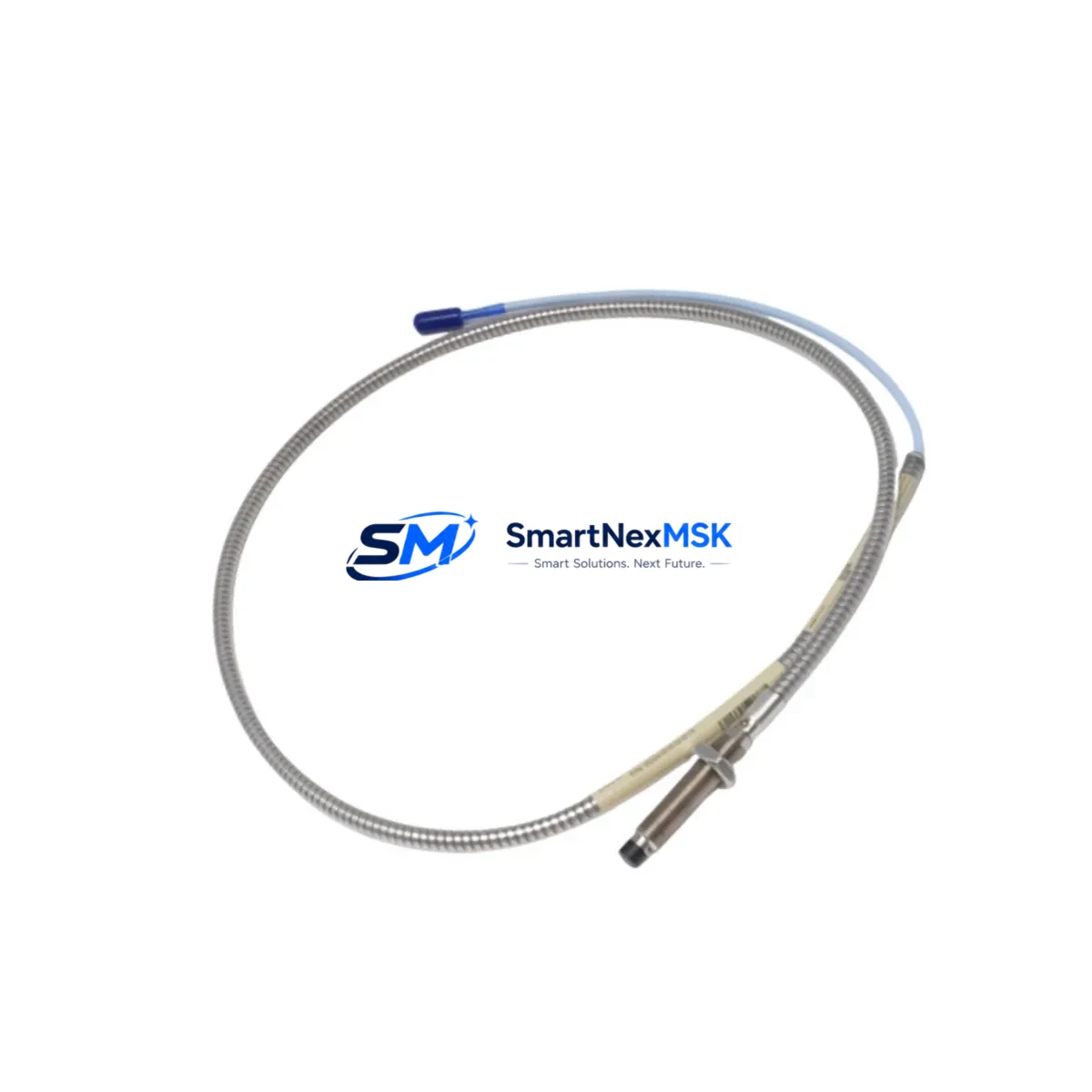

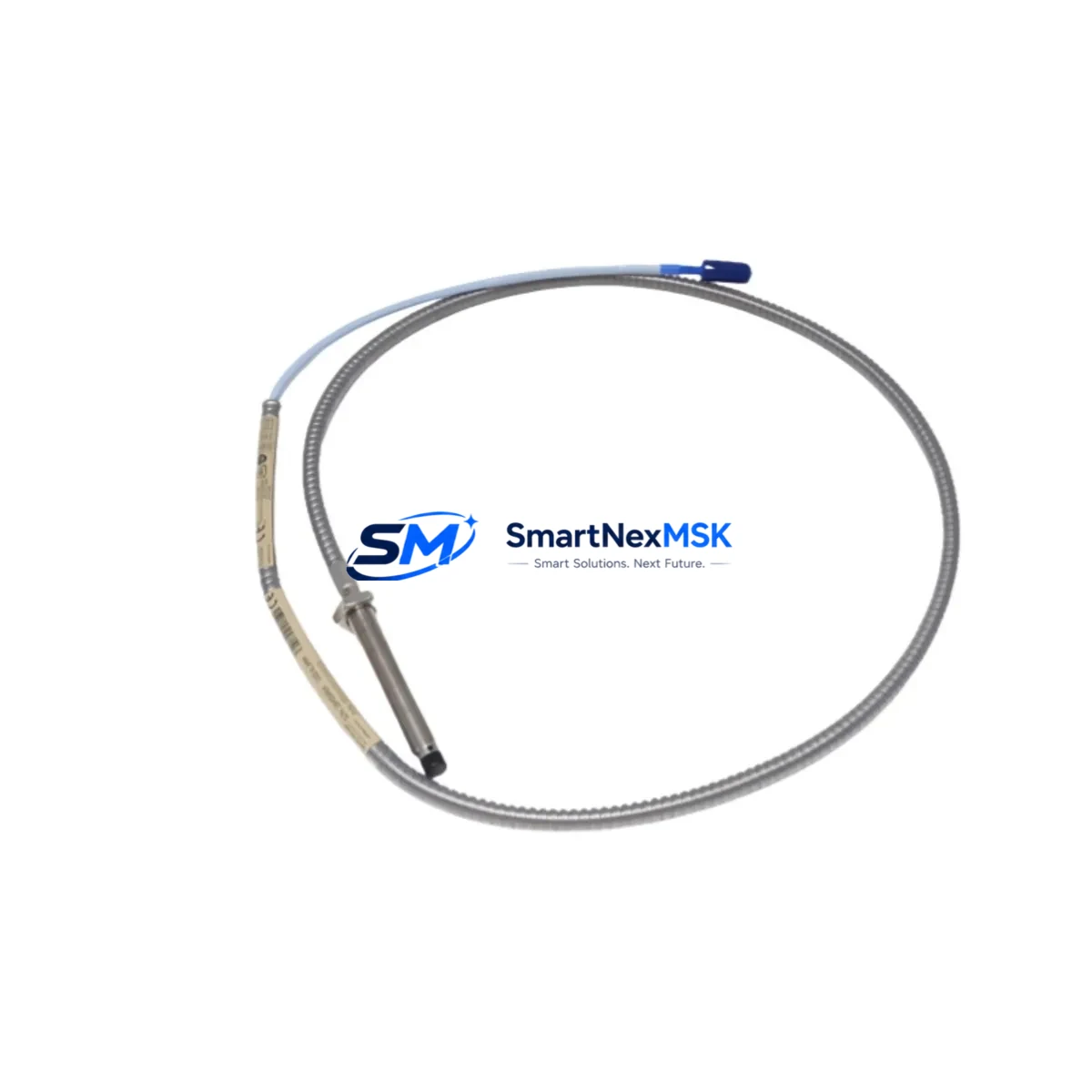

Bently Nevada 330104-00-12-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330104-00-12-10-01-00 is an 8mm eddy-current proximity probe engineered for direct retrofit into existing Bently Nevada 3300 XL Series vibration monitoring systems. Whether you are replacing a failed probe on a critical rotating machine, upgrading an aging predictive maintenance platform, or restoring a legacy condition monitoring loop after years of deferred maintenance, this probe delivers the dimensional accuracy, cable length, and sensitivity range required for a verified drop-in installation without reprogramming the 3300 XL monitor rack.
Industrial facilities running turbines, compressors, pumps, and gearboxes on Bently Nevada 3300 XL monitors frequently encounter obsolescence challenges when original probes reach end-of-life. The 330104-00-12-10-01-00 addresses this directly: its 12-inch extension cable, standard 5-metre armored integral cable, and 3300 XL-compatible sensitivity of approximately 7.87 V/mm allow it to interface with existing 3300 XL proximitor/extension cable assemblies — including the 330130 and 330180 series extension cables — without modifying field wiring or recalibrating the monitor card. Engineers replacing probes on steam turbine bearing housings or centrifugal compressor thrust positions will find the thread-in mounting (M10 × 1 thread) and supplied locknut consistent with original OEM specifications.
Upgrade Compatibility Table
| Parameter | 330104-00-12-10-01-00 | Typical Legacy Probe |
|---|---|---|
| Probe Diameter | 8 mm | 8 mm |
| Integral Cable Length | 12 inches (305 mm) | Varies (5–12 in) |
| Thread | M10 × 1 | M10 × 1 |
| Sensitivity | ~7.87 V/mm (200 mV/mil) | ~7.87 V/mm |
| Compatible Monitor Series | 3300 XL (3300/16, 3300/20, 3300/25, 3300/55) | 3300 XL |
| Compatible Proximitor | 330180, 330130 extension cables | 330180 / 330130 |
| Installation | Direct thread-in, no wiring change | Thread-in |
| Communication Protocol | Analog (voltage output), 3300 XL rack compatible | Analog |
| Retrofit Recommendation | Direct replacement; verify gap voltage after installation | — |
| Commissioning Note | Set air gap to 1.0–1.5 mm; confirm OK/NOT OK LED on monitor | — |
| Warranty | 12 Months | — |
Retrofit Planning for Existing Automation Systems
A successful 3300 XL probe retrofit begins well before the maintenance window opens. The first step is confirming which monitor card slot the failed probe feeds — the 3300/16 dual-channel and 3300/20 dual-channel radial vibration monitors each have distinct terminal block pinouts, and the field technician must verify that the existing 330180 proximitor is still functional before condemning the probe alone. If the proximitor shows abnormal bias voltage (outside the –18 V to –24 V DC window), both the probe and the 330180 extension cable assembly should be replaced together to avoid a repeat outage.
For facilities that have already migrated part of their monitoring infrastructure to the newer System 1 Evolution platform, the 330104-00-12-10-01-00 remains compatible as long as the 3300 XL rack is retained as the front-end signal conditioner. The System 1 software reads the 4–20 mA or voltage output from the 3300 XL monitor cards, so no probe-level change is required when upgrading the data acquisition layer. Engineers managing a phased migration — keeping 3300 XL hardware in place while upgrading the historian and alarm management to System 1 — can standardize on this probe across all bearing positions during the transition period.
When the retrofit scope extends to a full control cabinet upgrade, the 3300 XL rack is typically mounted alongside a Bently Nevada 3500 series rack in a parallel configuration during commissioning. In this scenario, the 330104-00-12-10-01-00 probe can feed both racks simultaneously through a signal splitter, allowing the 3500/42M or 3500/45 monitor cards to be validated against live machine data before the 3300 XL rack is decommissioned. The 3500 series uses the same 8mm probe standard and 330180-compatible extension cables, so the probe investment is preserved across the platform migration.
I/O expansion projects on older DCS platforms — particularly those using Honeywell Experion or Emerson DeltaV as the supervisory layer — often require the vibration data from 3300 XL monitors to be re-routed through a Modbus RTU or FOUNDATION Fieldbus gateway. The 330104-00-12-10-01-00 probe itself is passive in this architecture; the protocol migration is handled at the monitor card output or through a dedicated signal converter. Confirming that the 3300 XL monitor’s 4–20 mA output card (such as the 3300/55 position monitor) is correctly scaled before connecting to the DCS I/O module prevents range mismatches that can trigger spurious alarms during startup.
For HMI integration, facilities using GE iFIX, Wonderware InTouch, or Siemens WinCC as the operator interface should verify that the vibration tag scaling in the HMI matches the new probe’s sensitivity. A probe swap that changes the effective gap voltage range by even 0.5 V can shift the displayed vibration amplitude by several microns, which may trigger nuisance alarms or mask real faults if the HMI faceplate is not updated. This is a common oversight during rushed outage replacements and is best addressed during the pre-outage engineering review.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement on a running machine train requires a structured pre-outage checklist. Before the machine is taken offline, the replacement 330104-00-12-10-01-00 probe should be bench-tested against a known-good 330180 proximitor using a calibration target to confirm sensitivity and linearity. This pre-verification step — which takes less than 15 minutes — eliminates the risk of installing a defective replacement and extending the outage.
During the swap, the original program logic in the 3300 XL monitor does not need to be modified. The monitor’s alert and danger setpoints, time delays, and voting logic are stored in the monitor card’s non-volatile memory and are independent of the probe hardware. This means the technician can complete the mechanical installation, set the air gap, and restore power without any interaction with the monitor’s configuration software. For facilities using Bently Nevada’s System 1 or a third-party historian, the data gap during the swap is typically limited to the duration of the machine coast-down and restart — usually 30 to 90 minutes for most rotating equipment.
To protect original program logic during any associated PLC or DCS work, it is strongly recommended to export and archive the current controller configuration — whether that is a Rockwell Automation ControlLogix L7x project file, a Siemens S7-300 or S7-400 Step 7 archive, or an ABB AC500 project backup — before beginning any wiring changes in the control cabinet. Field control continuity during the probe swap can be maintained by placing the affected monitor channel in bypass mode, which suppresses the vibration trip output while preserving all other protection channels.
Retrofit Support FAQ
Q: Is the 330104-00-12-10-01-00 a direct replacement for the original Bently Nevada probe in my 3300 XL system?
A: Yes. The 330104-00-12-10-01-00 is dimensionally and electrically compatible with the 3300 XL Series. It uses the same M10 × 1 thread, 8mm tip diameter, and ~7.87 V/mm sensitivity as the original OEM probe. After installation, set the air gap to 1.0–1.5 mm and verify the OK/NOT OK status LED on the monitor card before returning the machine to service.
Q: Do I need to recalibrate the 3300 XL monitor card after replacing the probe?
A: In most cases, no. The 3300 XL monitor stores its setpoints and calibration data independently of the probe. However, it is good practice to verify the bias voltage at the proximitor output (should read –18 V to –24 V DC) and confirm the vibration reading at a known reference gap after installation. If the reading deviates by more than ±5% from the expected value, inspect the extension cable and proximitor before adjusting the monitor.
Q: What wiring changes are required when installing this probe in an existing cabinet?
A: None, provided the existing 330180 or 330130 extension cable assembly is in good condition. The probe connects to the extension cable via the standard Bently Nevada coaxial connector. No terminal block rewiring is required. If the extension cable is being replaced at the same time, verify the total system cable length does not exceed the 3300 XL system’s specified range for the selected proximitor model.
Q: What does the 12-month warranty cover, and how is it handled?
A: Every 330104-00-12-10-01-00 unit shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing against a calibration target. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. Replacement units are dispatched within 3 business days of claim verification.
