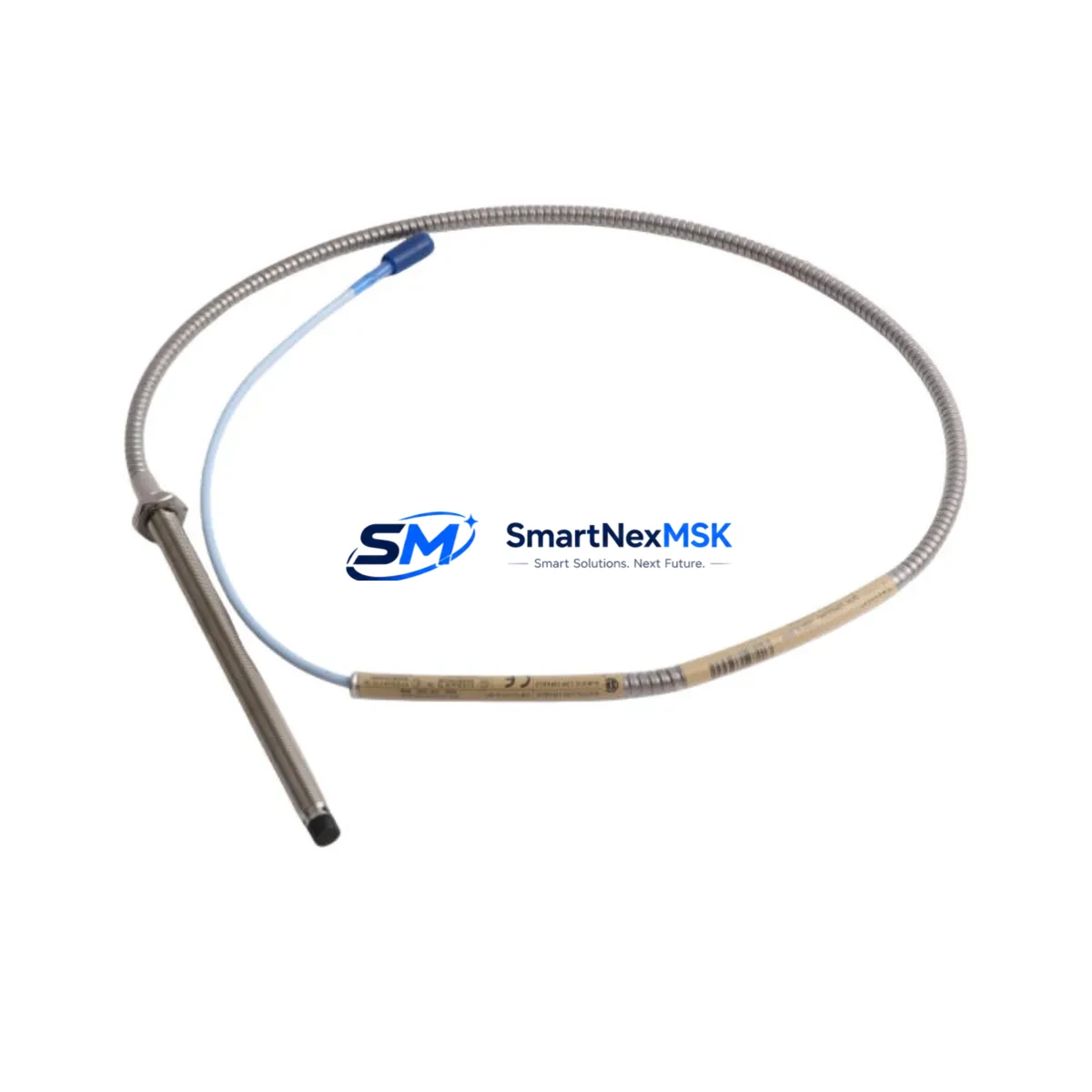

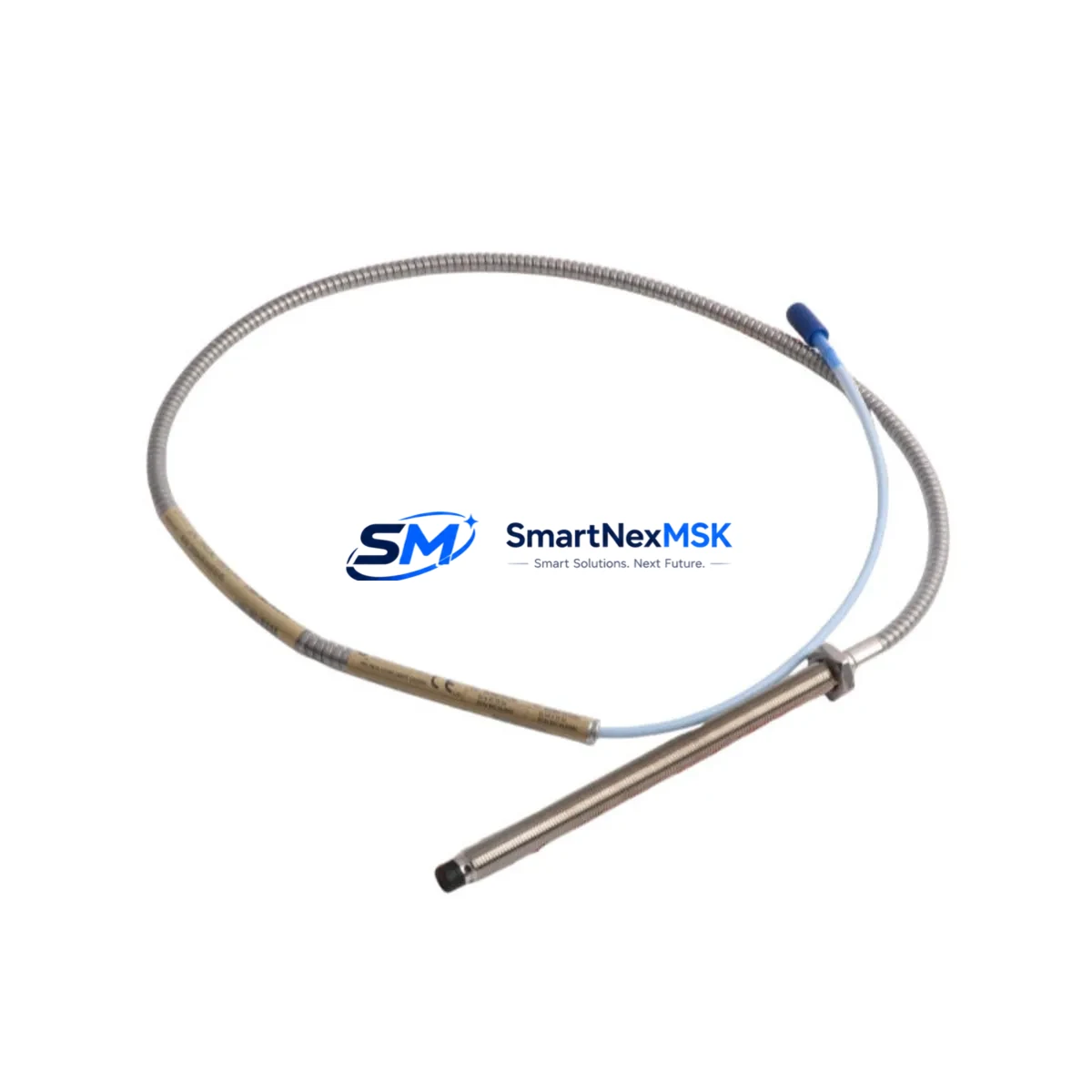

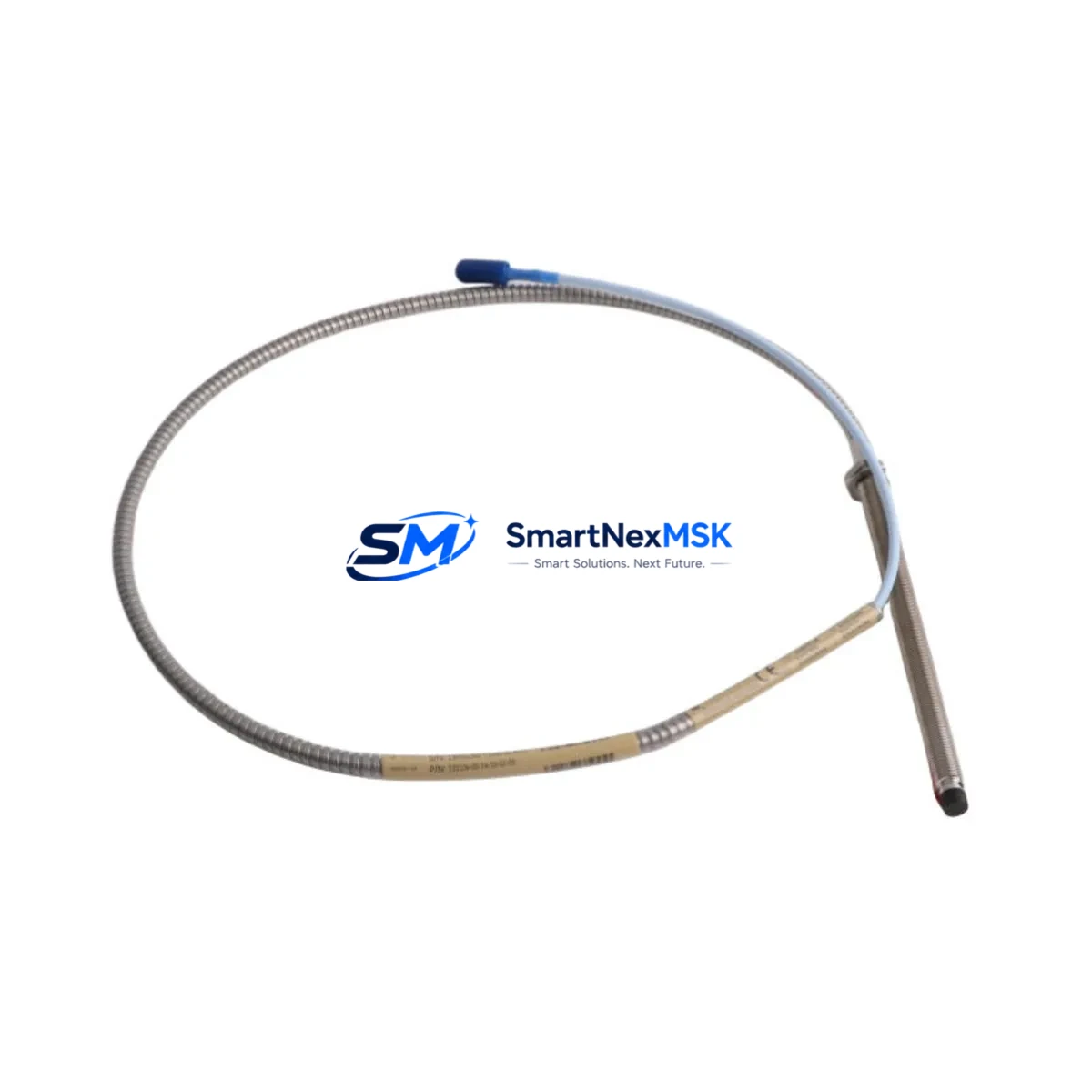

Bently Nevada 330104-00-14-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330104-00-14-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

The Bently Nevada 330104-00-14-10-02-05 is a 3300 XL Series eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 Series installations approach end-of-support milestones, this probe serves as the primary retrofit-ready replacement for aging 330100, 330103, and 330104 variants across turbines, compressors, pumps, and gearboxes. With a 14 mm probe diameter, 10 mm sensing range, and a 2 m armored extension cable, the 330104-00-14-10-02-05 integrates directly into existing 3300 XL monitor racks without mechanical re-machining of the probe boss or bracket.

For facilities running Bently Nevada 3300/20 Proximitor® Seismic Monitor or 3300/16 Dual Voting Trip modules, this probe maintains full signal chain compatibility. The output sensitivity of 7.87 V/mm (200 mV/mil) matches the calibration baseline expected by the 3300 XL monitor cards, eliminating the need for re-ranging or recalibration of existing alarm and trip setpoints. Engineers replacing worn or damaged probes on critical machinery can restore full vibration protection without modifying the Bently Nevada System 1® configuration or reloading machine train templates.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-00-14-10-02-05 begins well before the maintenance window opens. Start by auditing the existing 3300 XL rack configuration: confirm which monitor slots are occupied by 3300/20 Proximitor® Seismic Monitors or 3300/16 Dual Voting Trip modules, and document the current gap voltage readings for every probe channel. This baseline data protects you if a post-installation alarm discrepancy needs to be traced back to a pre-existing condition rather than the new probe.

Next, verify the full cable assembly. The 330104-00-14-10-02-05 ships with a 2 m integral probe cable (the “02” position in the part number) and a 05-suffix armored extension. In most 3300 XL installations, the Proximitor® sensor — typically a 330180 or 330130 Proximitor® — is mounted in a junction box 3 m from the probe, making the total cable run 5 m. If your installation uses a non-standard cable run, confirm that the extension cable length matches before ordering. Mismatched cable lengths alter the system’s resonant frequency and can shift the output sensitivity outside the monitor’s acceptance window.

For control cabinets housing both the 3300 XL rack and a DCS interface — such as a Honeywell Experion PKS or Emerson DeltaV node — confirm that the 4–20 mA analog output from the Proximitor® is correctly mapped to the DCS I/O card. During probe replacement, the DCS operator station will typically show a “sensor fault” or “input out of range” alarm until the new probe is gapped and the Proximitor® output stabilizes. Pre-notify the control room to suppress nuisance alarms on that channel during the commissioning window.

If the machinery train also uses a Bently Nevada 3500 Series rack for online protection — common in facilities that have partially upgraded from 3300 XL to 3500/42M Proximitor® Monitor modules — ensure that the probe’s output signal is not simultaneously wired to both racks. Dual-rack wiring without proper signal isolation can introduce ground loops that corrupt vibration readings across the entire machine train. Use a signal isolator or confirm that only one rack is active on each probe channel.

For facilities managing I/O expansion during the retrofit, the 330104-00-14-10-02-05 can be added to an existing 3300 XL rack alongside other channel types, including 3300/55 Temperature Monitor modules and 3300/46 Keyphasor® modules, without requiring a rack power supply upgrade — provided the total rack load remains within the 3300 XL power supply’s rated output. Always recalculate rack power budget when adding new modules or replacing probes with higher-draw variants.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist. Before isolating the machinery, export the current System 1® machine train configuration and save a timestamped backup. This preserves all alarm setpoints, transient data buffers, and historical trend baselines. If the replacement is part of a broader 3300 XL to 3500 Series migration, the System 1® configuration export also captures the machine train’s Keyphasor® reference channel assignments, which must be re-entered manually if the 3500 rack uses a different slot mapping.

During the physical swap, keep the Proximitor® sensor — typically the 330180 or 330130 unit — in place unless it is also being replaced. Removing only the probe and extension cable while leaving the Proximitor® mounted reduces re-gapping time significantly, since the Proximitor® housing position relative to the probe boss does not change. After installing the 330104-00-14-10-02-05, adjust the probe gap to achieve a Proximitor® output of –10 to –12 VDC at the nominal shaft center position. Confirm this reading with a calibrated voltmeter before re-enabling the monitor channel.

Once the channel is re-enabled, observe the 3300 XL monitor’s OK relay status and confirm that the direct vibration (Xpp) and gap (DC) readings are within the expected operating band. If the machinery uses a 3300/16 Dual Voting Trip module, verify that both voting channels return to normal status before releasing the machine to operations. Document the final gap voltage, sensitivity confirmation, and alarm setpoint verification in the site’s maintenance management system before closing the work order. This record supports the 12-month warranty claim process if a probe defect is identified within the coverage period.

Retrofit Support FAQ

Q1: Is the 330104-00-14-10-02-05 a direct drop-in replacement for the 330103-00-14-10-02-05?
Yes. The 330104 series supersedes the 330103 series in the Bently Nevada 3300 XL probe family. The mechanical dimensions, connector type, cable length, and output sensitivity are identical. No changes to the probe boss, extension cable, or Proximitor® are required. Alarm and trip setpoints in the 3300 XL monitor do not need adjustment after replacement.

Q2: What commissioning steps are required after installation?
After mechanical installation, adjust the probe gap to achieve a Proximitor® output voltage of –10 to –12 VDC at the shaft’s nominal center position. Verify the OK relay on the 3300 XL monitor card closes and that the direct vibration reading is stable. If the machine train uses a Keyphasor® reference, confirm the once-per-revolution pulse is correctly detected before returning the machine to service.

Q3: Will this probe work with a Bently Nevada 3500/42M Proximitor® Monitor?
The 330104-00-14-10-02-05 is calibrated for the 3300 XL Proximitor® (330180 / 330130 series). While the probe’s physical output is compatible with the 3500/42M input range, Bently Nevada recommends using probes from the 330500 or 330900 series for new 3500 rack installations to ensure full system certification. For mixed-rack environments, consult the site’s machinery protection engineer before cross-connecting 3300 XL probes to 3500 Series monitors.

Q4: What does the 12-month warranty cover, and how is a claim initiated?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit ships with a pre-shipment functional test report confirming output sensitivity and insulation resistance. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. Units must be returned in original packaging with the test report included. Field damage, incorrect gapping, or installation in incompatible systems is not covered under the warranty terms.
