Bently Nevada 330104-00-16-50-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

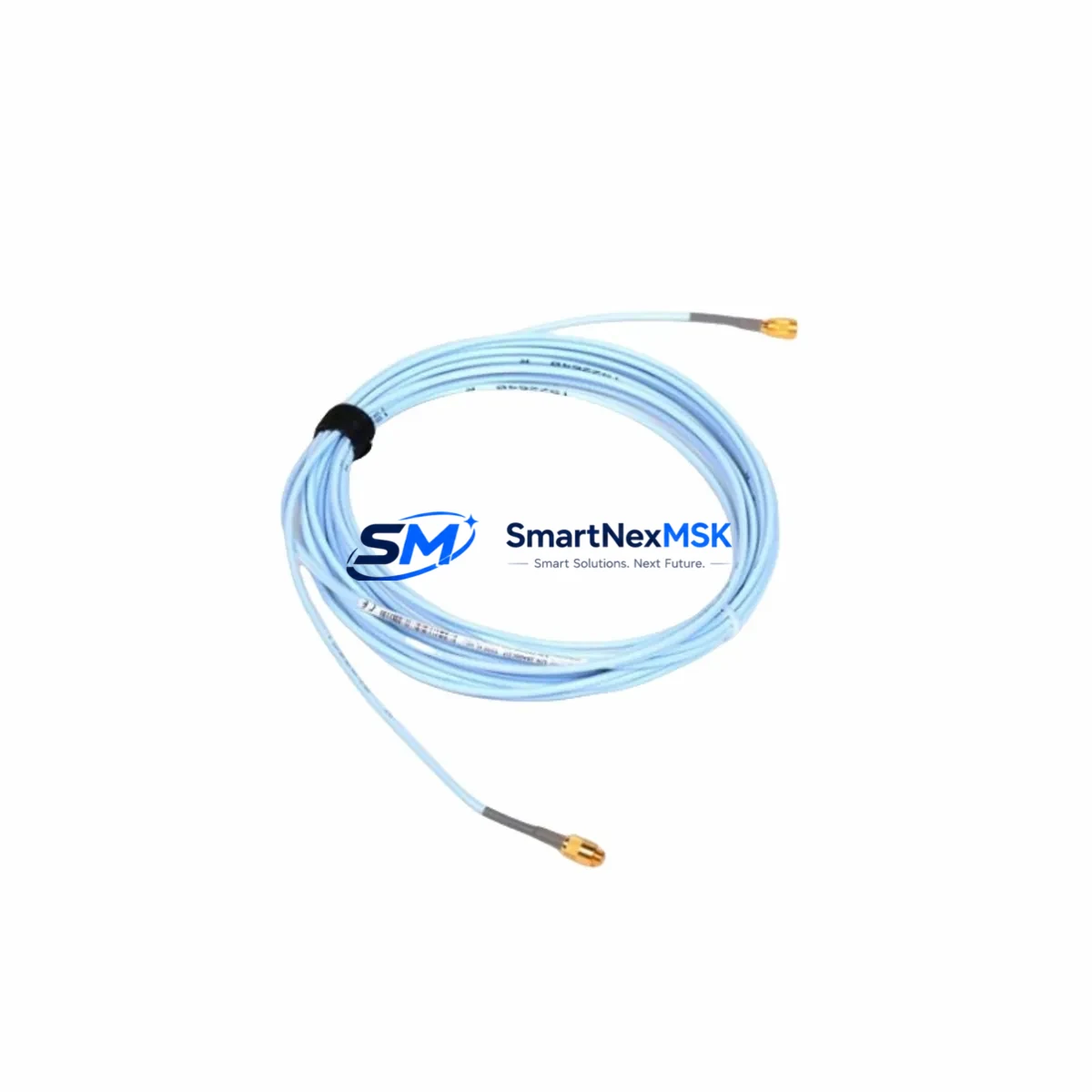

The Bently Nevada 330104-00-16-50-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy vibration monitoring systems age and OEM support windows close, this probe serves as a verified drop-in replacement for discontinued or end-of-life units across rotating machinery applications including turbines, compressors, pumps, and gearboxes. Whether you are executing a planned control-system upgrade or responding to an unplanned field failure, the 330104-00-16-50-02-00 is stocked and ready to ship from Xiamen with a 12-month warranty covering manufacturing defects and functional performance.
This probe is designed to integrate directly with the Bently Nevada 3300 XL monitoring system architecture. It operates within the standard -24 VDC bias voltage range and delivers a linear output of -18 mV/µm (approximately -457 mV/mil), fully compatible with the 3300 XL proximitor/extension cable signal chain. When replacing a failed or degraded probe in an existing installation, engineers should verify the gap voltage at the proximitor output — typically between -10 VDC and -18 VDC at the nominal air gap — before returning the machine to service. The 330104-00-16-50-02-00 uses a standard 5-pin MIL-C-5015 style connector, matching the wiring harness used across the 3300 XL probe series.
Upgrade Compatibility Table
| Parameter | 330104-00-16-50-02-00 | Notes / Retrofit Guidance |
|---|---|---|
| Probe Diameter | 8 mm | Matches standard 3300 XL 8mm probe bore; no re-machining required |
| Cable Length | 0.5 m (probe cable) | Pair with 330130 extension cable to reach proximitor; verify total cable length matches original |
| Connector Type | MIL-C-5015 (standard) | Direct mating with existing 3300 XL extension cable connectors |
| Bias Voltage | -24 VDC (supplied by proximitor) | Confirm proximitor 3300/16-02-01-00 or equivalent is supplying correct bias |
| Output Sensitivity | -18 mV/µm (-457 mV/mil) | Matches 3300 XL system scale factor; no reconfiguration of monitor card required |
| Communication Compatibility | Analog (4–20 mA via monitor) | Compatible with 3500/42M and 3500/45 monitor modules for DCS/PLC integration |
| Installation Standard | API 670 compliant | Suitable for radial vibration, axial position, and speed measurement per API 670 |
| Replacement Recommendation | Direct replacement for 330104 series | Verify suffix codes for cable length and temperature rating before ordering |
| Commissioning Check | Gap voltage, sensitivity, OK LED on proximitor | Use Bently Nevada field calibration procedure; document gap voltage in maintenance log |
| Warranty | 12 Months | Covers manufacturing defects and functional performance from ship date |
Retrofit Planning for Existing Automation Systems
Replacing a proximity probe in an operating plant requires careful coordination across multiple system layers. The 330104-00-16-50-02-00 is most commonly deployed in retrofit projects where the original Bently Nevada 3300 XL probe has reached end-of-life or where the monitoring rack is being upgraded from an older 3300 Series to the current 3500 Series platform. In either scenario, the probe itself is mechanically and electrically compatible, but the surrounding system components must be audited before shutdown is scheduled.
Begin with the proximitor. The 3300/16-02-01-00 proximitor (or its 3300/16-02-05-00 high-temperature variant) must be confirmed operational and correctly biased. If the proximitor is also being replaced as part of the upgrade, the 330180-91-00 proximitor is the current recommended replacement for standard-temperature applications. Next, inspect the 330130 extension cable — a degraded or kinked extension cable is a frequent source of false gap-voltage readings that can be misattributed to a failed probe. Replace the extension cable if the outer jacket shows cracking or if the connector pins show corrosion.
For projects migrating from a standalone 3300 XL monitoring rack to a 3500 Series rack, the 3500/42M four-channel monitor module accepts the same probe/proximitor signal chain without rewiring, provided the scale factor is configured correctly in the 3500 Rack Configuration Software. If the plant DCS — whether a Honeywell Experion, Emerson DeltaV, or ABB System 800xA — is receiving 4–20 mA vibration signals from the 3500 rack, verify that the analog input card scaling has not been altered during the rack swap. HMI faceplate displays tied to these analog values should be checked for correct engineering-unit conversion after the new probe is commissioned.
In applications where the 330104-00-16-50-02-00 is used for axial position measurement rather than radial vibration, the gap-setting procedure is more critical. The probe must be set to the nominal gap voltage specified in the machine OEM documentation — typically -10.5 VDC to -11.5 VDC for a 1.0 mm nominal gap — before the thrust bearing clearance can be correctly interpreted by the 3500/45 position monitor. Incorrect gap setting at this stage will cause the monitor to report false axial displacement alarms, which can trigger unnecessary shutdowns or, worse, mask a genuine thrust bearing failure.
For I/O expansion projects where additional measurement points are being added to an existing 3500 rack, the 3500/20 rack interface module and 3500/15 power supply module should be verified for available slot capacity before ordering additional probe channels. If the rack is full, a second 3500 rack with a 3500/05 system rack and 3500/22M transient data interface may be required to accommodate the expanded monitoring scope.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement or monitoring system upgrade requires a structured pre-shutdown checklist and a clear rollback plan. Before the machine is taken offline, the existing probe should be read for gap voltage and vibration trend data, and these values should be recorded as the commissioning baseline for the replacement unit. If the 3500 Series monitor is being used, export the current rack configuration file from the 3500 Rack Configuration Software so that it can be reloaded immediately if the new configuration does not perform as expected.
During the physical swap, protect the probe tip and cable connector from contamination. The 330104-00-16-50-02-00 probe tip is sensitive to metallic debris, which can alter the eddy-current field and produce erratic output. Once the probe is installed and the extension cable is connected, power up the proximitor and measure the gap voltage at the proximitor output before reconnecting to the monitor rack. This step isolates the probe/proximitor/cable assembly from the monitor card and confirms that the field installation is correct before the monitor is brought back online.
For plants operating under continuous-process constraints where even a brief shutdown is costly, consider pre-staging the replacement probe assembly — probe, extension cable, and proximitor — on the bench and verifying the gap voltage output in a controlled environment before the maintenance window opens. This approach, combined with a pre-written work order that includes terminal wiring diagrams and the target gap voltage, can reduce the actual machine-down time to under 30 minutes for a single-probe replacement. After the machine is returned to service, monitor the first 24 hours of vibration trend data closely to confirm that the new probe is tracking correctly and that no alarm setpoints have been inadvertently shifted.
Retrofit Support FAQ
Q1: Is the 330104-00-16-50-02-00 a direct replacement for my existing 3300 XL probe without any wiring changes?
Yes. The 330104-00-16-50-02-00 uses the same MIL-C-5015 connector and the same -18 mV/µm sensitivity as the original 3300 XL 8mm probe series. No wiring changes are required at the extension cable or proximitor. The only field adjustment needed is re-setting the air gap to achieve the correct bias voltage at the proximitor output.
Q2: Can this probe be used with a Bently Nevada 3500 Series monitor rack?
Yes. The 330104-00-16-50-02-00 is fully compatible with the 3500 Series monitoring platform when paired with a compatible proximitor such as the 330180-91-00. The 3500/42M and 3500/45 monitor modules accept the standard -18 mV/µm scale factor without requiring reconfiguration, provided the rack configuration file correctly reflects the probe type.
Q3: What commissioning checks are required after installation?
After installation, measure the gap voltage at the proximitor output and confirm it falls within the acceptable range specified in the machine OEM documentation (typically -10 VDC to -18 VDC depending on the nominal gap). Verify that the OK LED on the proximitor is illuminated, confirm that the monitor card is not in alarm, and review the vibration trend display on the HMI or DCS to confirm the probe is tracking correctly. Document the as-found and as-left gap voltages in the maintenance record.
Q4: What does the 12-month warranty cover, and what is the shipping lead time?
The 12-month warranty covers manufacturing defects and functional performance failures from the date of shipment. Units are stocked in Xiamen and typically ship within 1–3 business days of order confirmation. Pre-shipment functional testing is performed on each unit. If a warranty claim is required, contact sales@smartnexmsk.com with the order number and a description of the failure mode.
