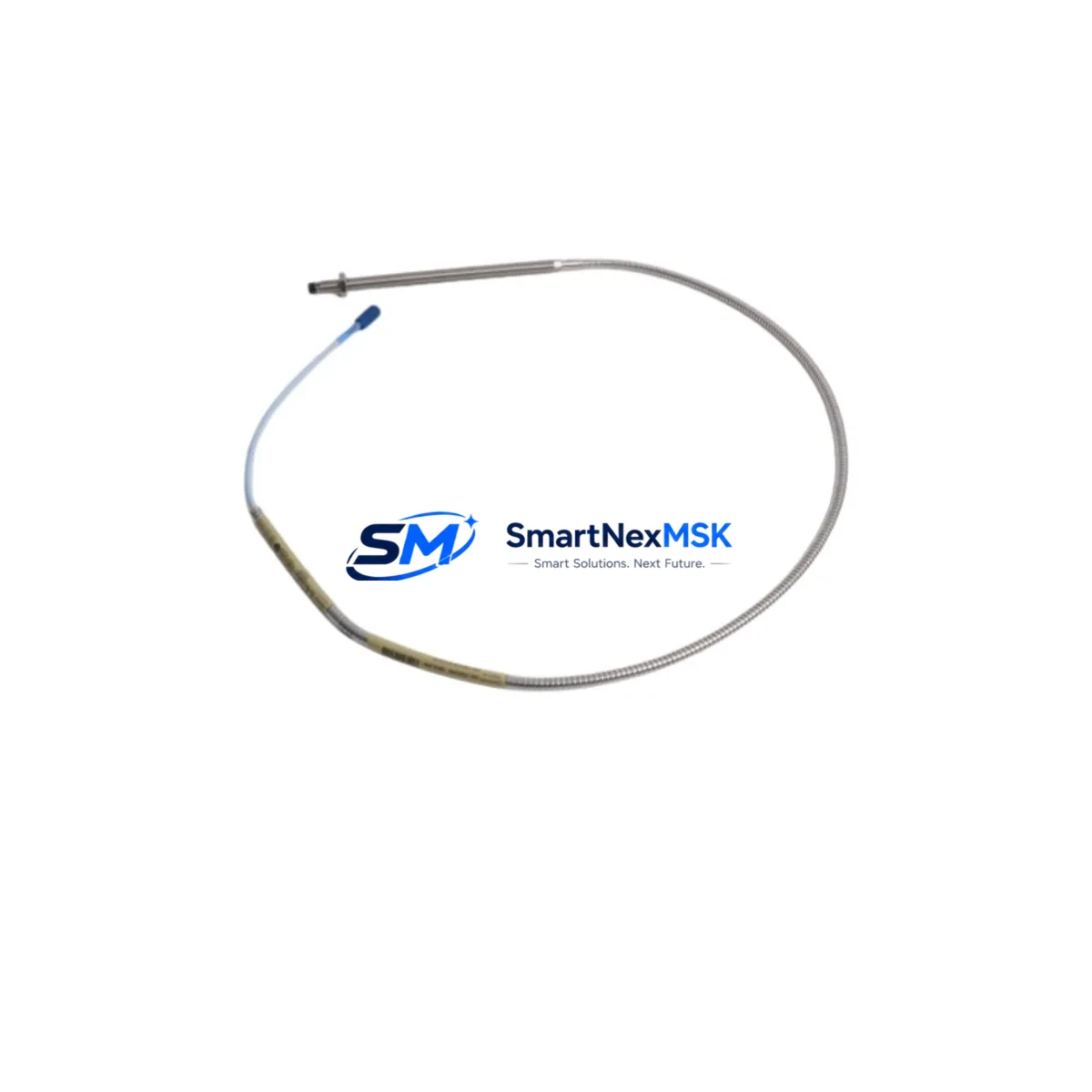

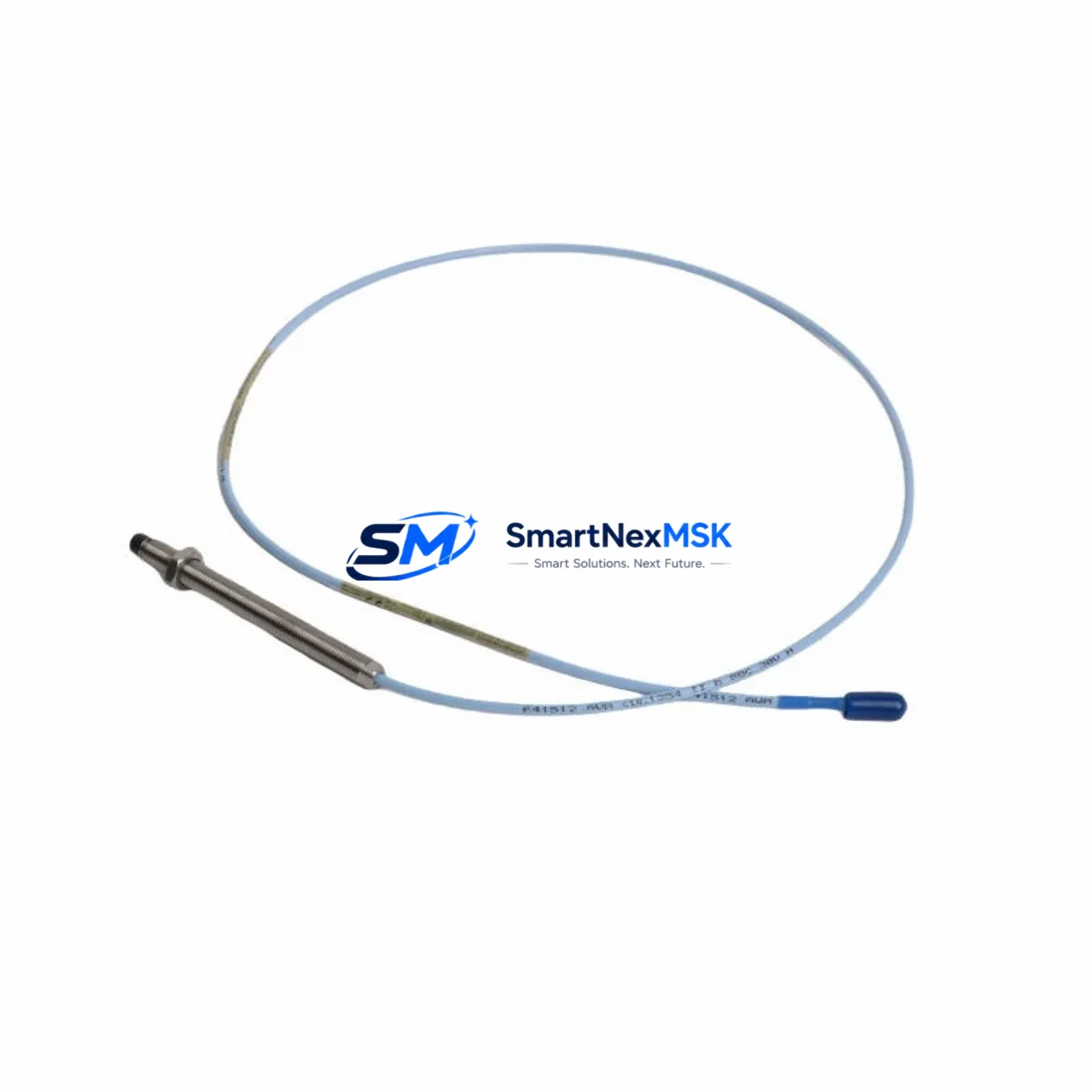

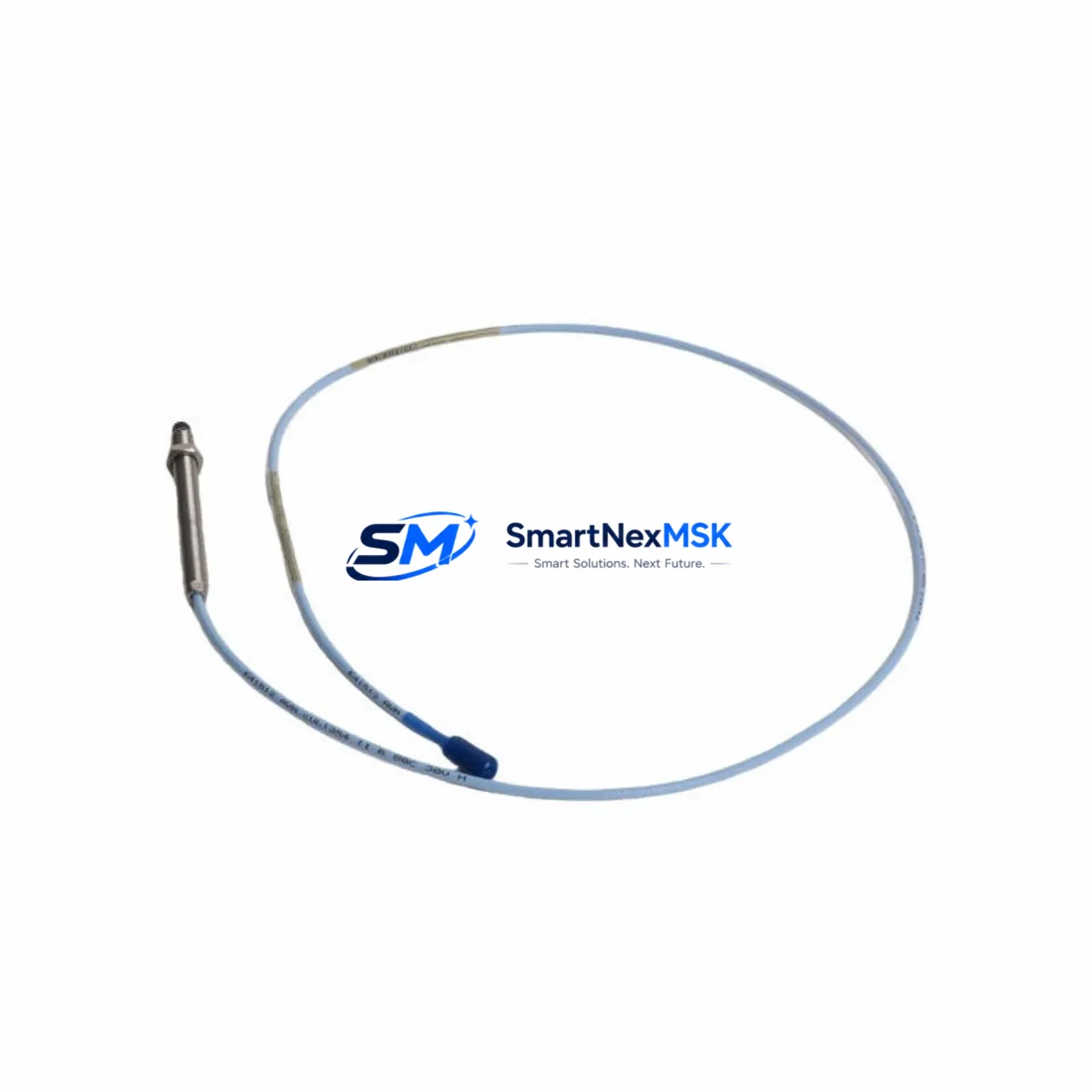

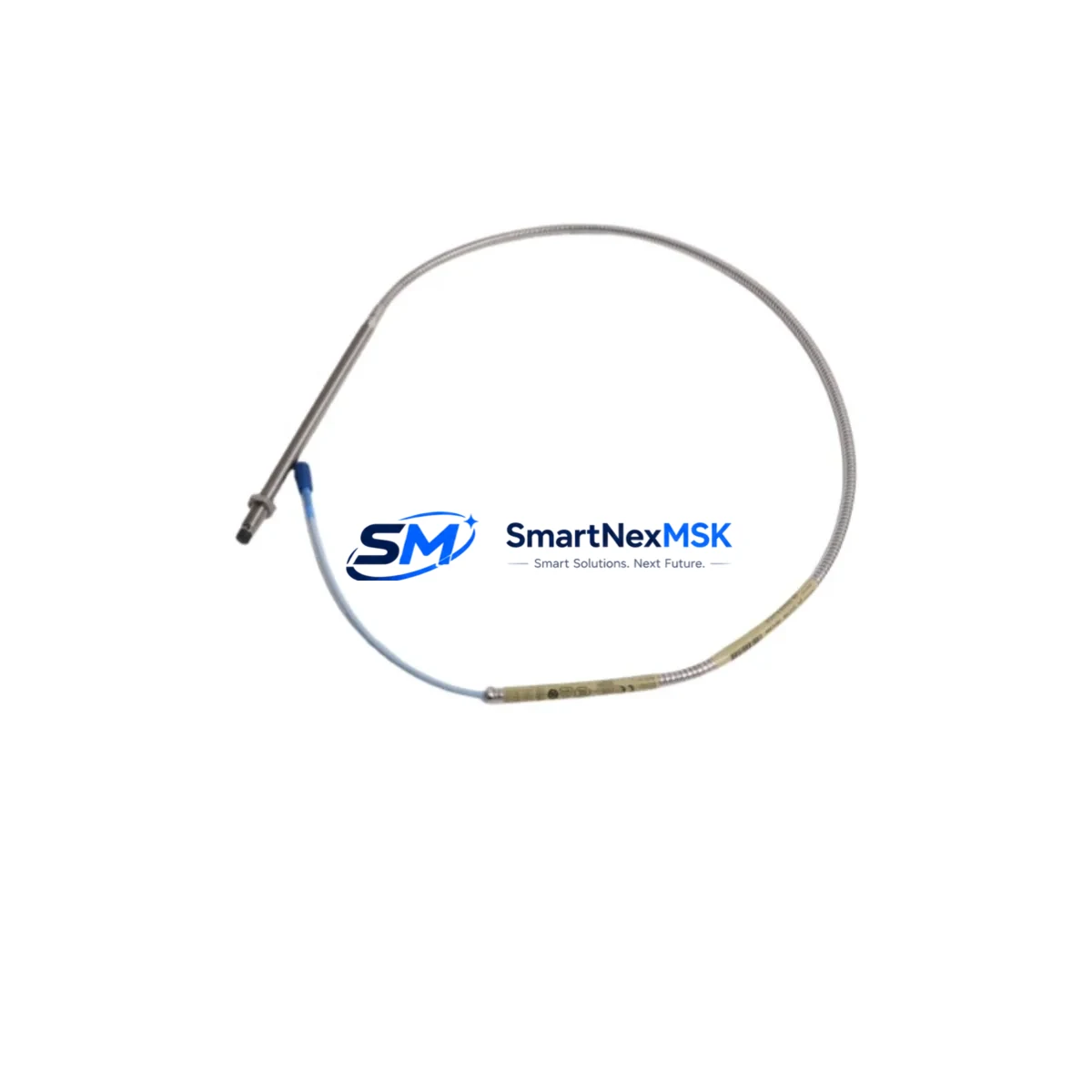

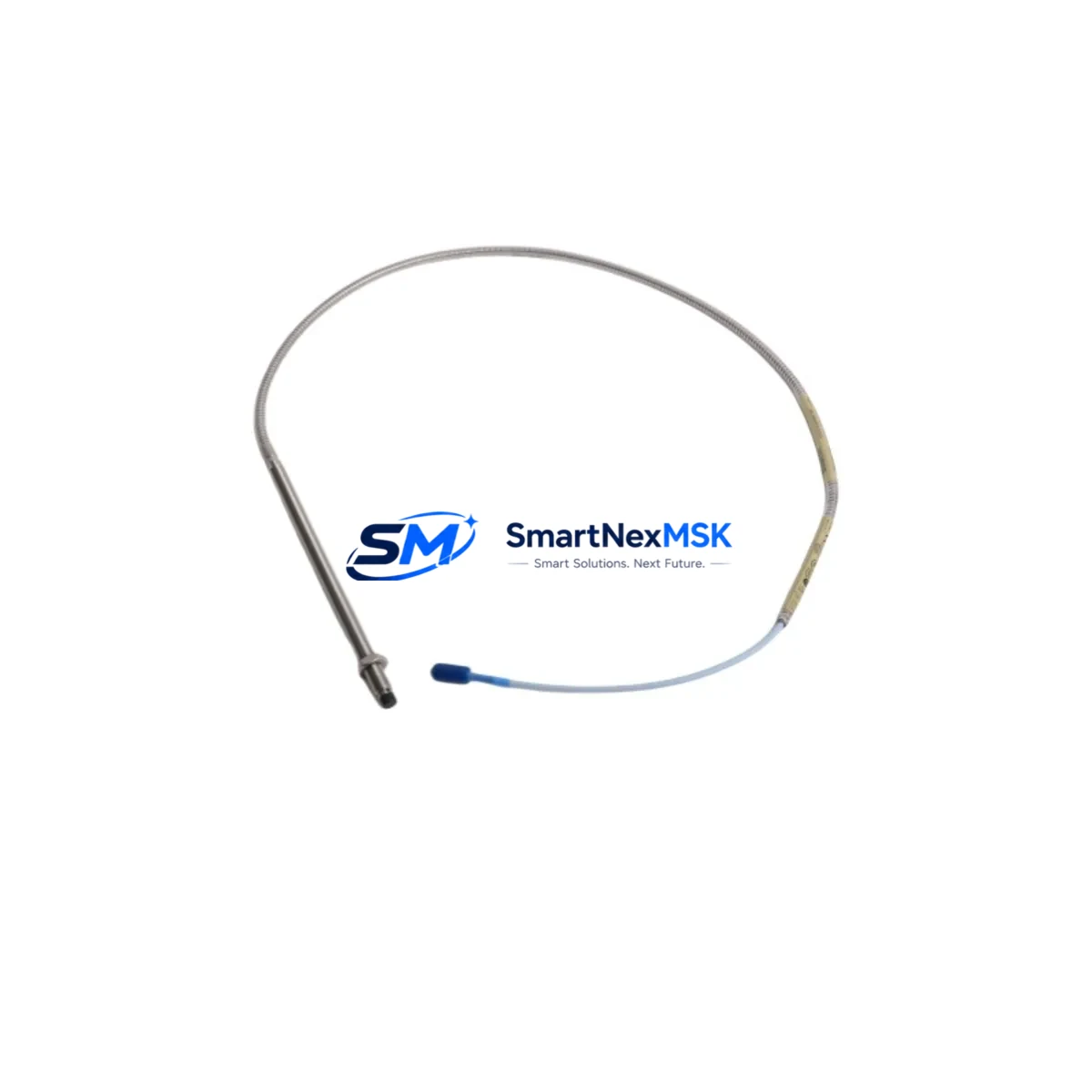

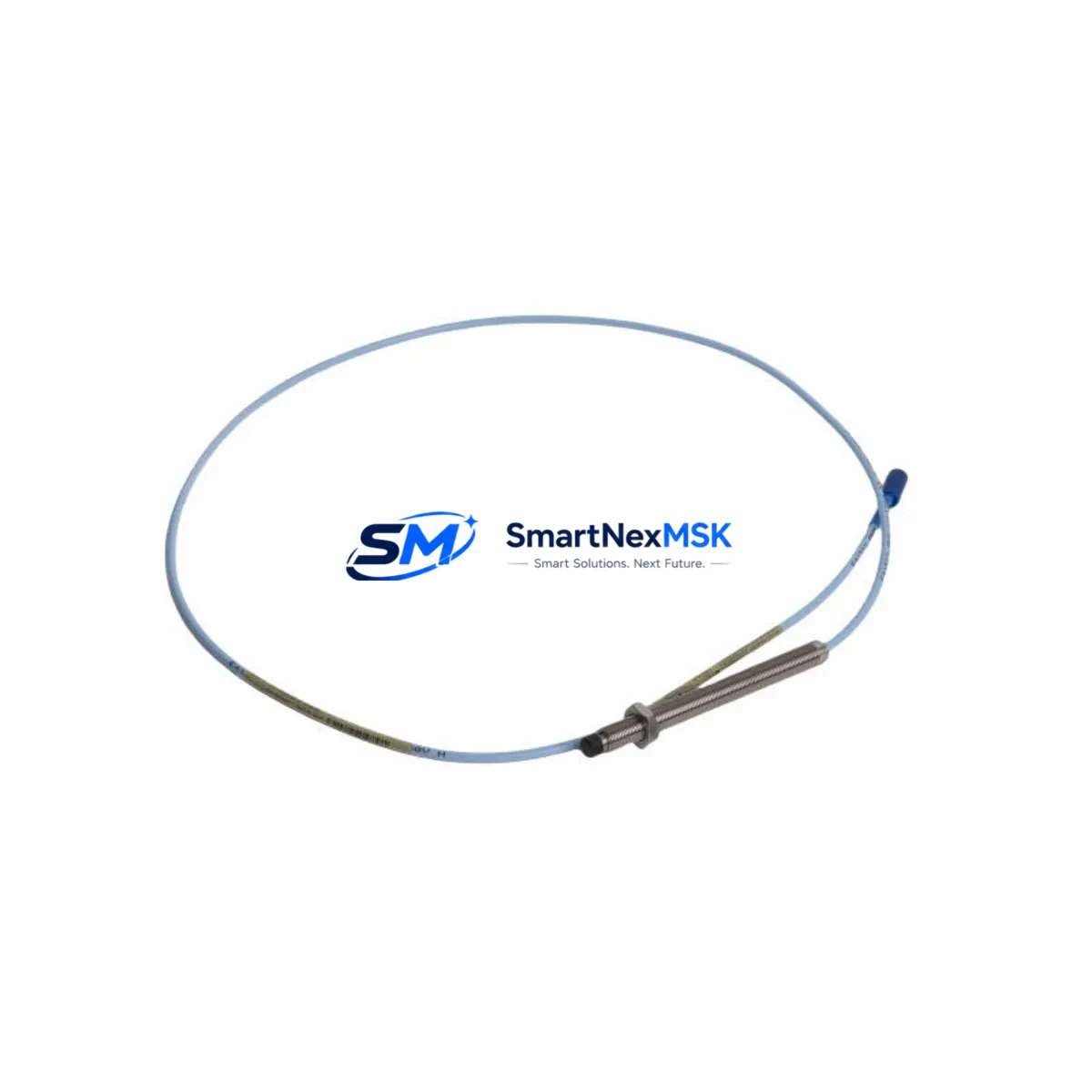

The Bently Nevada 330104-00-18-10-01-00 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a critical-spare inventory for a compressor train, gas turbine, or steam turbine control cabinet, this probe delivers the measurement accuracy and mechanical reliability that maintenance engineers depend on for continuous operation.

Sourced directly from authorized supply channels, every unit undergoes pre-shipment functional verification to confirm gap voltage linearity, cable integrity, and connector condition before dispatch. With a 12-month warranty and documented traceability, this spare is ready to enter your maintenance workflow the moment it arrives on site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-00-18-10-01-00 proximity probe is flagged for replacement — whether due to a gap voltage drift alarm, a physical impact event, or a scheduled probe-and-cable swap during a planned outage — the maintenance window is the right time to audit the entire measurement chain and the surrounding control cabinet components.

Start with the 3300 XL extension cable (typically a 330130 series) that connects the probe to the driver. Extension cables accumulate connector wear and shield degradation over years of service; replacing the probe while reusing a marginal cable introduces unnecessary measurement uncertainty. Verify the 3300 XL proximitor/driver module (such as the 330180 or 330190 series) for correct bias voltage output and confirm that the driver’s OK relay is functioning within specification.

At the monitor level, inspect the 3500/40M or 3500/42M proximity monitor card in the 3500 rack for any latched alerts or configuration drift. Check the 3500 rack power supply module — a marginal supply rail can cause intermittent OK dropouts that are misdiagnosed as probe failures. If the installation uses a 3500/20 rack interface module for Modbus or Ethernet communication to the DCS or SCADA, verify that the communication link is healthy and that the monitor’s configuration database is backed up before any hardware swap.

For installations where the 3300 XL system feeds a Bently Nevada 3500 series vibration monitor rack, also inspect the terminal input module (TIM) and associated field wiring terminations. Loose or corroded terminals in the junction box between the probe and the monitor rack are a common source of intermittent high-vibration alarms that are incorrectly attributed to the probe itself. While the cabinet is open, check the barrier isolators or Zener barriers used in hazardous-area installations — these components have finite service lives and are often overlooked during probe-focused maintenance events.

If the machine is part of an API 670-compliant protection system, confirm that the replacement probe’s gap voltage and sensitivity are documented in the machinery protection system’s calibration record. Coordinate with the control room to suppress the relevant protection channel during installation and re-gapping, and restore protection before returning the machine to service. Maintaining a minimum of one spare 330104-00-18-10-01-00 probe per monitored machine — alongside a matched extension cable and a spare driver module — is a recognized best practice for facilities targeting less than four hours of mean time to repair (MTTR) on vibration monitoring faults.

Site Replacement Workflow

Step 1 — Preparation: Confirm the replacement probe part number matches the installed system’s probe diameter (8mm), cable length, and connector type. Cross-reference the 3300 XL system documentation to verify that the 330104-00-18-10-01-00 is the correct variant for your specific driver and monitor combination. If the existing installation uses an older 3300 (non-XL) driver, verify compatibility before installation — in many cases the 3300 XL probe is backward-compatible, but gap calibration must be re-performed.

Step 2 — Isolation: Coordinate with the control room to place the affected monitor channel in bypass or maintenance mode per your site’s management-of-change procedure. Do not remove the probe from a live, unprotected machine without suppressing the protection channel.

Step 3 — Removal: Loosen the jam nut and carefully back the probe out of the probe holder. Inspect the probe holder threads and the target area for mechanical damage. Clean the probe holder bore before installing the replacement.

Step 4 — Installation and Gapping: Thread the new 330104-00-18-10-01-00 into the probe holder. Using a calibrated digital voltmeter, adjust the probe gap to achieve the nominal bias voltage specified for your driver (typically −10.0 VDC ±0.5 V for an 8mm system at the recommended gap). Tighten the jam nut to the specified torque and recheck the gap voltage after torquing.

Step 5 — Verification and Return to Service: Confirm the monitor channel shows a valid OK status and that the vibration reading is within the expected baseline range for the machine at its current operating condition. Remove the channel from bypass, document the replacement in the maintenance management system, and update the spare parts inventory accordingly.

Spare Parts Support FAQ

Q1: Is the 330104-00-18-10-01-00 compatible with both the 3300 and 3300 XL driver systems?
The 330104-00-18-10-01-00 is designed for the 3300 XL 8mm system. In many field installations it is also compatible with the earlier 3300 8mm driver, but gap calibration must be re-performed after installation. Always verify the bias voltage and sensitivity against your specific driver’s datasheet before returning the channel to protection service.

Q2: What is included in the 12-month warranty, and how does the pre-shipment test process work?
Every 330104-00-18-10-01-00 unit is functionally verified prior to shipment — including gap voltage linearity check, cable continuity, and connector inspection. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or credited; contact sales@smartnexmsk.com with the order reference and a description of the failure mode.

Q3: How should I structure my spare parts inventory for a facility with multiple 3300 XL-monitored machines?
A common approach for facilities with four or more monitored machines is to maintain a minimum of two 330104-00-18-10-01-00 probes in stock, paired with two matched extension cables and one spare driver module. For critical machines (compressors, main turbines) where an unplanned outage carries high production cost, a dedicated machine-level spare kit — probe, cable, driver, and a set of terminal blocks — reduces MTTR and eliminates the risk of a parts-sourcing delay extending a forced outage.

Q4: Can I order the 330104-00-18-10-01-00 as part of a broader spare parts package for a planned turnaround?
Yes. SMARTNEXMSK supports turnaround and outage spare packages for Bently Nevada 3300 XL and 3500 series systems. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss bill-of-materials-based sourcing, lead times, and consolidated shipment options for multi-component orders.
