Bently Nevada 330104-01-06-10-01-00 3300 XL Probe

Bently Nevada 330104-01-06-10-01-00 3300 XL Retrofit-Ready Eddy Current Proximity Probe for 3300 XL Control Systems

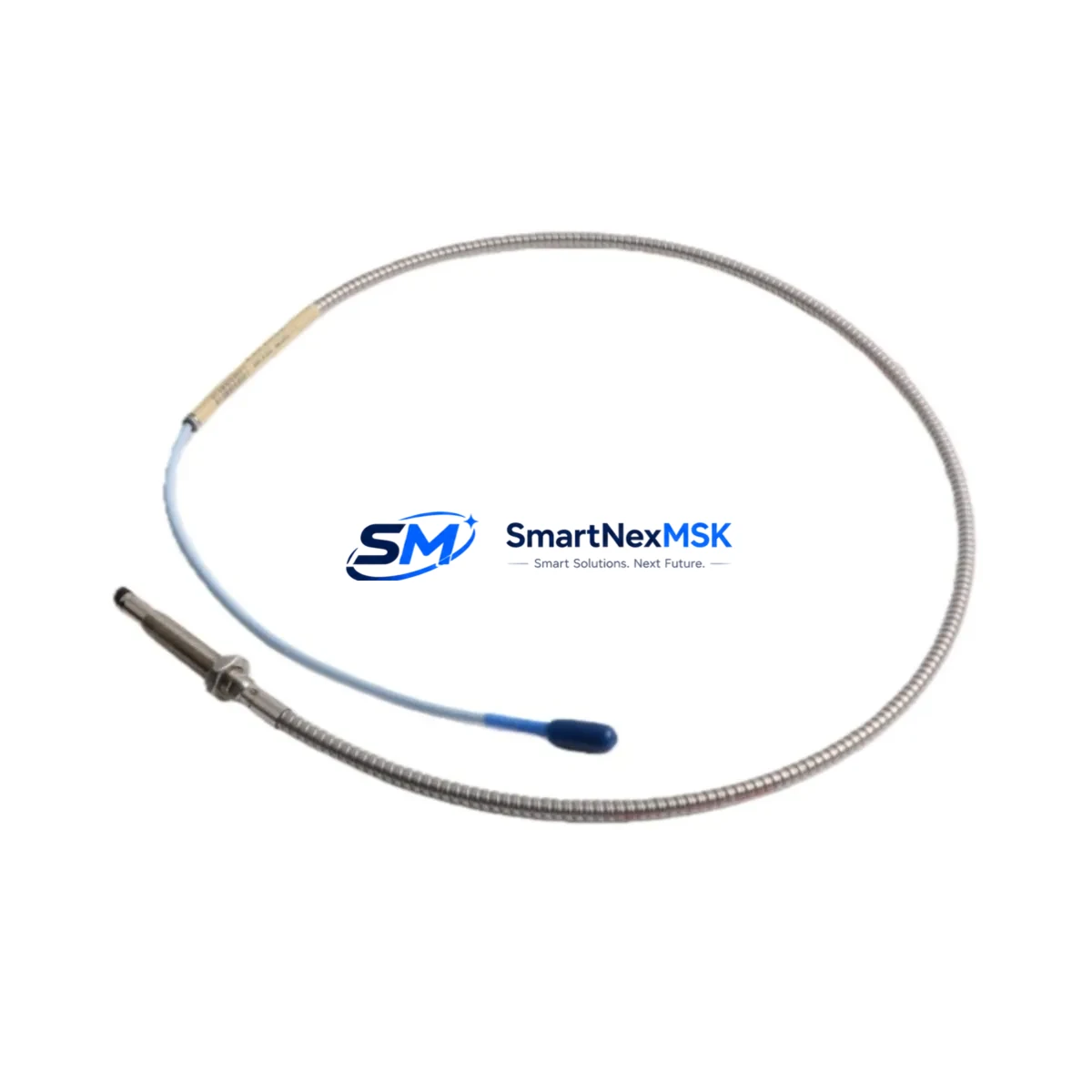

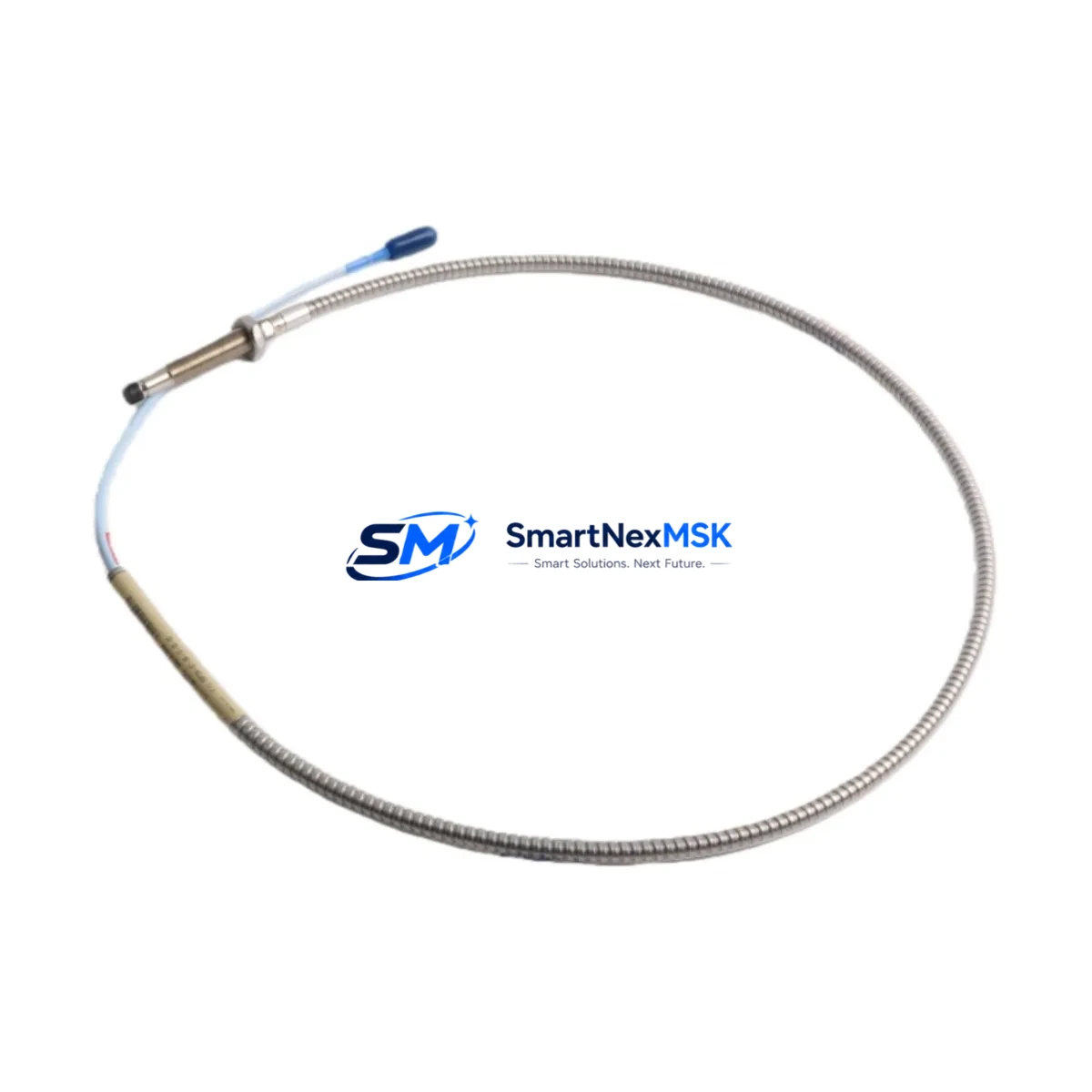

The Bently Nevada 330104-01-06-10-01-00 is an 8mm eddy current proximity probe engineered for the Bently Nevada 3300 XL Series machinery protection and condition monitoring platform. Designed for direct drop-in replacement of discontinued or end-of-life probes in legacy rotating machinery monitoring systems, this unit supports seamless retrofit integration without requiring changes to existing cabling, extension cables, or monitor rack configurations. Whether you are upgrading a turbine protection panel, replacing a worn probe on a compressor train, or restoring a mothballed monitoring system, the 330104-01-06-10-01-00 delivers the dimensional accuracy, gap voltage linearity, and signal integrity required by the 3300 XL system architecture.

Each unit is individually tested prior to shipment, verified against Bently Nevada factory specifications, and backed by a 12-month warranty. Stock is available for immediate dispatch, supporting urgent maintenance windows and planned turnaround outages where downtime control is critical.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 330104-01-06-10-01-00 into an existing machinery protection system, a structured retrofit plan significantly reduces risk and commissioning time. Begin by auditing the current probe installation: confirm the target shaft material (typically steel or stainless steel), verify the existing gap distance, and inspect the 330130 series extension cable for continuity and insulation integrity. If the extension cable shows signs of degradation, replacement with a matched-length 330130 cable ensures the system’s overall sensitivity remains within calibrated limits.

Next, confirm the associated Proximitor Sensor — typically a 330180-X1-05 or equivalent 8mm driver — is functioning correctly. The Proximitor converts the probe’s inductance change into a DC voltage signal read by the monitor module. A faulty Proximitor will produce erratic gap voltage readings even with a new probe installed, so bench-testing the driver before final installation is strongly recommended.

At the monitor rack level, verify that the 3300/16 Dual Voting Logic or 3300/20 Rack Interface Module is correctly configured for the probe channel being replaced. Check the I/O terminal block wiring — specifically the probe positive, probe negative, and shield connections — against the original loop drawing. Incorrect shield grounding is a common source of noise after probe replacement in older installations.

For systems that also include 3300/55 Keyphasor modules or 3300/46M temperature monitors in the same rack, confirm that the rack power supply — often a 3300/05 Power Supply Module — has sufficient headroom to support the full complement of installed modules after the retrofit. Overloaded rack power supplies are a frequently overlooked cause of intermittent OK relay trips during post-replacement commissioning.

If the retrofit is part of a broader control system upgrade that includes migration from an older Bently Nevada 3300 Series (non-XL) platform to the 3300 XL architecture, note that probe thread dimensions and cable connectors are compatible, but Proximitor sensitivity and gap voltage ranges may differ. Always re-calibrate gap voltage and re-confirm alert and danger setpoints in the monitor after any platform migration. Where the plant DCS — such as a Honeywell Experion PKS or Emerson DeltaV system — receives vibration data from the 3300 XL rack via Modbus or hardwired 4–20 mA signals, verify that the DCS tag scaling and alarm limits are updated to reflect the new probe’s output characteristics.

In applications where the 330104-01-06-10-01-00 is being installed alongside new 3500 Series monitors as part of a phased platform upgrade, ensure that the field wiring is clearly labeled and that the termination drawings are updated before the outage window closes. Mixed-platform installations — where some channels remain on 3300 XL hardware while others migrate to 3500 rack modules — require careful channel-by-channel documentation to prevent configuration errors during future maintenance cycles.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement or system migration requires preparation well before the maintenance window opens. For the 330104-01-06-10-01-00, the physical replacement procedure is straightforward: isolate the monitor channel, remove the existing probe, install the replacement at the correct gap distance (typically 1.0–1.5 mm for 8mm probes on steel shafts), and reconnect the extension cable. The entire field swap can typically be completed in under 30 minutes by a qualified instrumentation technician.

To protect existing program logic and alarm configurations, export the current monitor configuration from the 3300 XL rack using Bently Nevada’s System 1 software or the rack’s front-panel interface before beginning work. This configuration backup preserves alert setpoints, danger setpoints, time delays, and OK relay logic — all of which must be verified and re-entered if the monitor module is also being replaced as part of the retrofit.

Where the machinery protection system is integrated with a plant safety instrumented system (SIS) or emergency shutdown (ESD) logic, coordinate with the control room to place the affected channel in bypass mode before disconnecting the probe. Failure to bypass the channel may trigger a spurious shutdown, particularly on turbine or compressor trains where vibration monitors are wired into the ESD logic. Confirm with the operations team that bypass is authorized and logged before proceeding.

After installation, perform a static gap check with the shaft stationary, then a dynamic check at operating speed to confirm that vibration readings are within expected baseline ranges. Compare the new probe’s output against adjacent channels or historical trend data in System 1 to validate that the replacement has restored normal monitoring performance. Only after this verification should the channel bypass be removed and the monitor returned to normal protective service.

Retrofit Support FAQ

Q1: Is the 330104-01-06-10-01-00 a direct replacement for older Bently Nevada 3300 Series (non-XL) probes?
The 330104-01-06-10-01-00 is designed for the 3300 XL platform. While the thread dimensions are compatible with many older 3300 Series installations, the Proximitor sensitivity and gap voltage characteristics differ between the XL and non-XL platforms. Always verify Proximitor compatibility and re-calibrate gap voltage after installation. If your system uses non-XL Proximitors, consult the Bently Nevada compatibility matrix or contact our technical team before ordering.

Q2: What commissioning checks are required after installing this probe?
After physical installation, verify the static gap voltage (target: –10 VDC ±0.5 VDC at nominal gap on steel), confirm the OK relay is energized, check that alert and danger setpoints are correctly configured in the monitor module, and perform a dynamic vibration check at operating speed. If the system includes a Keyphasor channel, verify that the phase reference signal is stable before returning the machine to service.

Q3: Can this probe be used with extension cables of different lengths than the original installation?
The 3300 XL system is calibrated for specific probe-plus-extension-cable length combinations. Changing the extension cable length without recalibrating the Proximitor will shift the gap voltage curve and may cause inaccurate vibration readings or false OK relay trips. Always use the same cable length as the original installation, or recalibrate the system if a length change is unavoidable.

Q4: What does the 12-month warranty cover?
All units are tested against Bently Nevada factory specifications prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, improper gap setting, electrical overstress, or mechanical impact. Warranty claims are supported with a return authorization process; contact our team at sales@smartnexmsk.com for assistance.
