Bently Nevada 330104-01-06-10-01-05 Spare 3300 XL: Precision Replacement for Vibration Monitoring Systems

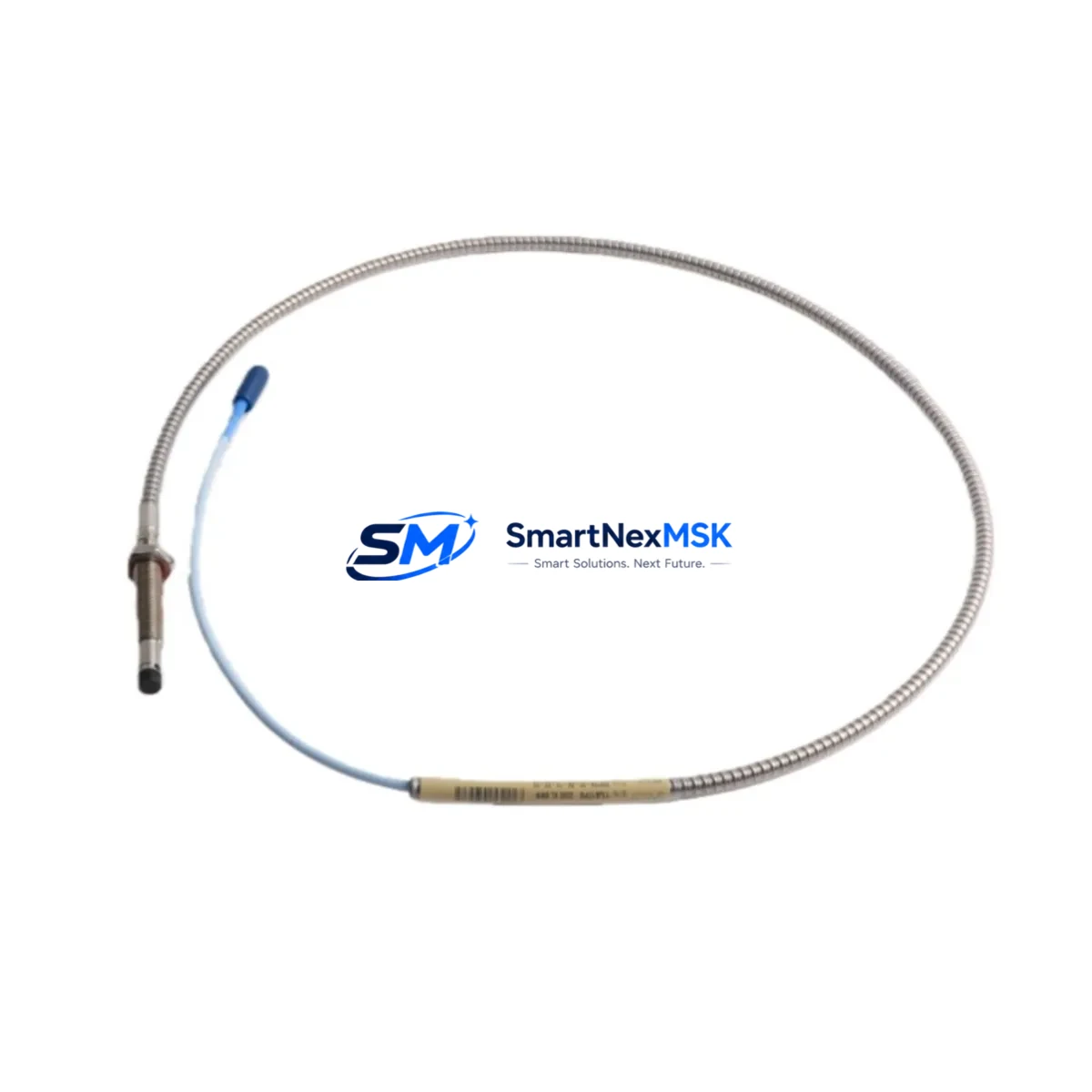

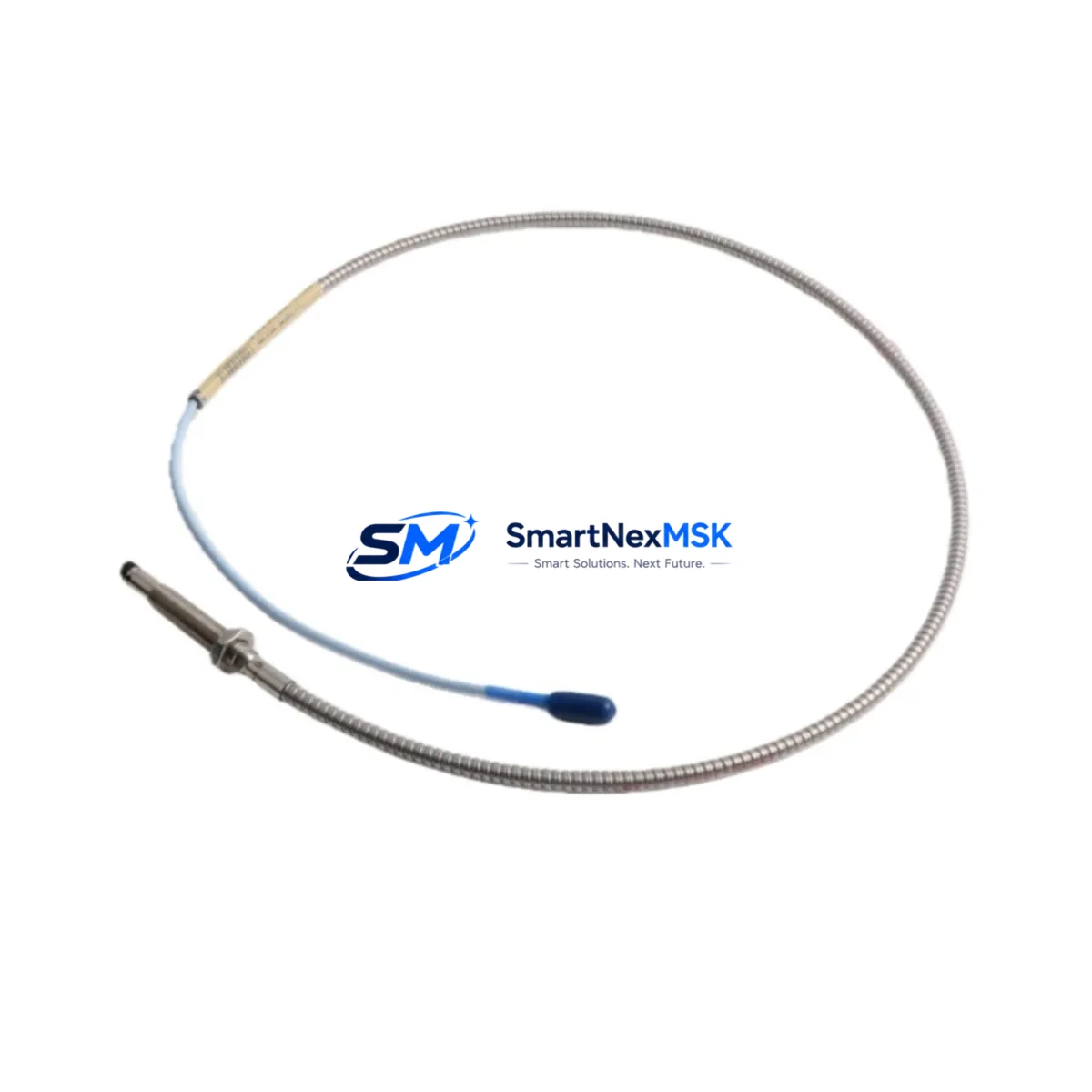

The Bently Nevada 330104-01-06-10-01-05 is an original 8mm eddy current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for shaft displacement, radial vibration, and axial position measurement in rotating machinery, this probe is a critical spare component for maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process industrial environments. When a vibration monitoring channel goes offline, the risk of undetected rotor instability, bearing failure, or shaft rub escalates rapidly — making a verified, ready-to-install spare essential to any planned maintenance or emergency recovery strategy.

At SMARTNEXMSK, every 330104-01-06-10-01-05 unit is sourced from authorized supply chains, inspected prior to dispatch, and shipped with a 12-month warranty. We support maintenance teams and procurement engineers who require fast turnaround, traceable documentation, and long-term supply continuity for legacy and active Bently Nevada 3300 XL installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-01-06-10-01-05 probe in the field, a disciplined maintenance engineer will not stop at the probe itself. The 3300 XL vibration monitoring loop is a system — and a fault in any interconnected component can mask or mimic a probe failure, leading to repeat downtime or misdiagnosis.

Begin by inspecting the 330130 Series extension cable that connects the probe to the Proximitor. Cable jacket abrasion, connector corrosion, or shield continuity loss are common failure modes in high-vibration or high-temperature environments. Replace the extension cable if resistance or capacitance readings fall outside Bently Nevada specification. Next, verify the 330180 or 330185 Proximitor Sensor — the signal conditioning module that converts probe gap voltage into a usable 4–20 mA or voltage output for the monitoring rack. A degraded Proximitor will produce erratic gap readings even with a new probe installed.

At the rack level, inspect the 3300/16 or 3500/42 Monitoring Module for alarm setpoint integrity, OK relay status, and channel configuration. Confirm that the 3300 XL System Power Supply is delivering stable -24 VDC to the Proximitor loop — power supply ripple or voltage sag is a frequent root cause of false OK trips. If the installation uses a 3500 Series Rack, also check the 3500/20 Rack Interface Module and communication backplane for firmware compatibility with the replacement probe configuration.

For installations with Modbus or FOUNDATION Fieldbus integration, verify the 3500/92 Communication Gateway is correctly mapping the channel data after probe replacement. In control cabinet environments, inspect terminal blocks and DIN rail wiring for loose connections at the Proximitor output terminals — vibration-induced terminal loosening is a silent contributor to intermittent channel faults. Where signal isolation is required between the monitoring rack and the DCS or PLC input card, confirm that any installed signal isolator or barrier module (such as a Pepperl+Fuchs or MTL type) is within calibration and passing the correct mV/V range.

Finally, if the machine is equipped with a Keyphasor probe (typically a 330980 or 330900 Series unit), verify its gap and output simultaneously — Keyphasor signal integrity directly affects phase-referenced vibration analysis and balancing data quality. Maintaining a paired spare set of probe, extension cable, and Proximitor in your on-site spare parts cabinet is the most effective strategy for minimizing mean time to repair (MTTR) on critical rotating machinery.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the monitoring channel is bypassed at the rack to prevent spurious trips during probe removal.

Step 2 — Remove the Existing Probe: Unthread the 330104-01-06-10-01-05 from the bracket using the M10 thread. Disconnect the integral cable from the extension cable junction. Inspect the probe tip for physical damage, contamination, or target surface scoring that may indicate a broader mechanical issue.

Step 3 — Install the Replacement Probe: Thread the new probe to the bracket. Set the gap to the Bently Nevada recommended linear range midpoint (typically 1.0–1.5 mm for 8mm probes on steel targets). Use a calibrated gap-setting tool or feeler gauge. Torque to specification.

Step 4 — Reconnect and Verify: Reconnect the extension cable. Power the Proximitor and measure the DC output voltage at the gap set point. Confirm the reading falls within the linear range specified on the Proximitor calibration chart. Verify the OK relay closes and the monitoring rack acknowledges the channel as healthy.

Step 5 — Return to Service: Remove the bypass, restore monitoring, and log the replacement in the maintenance management system (CMMS) with the new probe serial number, gap setting, and output voltage. Schedule the next inspection interval per OEM or site reliability standards.

This workflow is compatible with both direct replacement of legacy 330104 Series probes and cross-compatibility upgrades from older 7200 Series Bently Nevada probes where bracket geometry permits. No firmware changes are required at the 3300 XL rack level for a like-for-like probe replacement.

Spare Parts Support FAQ

Q1: Is the 330104-01-06-10-01-05 compatible with both 3300 XL and 3500 Series monitoring racks?
Yes. The 330104-01-06-10-01-05 probe is designed for the 3300 XL system but is fully compatible with 3500 Series racks when paired with the appropriate 330180 or 330185 Proximitor Sensor. The monitoring rack reads the Proximitor output signal, not the probe directly, so rack compatibility is determined at the Proximitor level.

Q2: How do you verify the probe is functional before installation?
Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing: gap-voltage linearity check, cable continuity, and connector integrity verification. A test report is available upon request. On-site, use a Bently Nevada calibrator or a precision DC voltmeter to confirm the output voltage at a known gap distance before final installation.

Q3: What is your lead time and long-term supply commitment for this part?
Standard in-stock units ship within 1–3 business days. For procurement engineers managing planned shutdowns or annual maintenance contracts, SMARTNEXMSK offers reserved stock arrangements and blanket order support to ensure supply continuity for 3300 XL spare parts over multi-year maintenance cycles.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, output signal deviation beyond OEM specification, and connector or cable integrity failures under normal operating conditions. It does not cover physical damage from improper installation, target surface contact, or chemical exposure. Warranty claims are processed with return authorization and include replacement or full credit.
